Data Link Connector Diagnosis

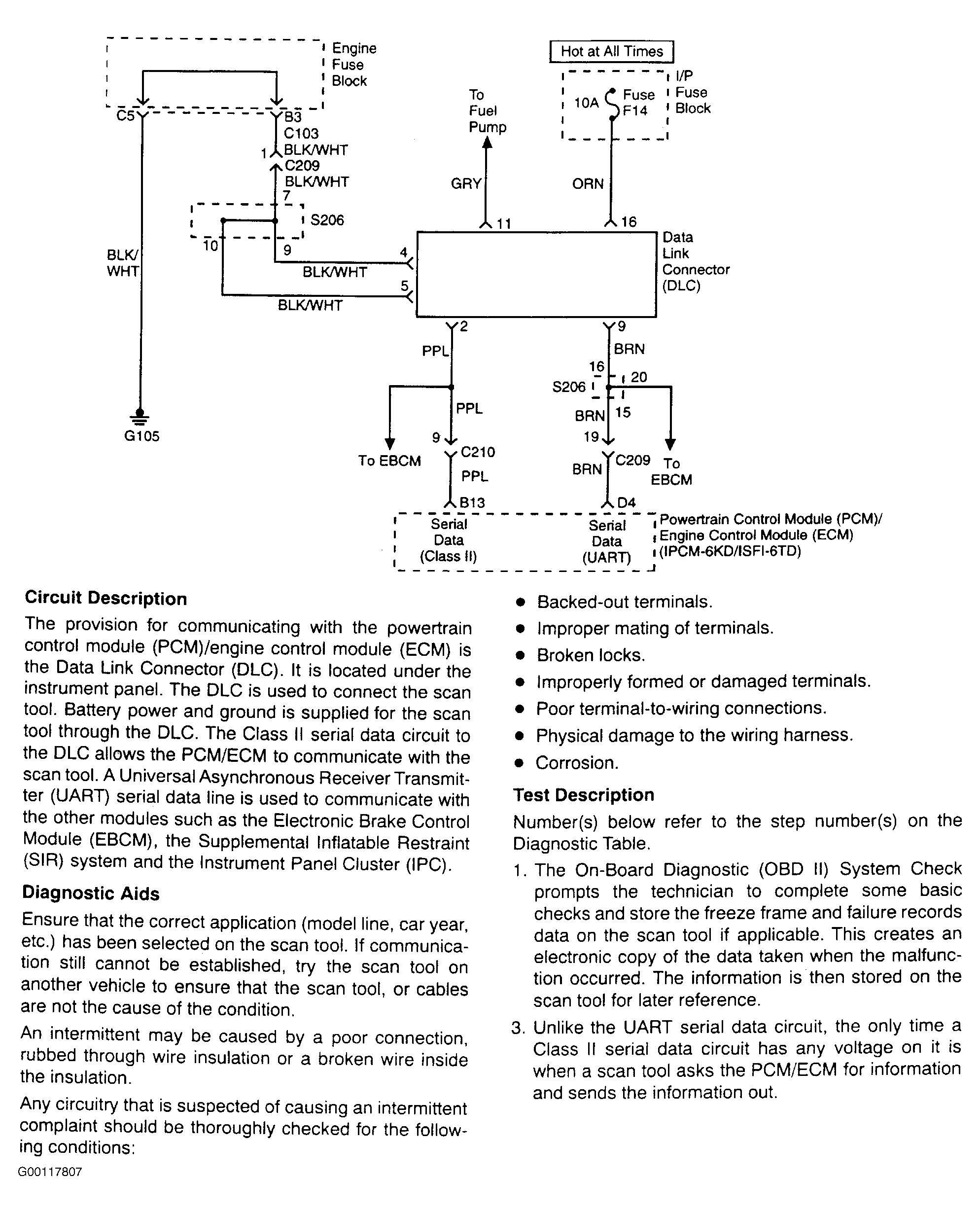

Fig 1: Data Link Connector Diagnosis (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

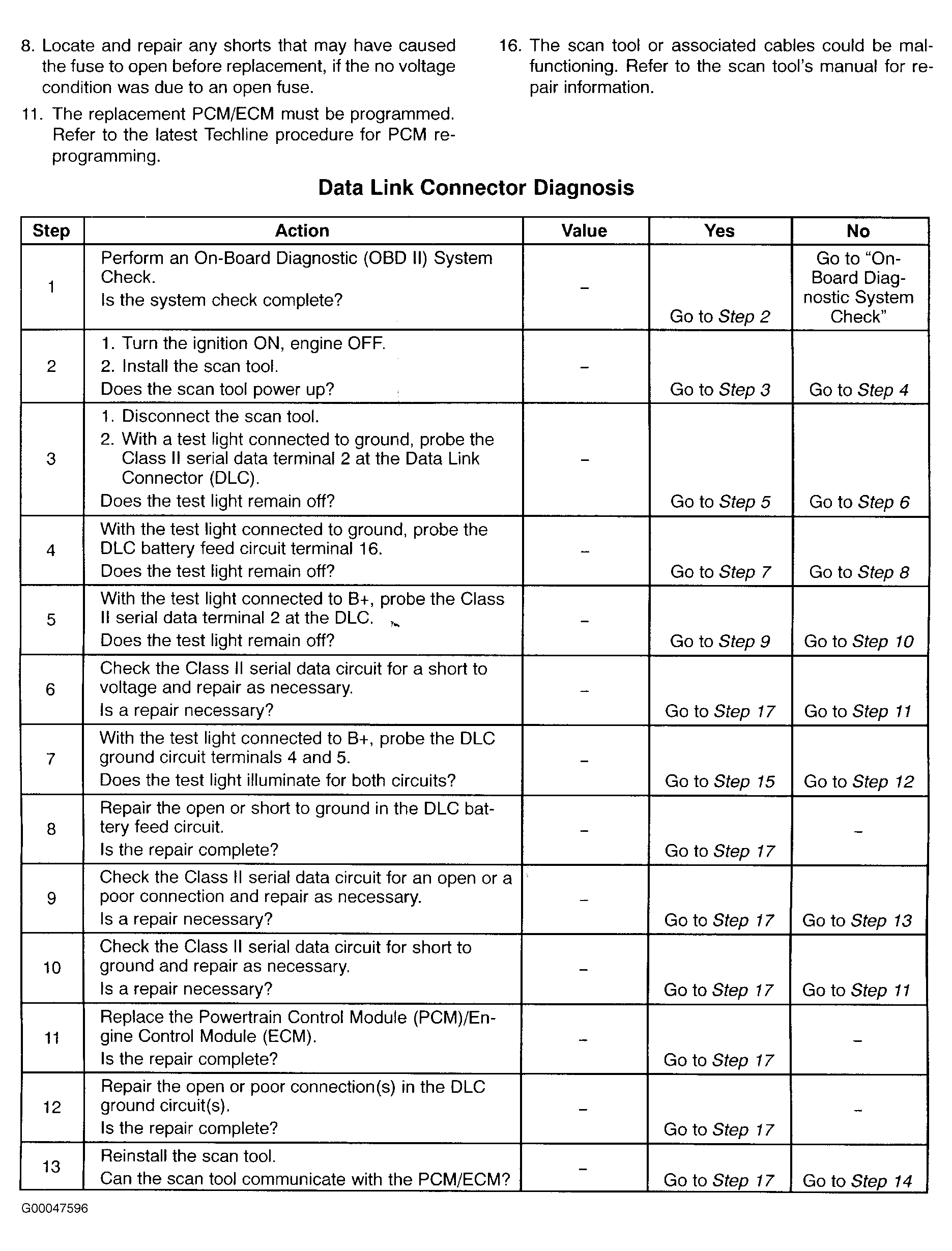

Fig 2: Data Link Connector Diagnosis (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

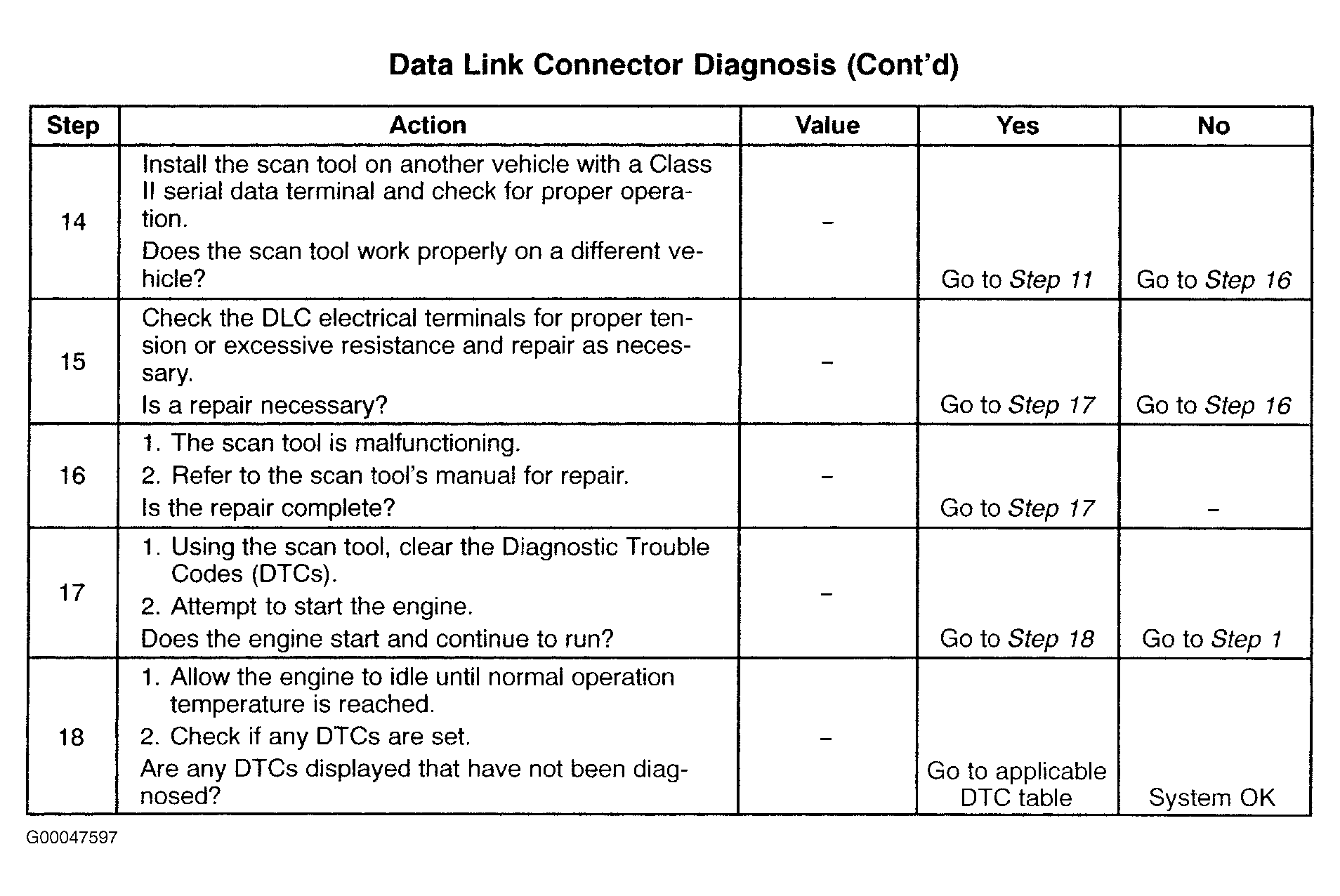

Fig 3: Data Link Connector Diagnosis (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
