Engine Cranks But Will Not Run

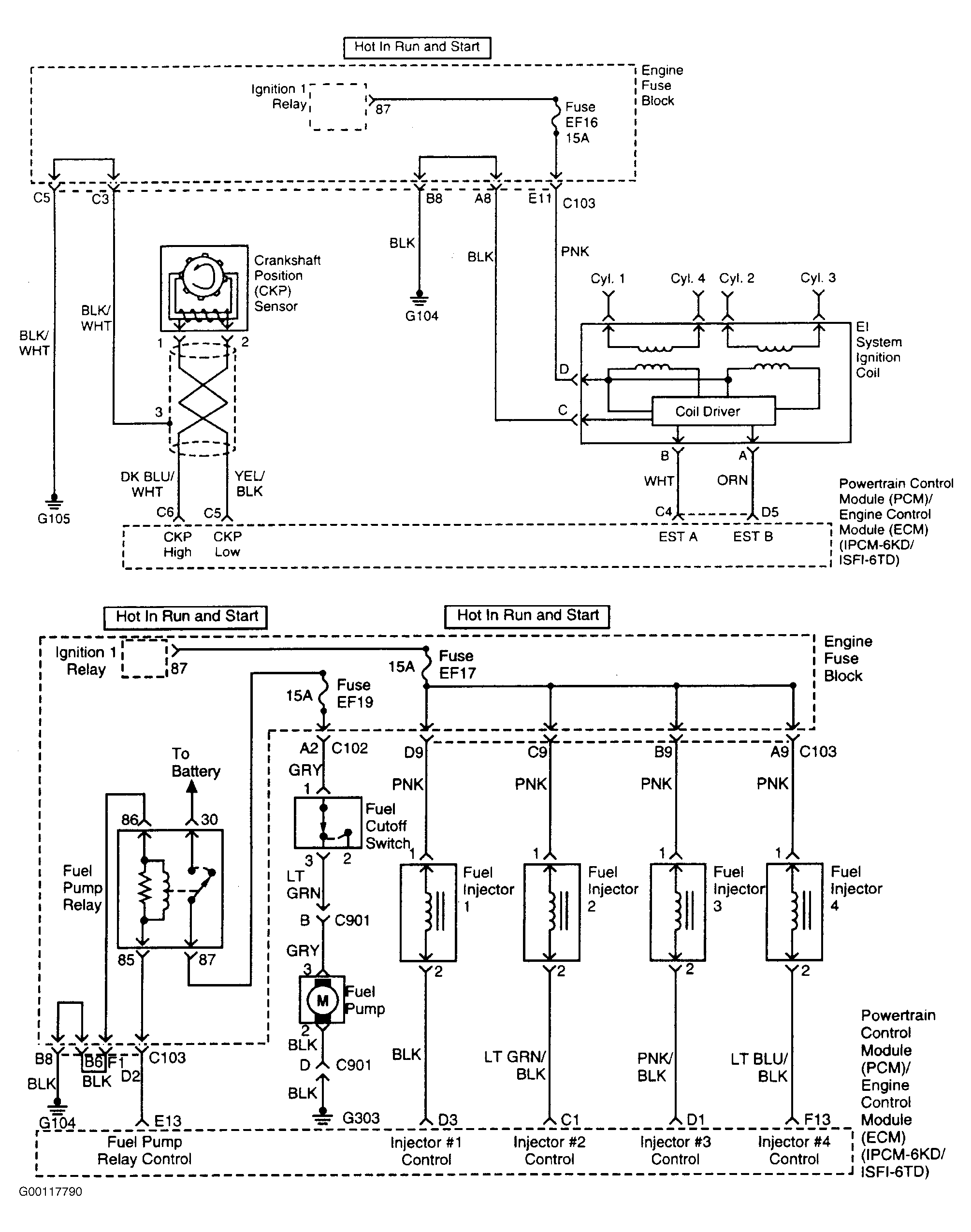

Fig 1: Engine Cranks But Will Not Run (Circuit Diagram)

Courtesy of DAEWOO MOTOR AMERICA, INC.

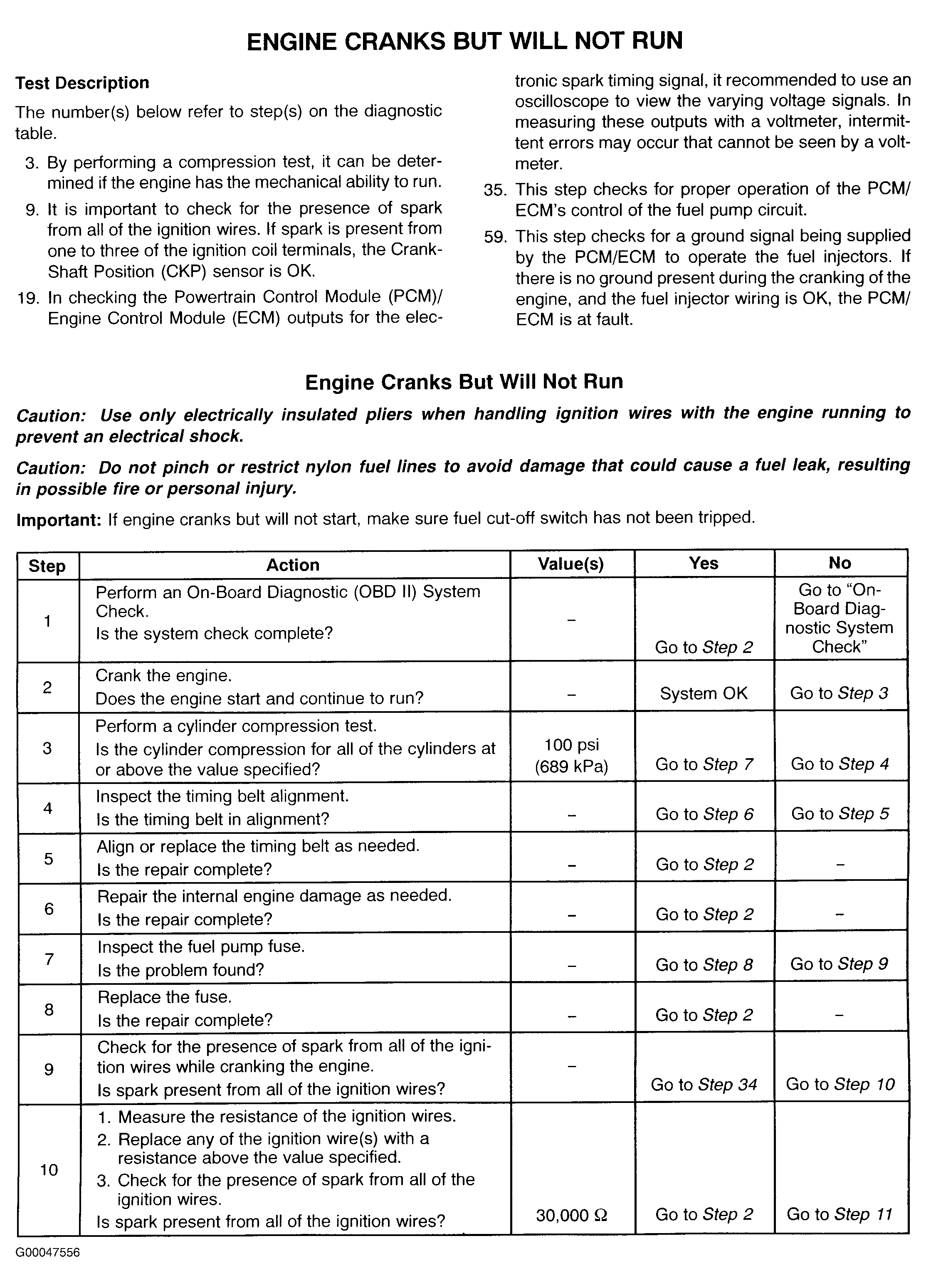

Fig 2: Engine Cranks But Will Not Run (1 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

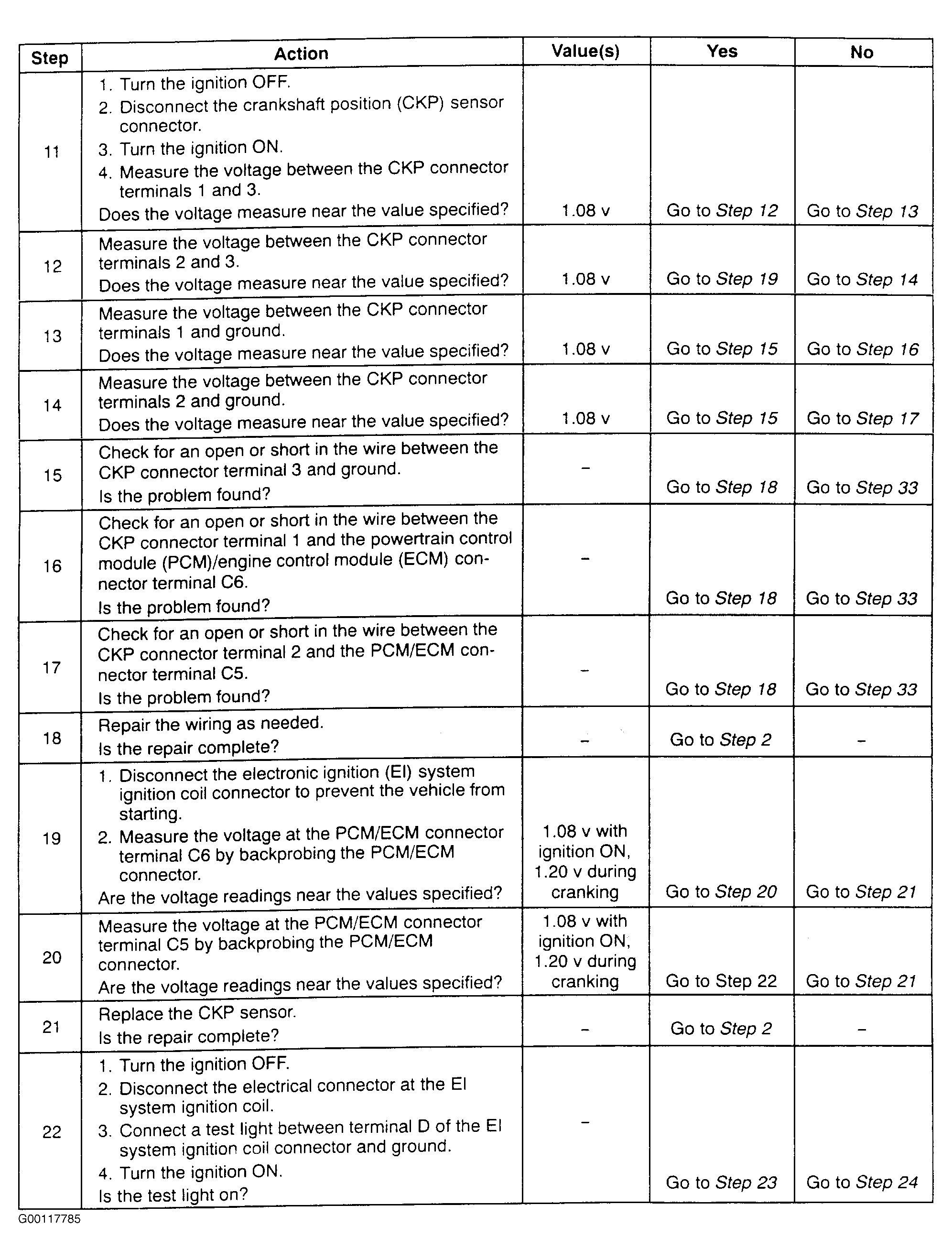

Fig 3: Engine Cranks But Will Not Run (2 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

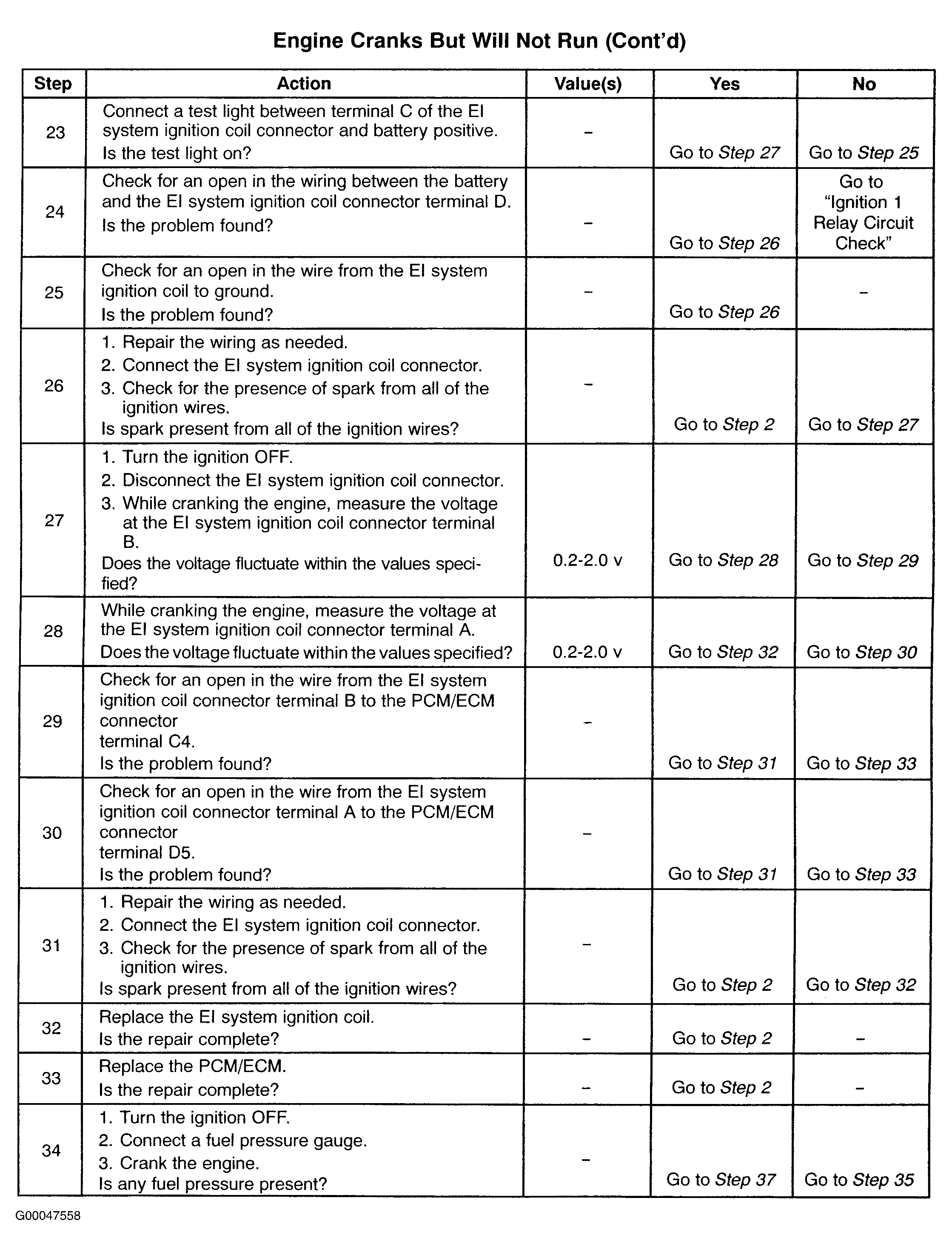

Fig 4: Engine Cranks But Will Not Run (3 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 5: Engine Cranks But Will Not Run (4 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

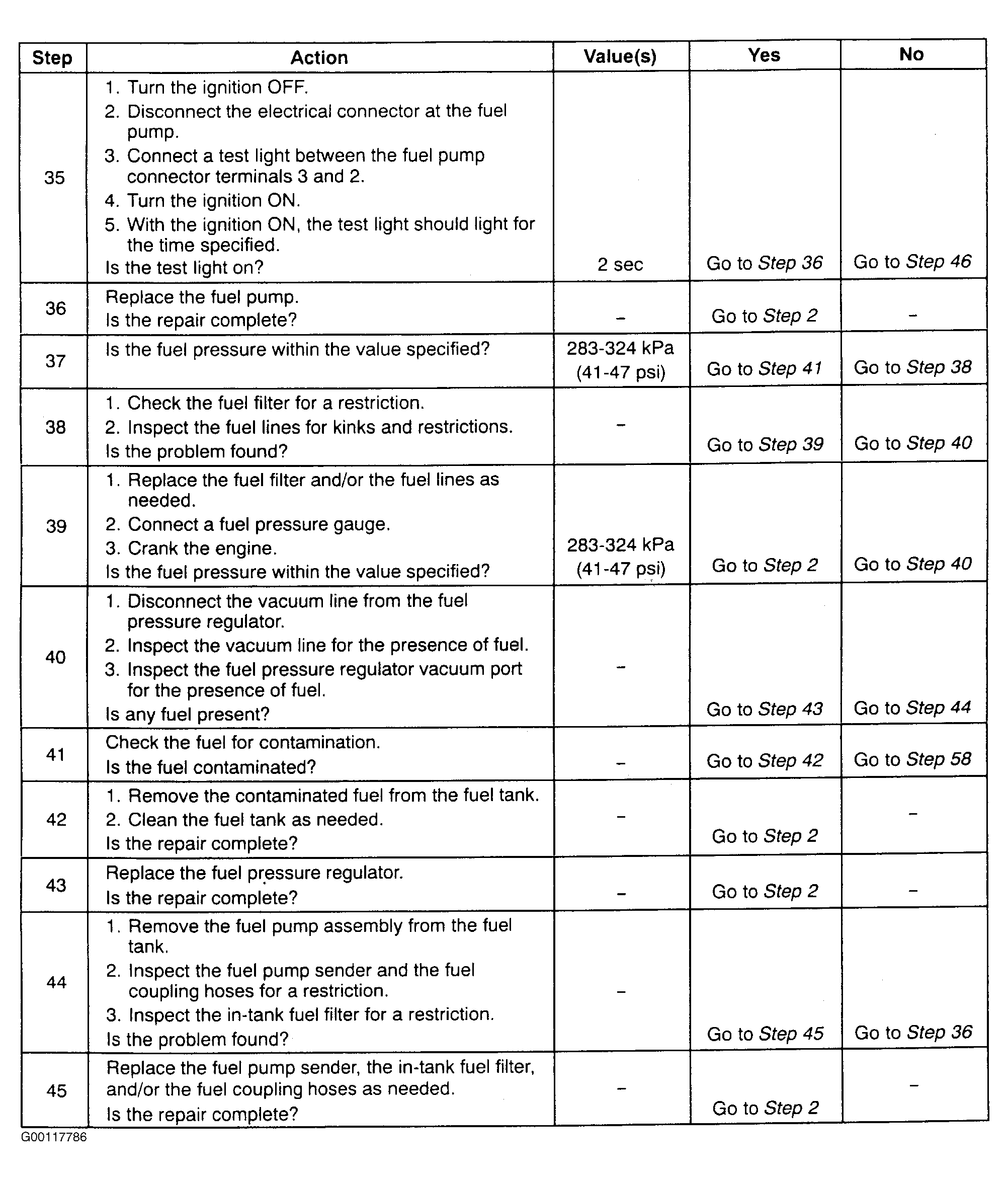

Fig 6: Engine Cranks But Will Not Run (5 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

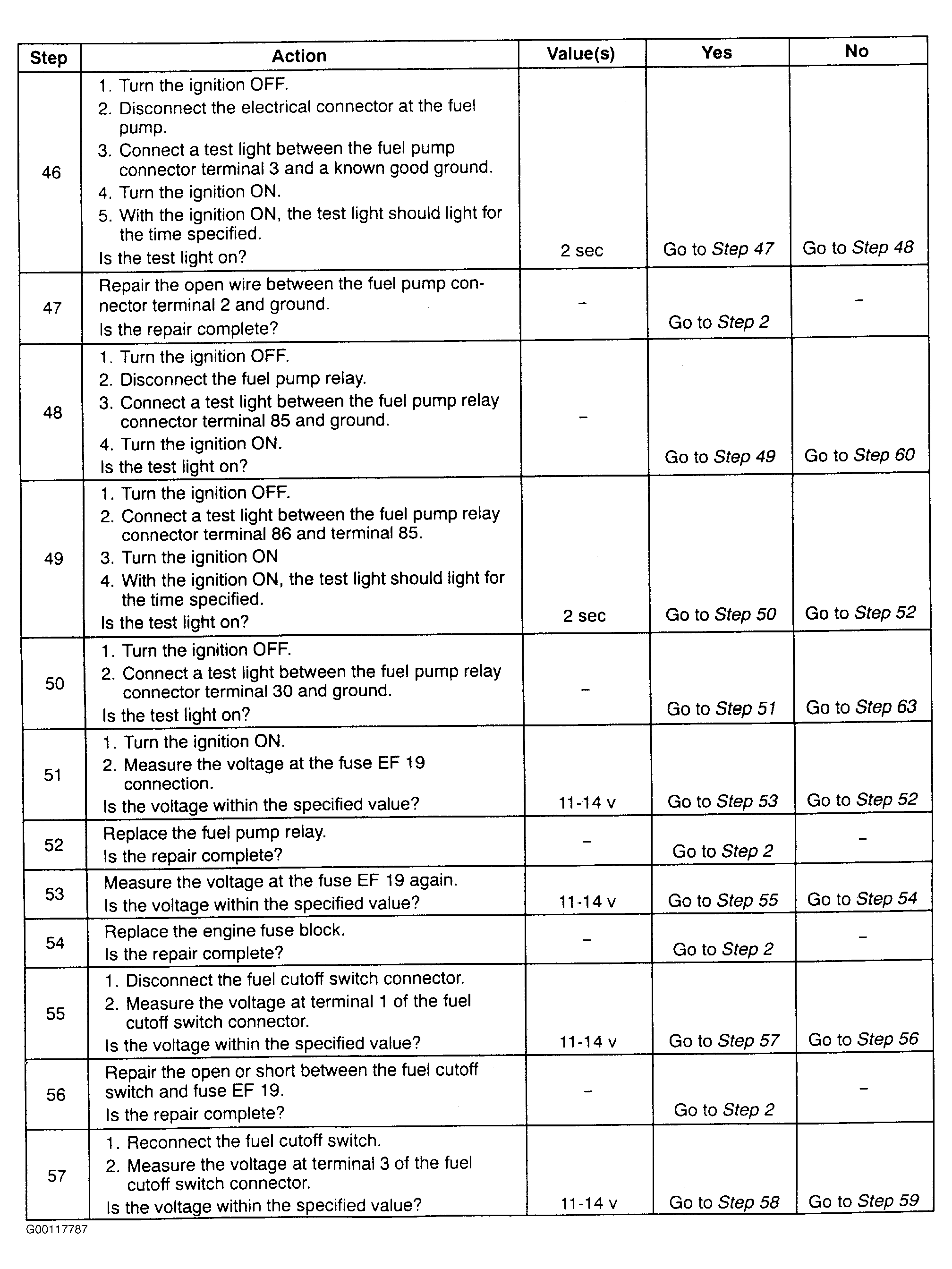

Fig 7: Engine Cranks But Will Not Run (6 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

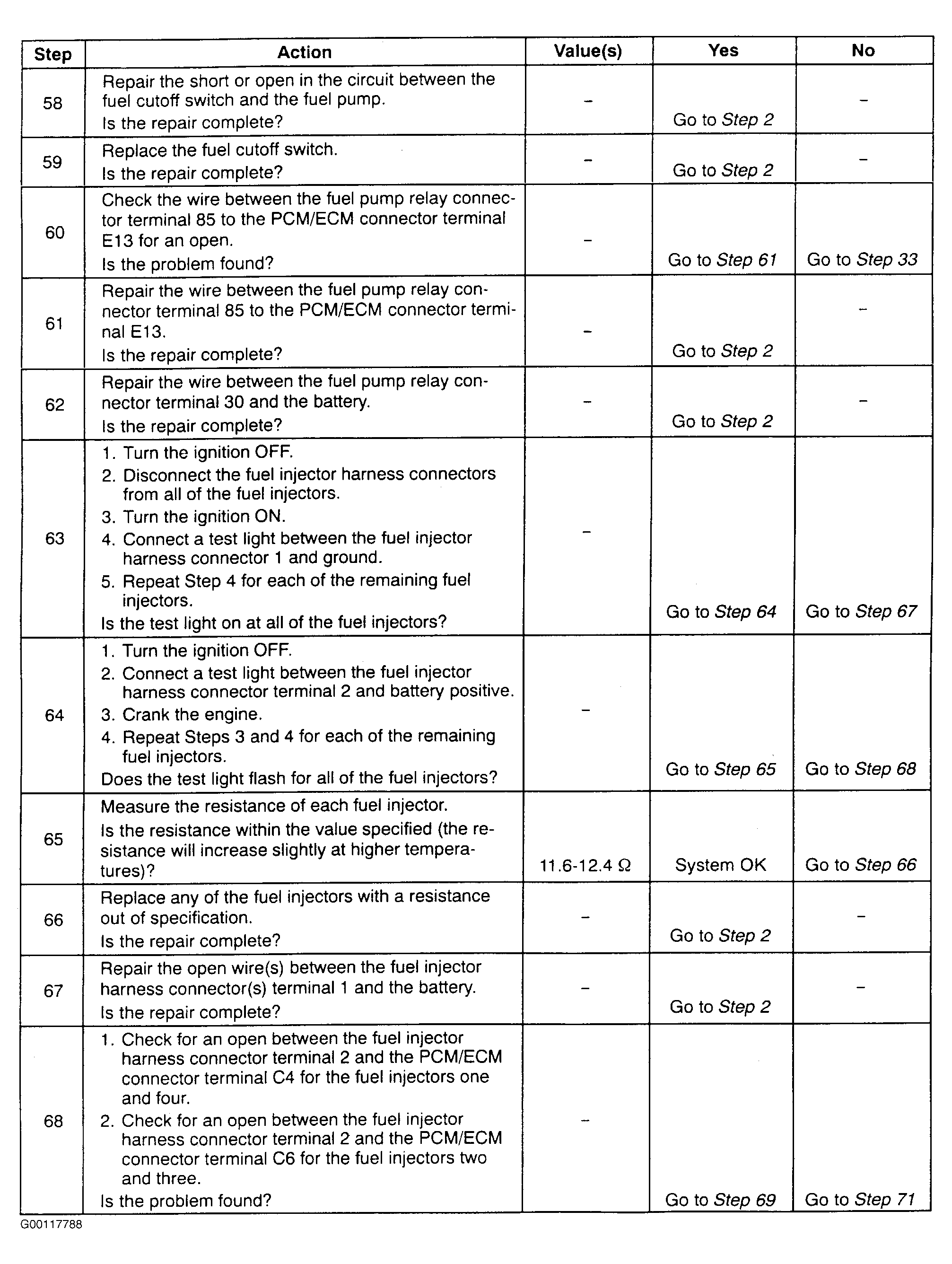

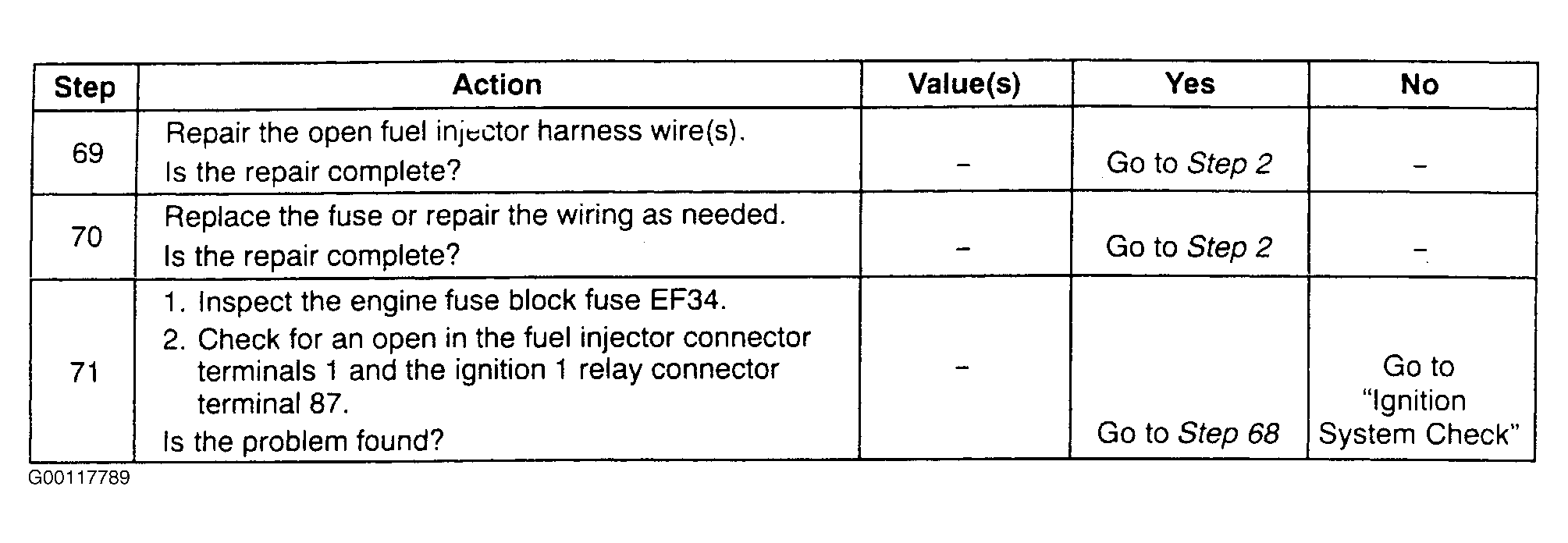

Fig 8: Engine Cranks But Will Not Run (7 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.
