Fuel Pump Relay Circuit Check

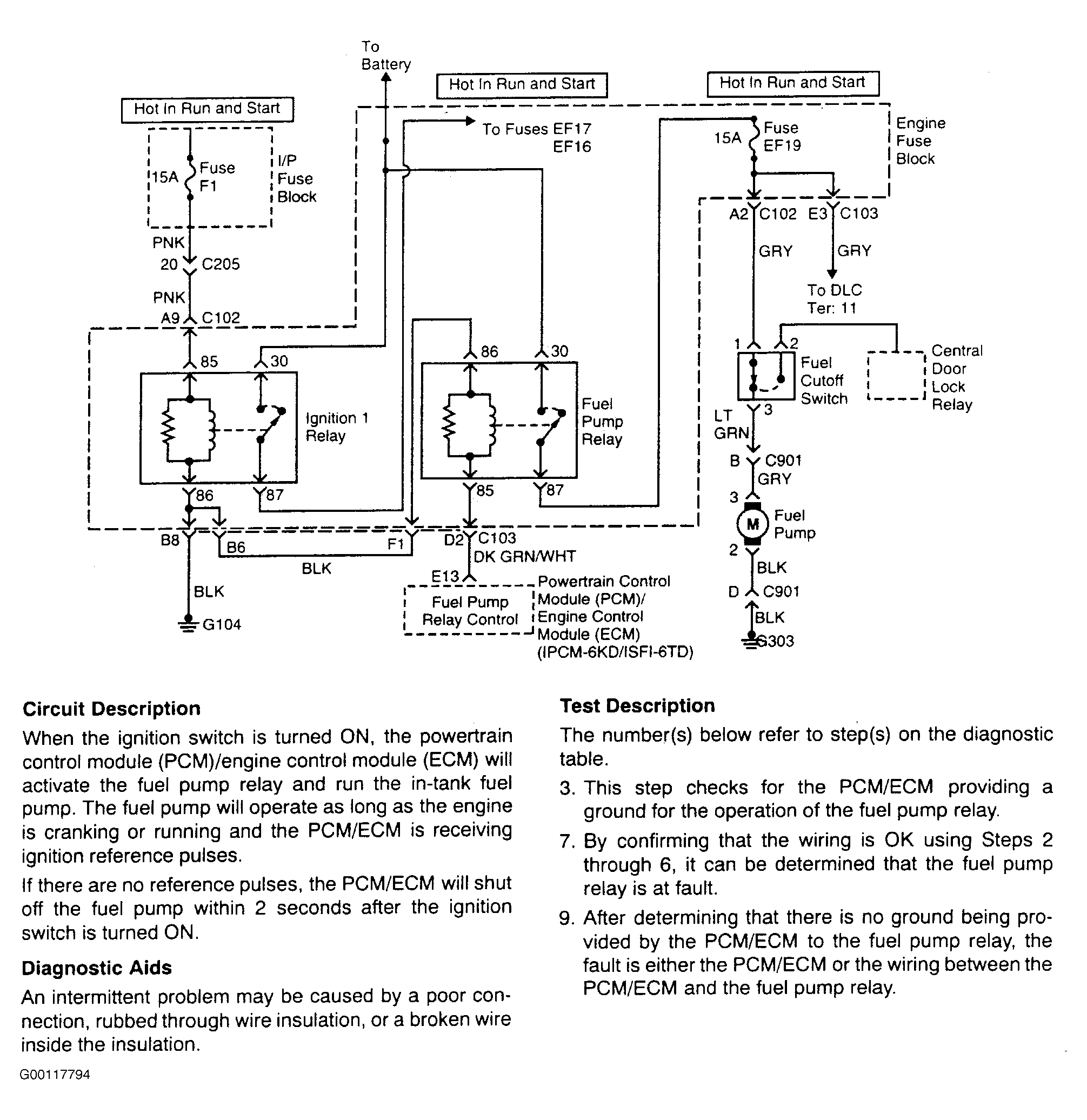

Fig 1: Fuel Pump Relay Circuit Check (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

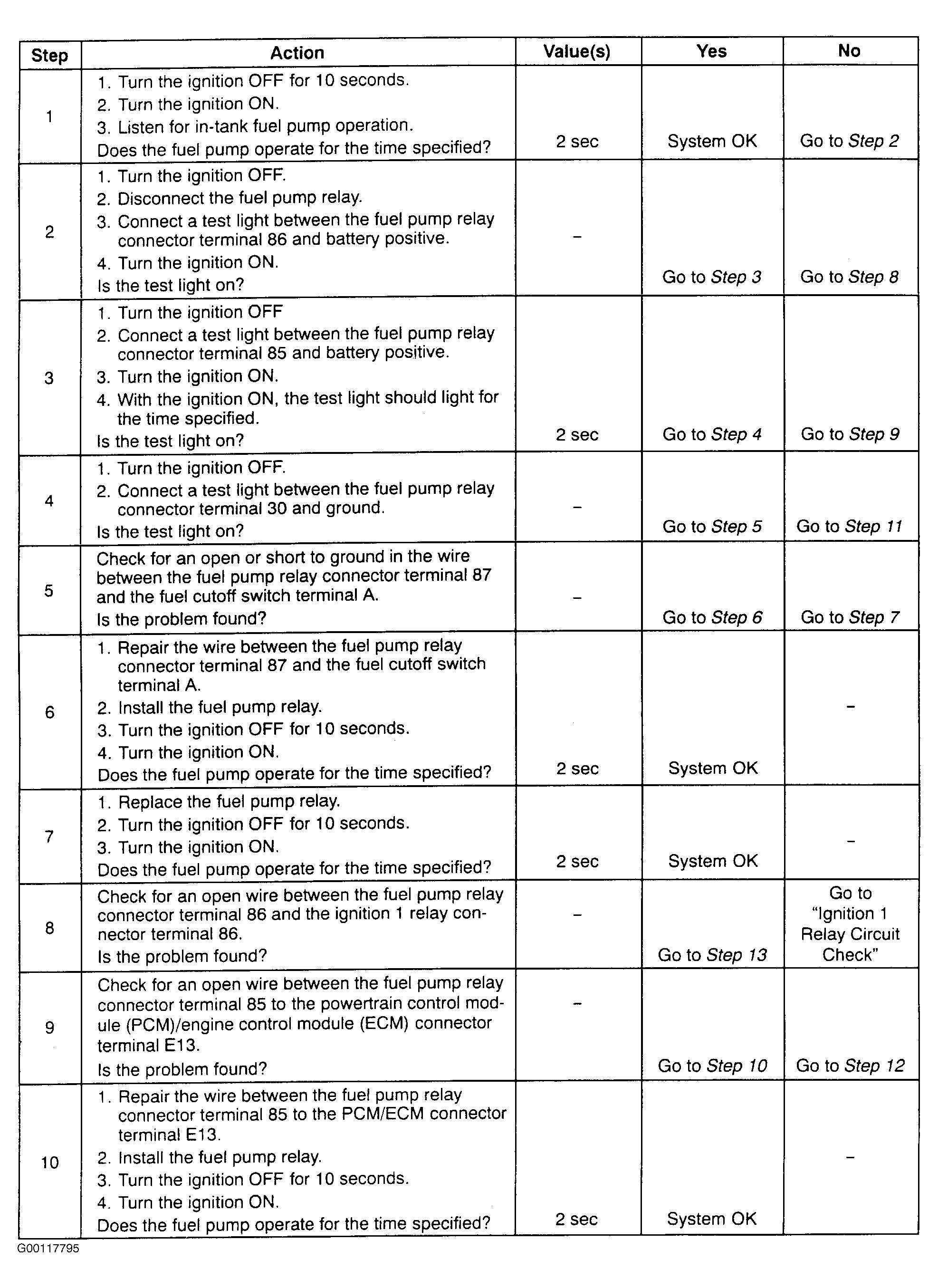

Fig 2: Fuel Pump Relay Circuit Check (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

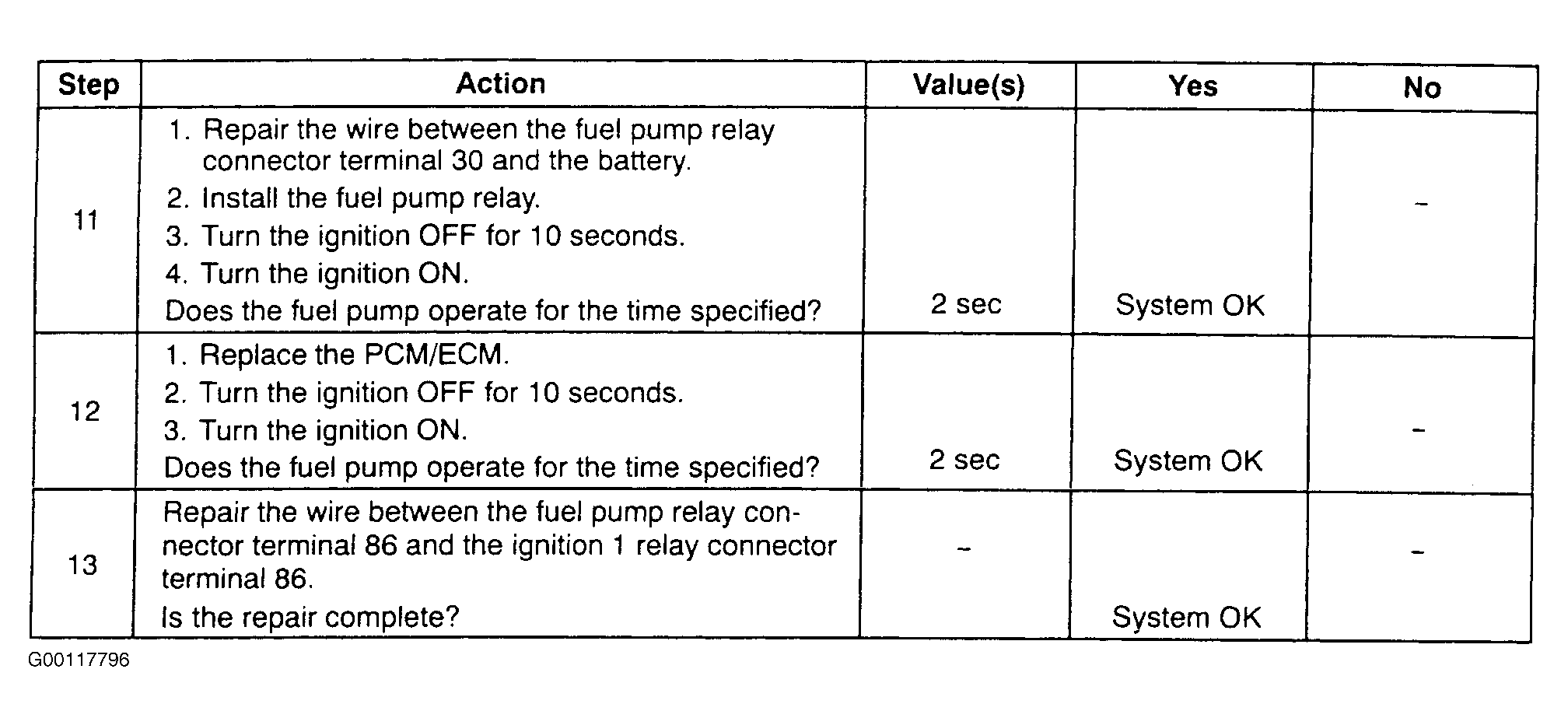

Fig 3: Fuel Pump Relay Circuit Check (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
