Idle Air Control System Check

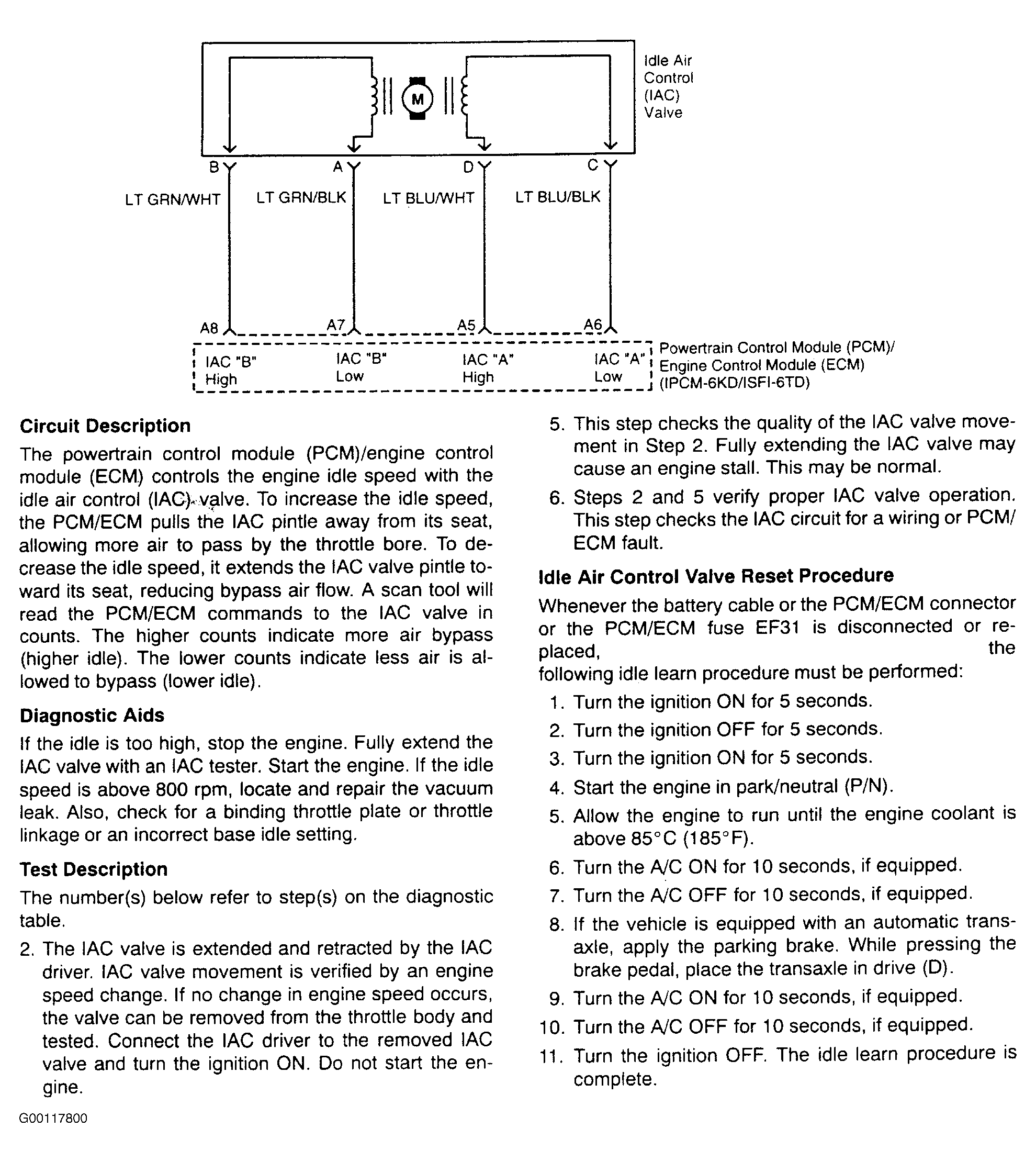

Fig 1: Idle Air Control System Check (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 2: Idle Air Control System Check (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 3: Idle Air Control System Check (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
