Daewoo
›
1999
›
Nubira CDX, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
System & Component Testing
›
Park/Neutral Position Switch
Park/Neutral Position Switch

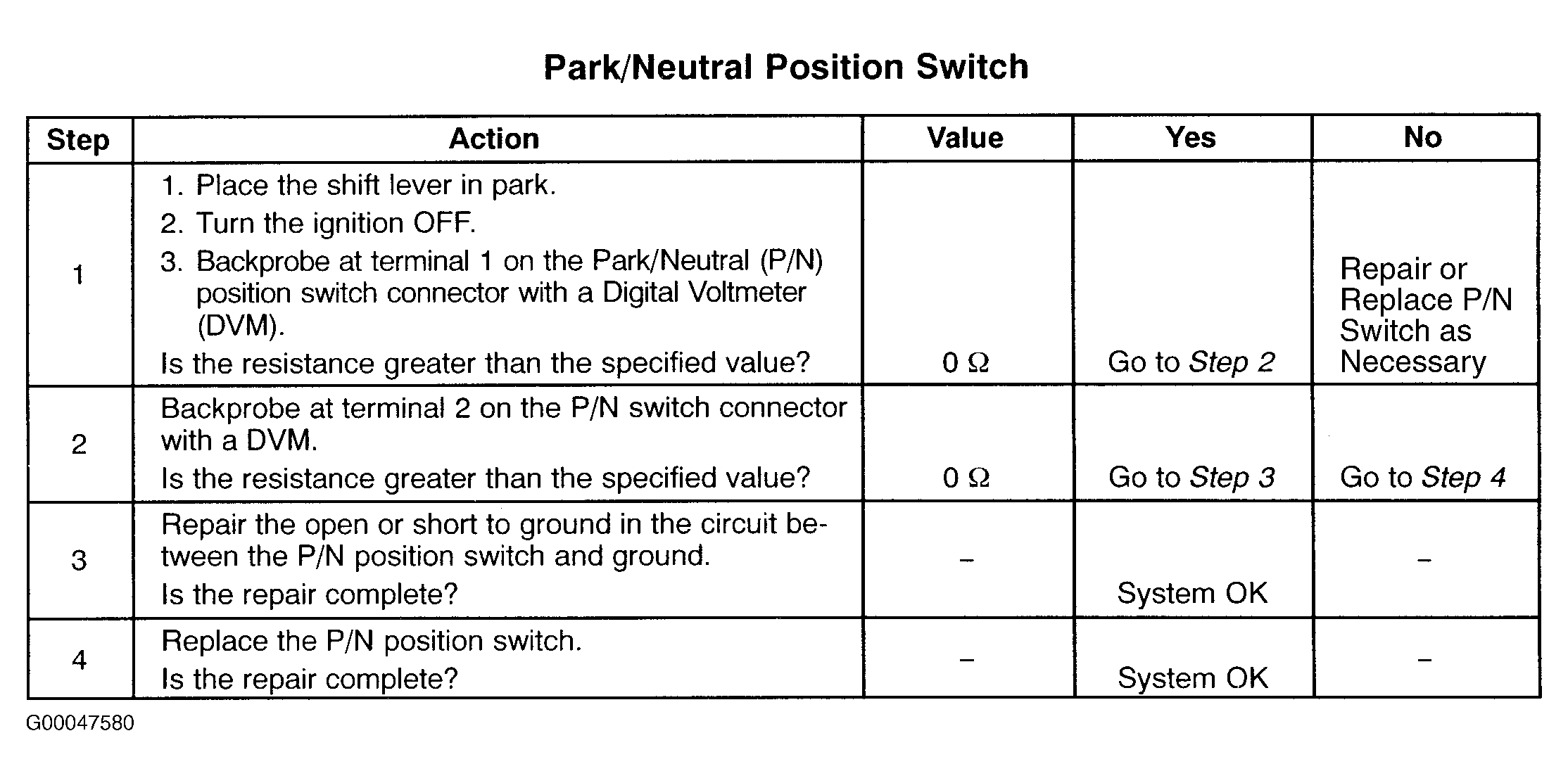

Fig 1: Park/Neutral Position Switch (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

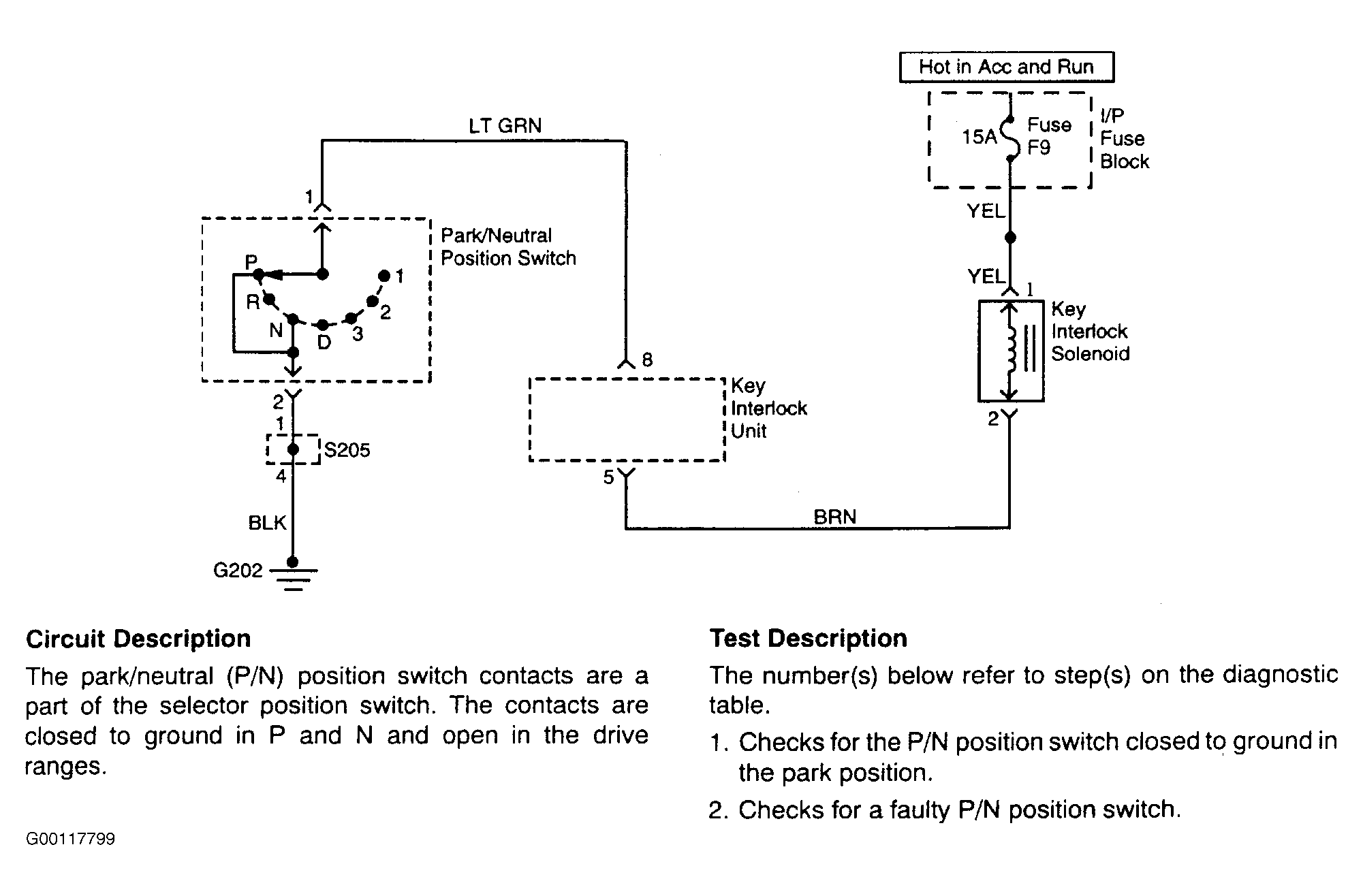

Fig 2: Park/Neutral Position Switch (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
