Engine Cooling Fan Circuit Check - With A/C

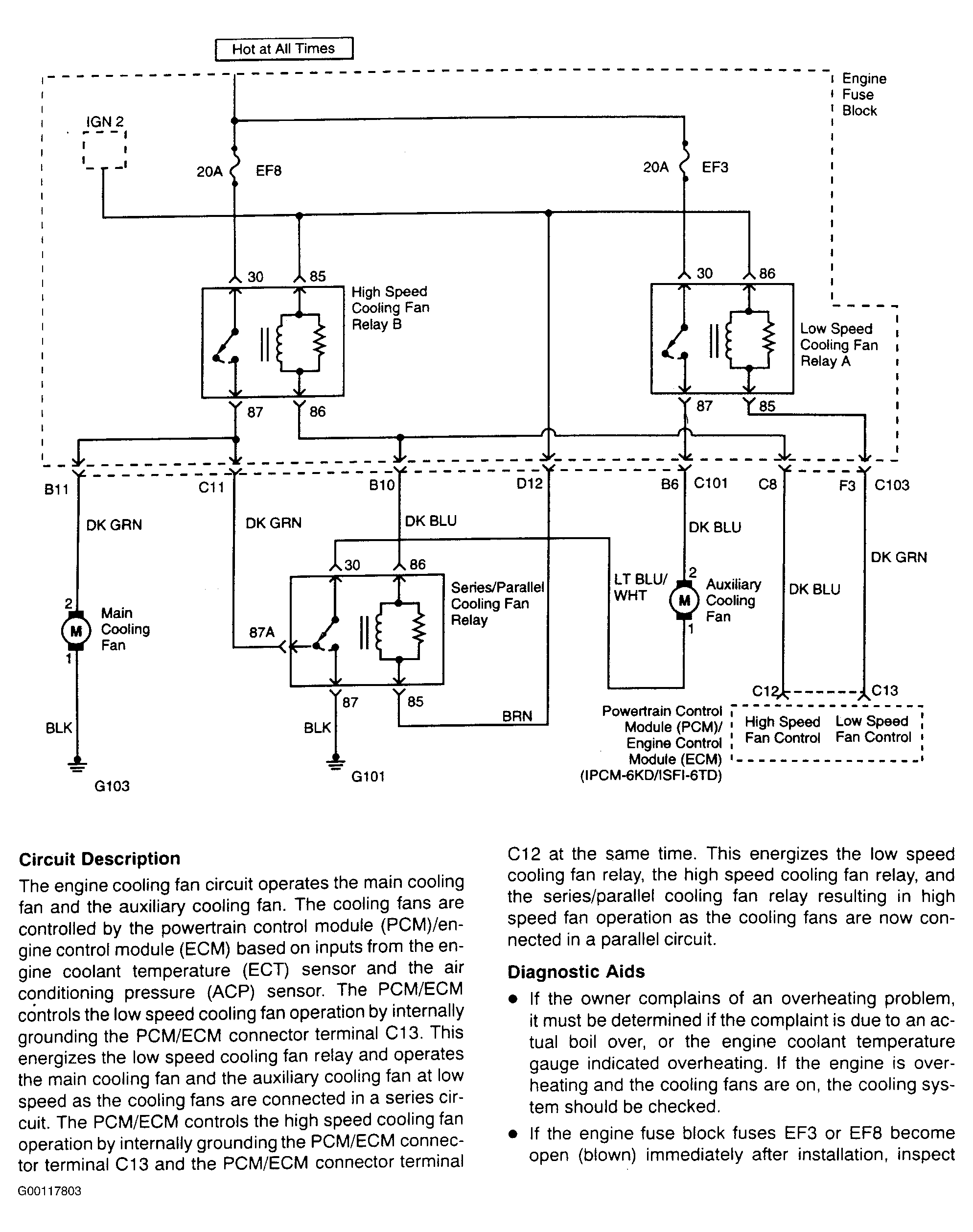

Fig 1: Engine Cooling Fan Circuit Check - With A/C (1 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

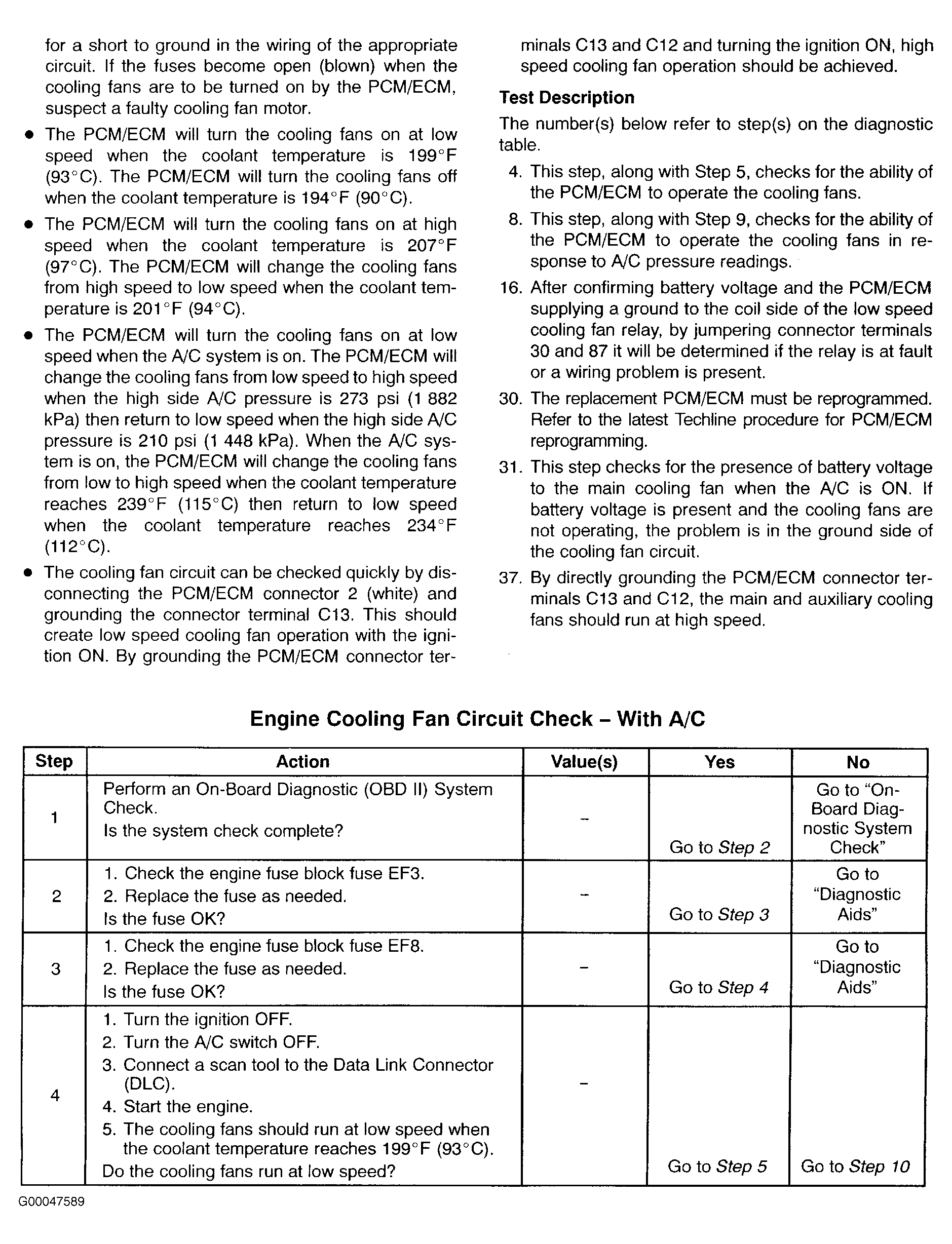

Fig 2: Engine Cooling Fan Circuit Check - With A/C (2 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

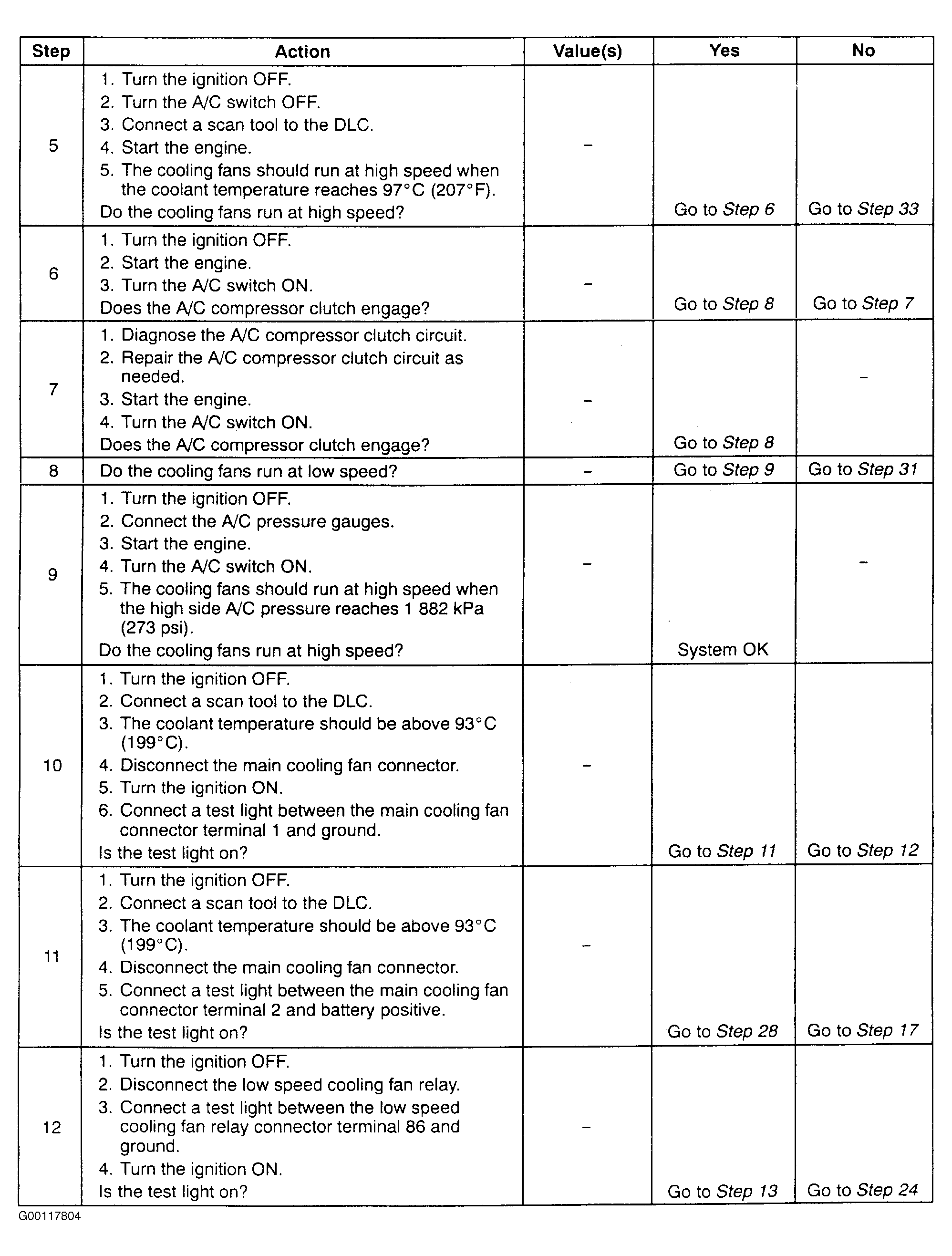

Fig 3: Engine Cooling Fan Circuit Check - With A/C (3 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 4: Engine Cooling Fan Circuit Check - With A/C (4 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 5: Engine Cooling Fan Circuit Check - With A/C (5 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

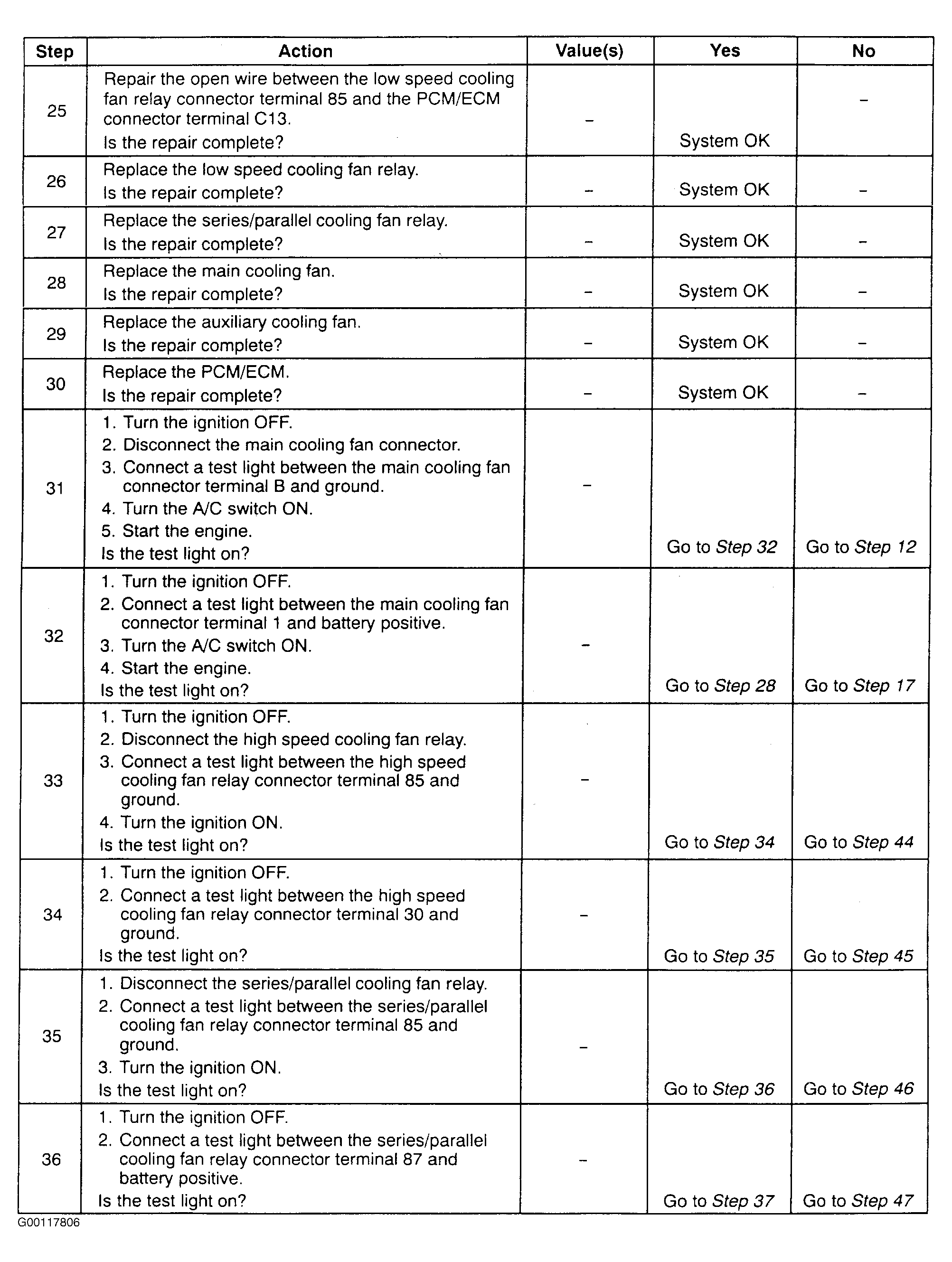

Fig 6: Engine Cooling Fan Circuit Check - With A/C (6 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

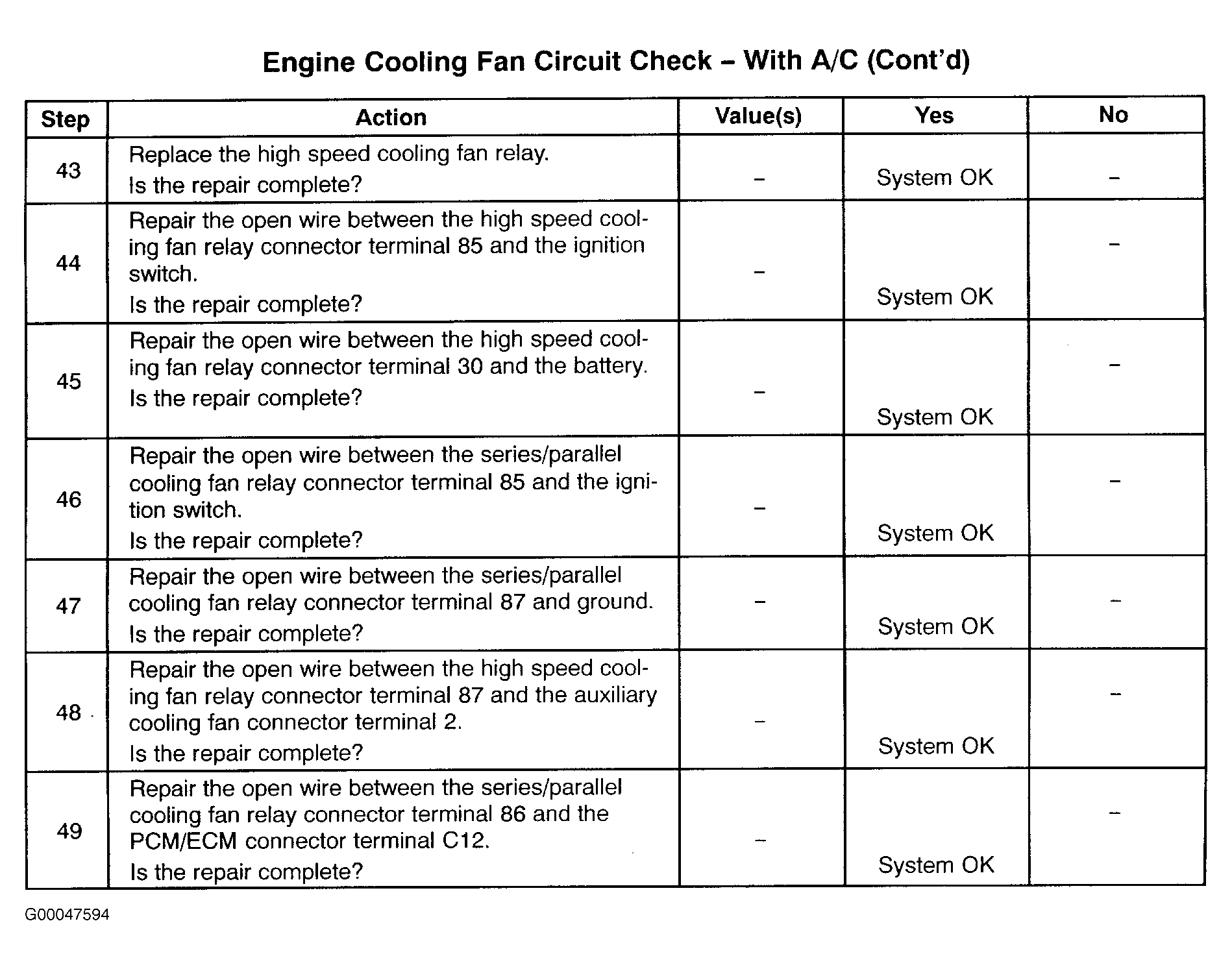

Fig 7: Engine Cooling Fan Circuit Check - With A/C (7 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.
