EVAP Control System Diagnosis: Notes

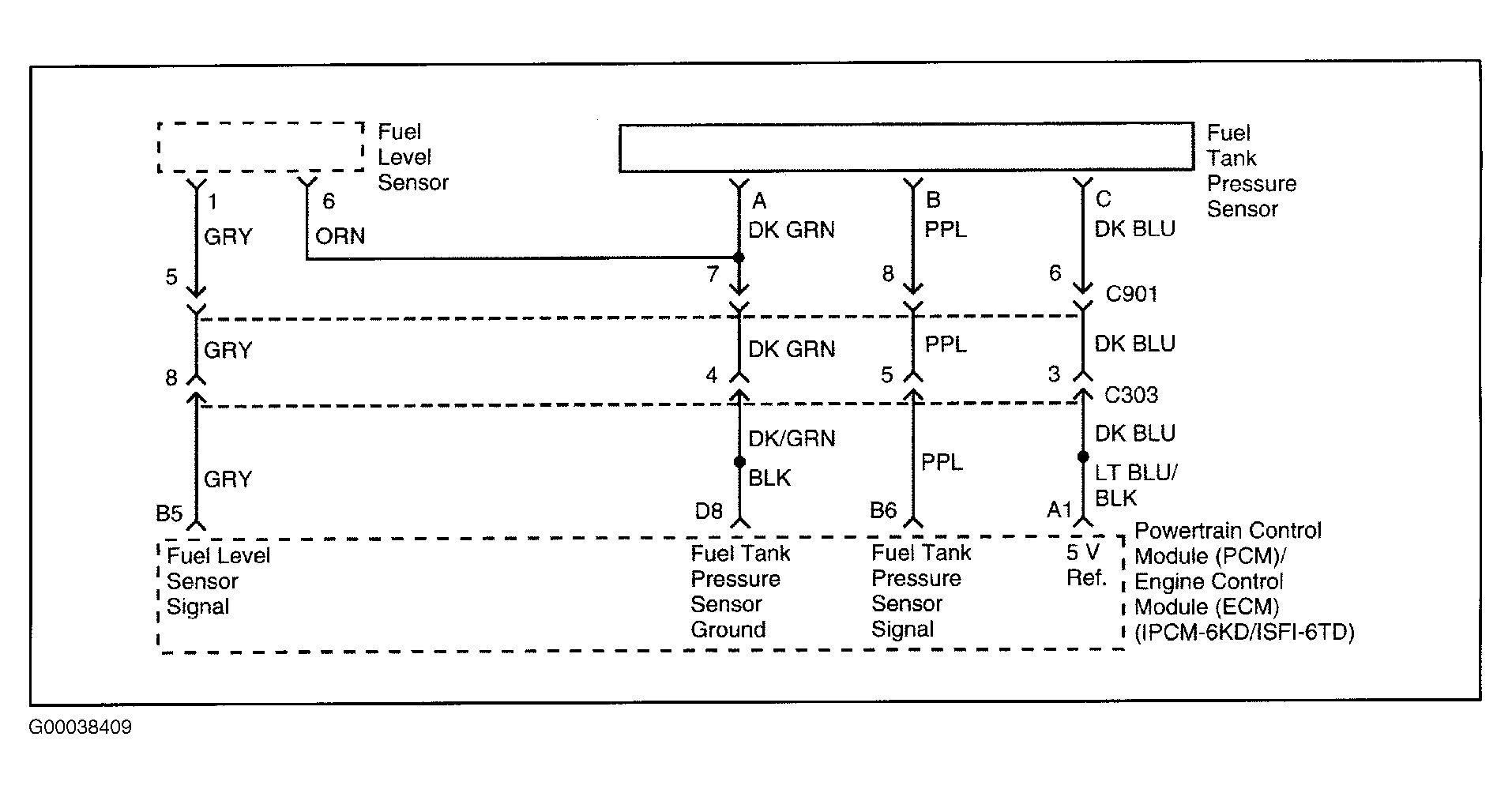

Fig 1: EVAP Control System Circuit Diagram
G00038409Courtesy of DAEWOO
