Wiring Diagrams

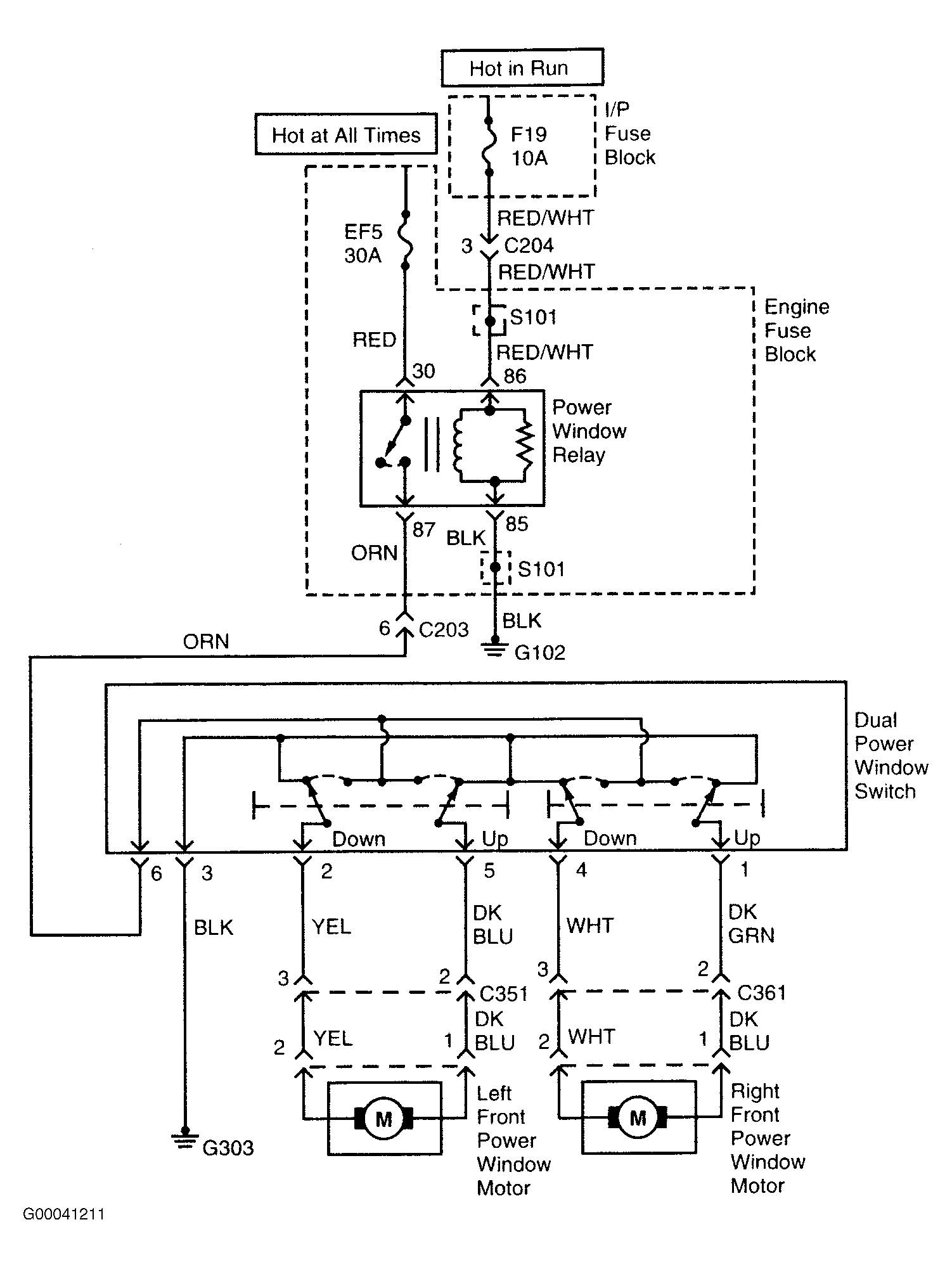

Fig 1: Power Windows Circuit Diagram (2-Door)
Courtesy of DAEWOO MOTOR AMERICA, INC.

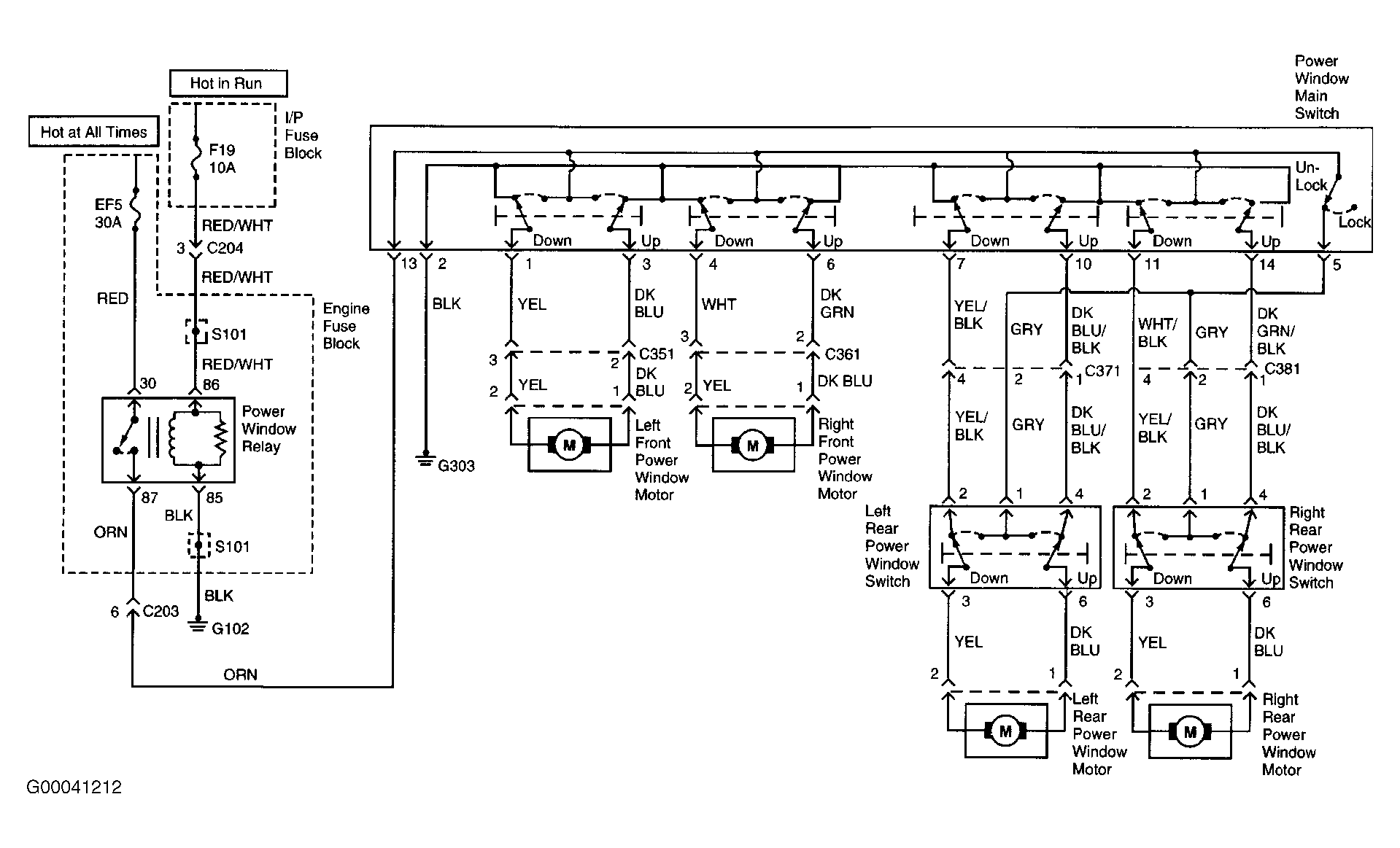

Fig 2: Power Windows Circuit Diagram (4-Door)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
