Power Supply To Control Module, No DTC Stored

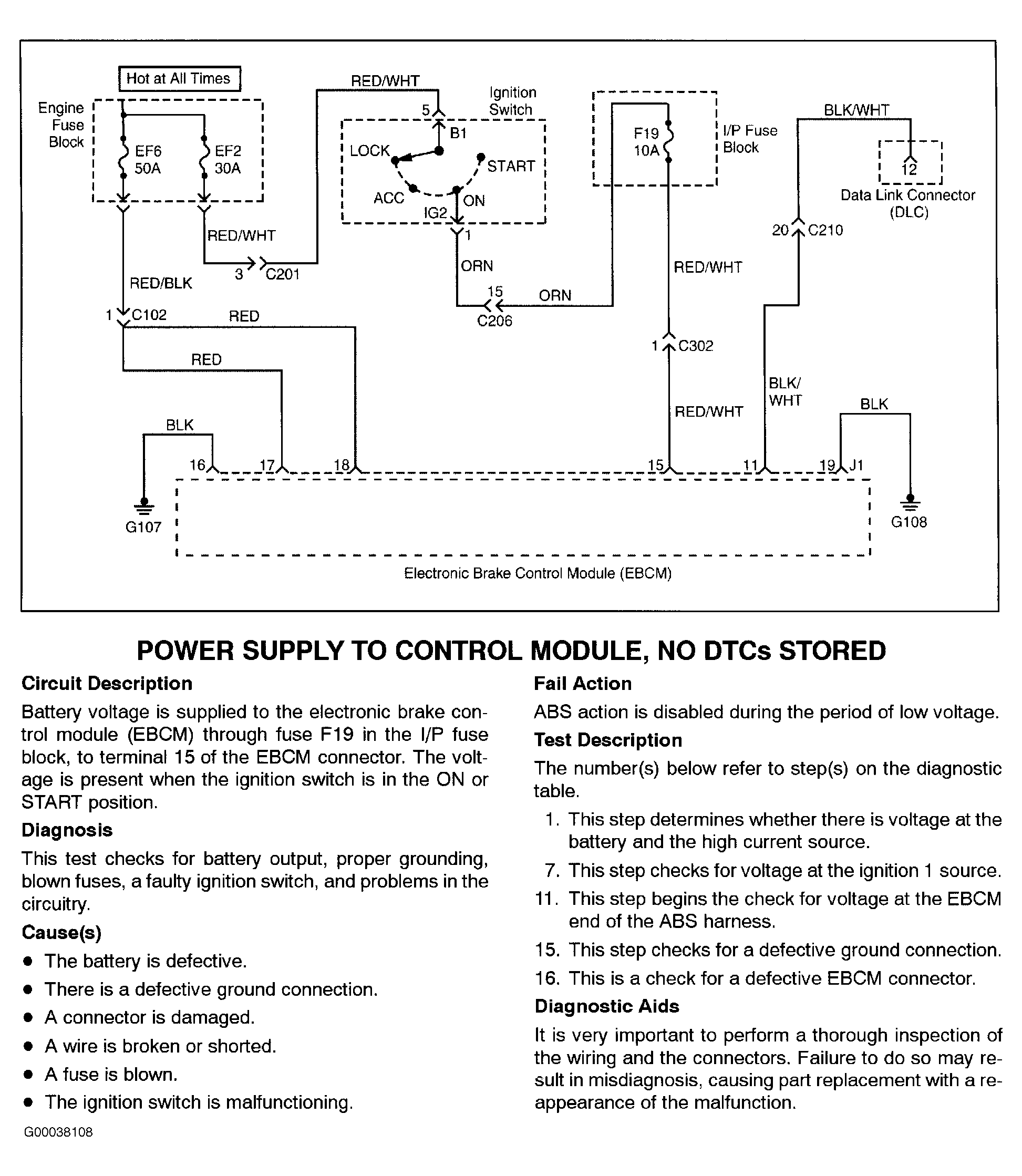

Fig 1: Power Supply To Control Module, No DTC Stored (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

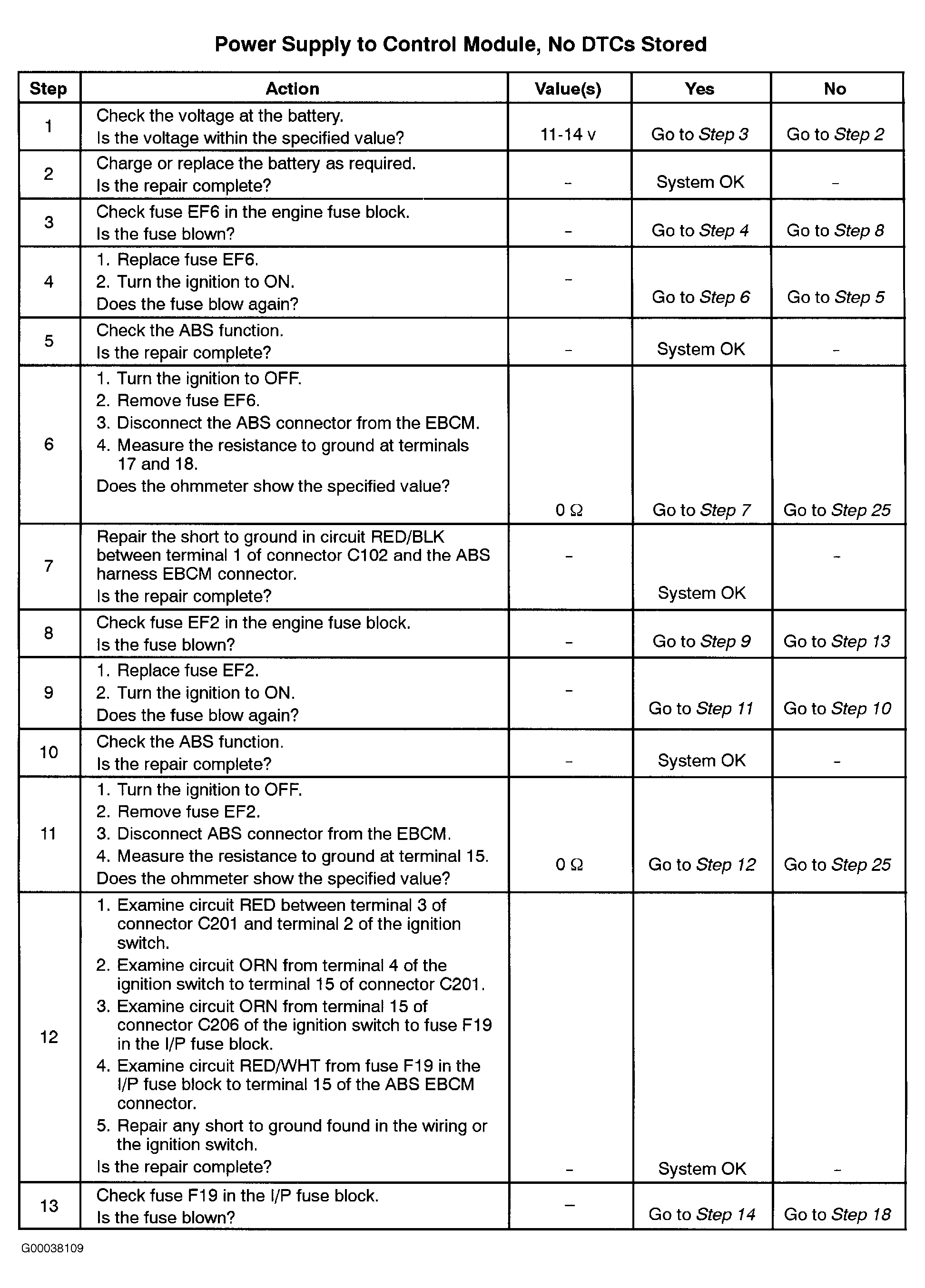

Fig 2: Power Supply To Control Module, No DTC Stored (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

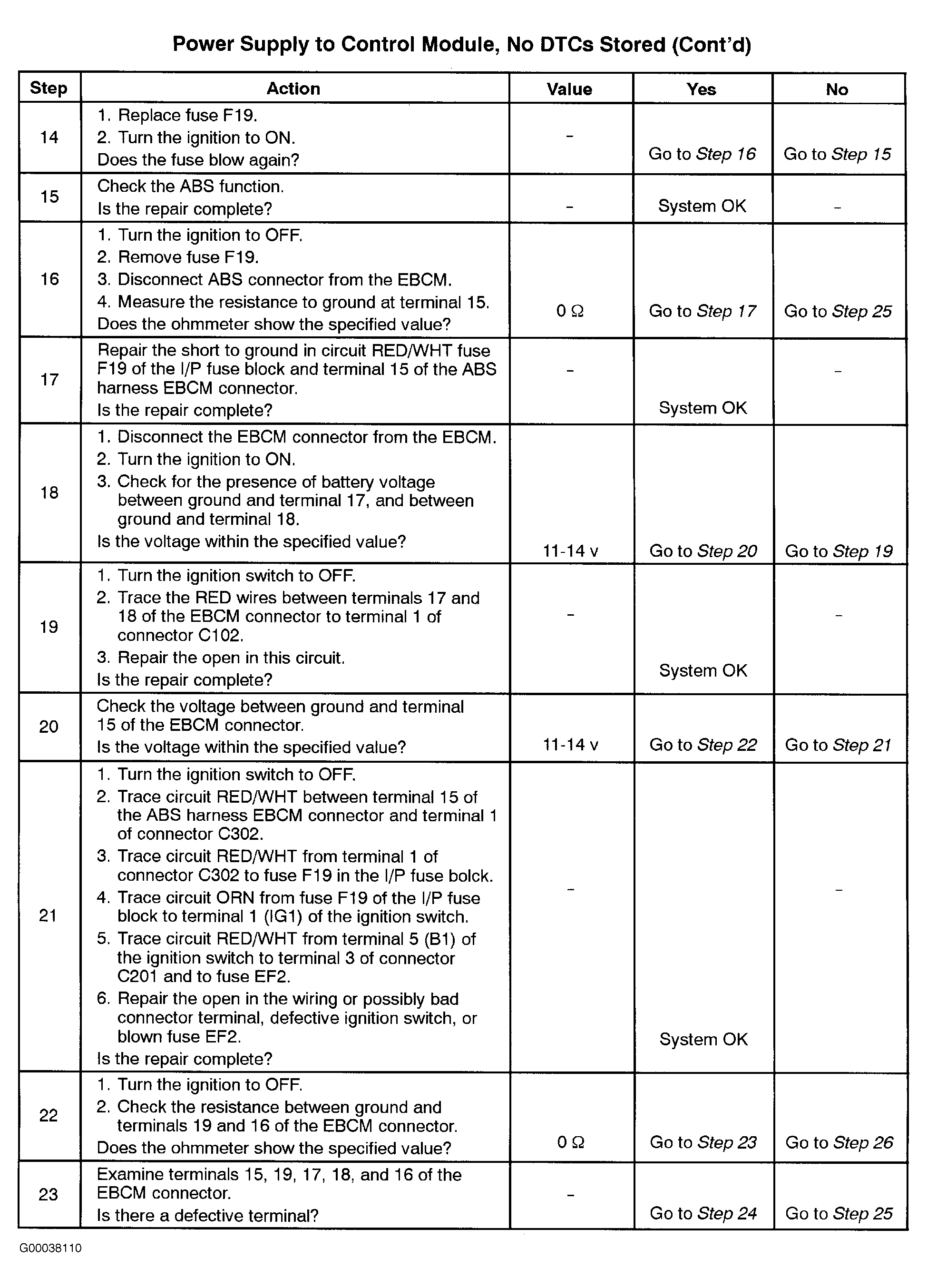

Fig 3: Power Supply To Control Module, No DTC Stored (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

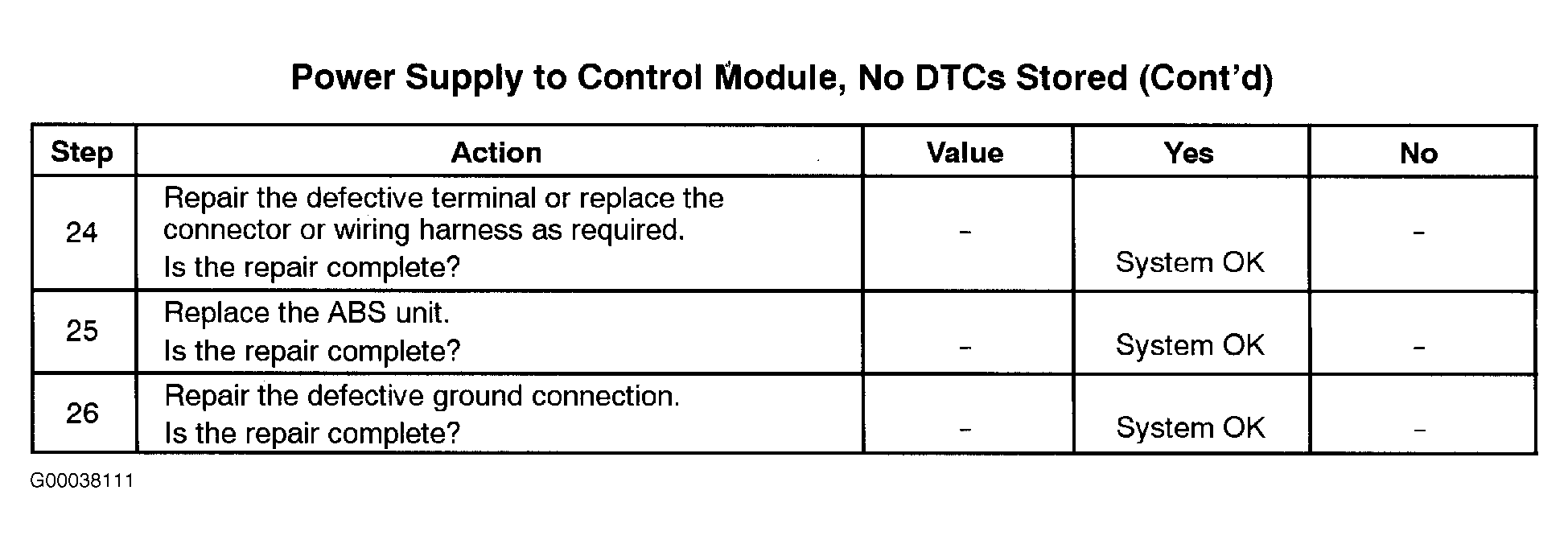

Fig 4: Power Supply To Control Module. No DTC Stored (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
