Wiring Diagrams

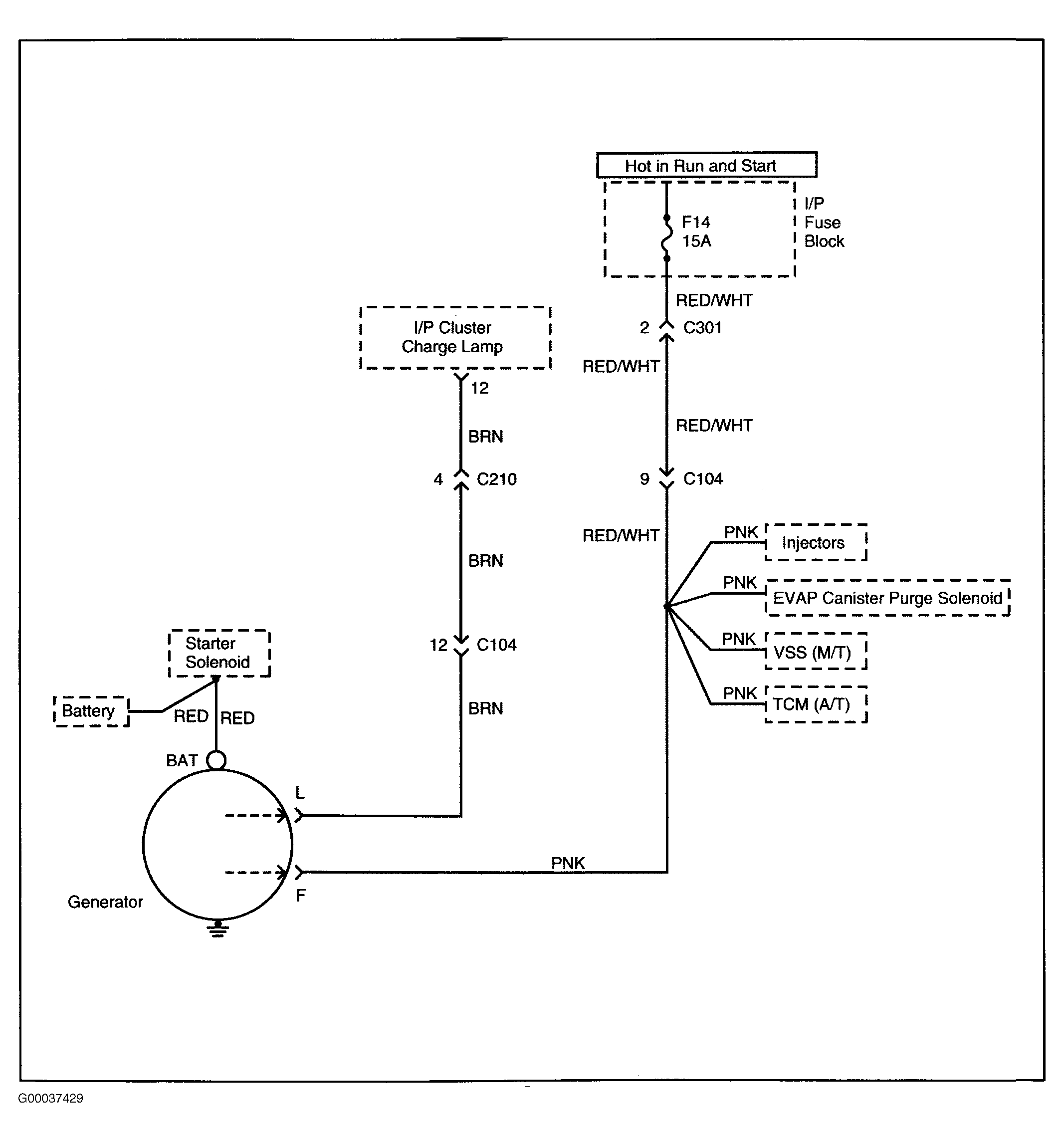

Fig 1: Charging System Wiring Diagram
G00037429Courtesy of DAEWOO MOTOR AMERICA, INC.
