DTC P0121: Throttle Position Sensor Rationality: Notes

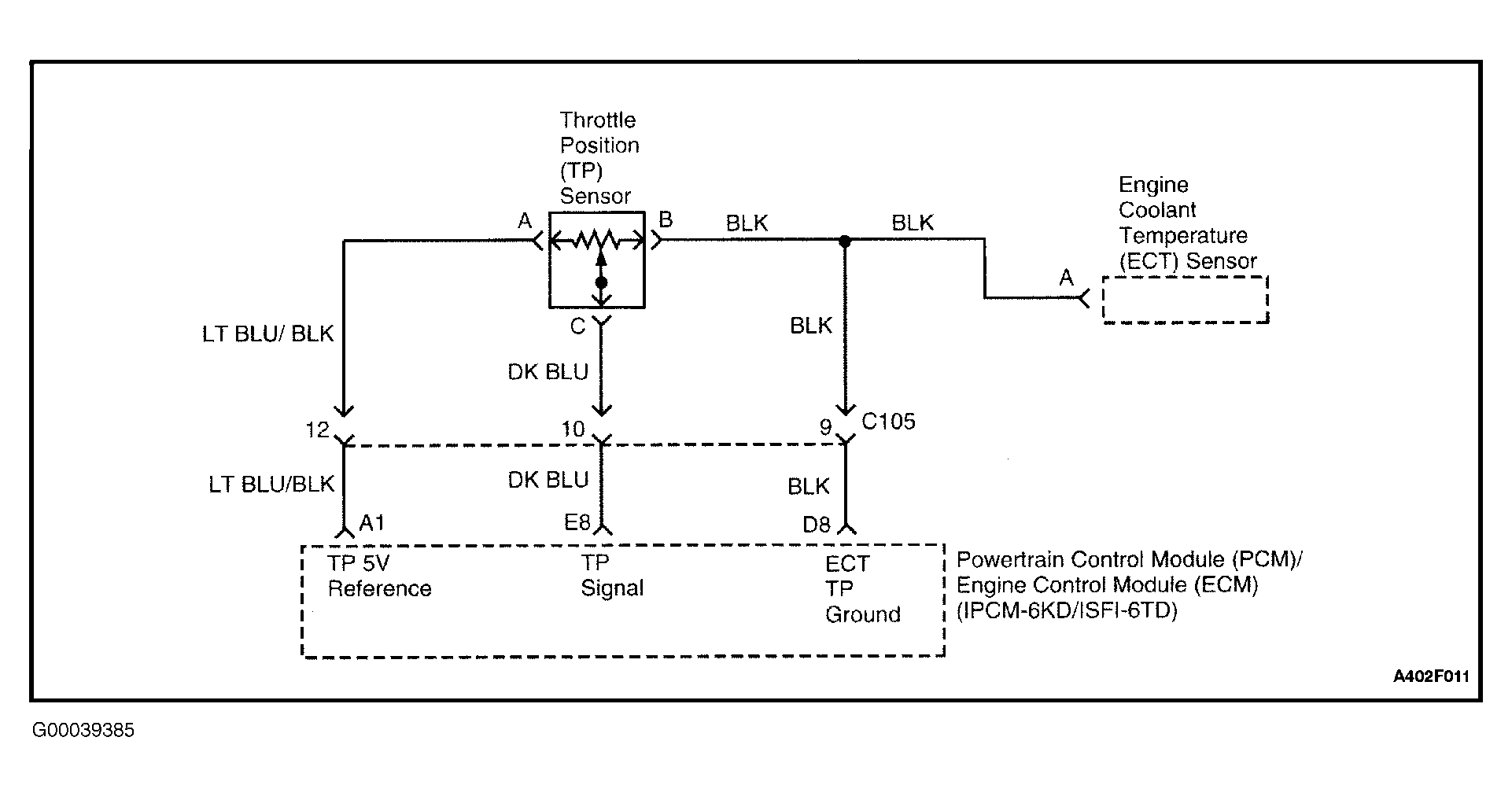

Fig 1: Throttle Position Sensor Circuit Diagram
G00039385Courtesy of DAEWOO
