DTC P0502: Vehicle Speed Sensor (Engine Side) Too Low: Notes

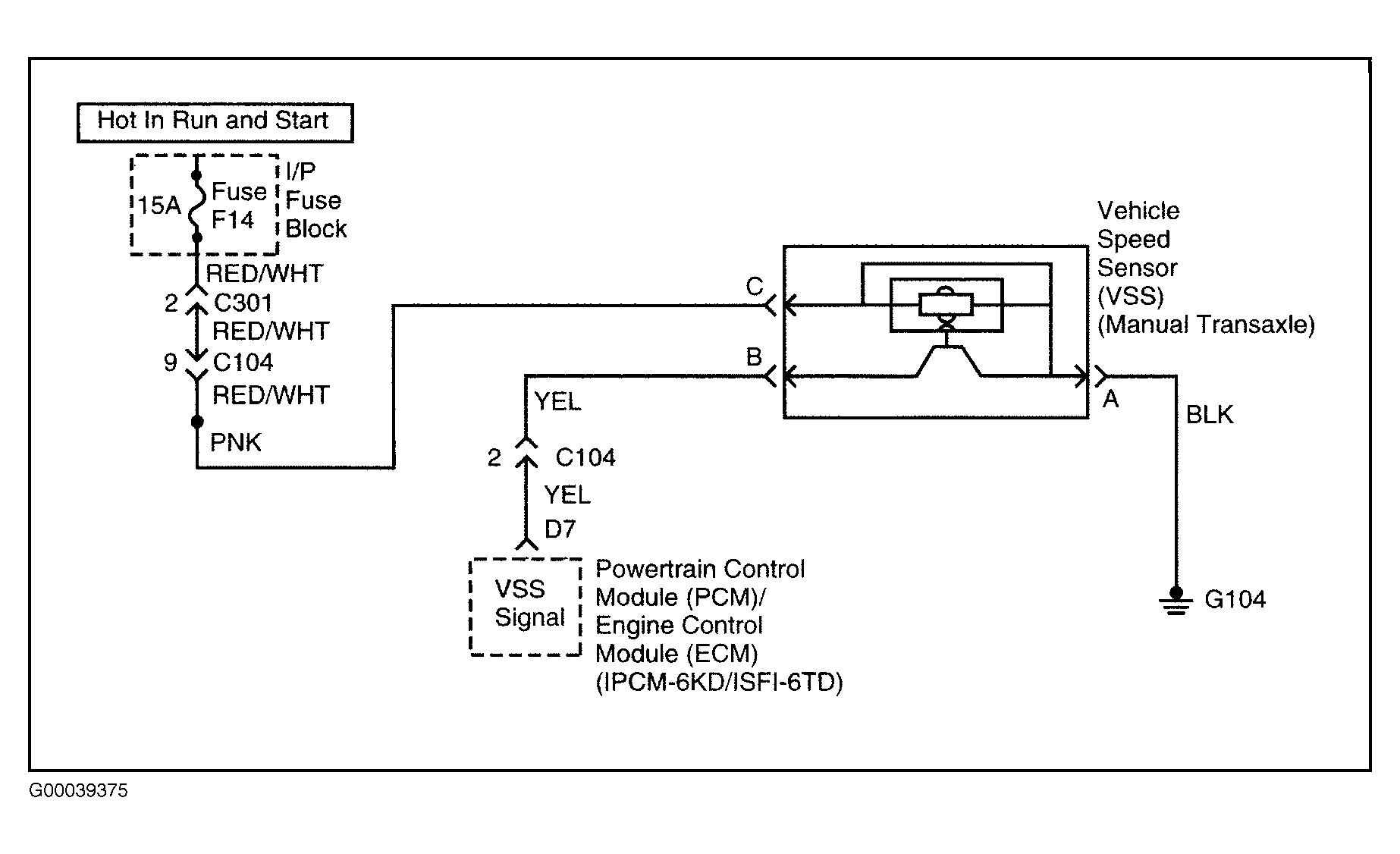

Fig 1: Speed Sensor Circuit Diagram
G00039375Courtesy of DAEWOO
