Home › Daewoo › 2000 › Lanos SE, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › DTC Diagnostic Tests › DTC P0533: A/C Pressure Sensor High › Notes

DTC P0533: A/C Pressure Sensor High: Notes

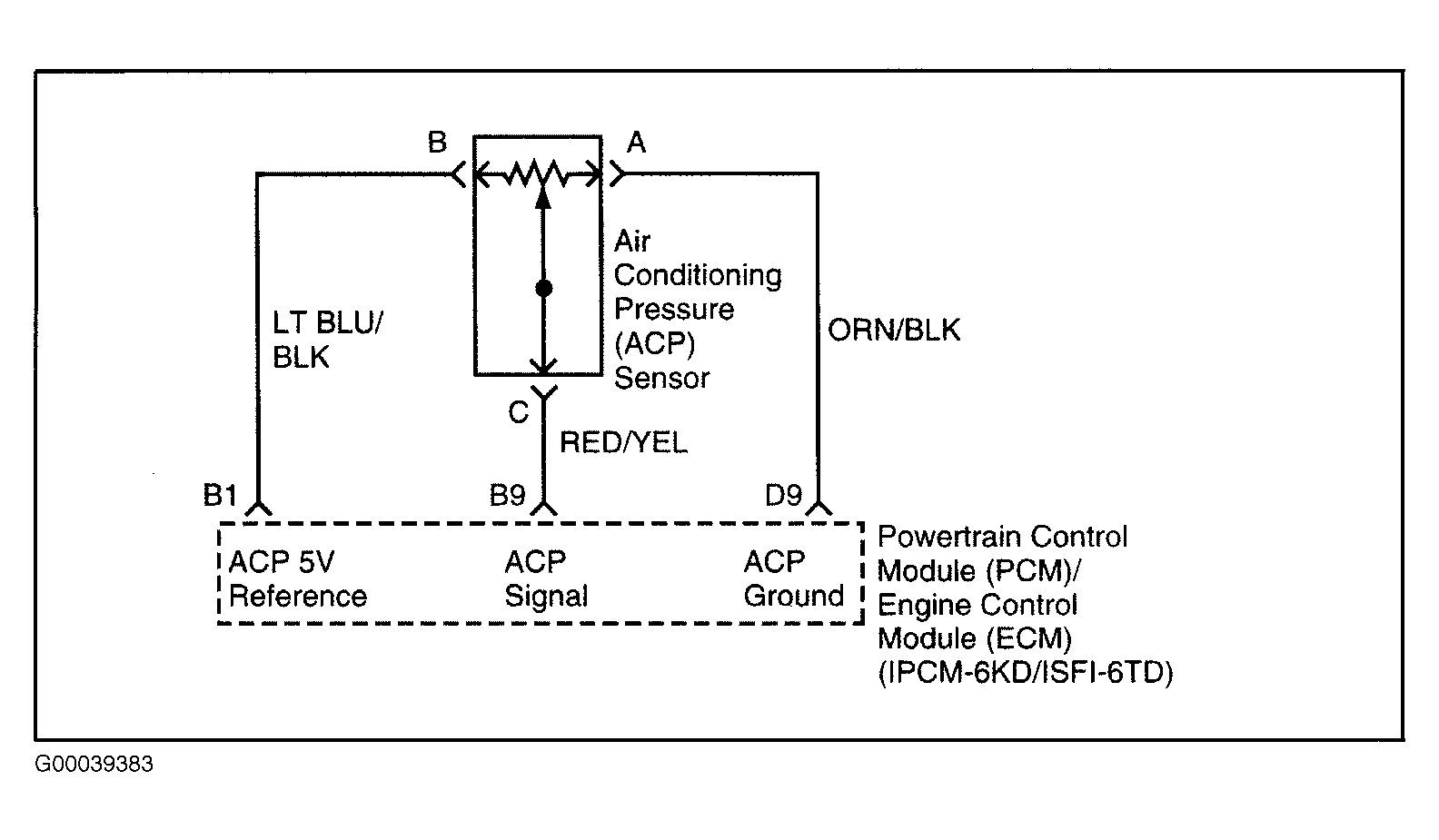

Fig 1: A/C Pressure Sensor Circuit Diagram
G00039383Courtesy of DAEWOO
