DTC P1109: Variable Geometry Induction Solenoid Electrical Fault: Notes

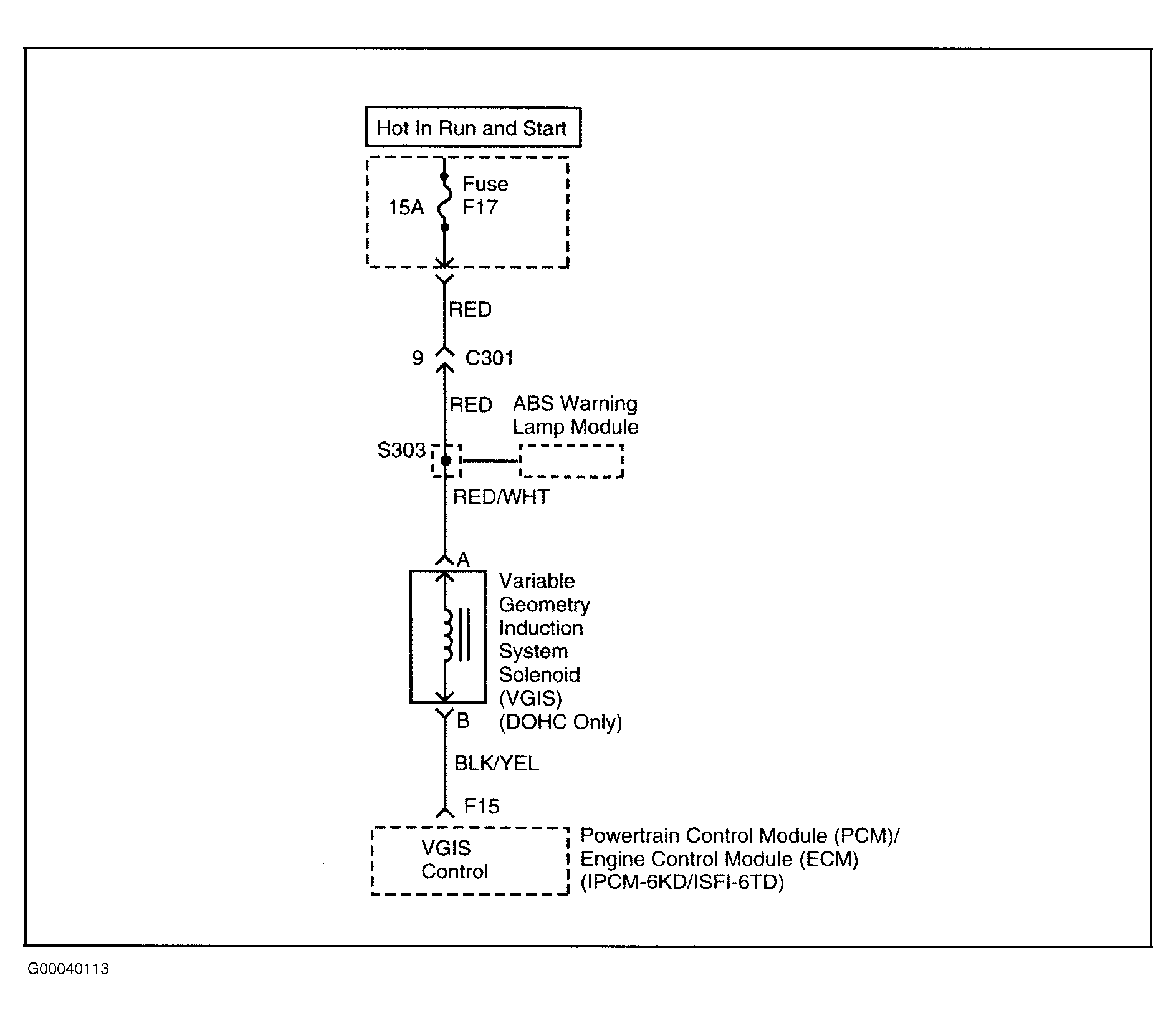

Fig 1: Variable Geometry Induction Solenoid Circuit Diagram
G00040113Courtesy of DAEWOO
