DTC P1130: O2 Bank 1 Sensor 1 Low Signal Variance: Notes

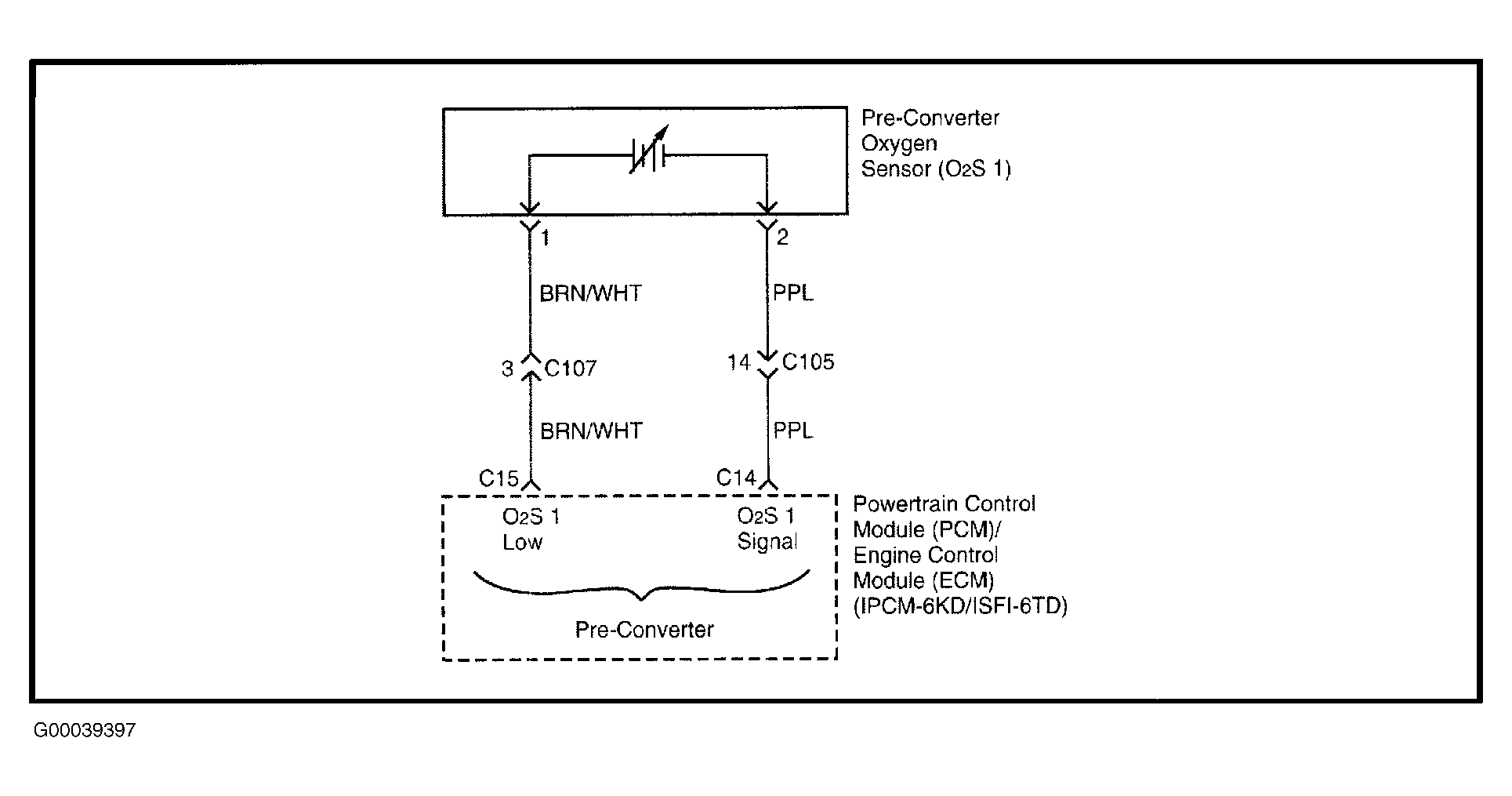

Fig 1: O2 Bank 1 Sensor Circuit Diagram
G00039397Courtesy of DAEWOO
