DTC P1635: Pcm/ECM 5-Volt Reference Line Low: Notes

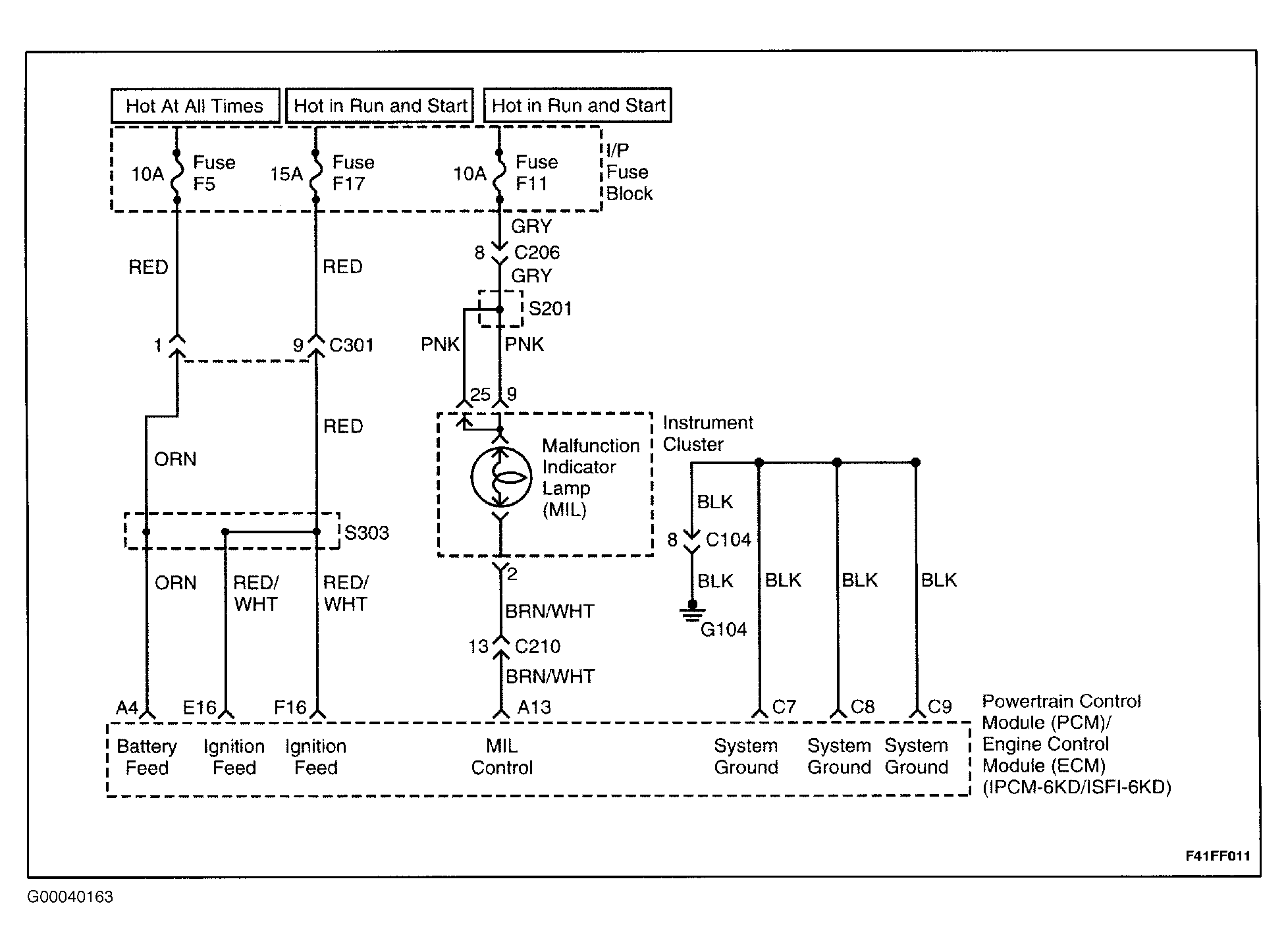

Fig 1: PCM/ECM Circuit Diagram
G00040163Courtesy of DAEWOO
