Component Locator

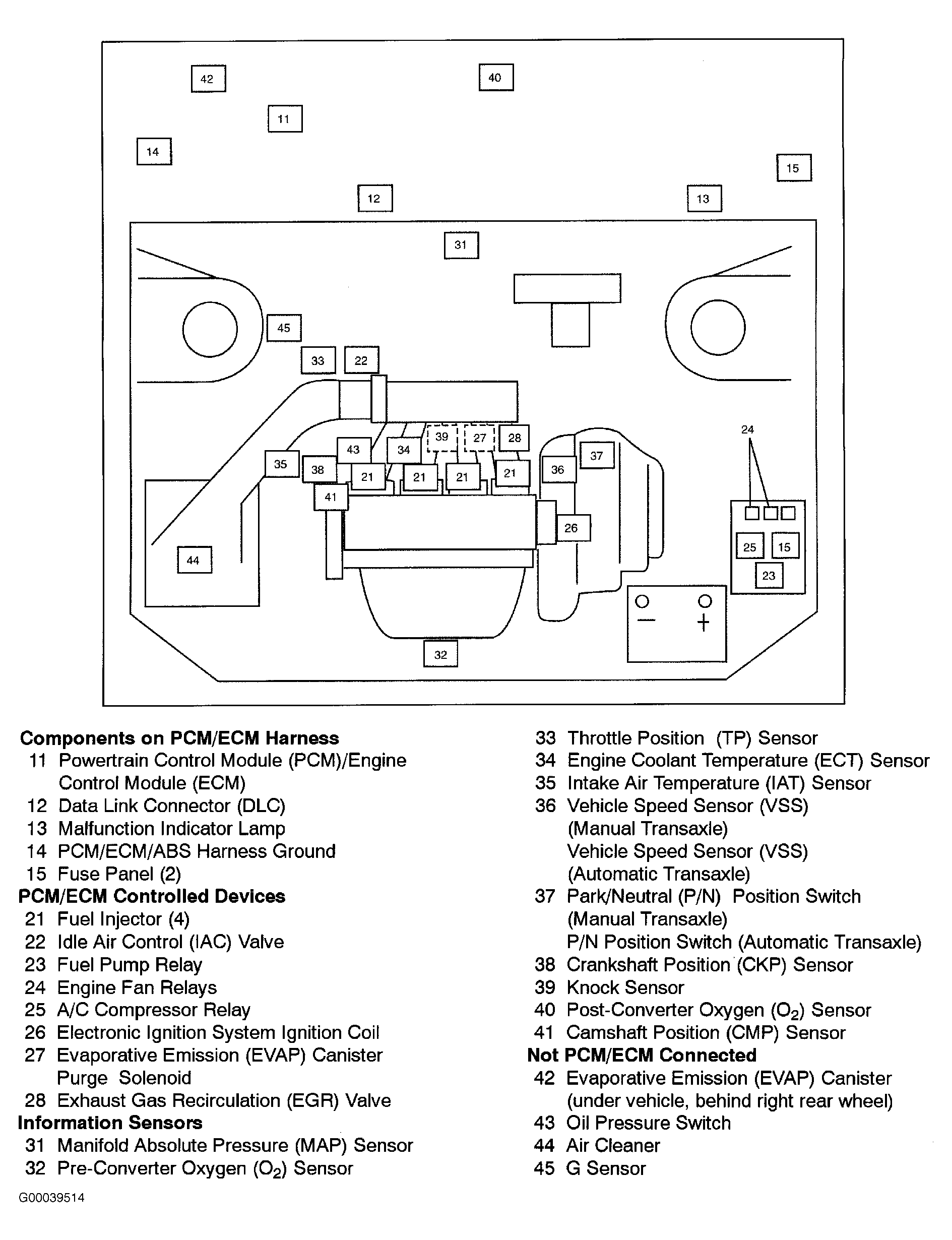

Fig 1: Component Locator - SOHC
G00039514Courtesy of DAEWOO

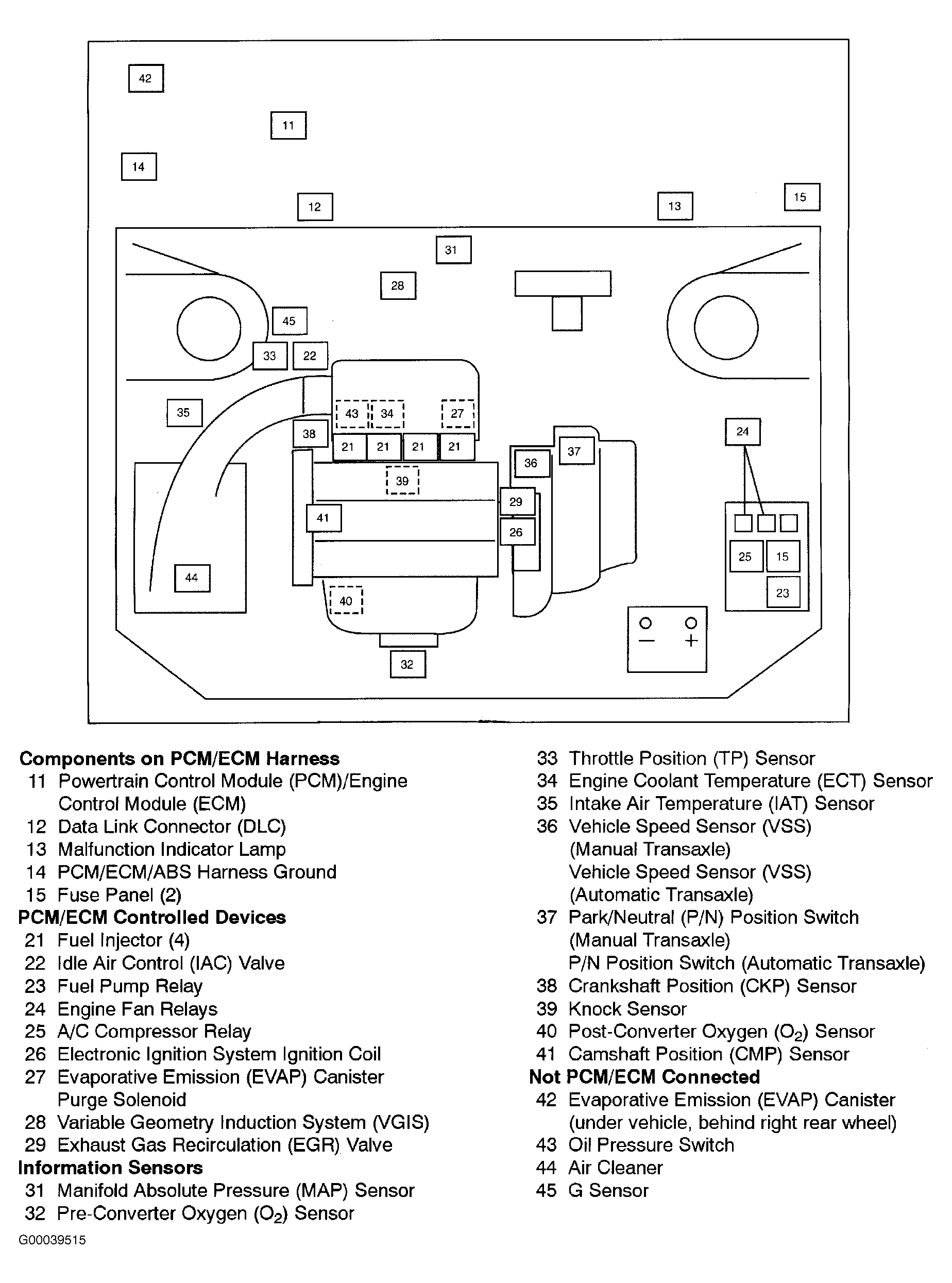

Fig 2: Component Locator - DOHC
G00039515Courtesy of DAEWOO
