Home › Daewoo › 2000 › Lanos SE, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › Symptom Diagnosis › Idle Air Control System Check › Notes

Idle Air Control System Check: Notes

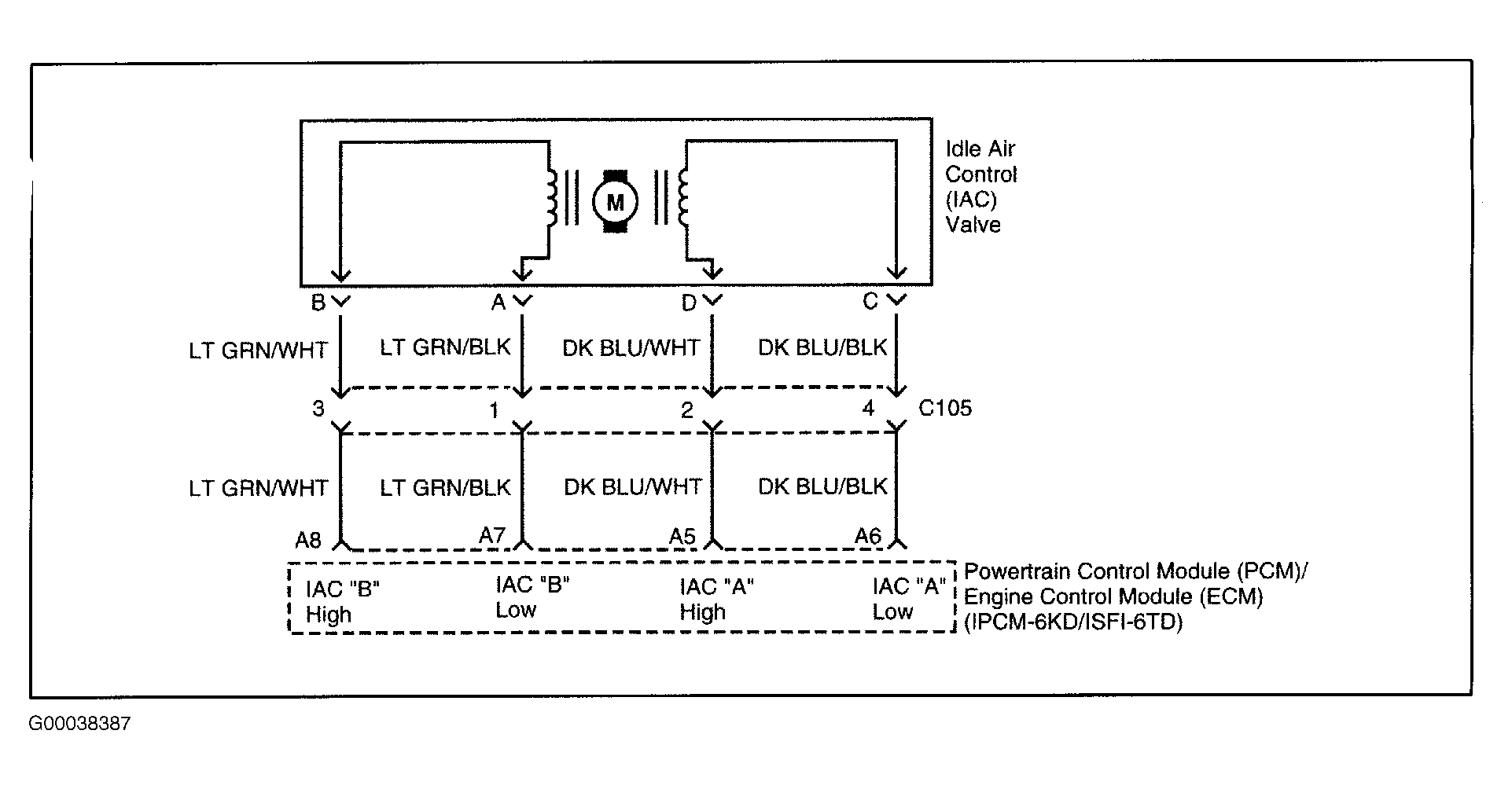

Fig 1: Idle Air Control Circuit Diagram
G00038387Courtesy of DAEWOO
