System Specifications
›
Data Display Tables
Data Display Tables

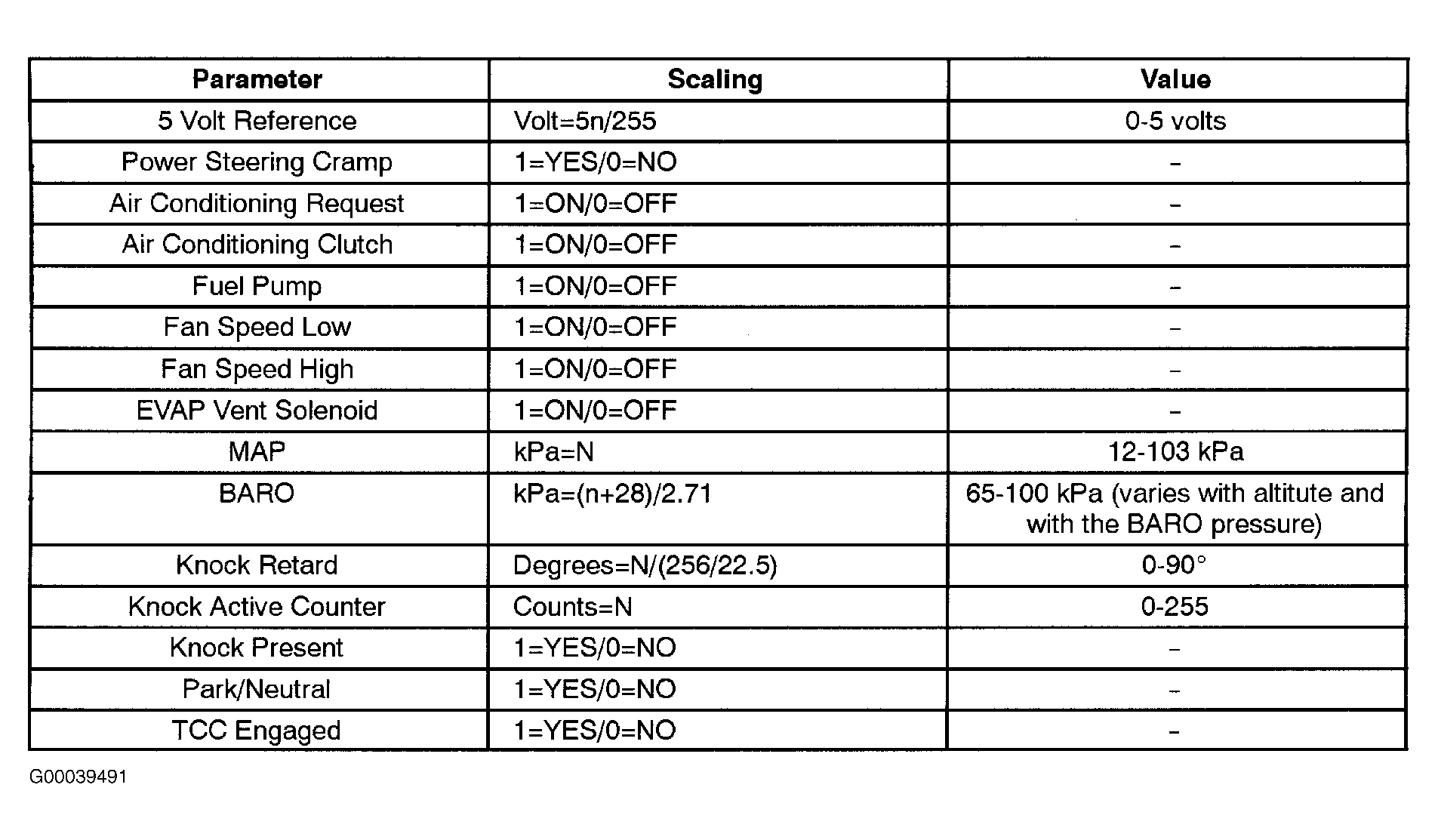

Fig 1: Engine Data Display 01 (1 Of 2)
Courtesy of DAEWOO

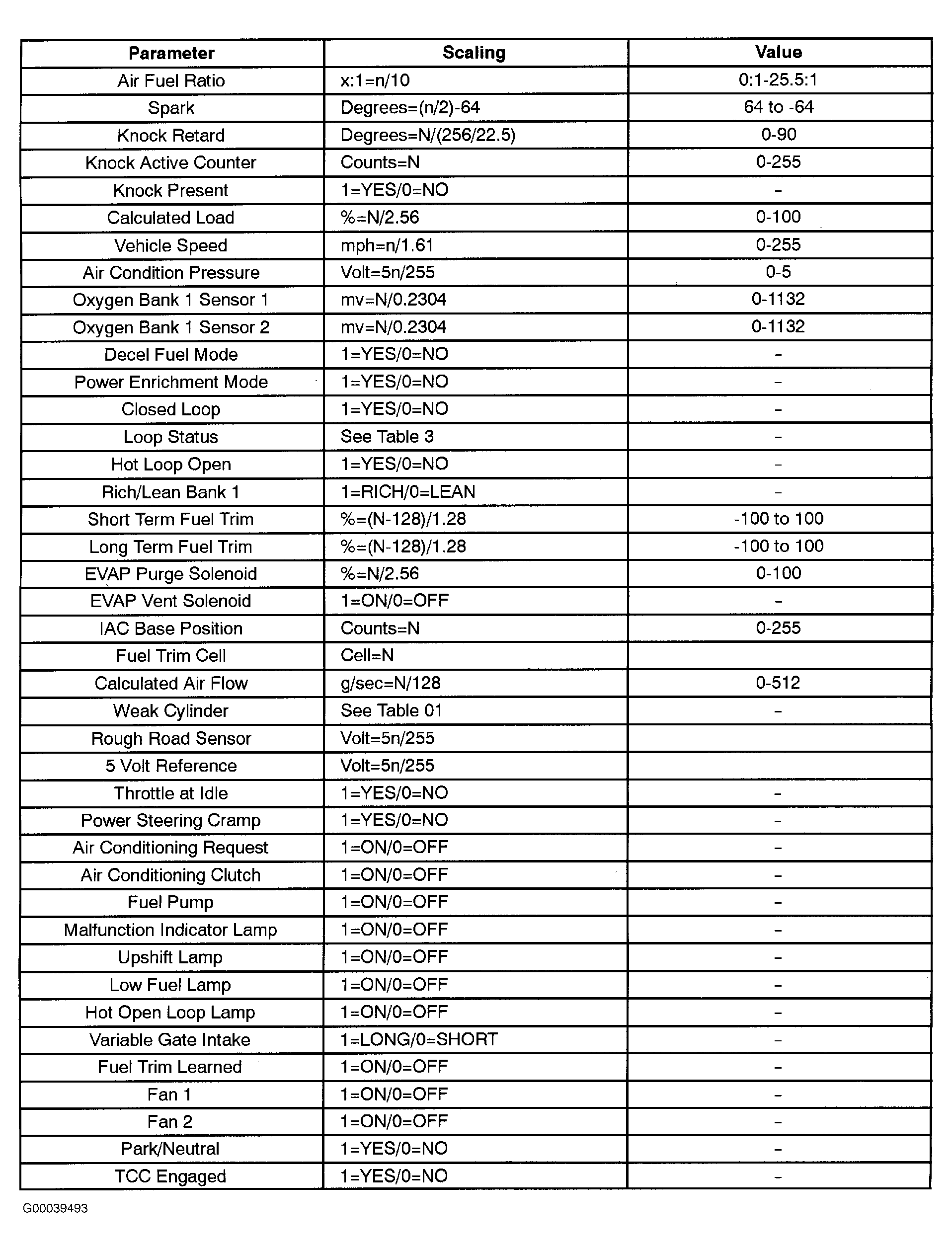

Fig 2: Engine Data Display 01 (2 Of 2)
Courtesy of DAEWOO

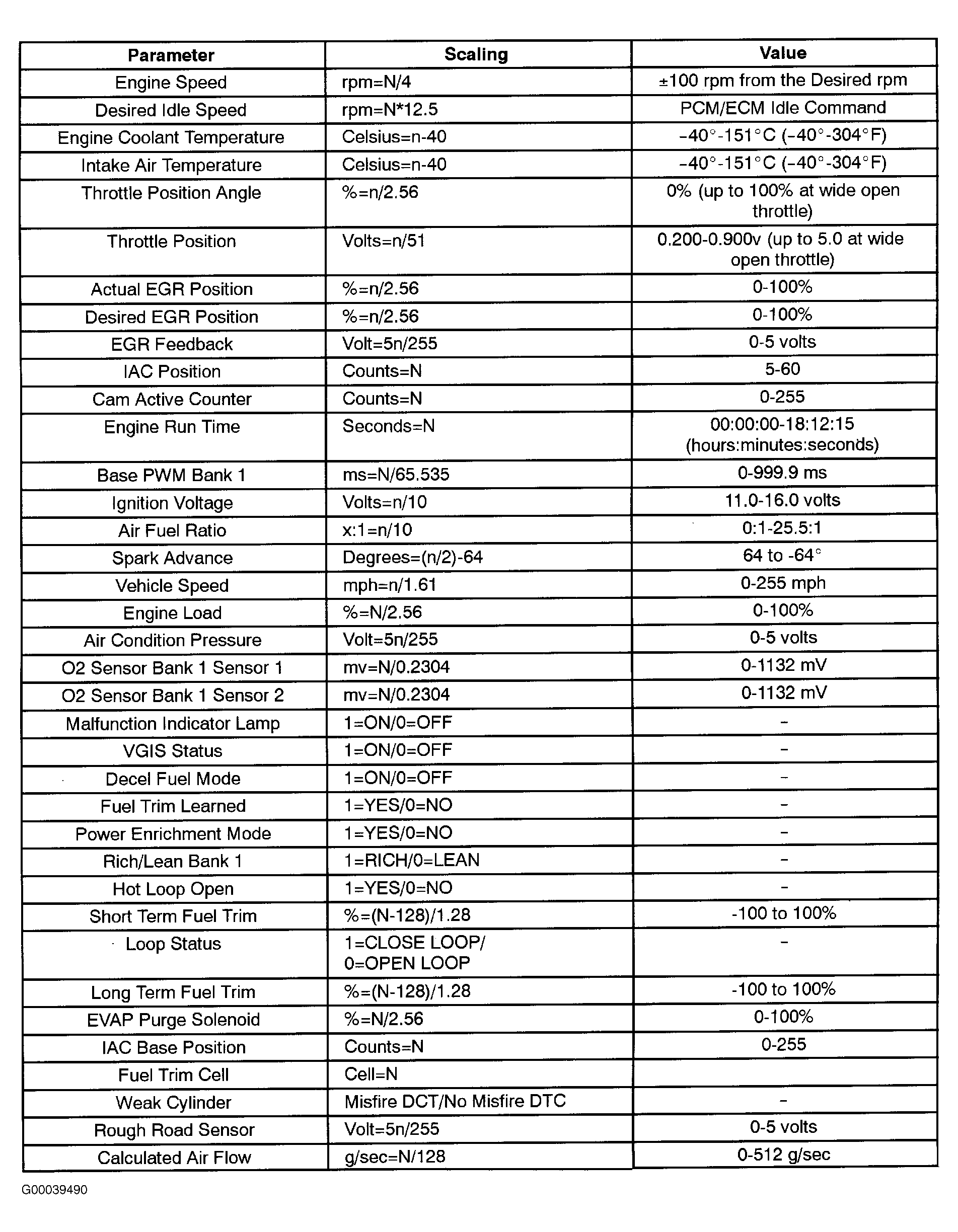

Fig 3: Engine Data Display 02 (1 Of 2)
Courtesy of DAEWOO

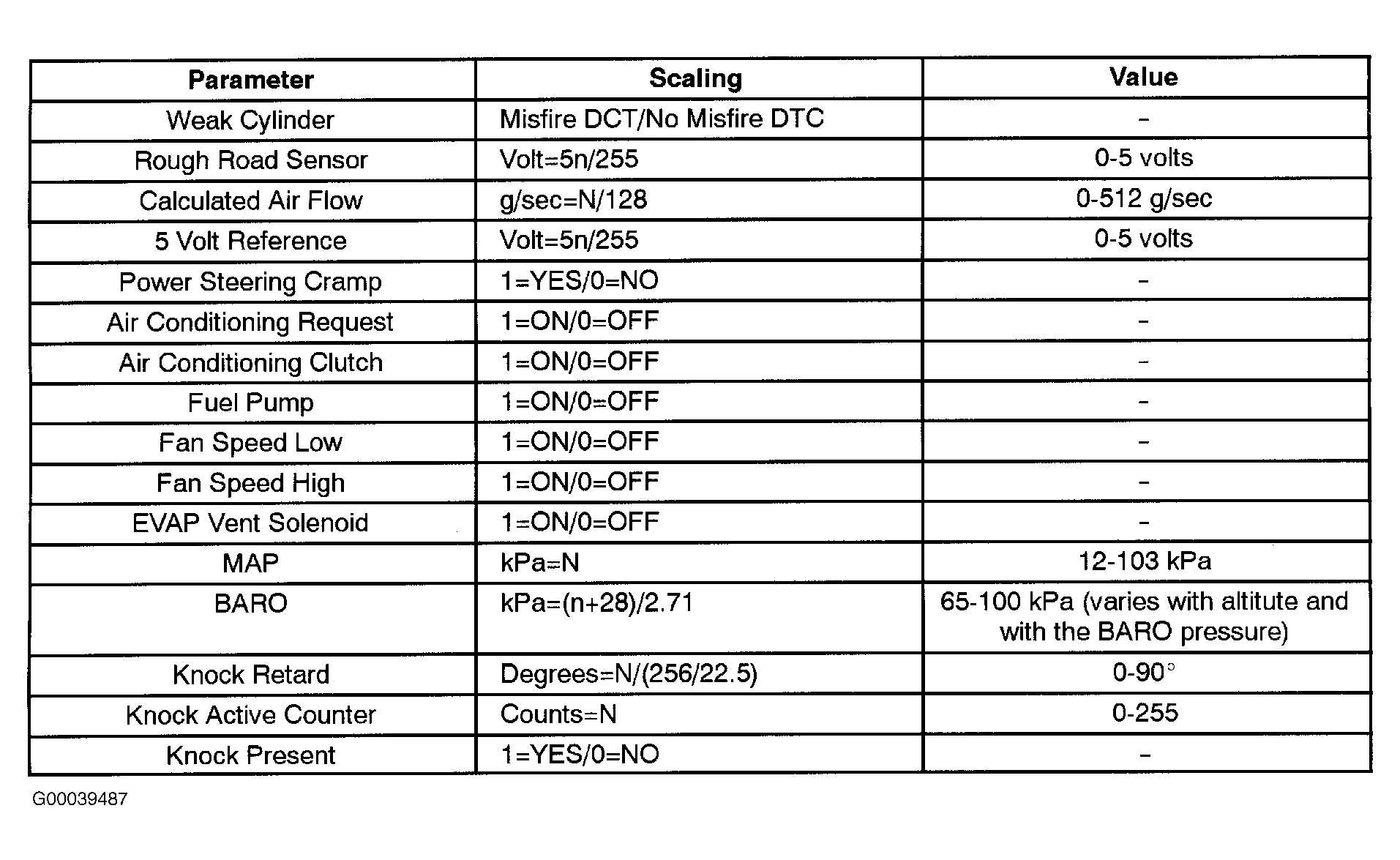

Fig 4: Engine Data Display 02 (2 Of 2)
Courtesy of DAEWOO

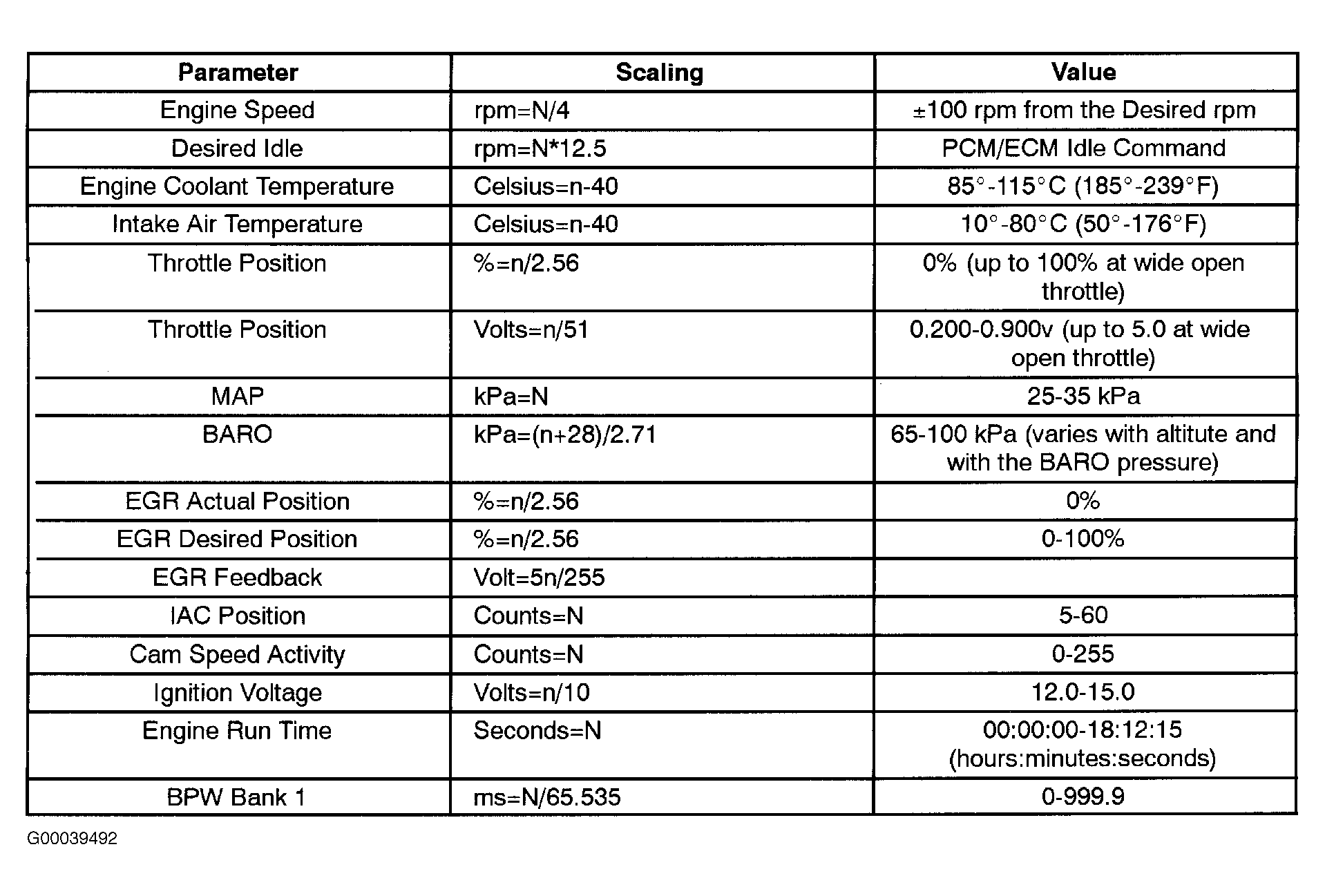

Fig 5: Engine Data Display 03 (1 Of 2)
Courtesy of DAEWOO

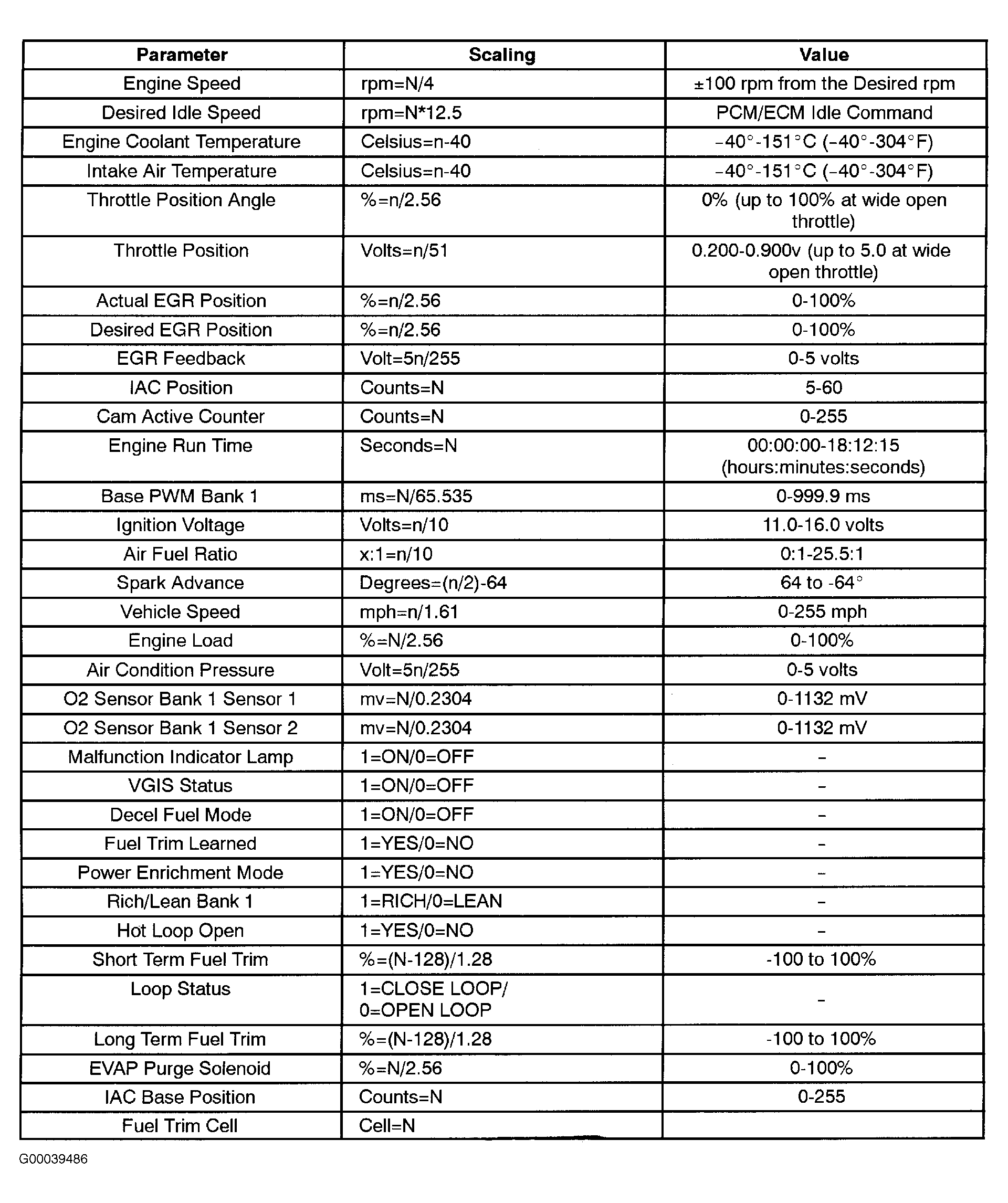

Fig 6: Engine Data Display 03 (2 Of 2)
Courtesy of DAEWOO

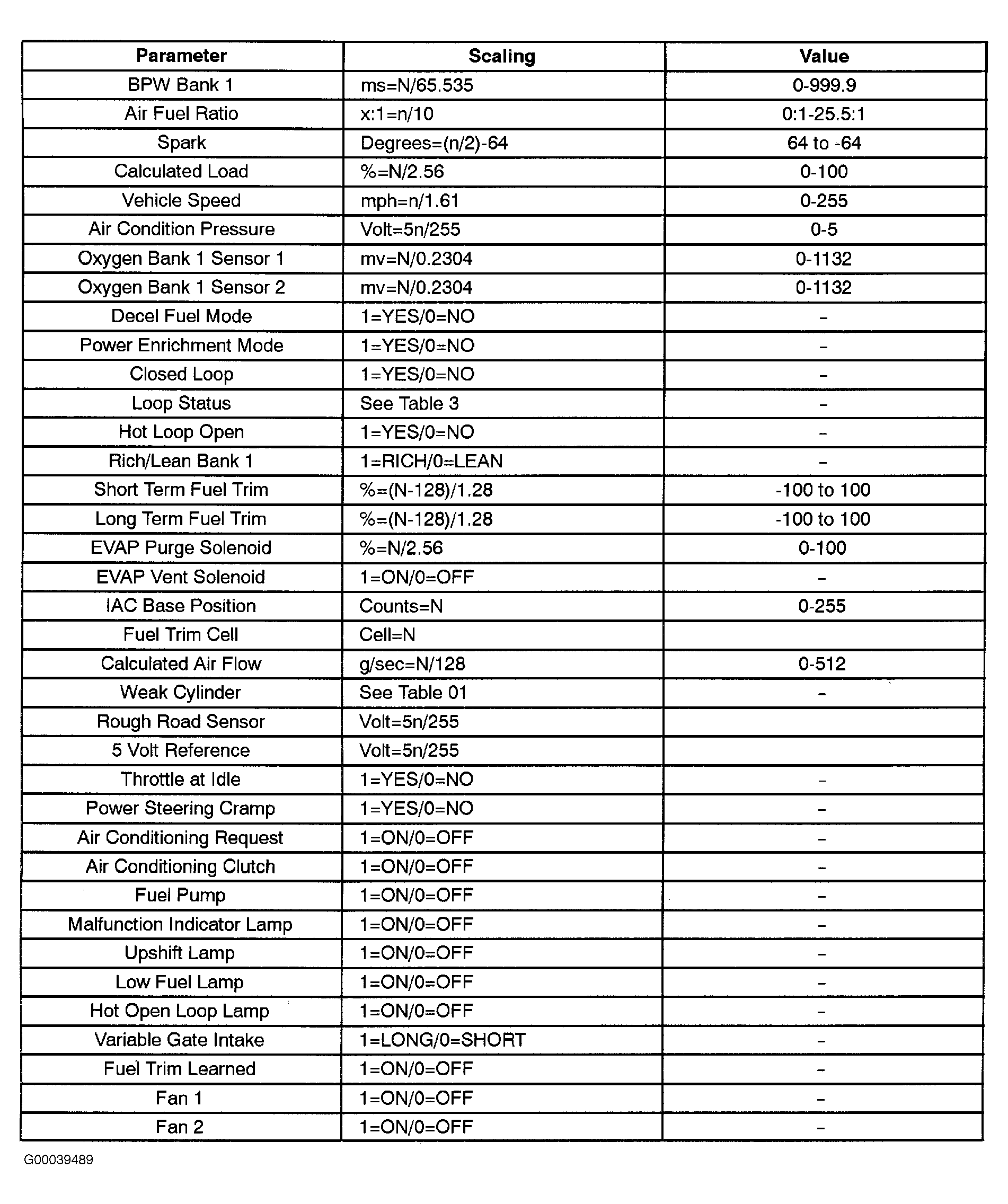

Fig 7: Engine Data Display 04 (1 Of 2)
Courtesy of DAEWOO

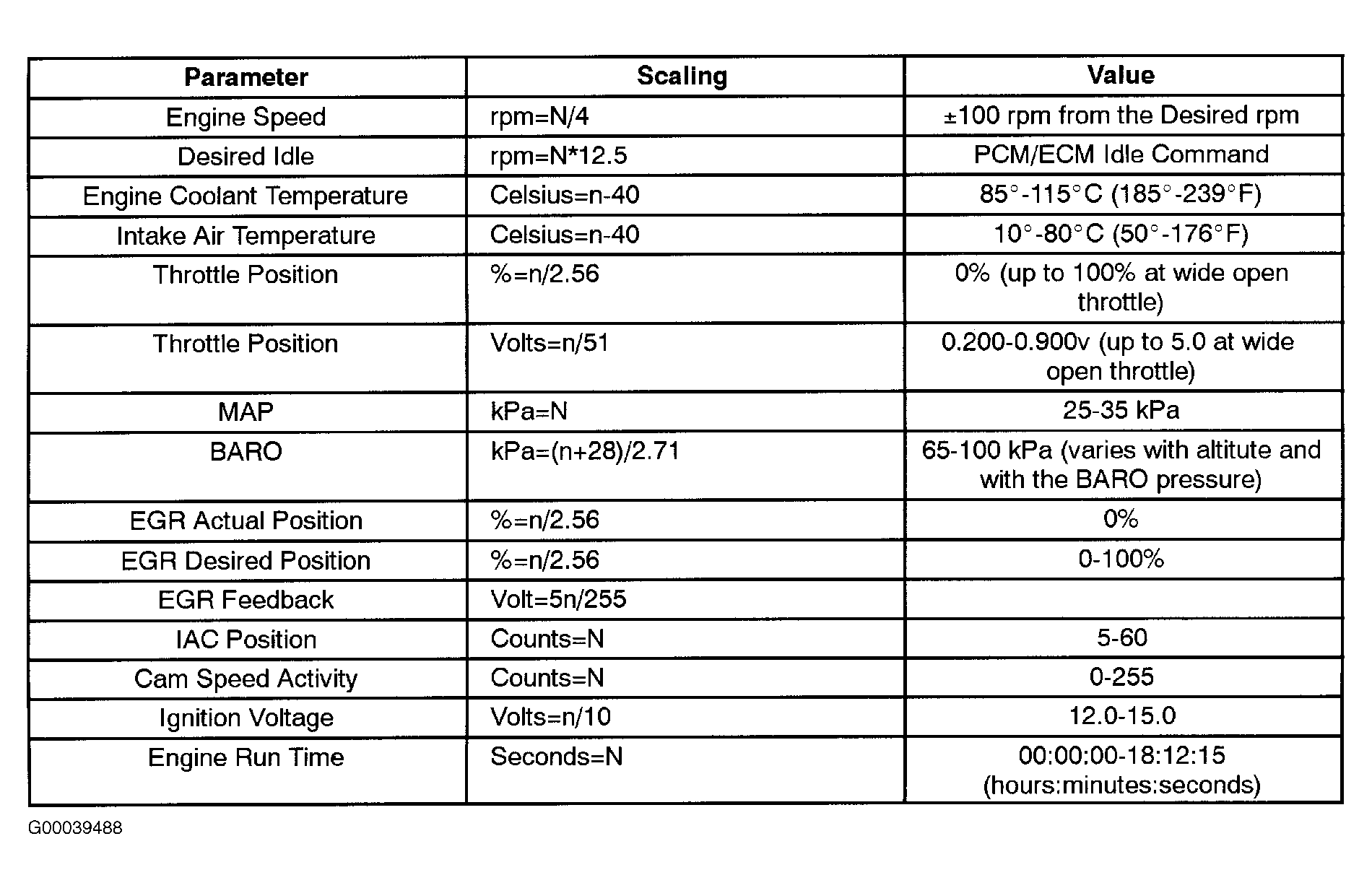

Fig 8: Engine Data Display 04 (2 Of 2)
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
