Engine Controls - Self-Diagnostics
›
System Specifications
›
Oxygen Sensor Data Display
Oxygen Sensor Data Display

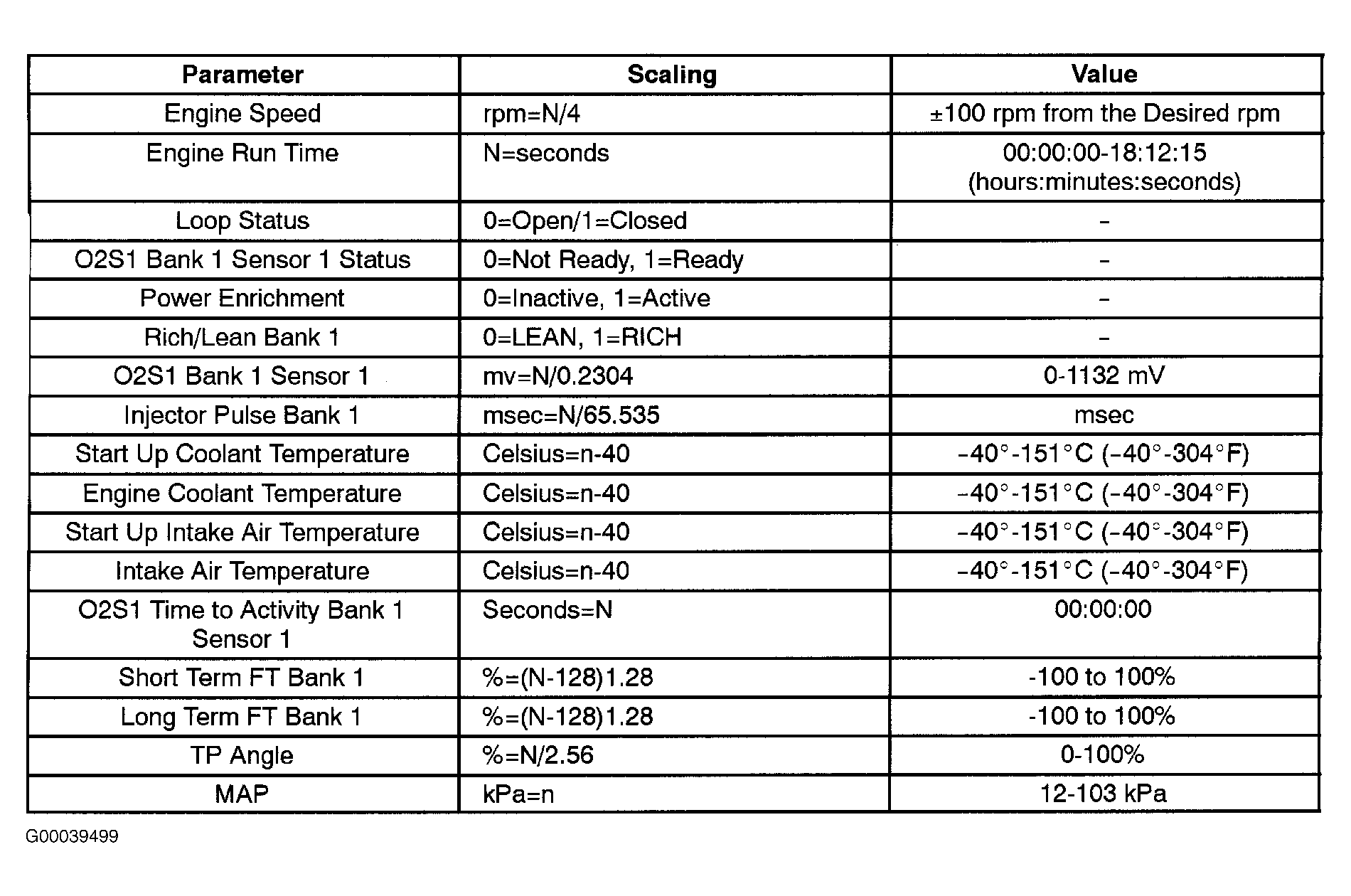

Fig 1: Oxygen Sensor Data Display (1 Of 2)
Courtesy of DAEWOO

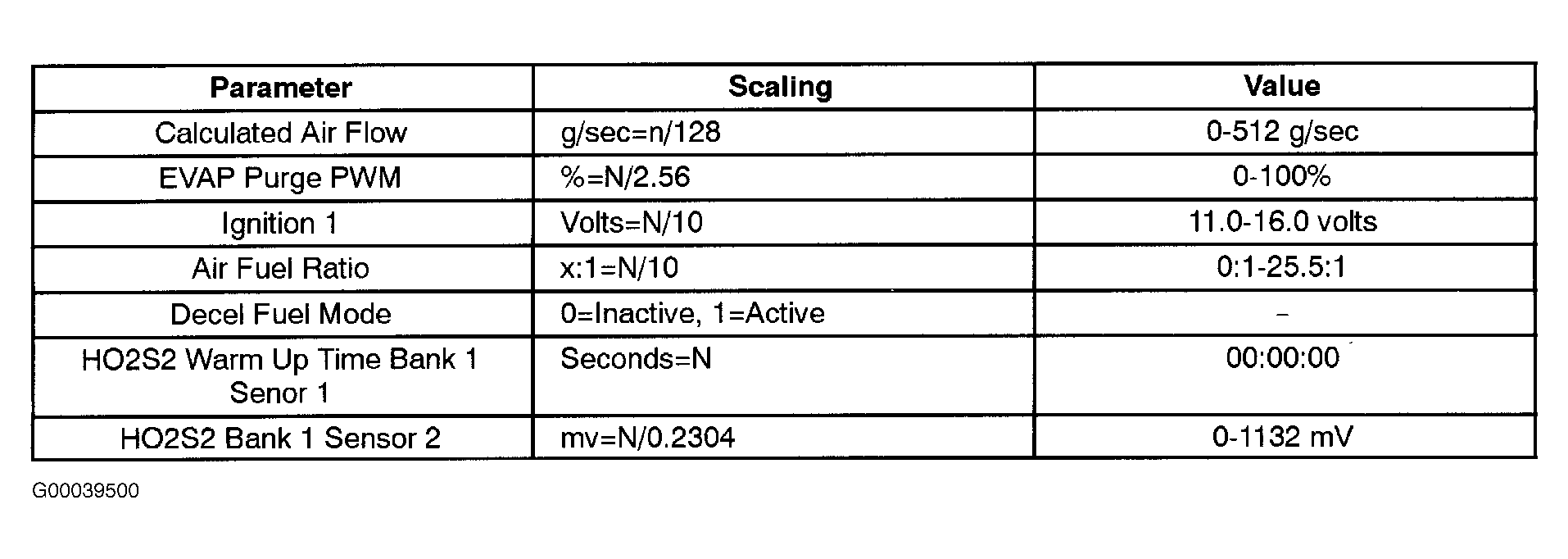

Fig 2: Oxygen Sensor Data Display (2 Of 2)
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
