Connector End Views

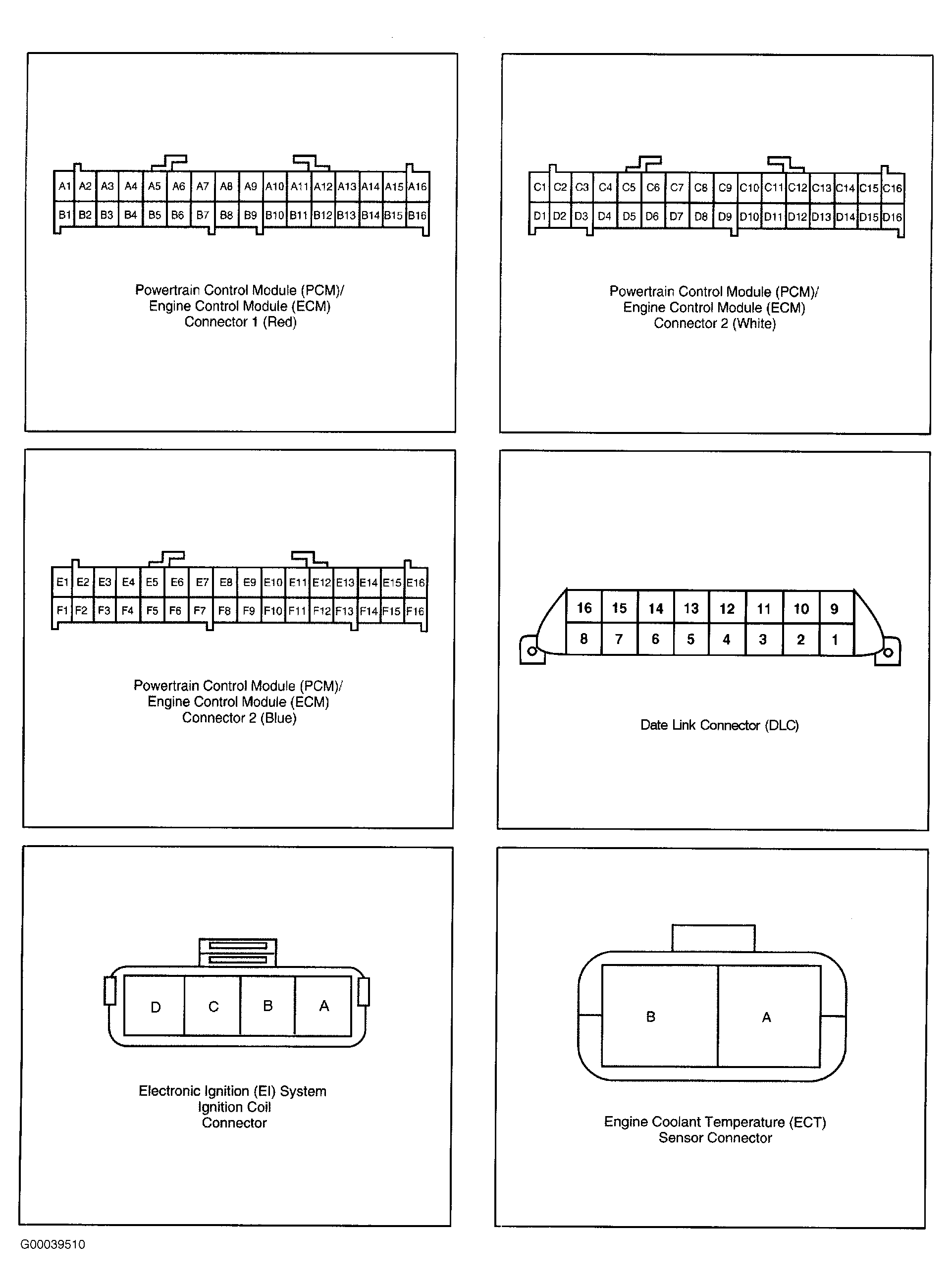

Fig 1: Connector End View (1 Of 5)
G00039510Courtesy of DAEWOO

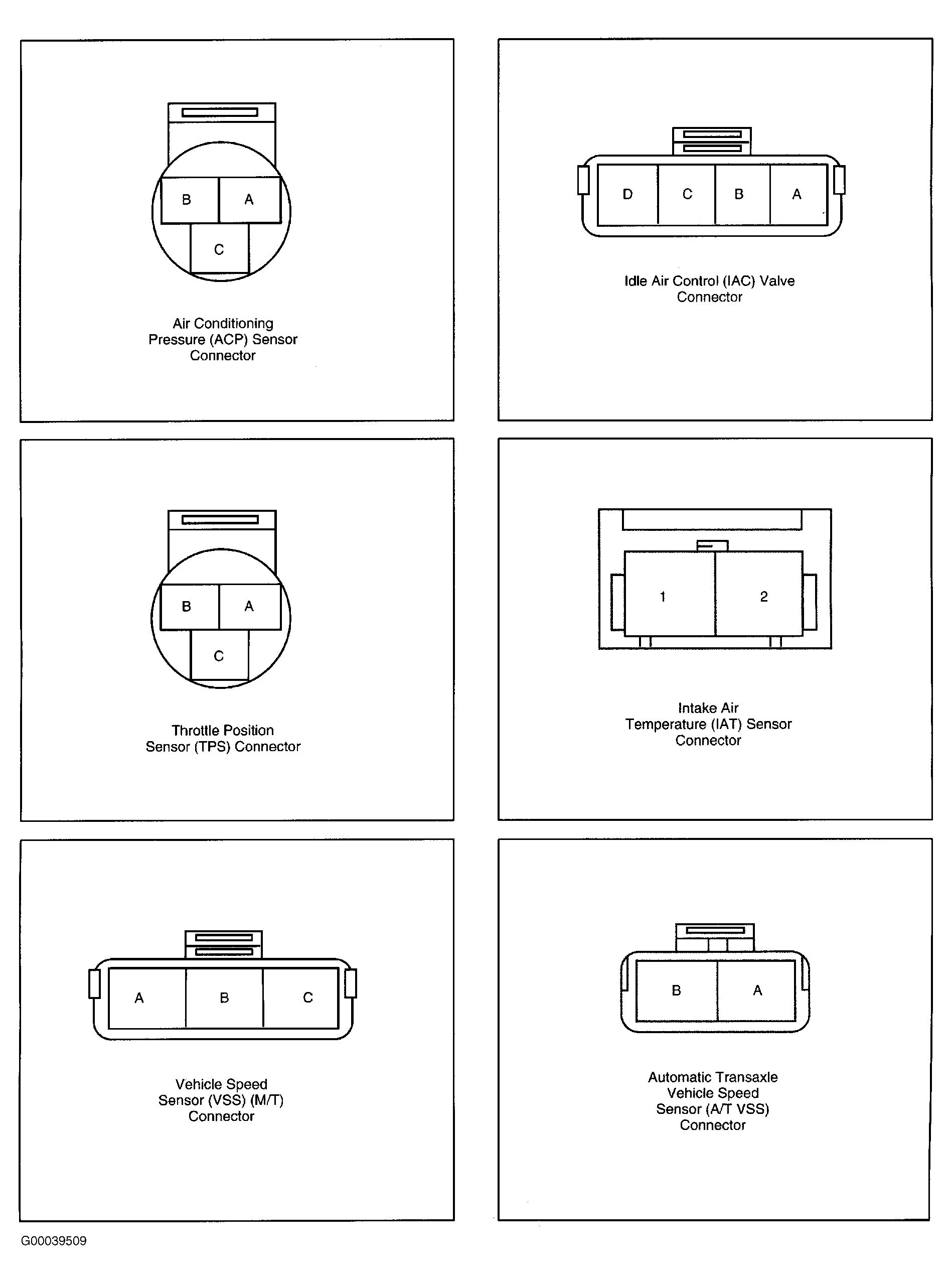

Fig 2: Connector End View (2 Of 5)
G00039509Courtesy of DAEWOO

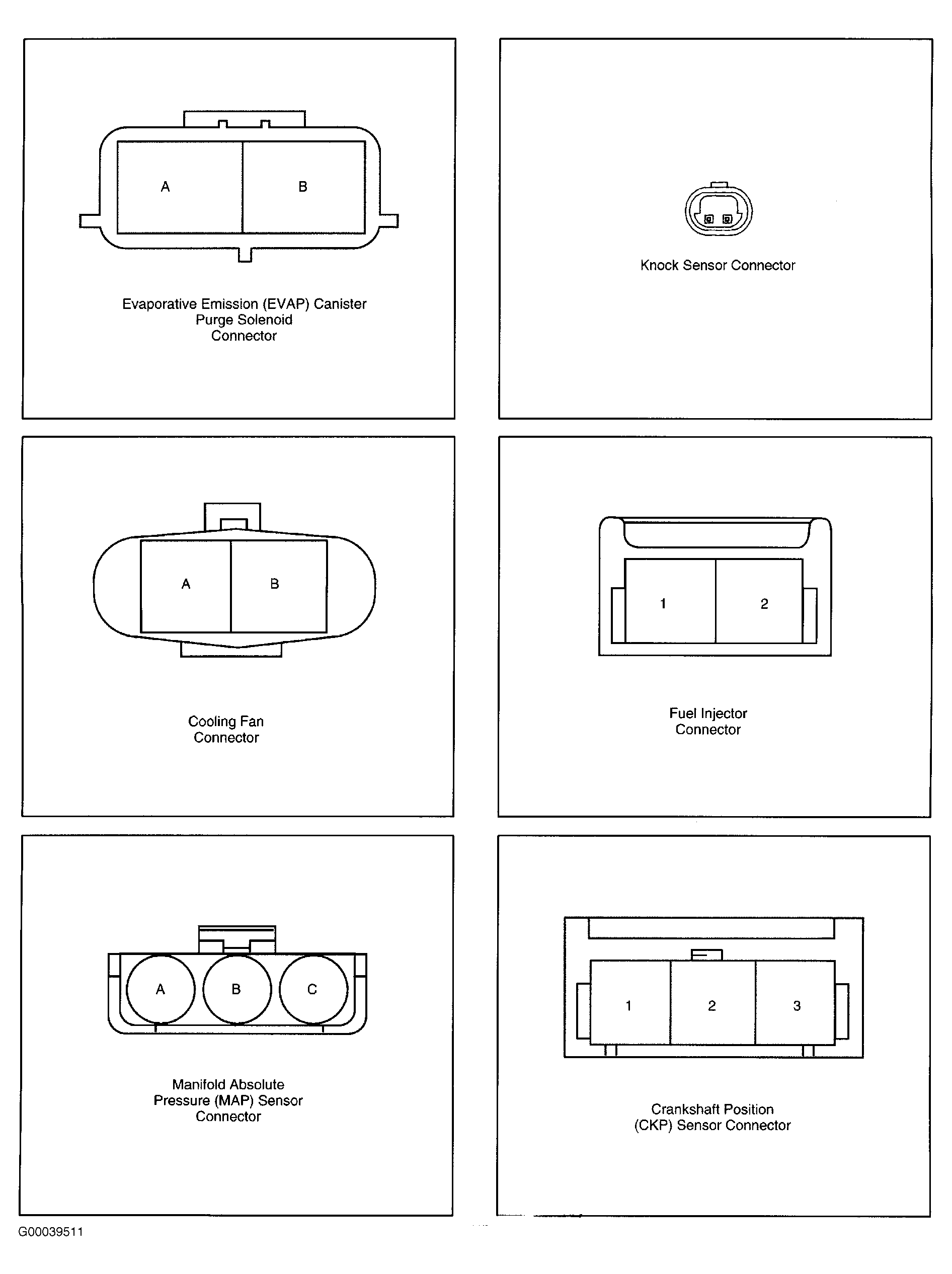

Fig 3: Connector End View (3 Of 5)
G00039511Courtesy of DAEWOO

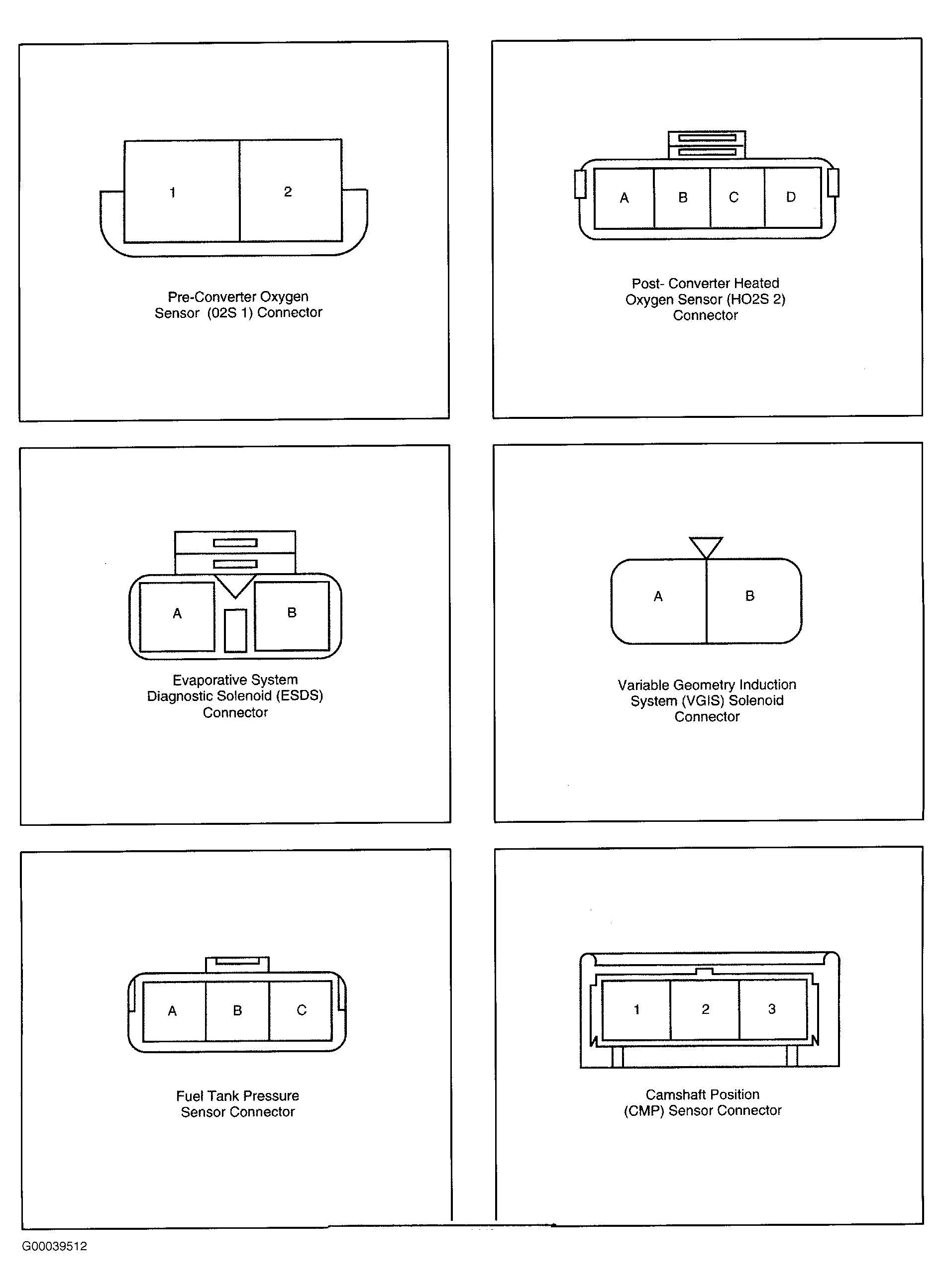

Fig 4: Connector End View (4 Of 5)
G00039512Courtesy of DAEWOO

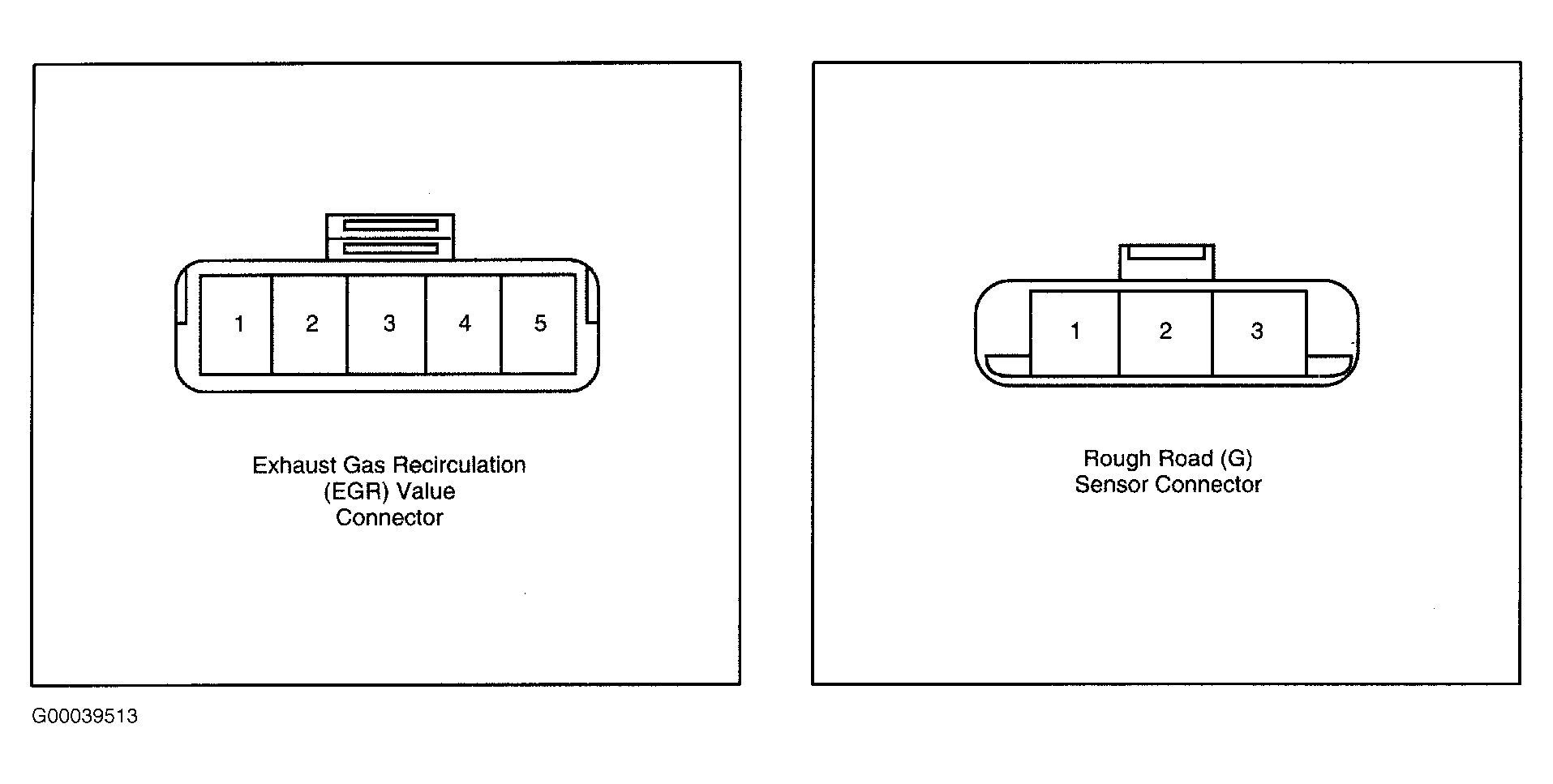

Fig 5: Connector End View (5 Of 5)
G00039513Courtesy of DAEWOO
