Front Spring/Strut Cartridge: Assembly

1. Install strut cartridge and secure it with strut cartridge closure nut using strut cartridge closure nut wrench KM-331.
   CAUTION: Use a new strut cartridge closure nut. The new nut is coated in wax. Do not wipe off wax. It is both a lubricant and a corrosion preventative.
2. Tighten strut cartridge closure nut to 200 N.m (148 ft. lbs.). Lubricate upper strut mount bearing with multipurpose grease. Install bumper and spring. Compress front spring with front spring compressor KM-465-A and spring compressor KM-329-A.
3. Install upper insulator, shield, plastic mount, washer, and support bearing. Tighten piston rod nut using front strut mount nut wrench J-42468. Tighten piston rod nut to 55 N.m (41 ft. lbs.). Remove strut assembly from spring compressor and install strut assembly onto vehicle. Install wheel. Lower vehicle.

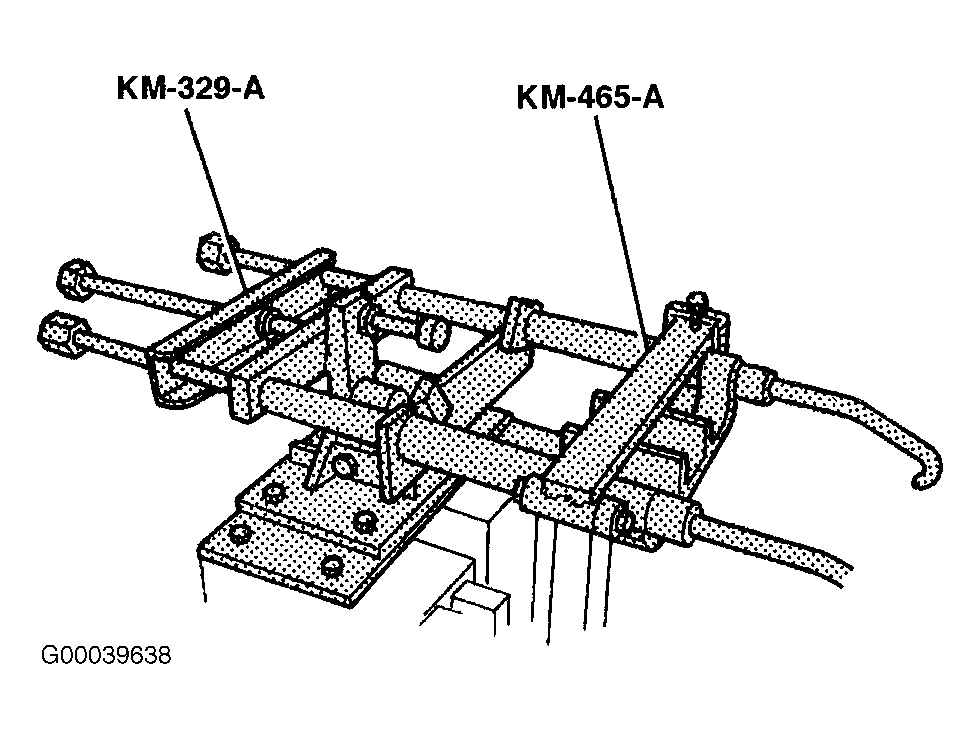

Fig 1: Front Spring Compressor

Courtesy of DAEWOO MOTOR AMERICA, INC.

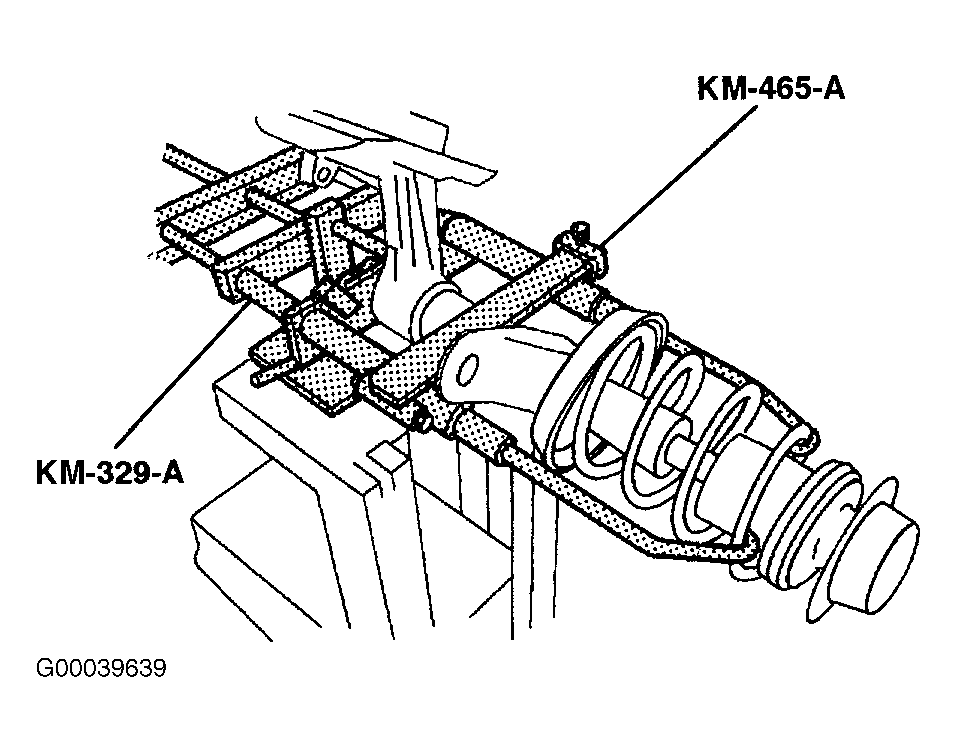

Fig 2: Compressing Front Springs

Courtesy of DAEWOO MOTOR AMERICA, INC.

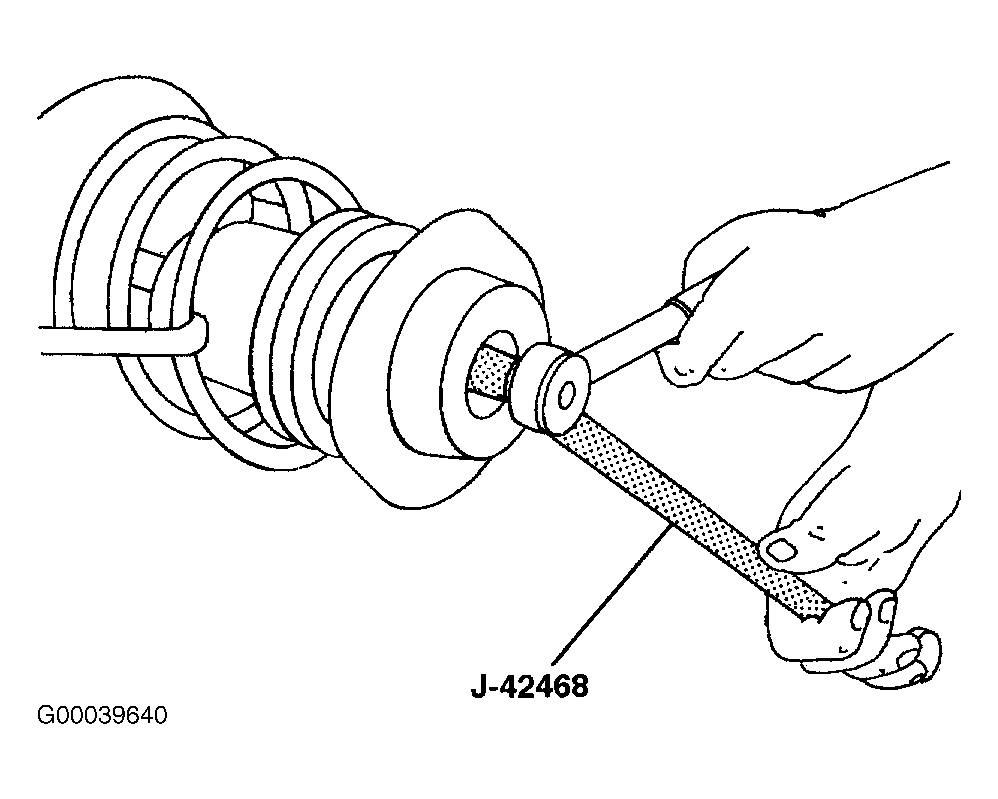

Fig 3: Strut Support Bearing

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 4: Identifying Strut Components

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 5: Removing Spring

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 6: Removing Strut Cartridge

Courtesy of DAEWOO MOTOR AMERICA, INC.
