DTC P1625: Pcm/ECM Internal System Reset: Notes

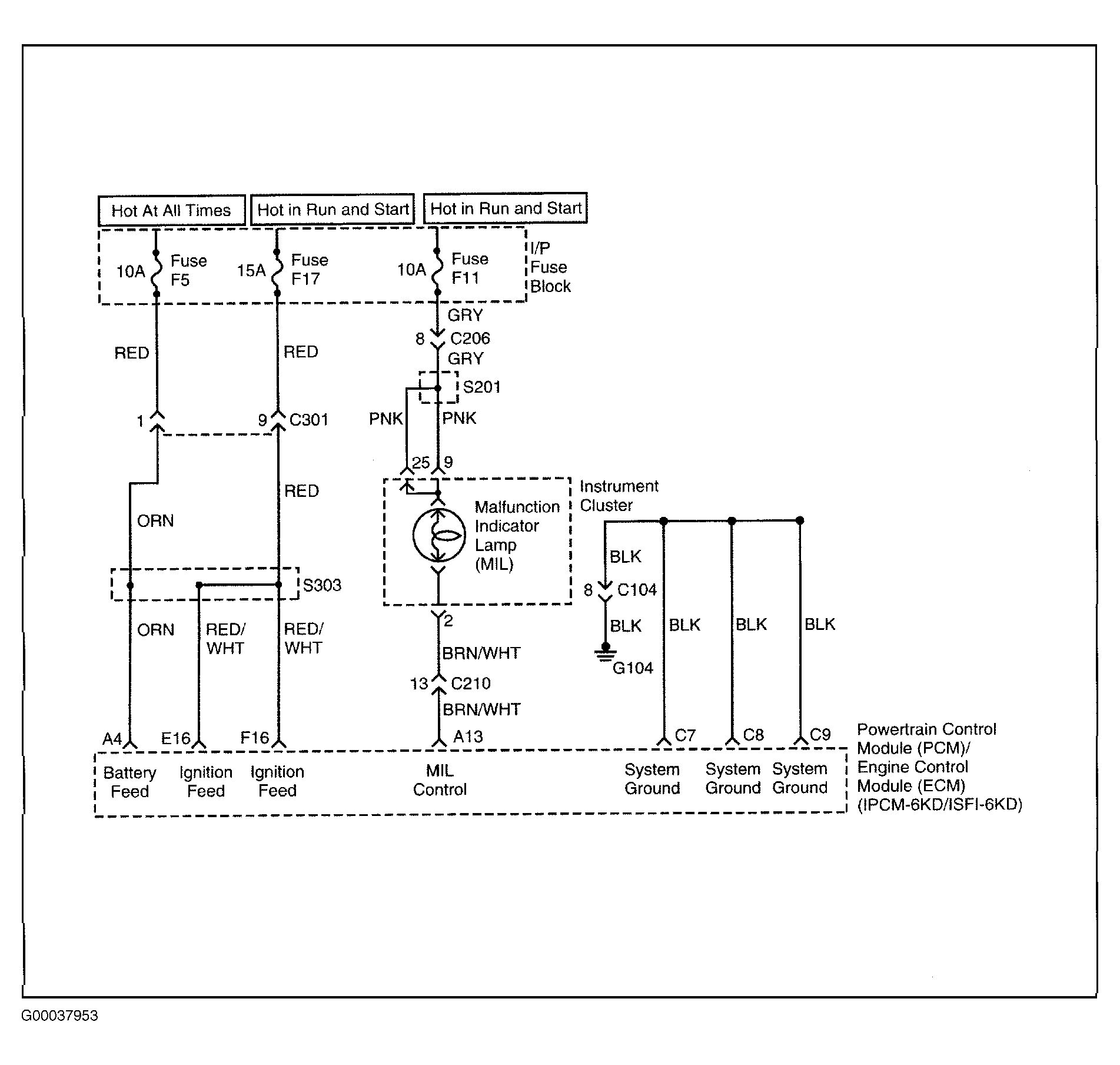

Fig 1: Indicator Lamp Circuit Diagram
G00037953Courtesy of DAEWOO
