Data Link Connector Diagnosis: Notes

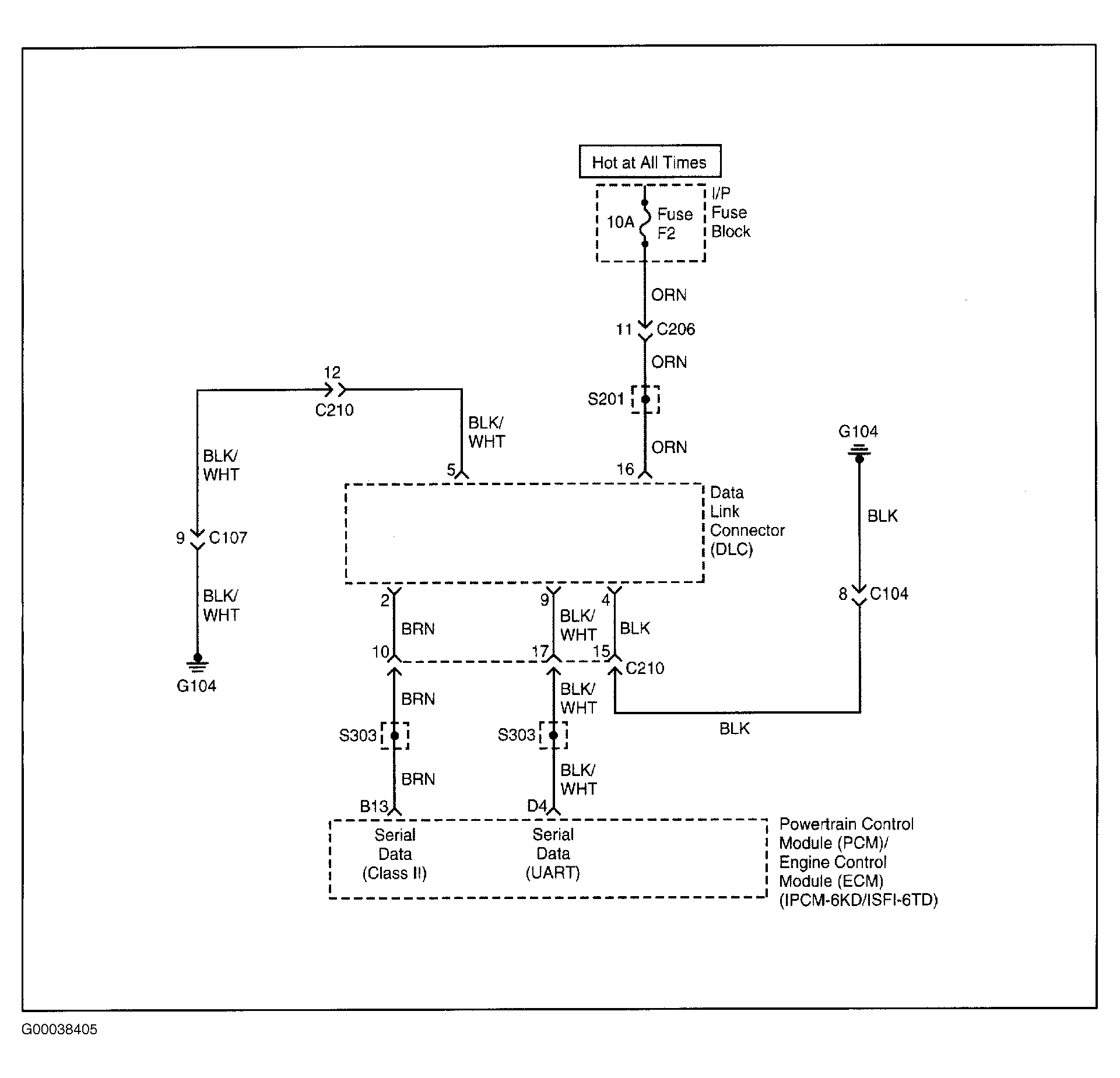

Fig 1: Data Link Connector Circuit Diagram
G00038405Courtesy of DAEWOO
