Manifold Absolute Pressure Check: Notes

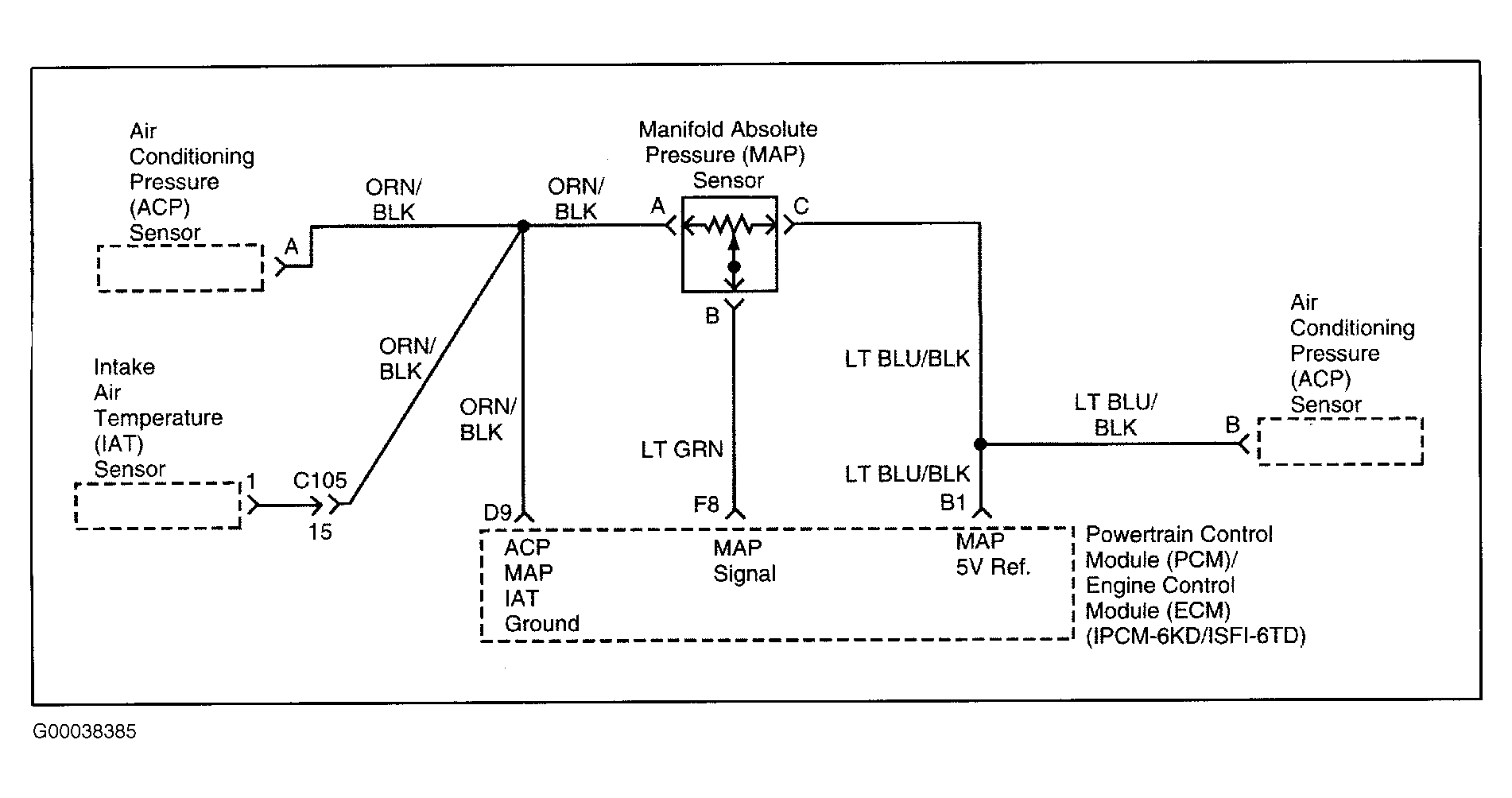

Fig 1: MAP Sensor Circuit Diagram
G00038385Courtesy of DAEWOO
