Home › Daewoo › 2000 › Lanos SX, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › Symptom Diagnosis › Engine Cranks But Will Not Run › Notes

Engine Cranks But Will Not Run: Notes

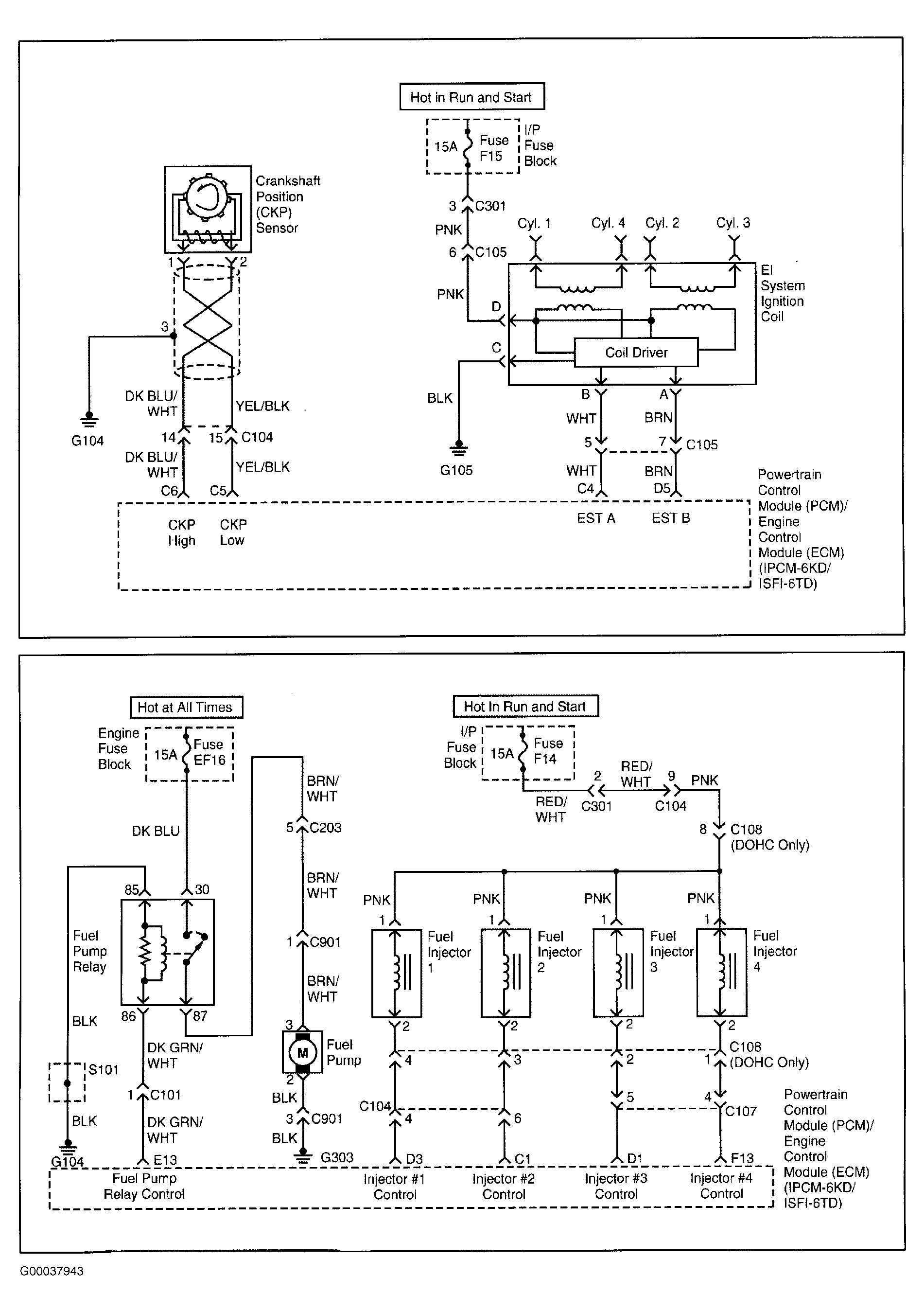

Fig 1: Engine Starting Circuits
G00037943Courtesy of DAEWOO
