Component Locator
›
Electronic Components
Electronic Components

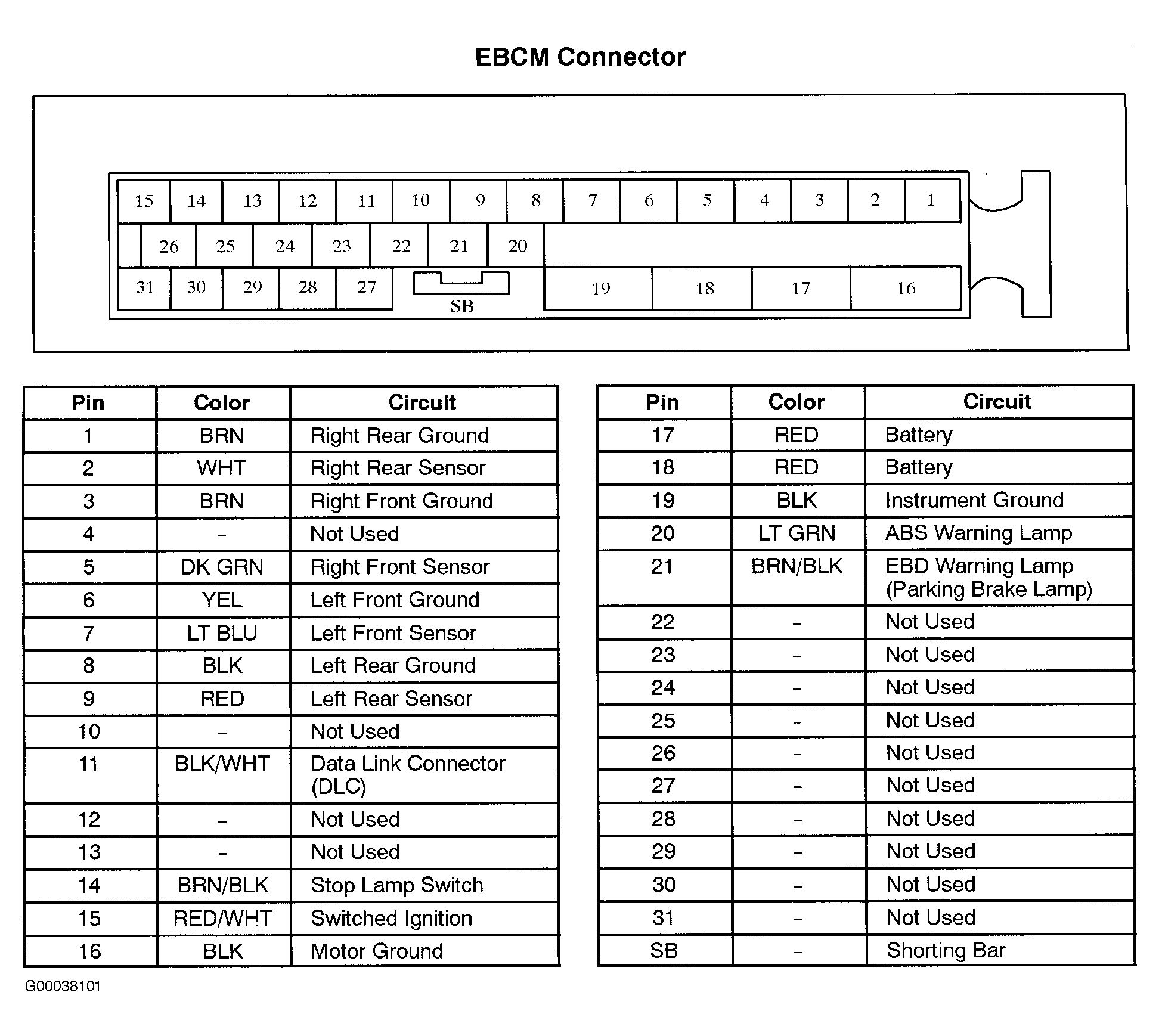

Fig 1: EBCM Connector Face View
Courtesy of DAEWOO MOTOR AMERICA, INC.

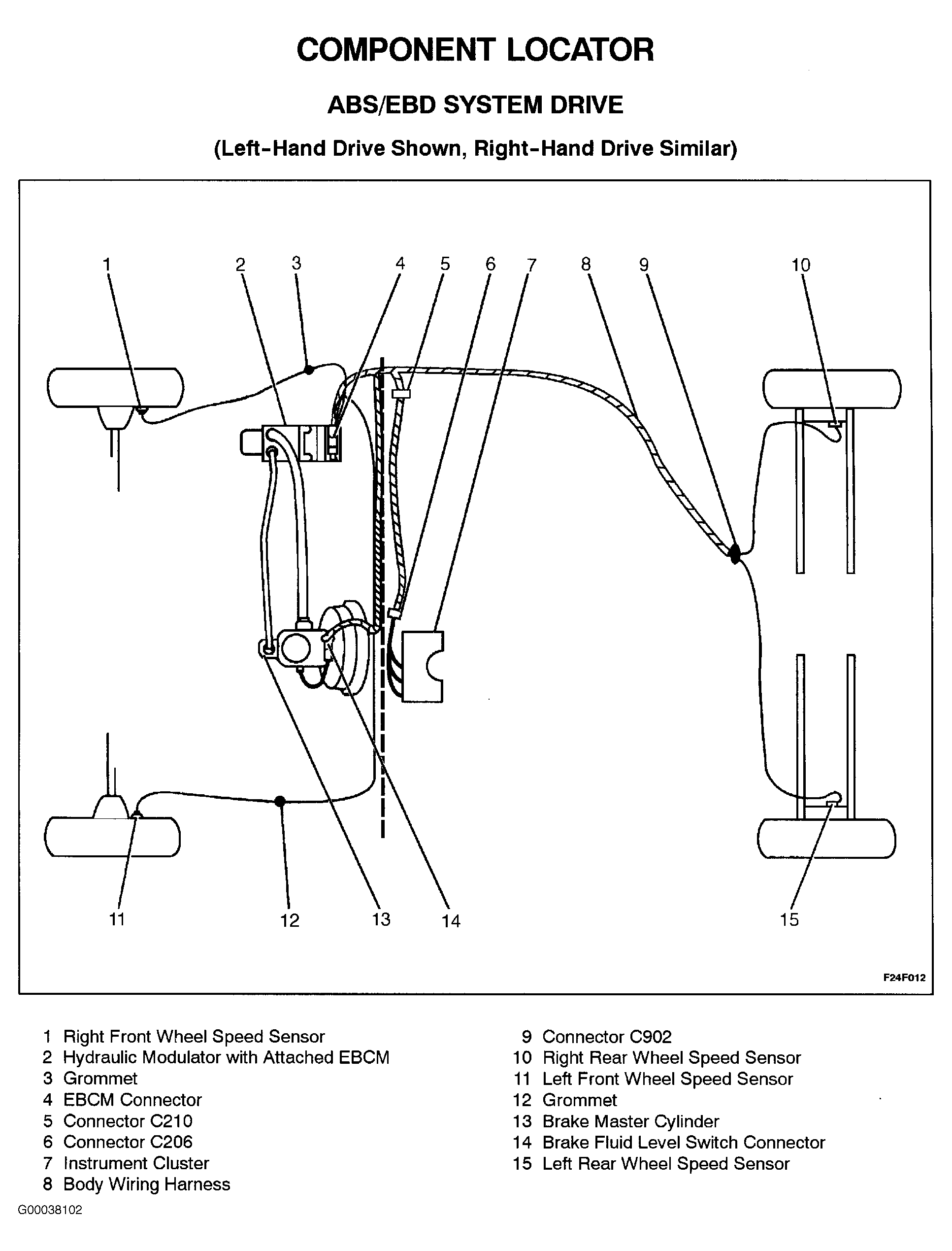

Fig 2: EBCM Component Locator ABS/EBD System Drive
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
