Power Mirrors: Diagnosis

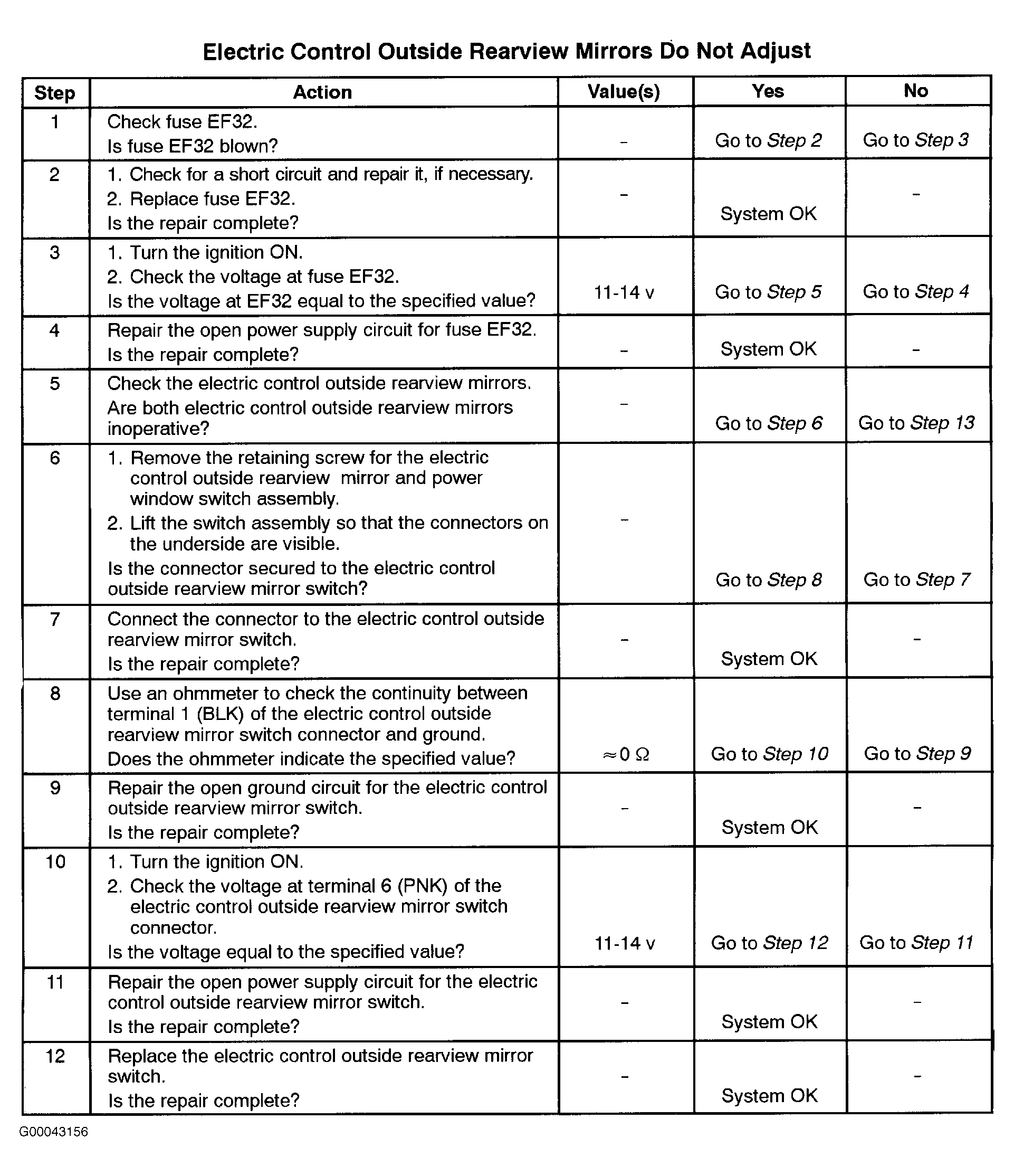

Fig 1: Electric Control Outside Rearview Mirrors Testing (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

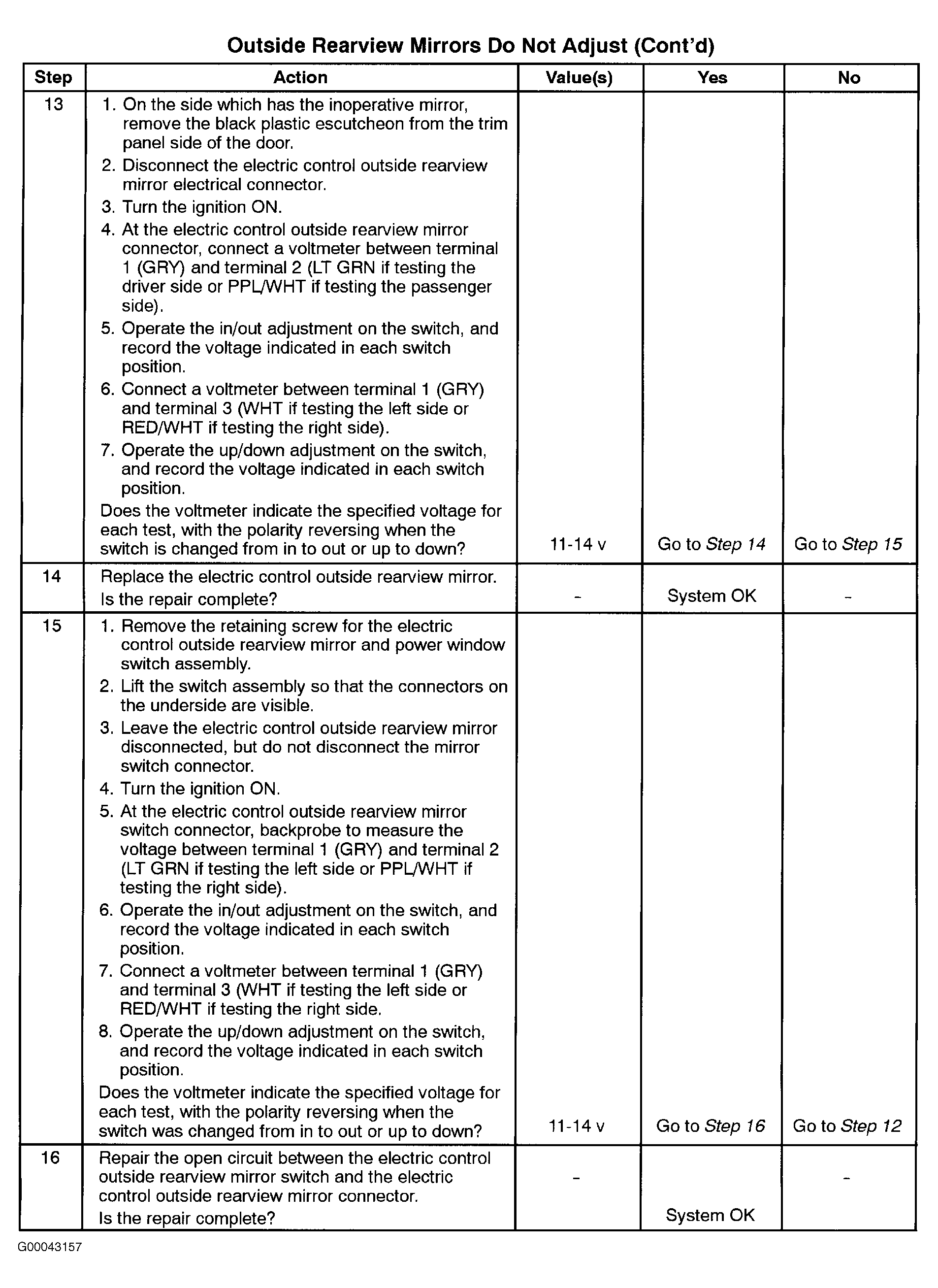

Fig 2: Electric Outside Control Rearview Mirrors Testing (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
