Wiring Diagrams

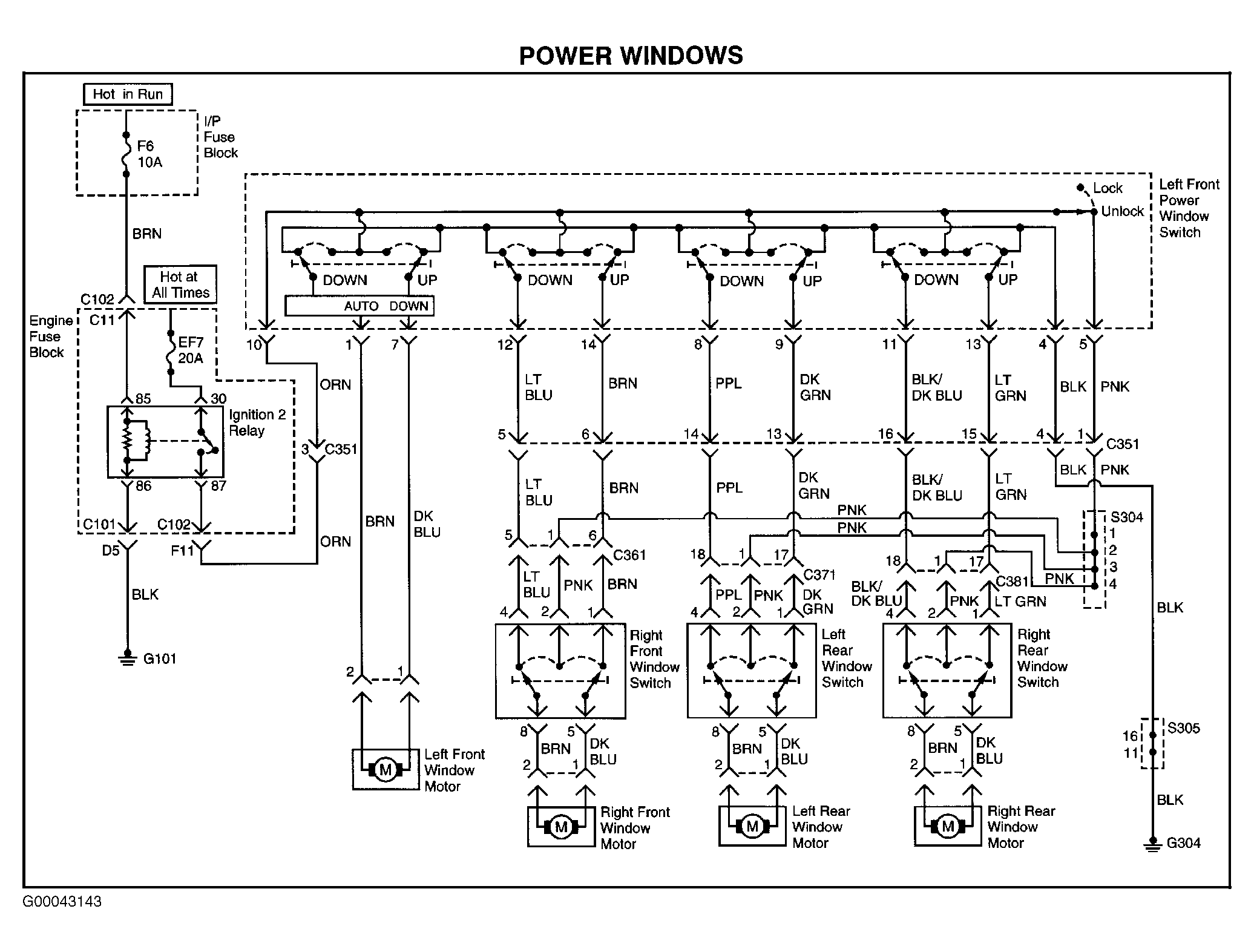

Fig 1: Power Windows Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.

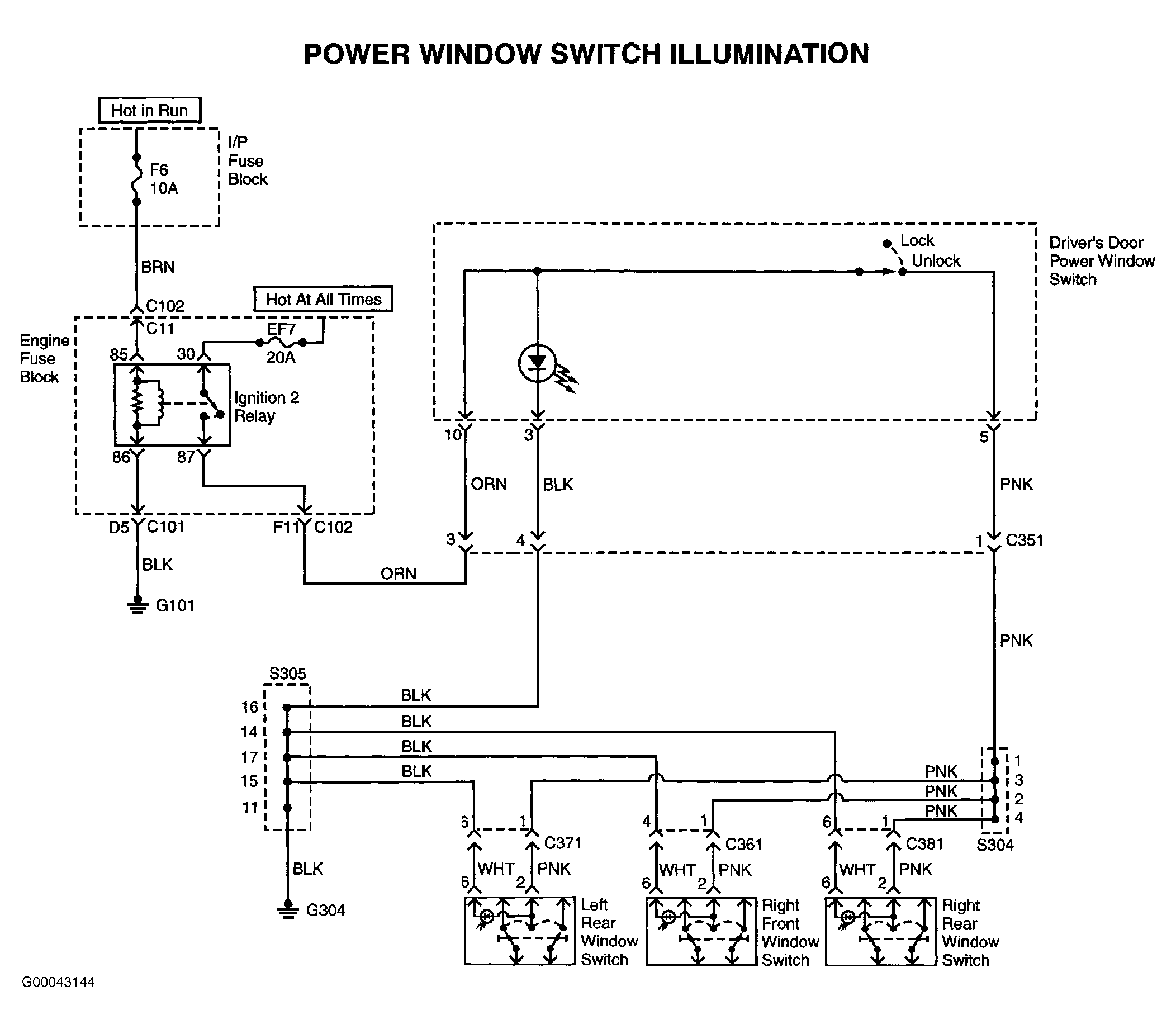

Fig 2: Power Window Switch Illumination Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.

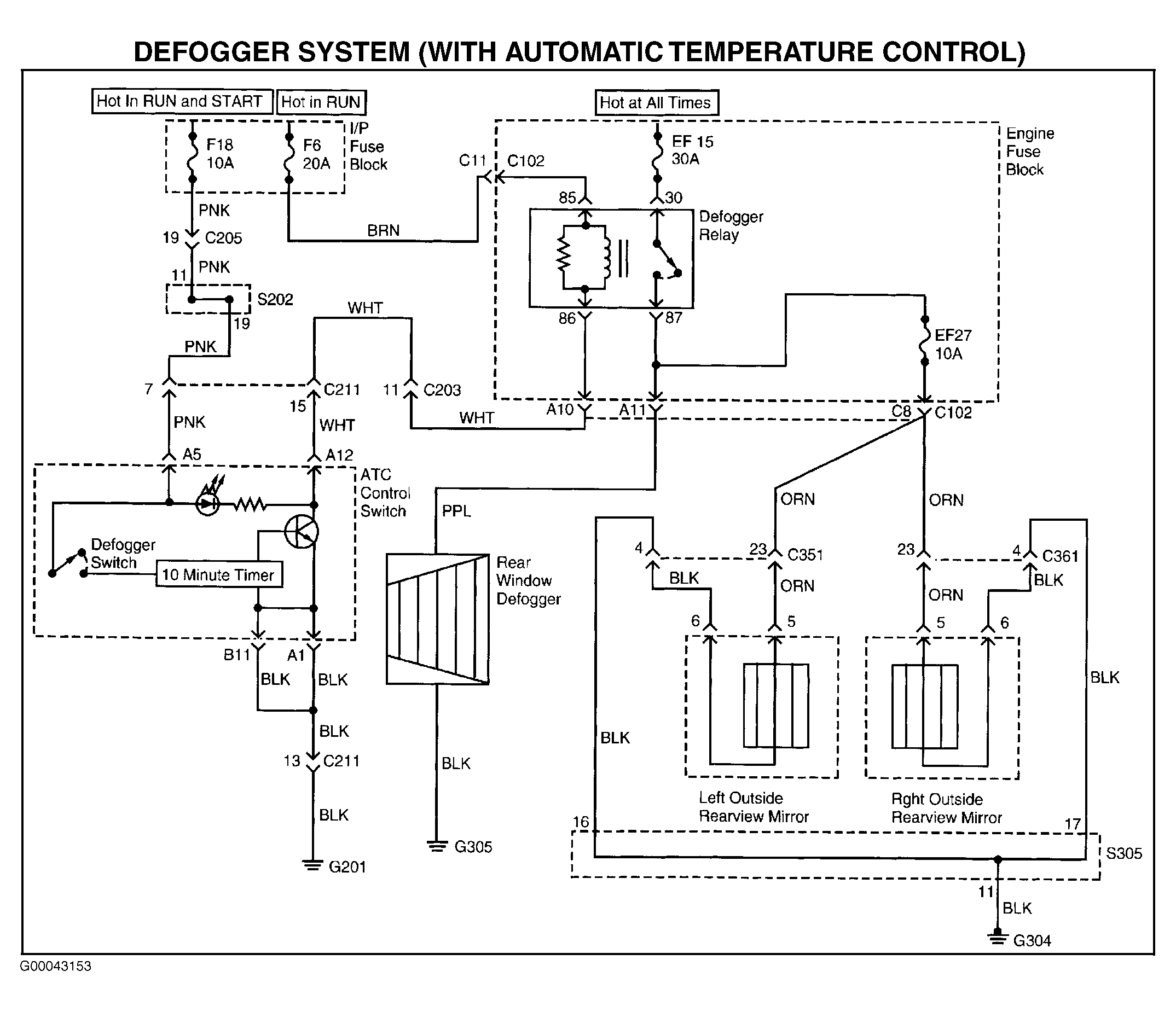

Fig 3: Defogger System (With Automatic Temperature Control) Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
