System Operation
›
Traction Control Mode
Traction Control Mode

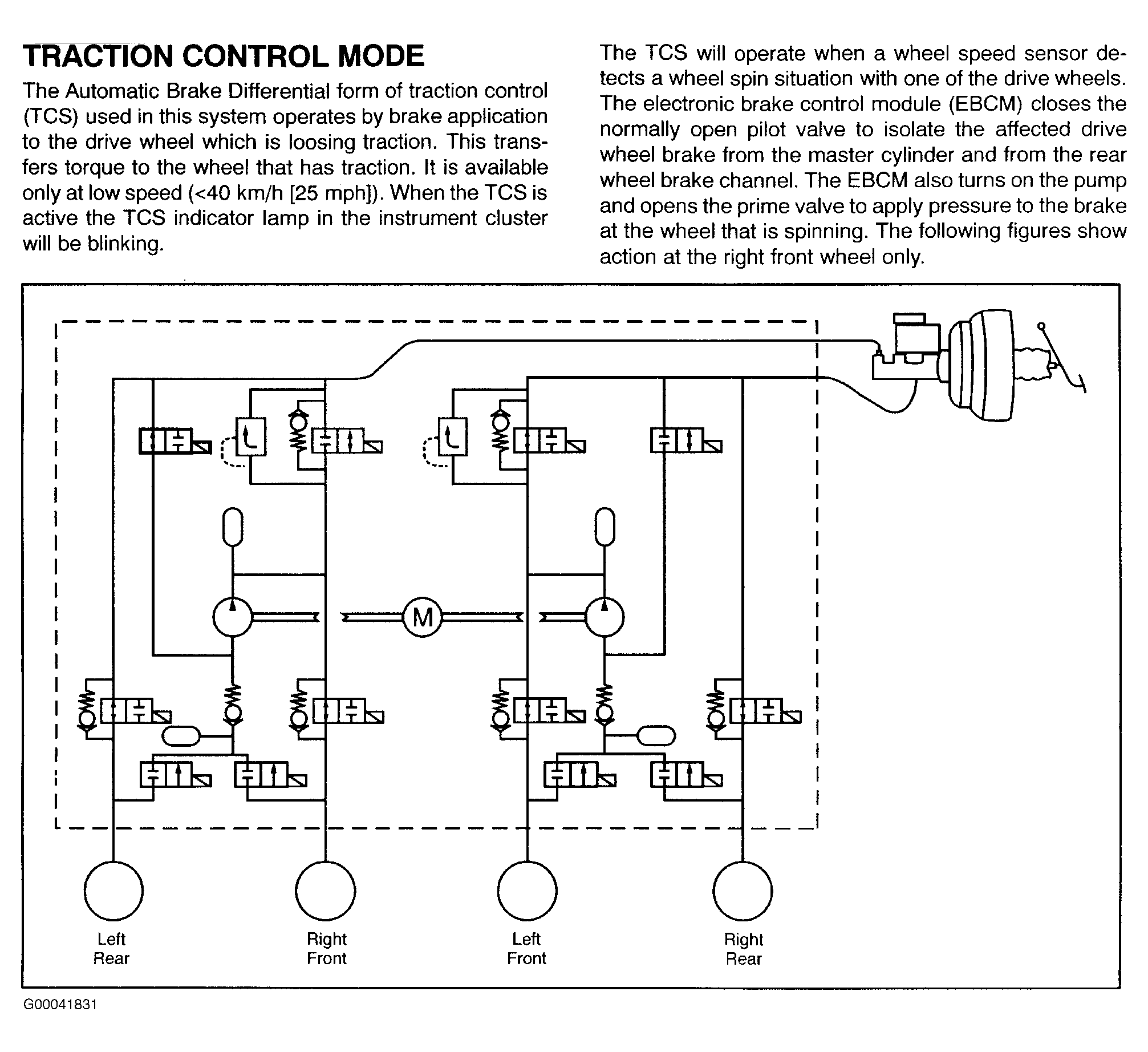

Fig 1: Traction Control Mode (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Traction Control Mode (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

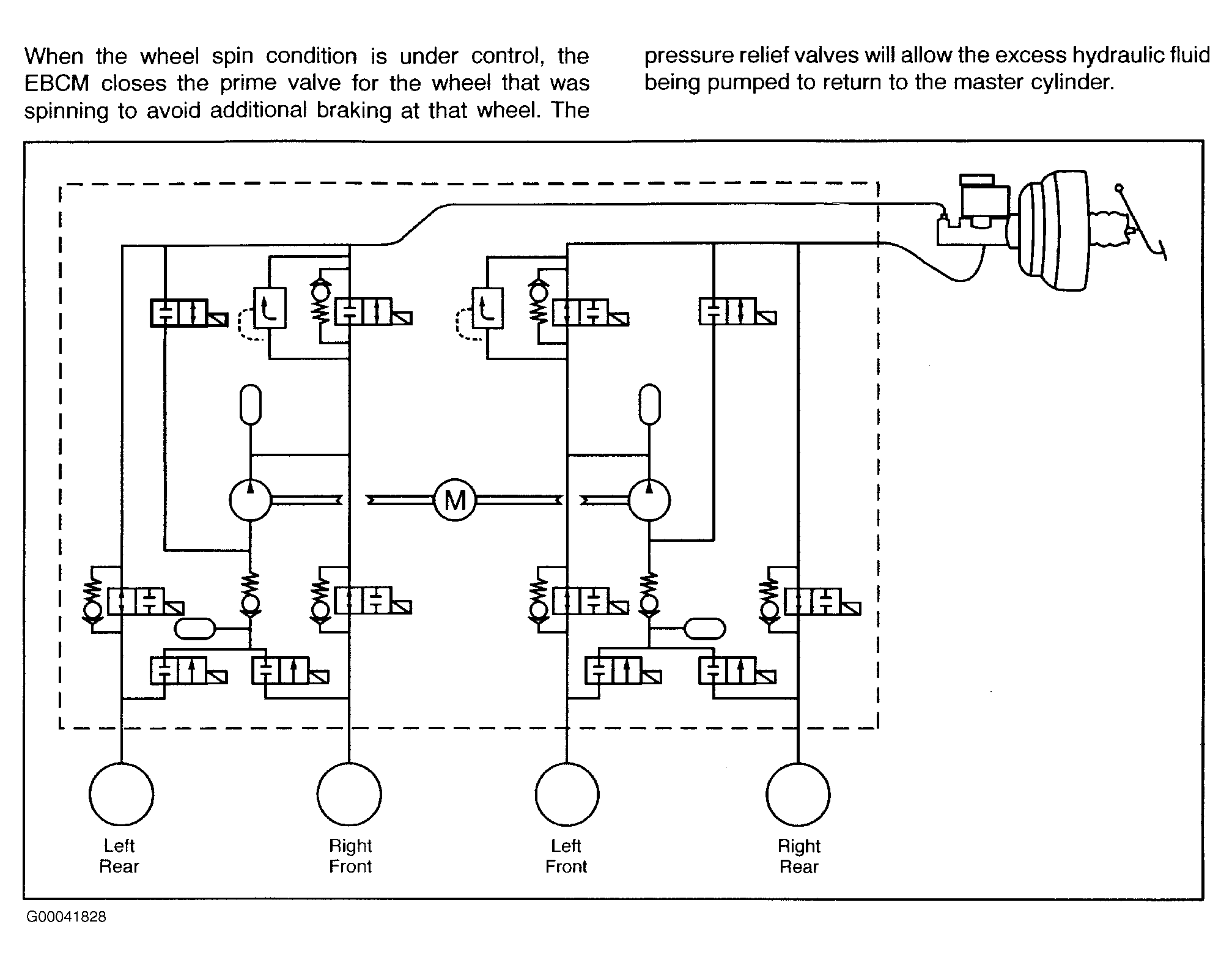

Fig 3: Traction Control Mode (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
