Multiple ECM Information Sensor DTCS Set

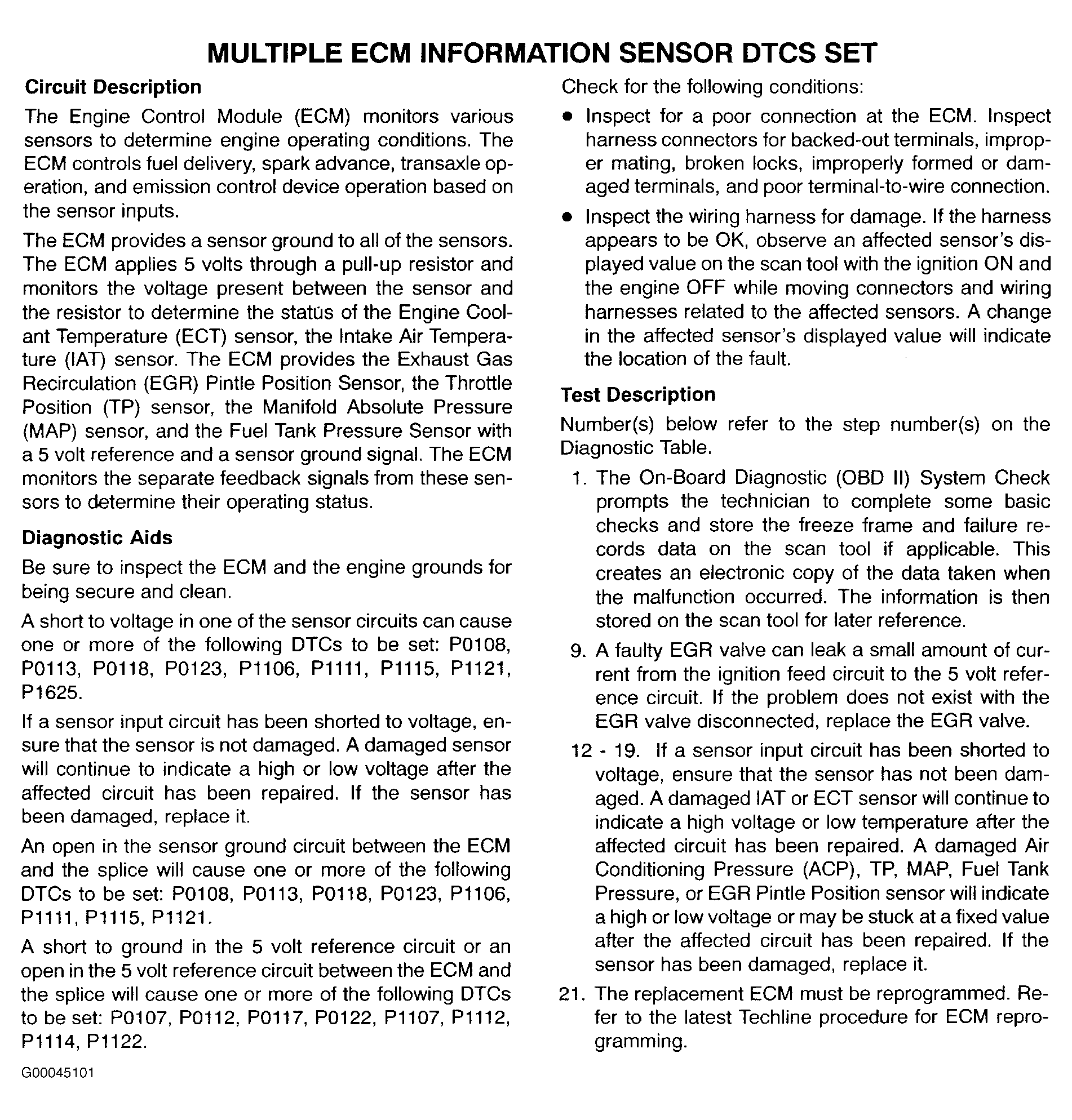

Fig 1: Multiple ECM Information Sensor DTCs Set (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

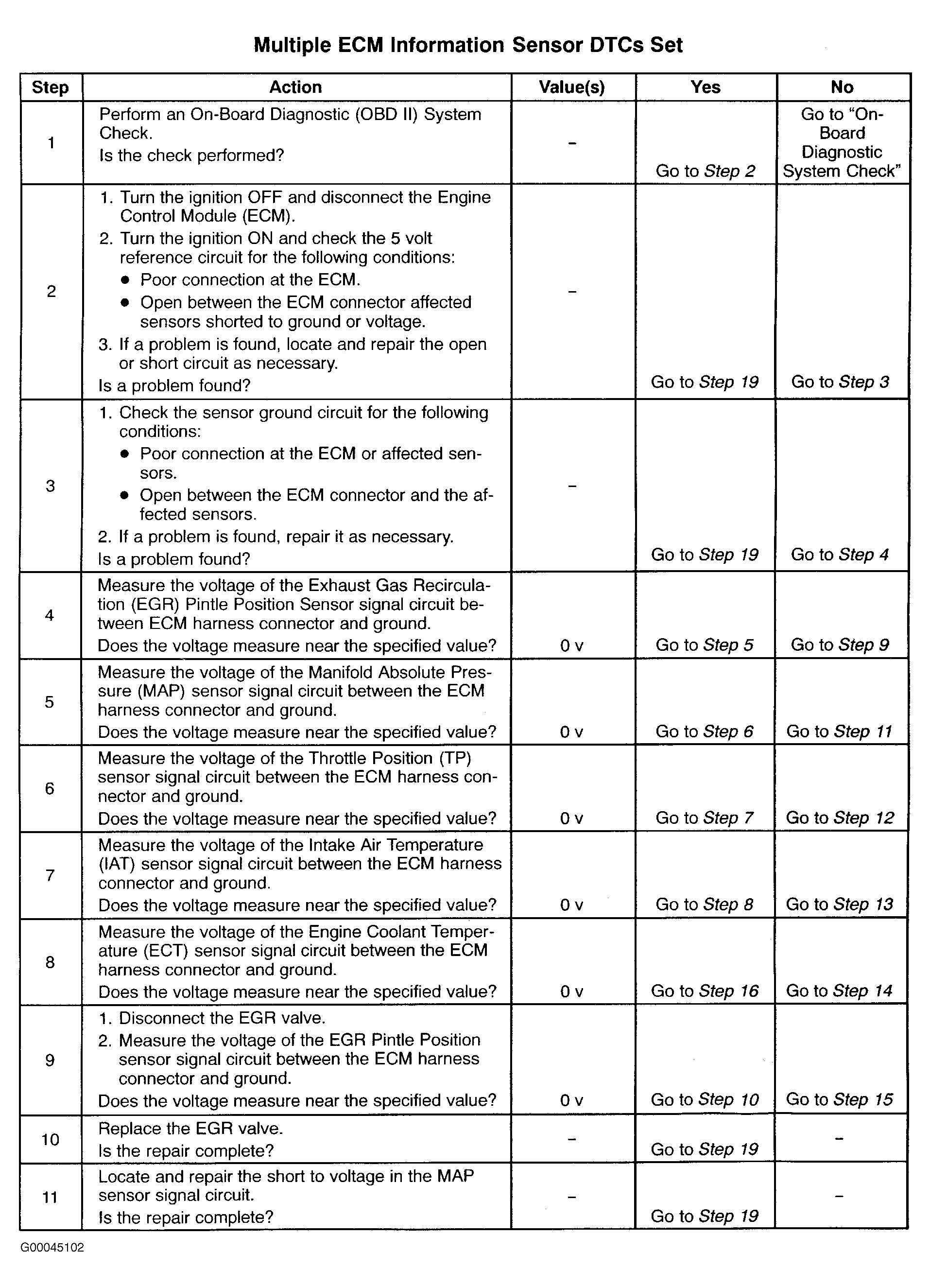

Fig 2: Multiple ECM Information Sensor DTCs Set (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

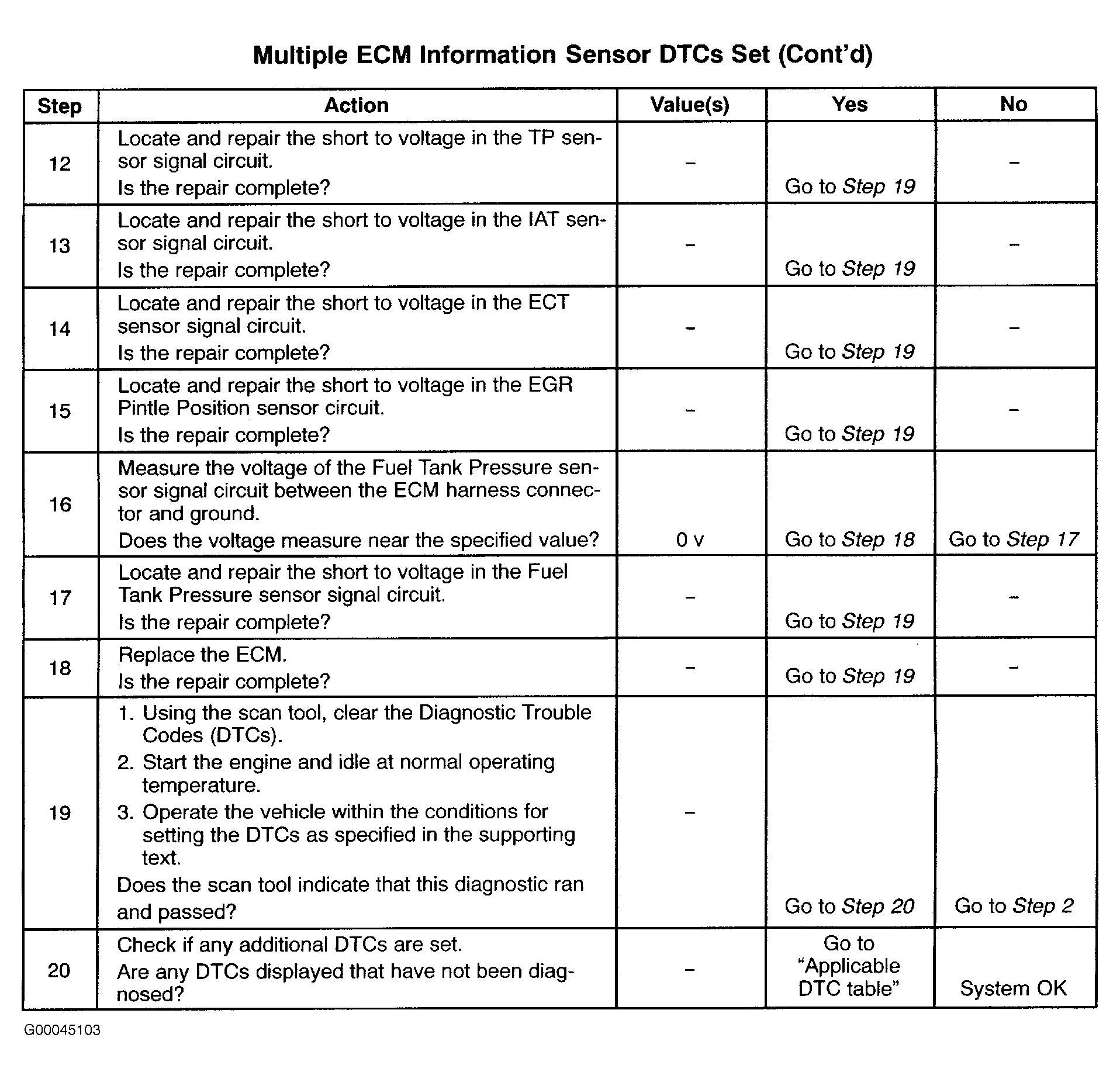

Fig 3: Multiple ECM Information Sensor DTCs Set (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
