DTC P0134: O2 Bank No. 1, Sensor No. 1, No Activity

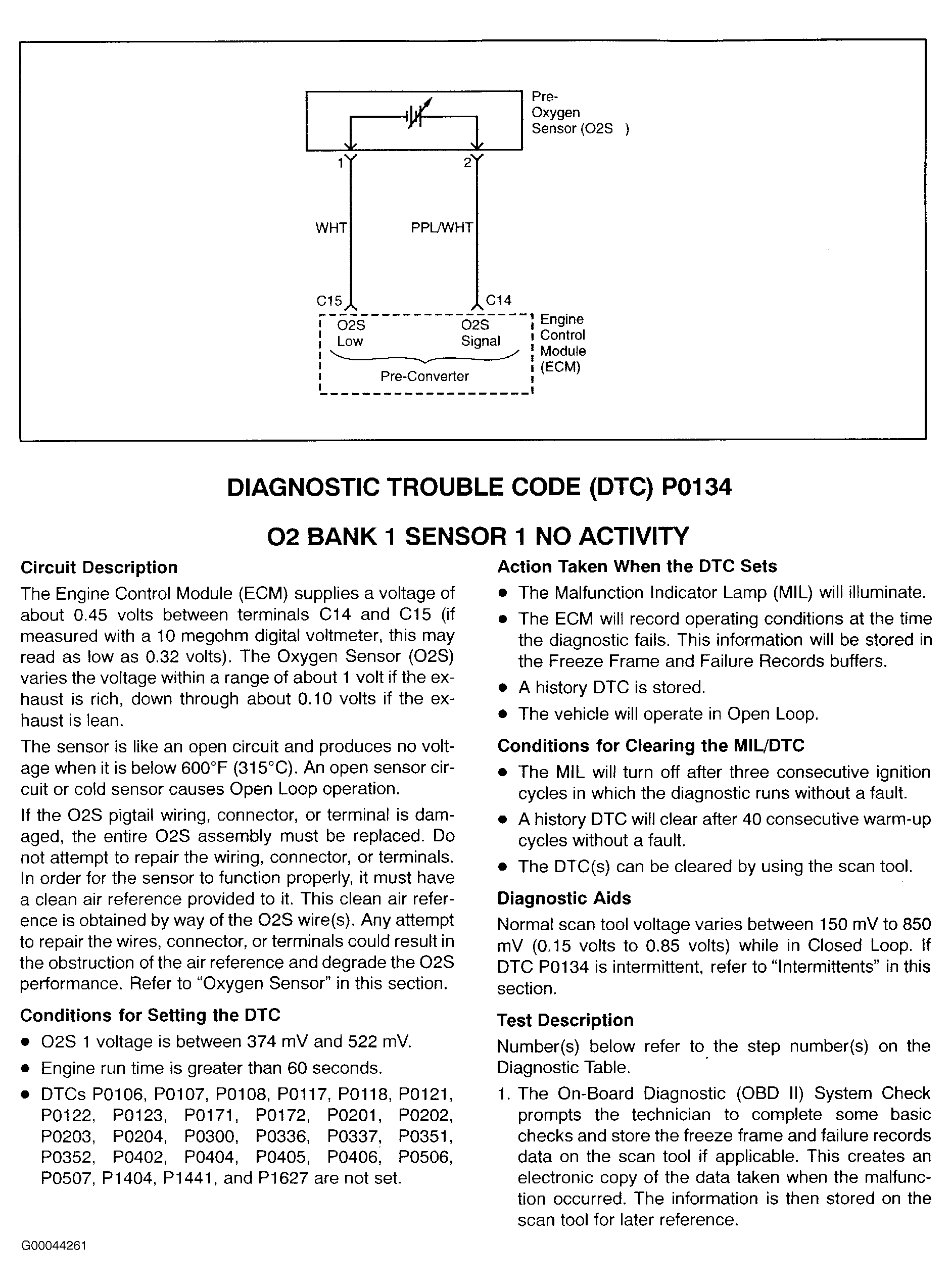

Fig 1: DTC P0134: O2 Bank No. 1, Sensor No. 1, No Activity (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

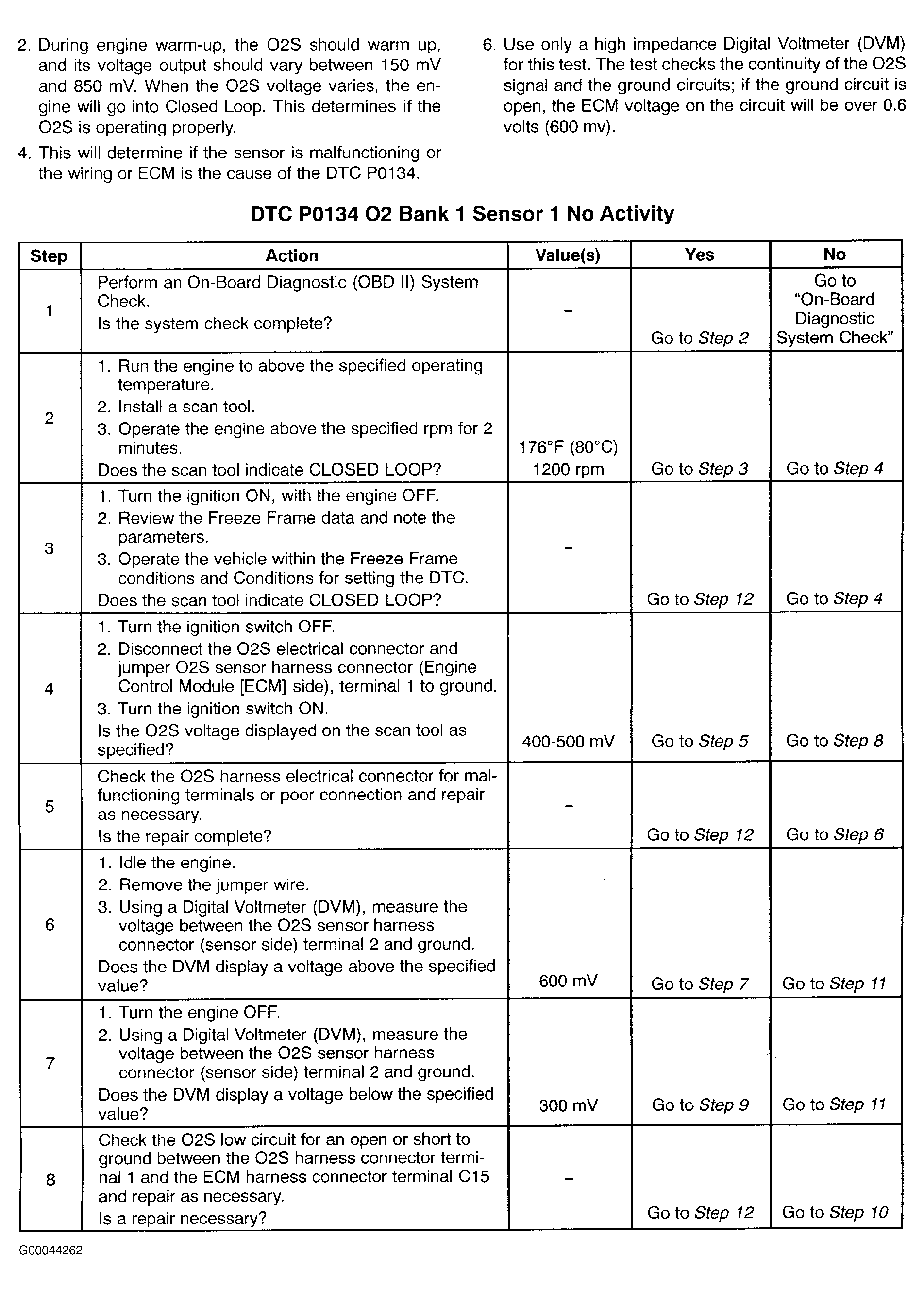

Fig 2: DTC P0134: O2 Bank No. 1, Sensor No. 1, No Activity (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

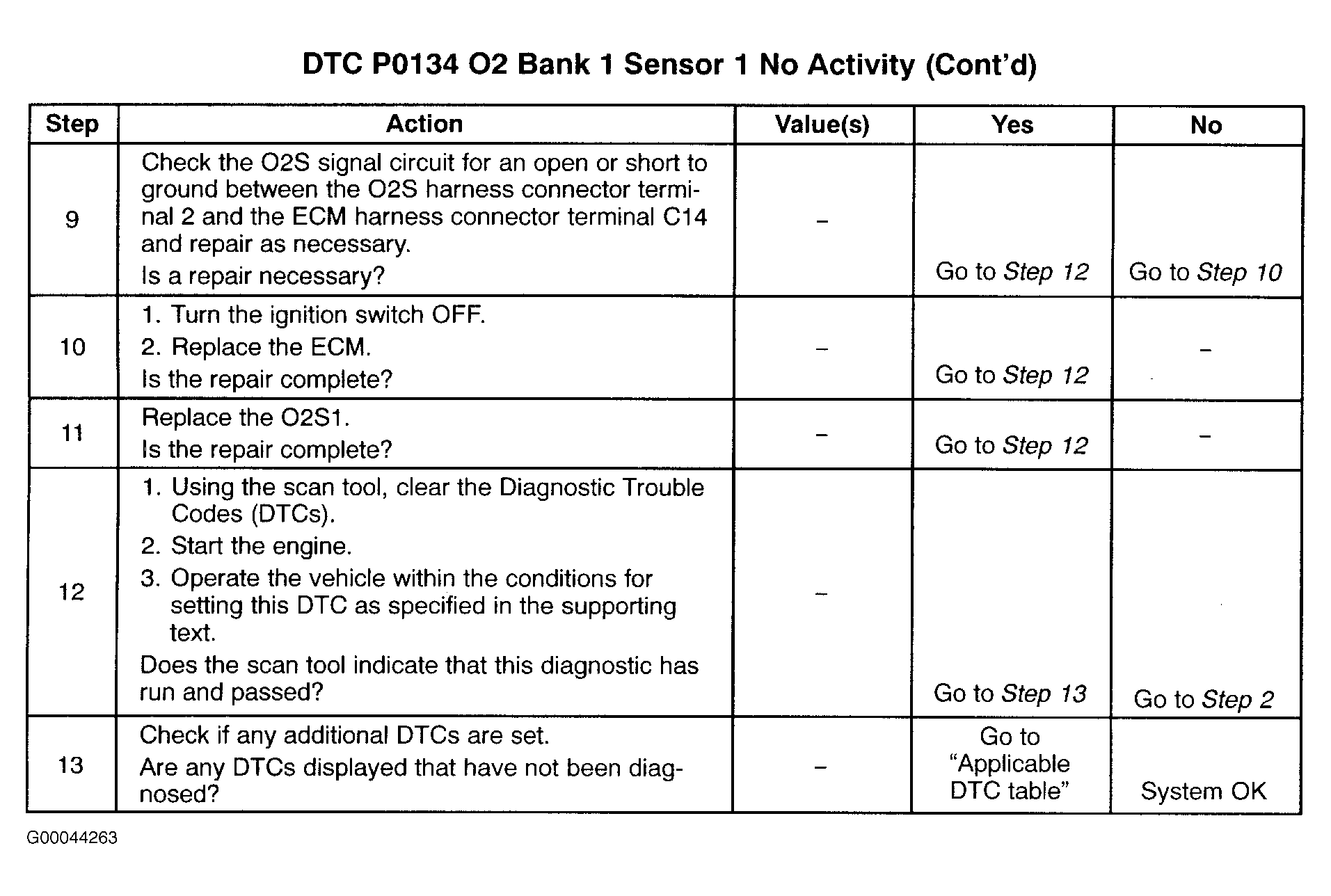

Fig 3: DTC P0134: O2 Bank No. 1, Sensor No. 1, No Activity (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
