DTC P0327: Knock Sensor Circuit Fault

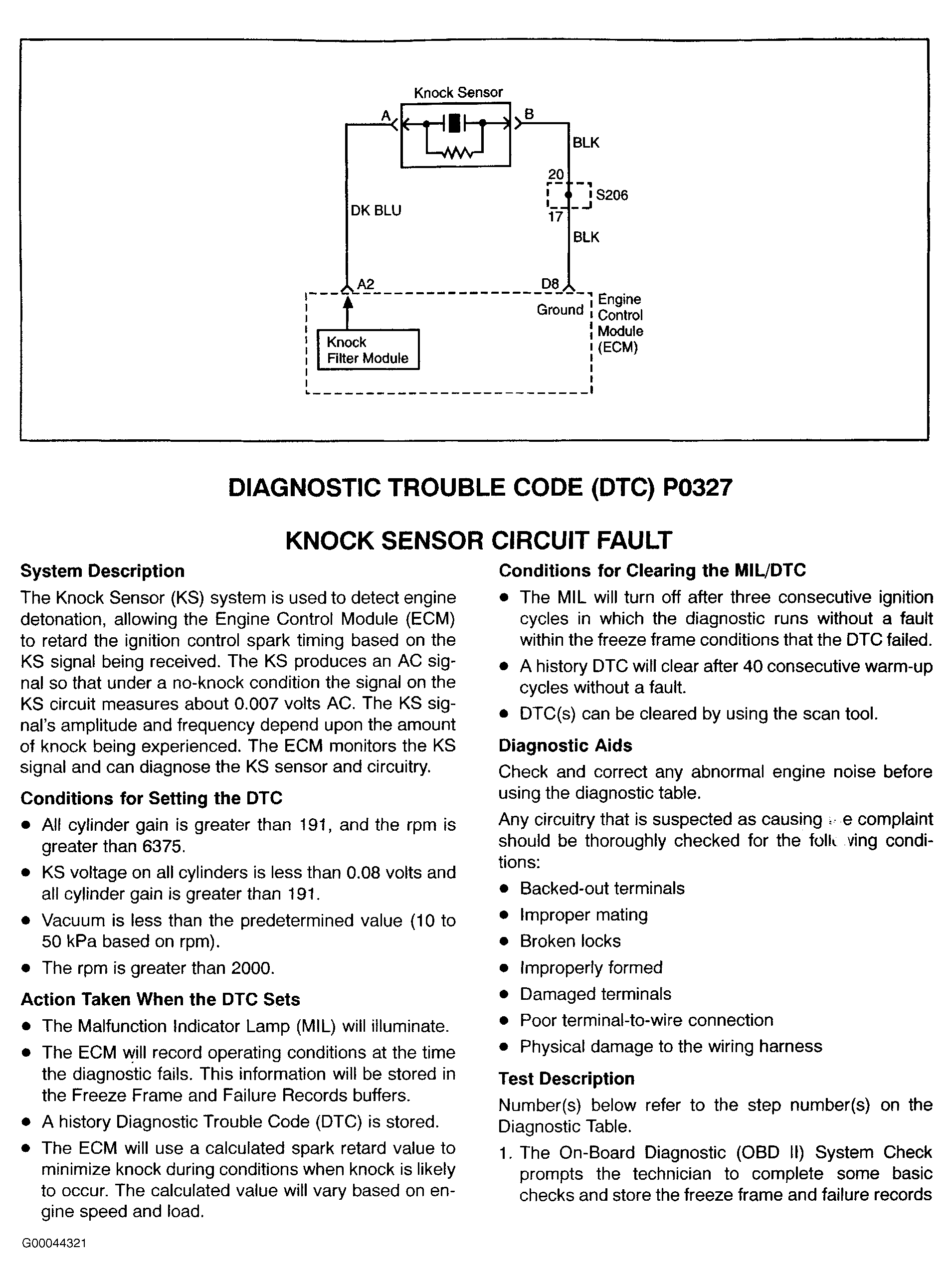

Fig 1: DTC P0327: Knock Sensor Circuit Fault (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

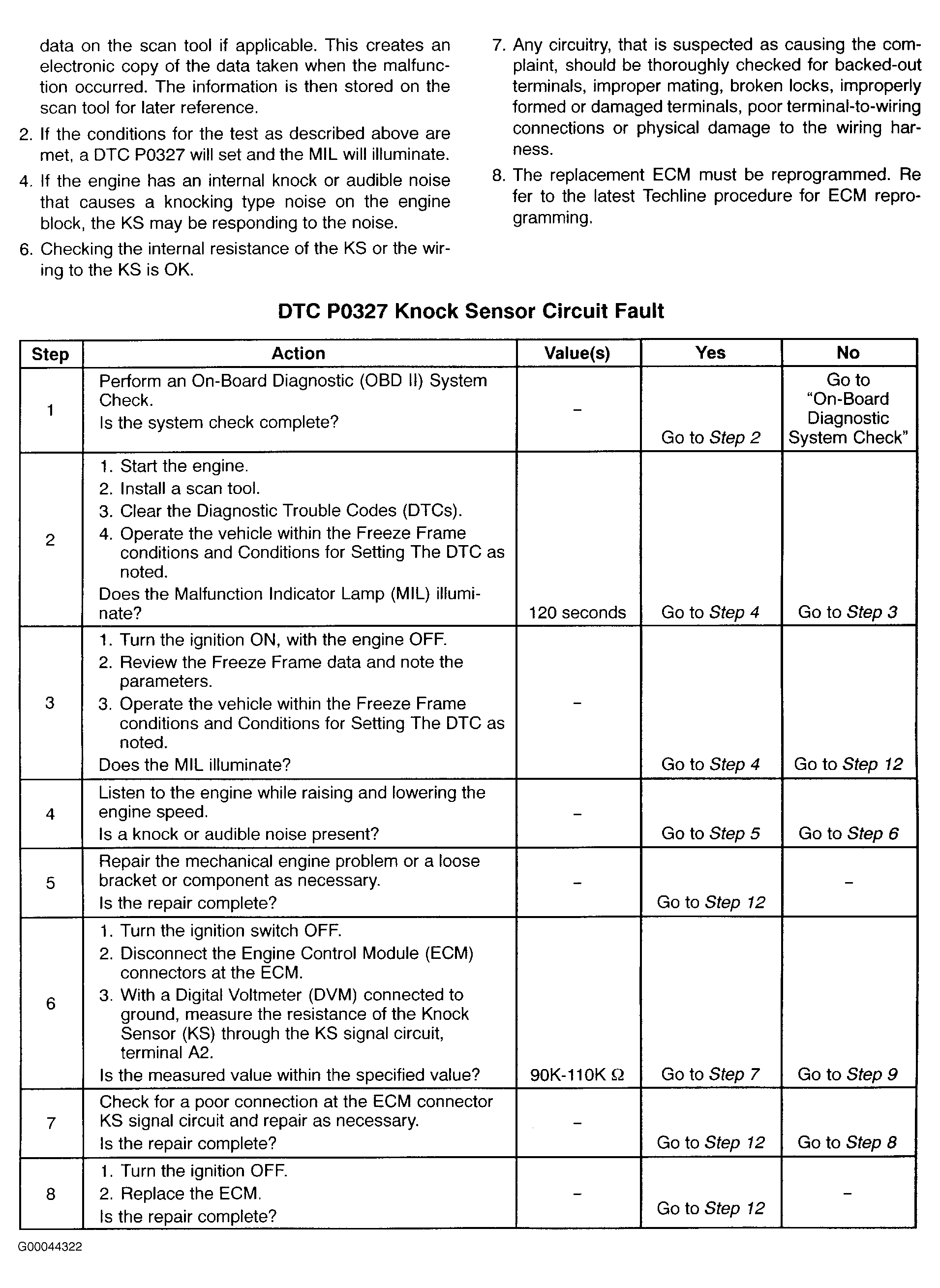

Fig 2: DTC P0327: Knock Sensor Circuit Fault (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

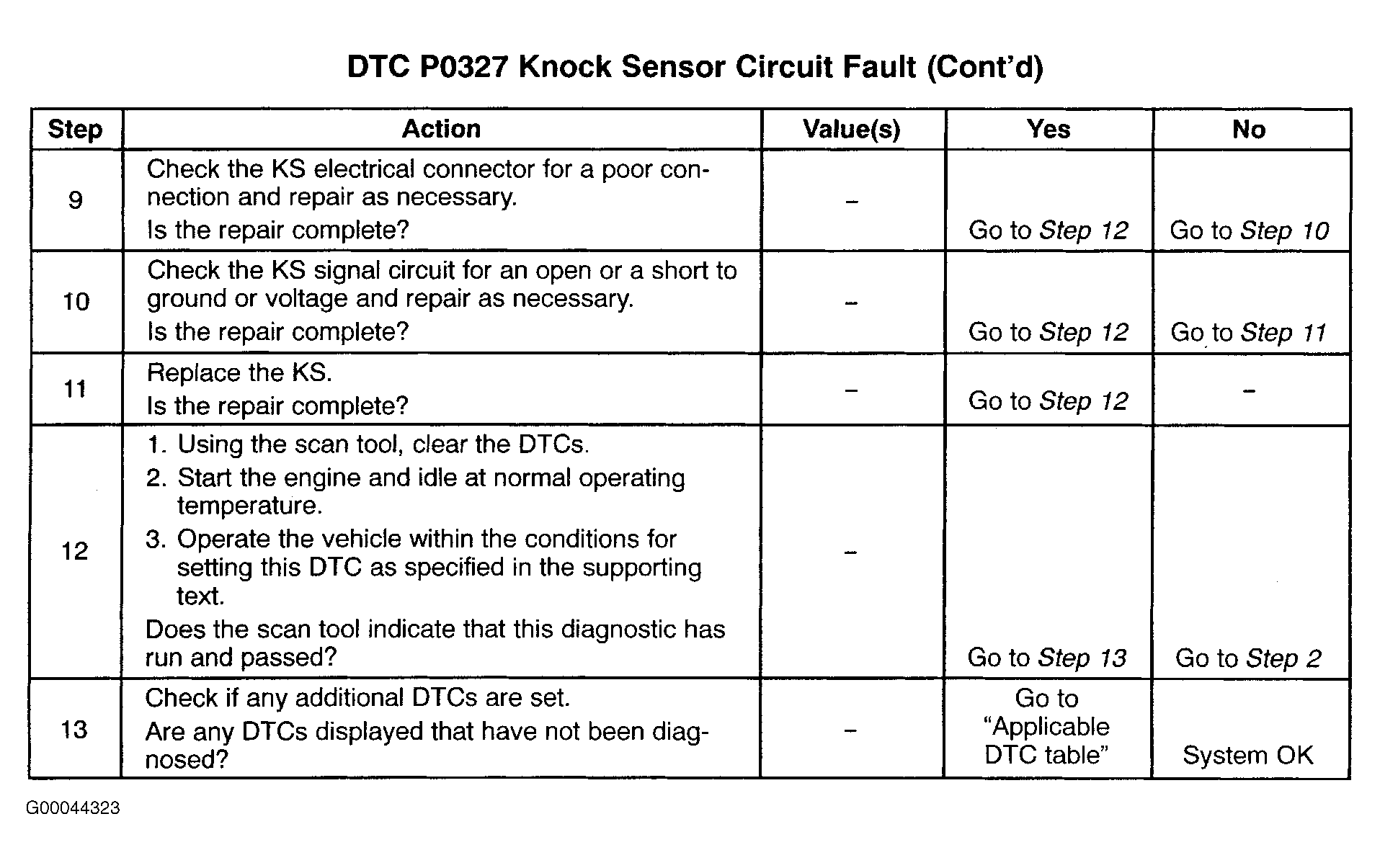

Fig 3: DTC P0327: Knock Sensor Circuit Fault (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
