DTC P0532: A/C Pressure Sensor Low

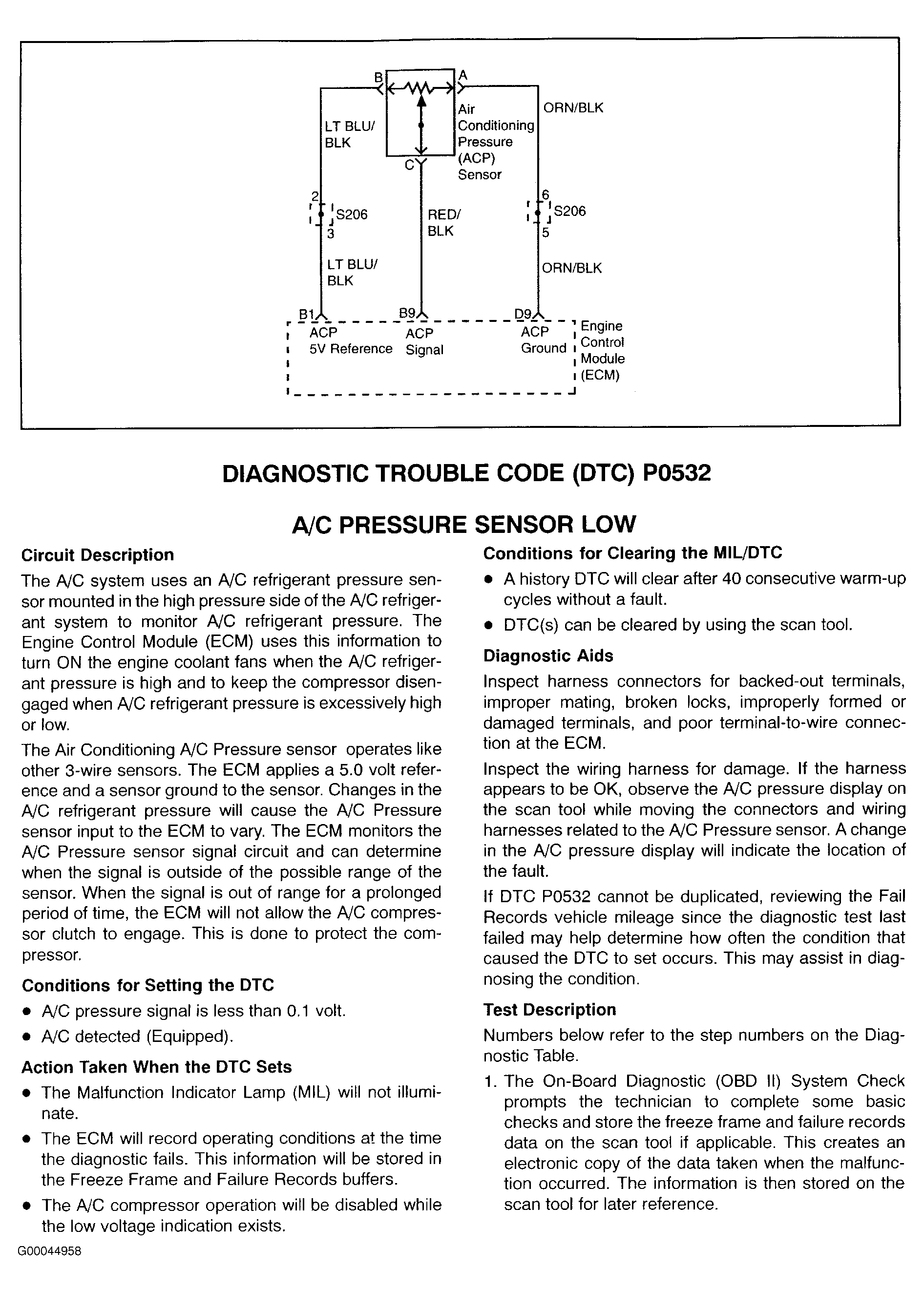

Fig 1: DTC P0532: A/C Pressure Sensor Low (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

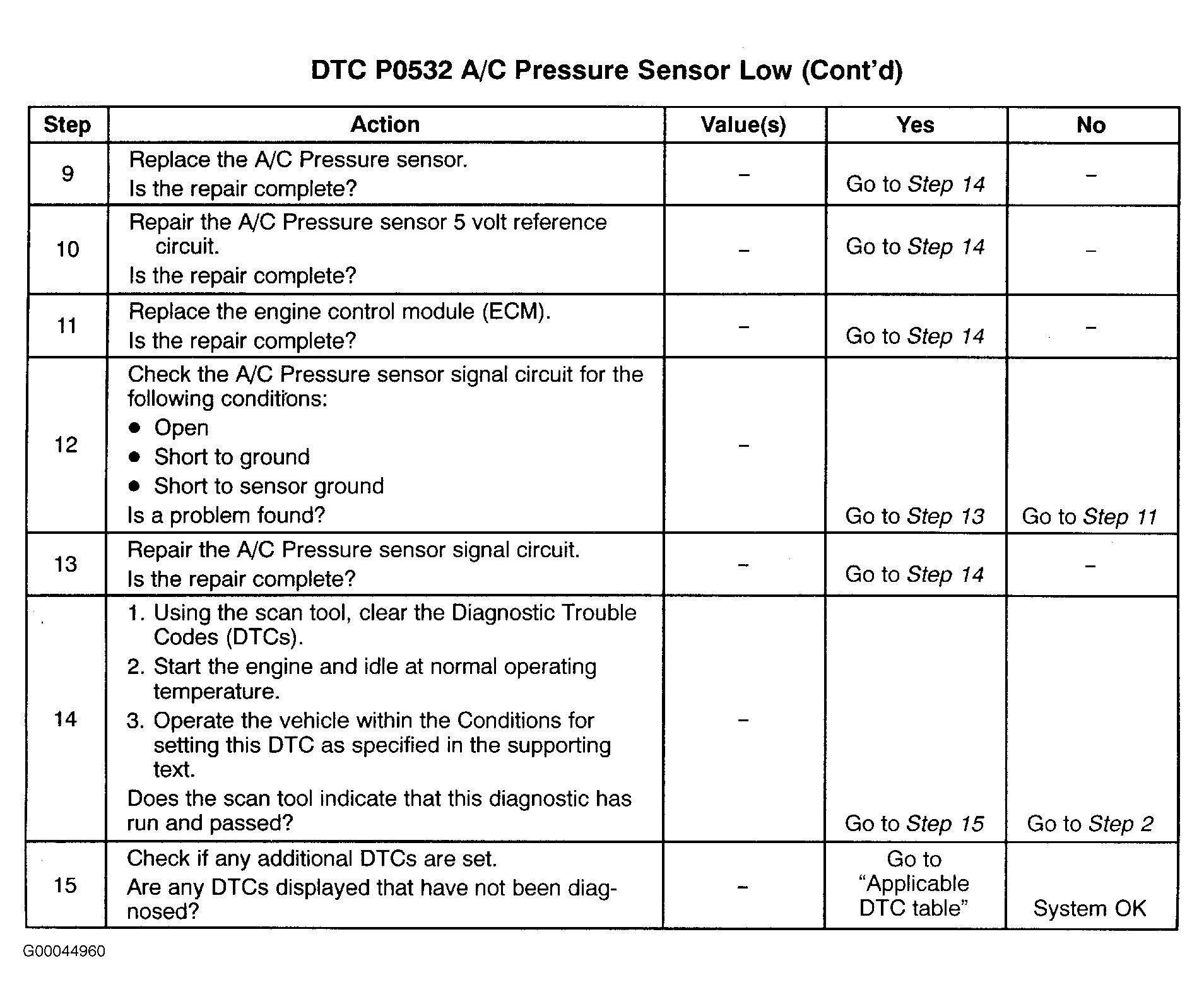

Fig 2: DTC P0532: A/C Pressure Sensor Low (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

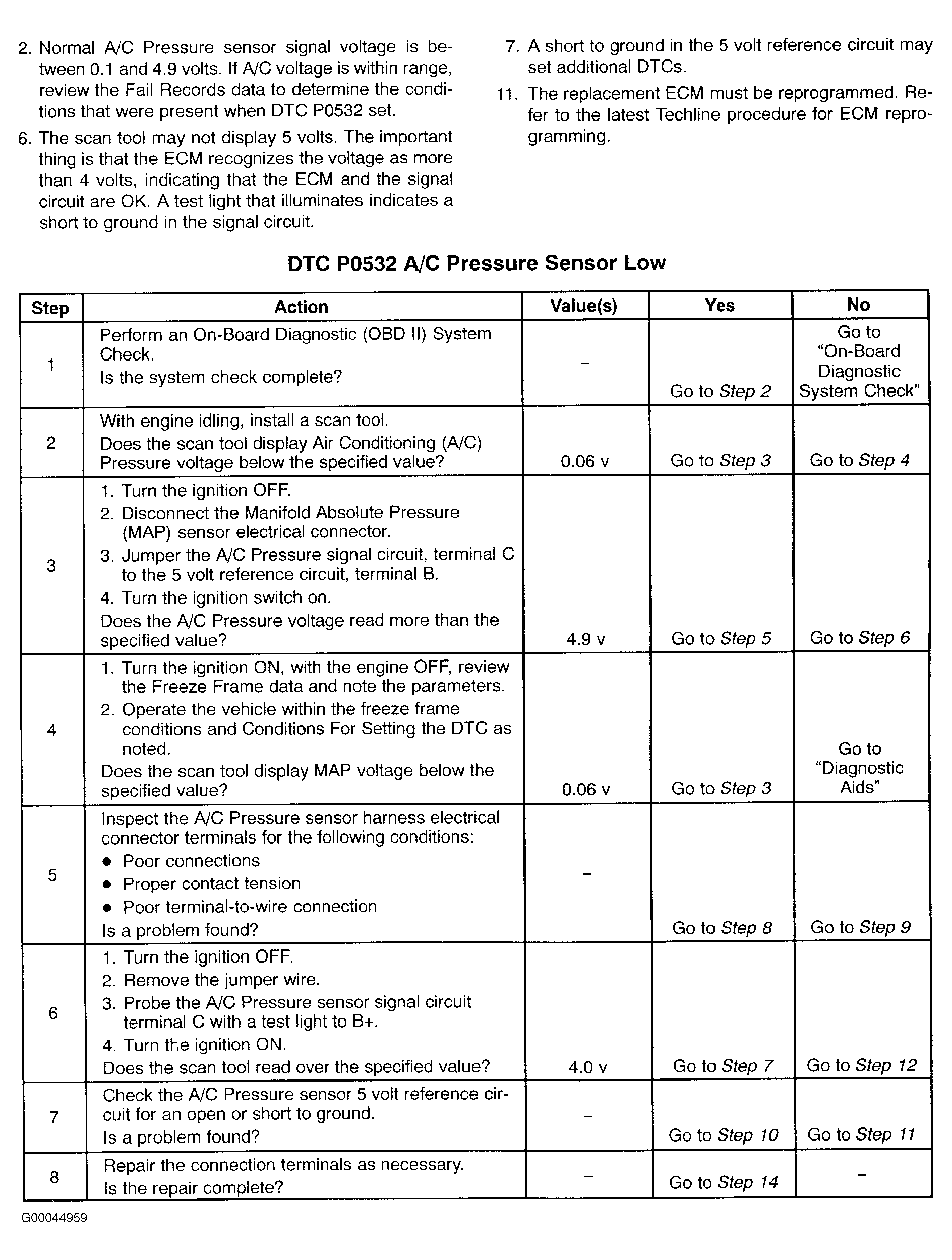

Fig 3: DTC P0532: A/C Pressure Sensor Low (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
