DTC P0700: Transmission Control System Malfunction
DTC P0700: Transmission Control System Malfunction

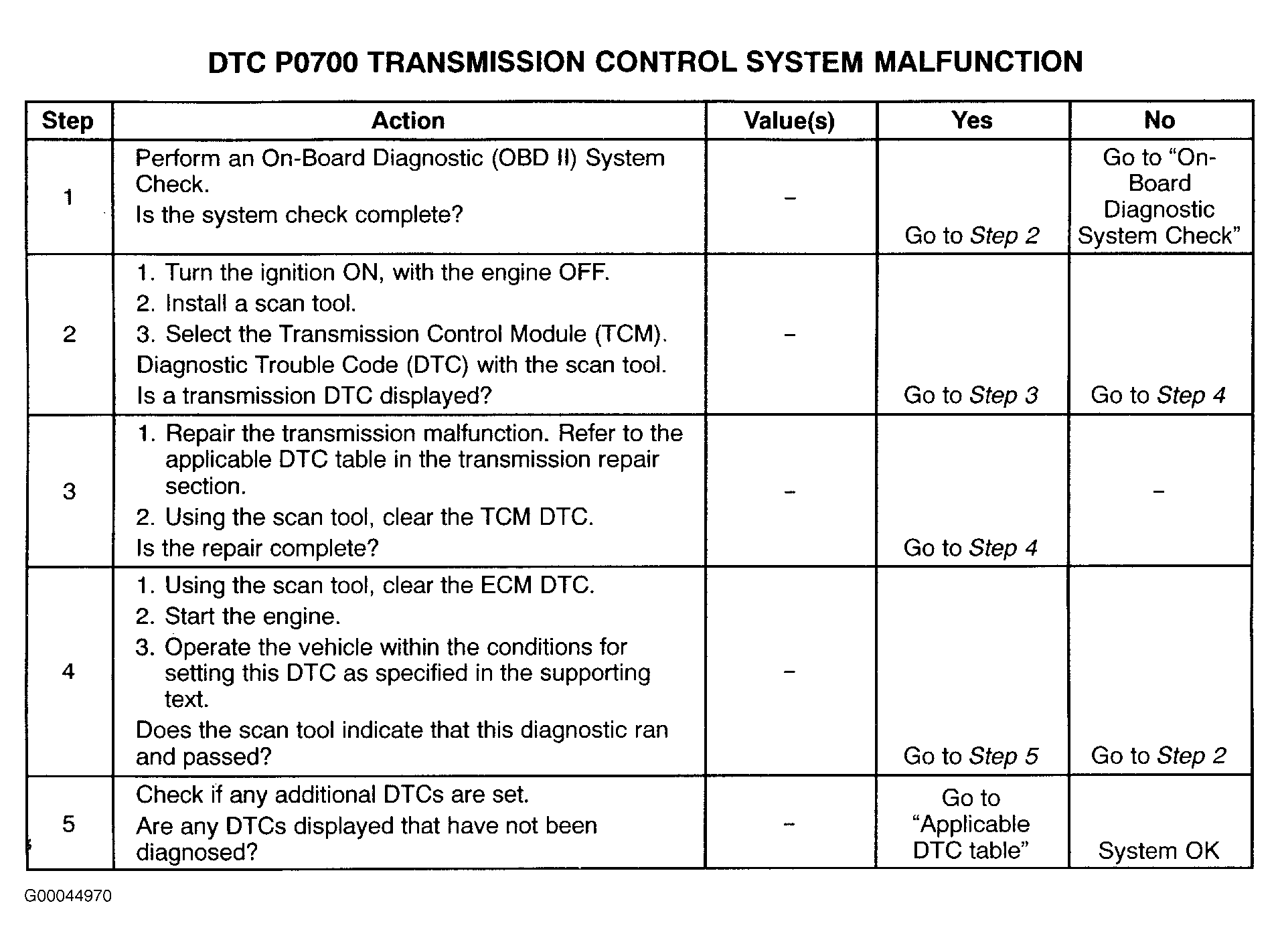

Fig 1: DTC P0700: Transmission Control System Malfunction (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: DTC P0700: Transmission Control System Malfunction (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
