DTC P1782: TCM Mil Request Data Invalid

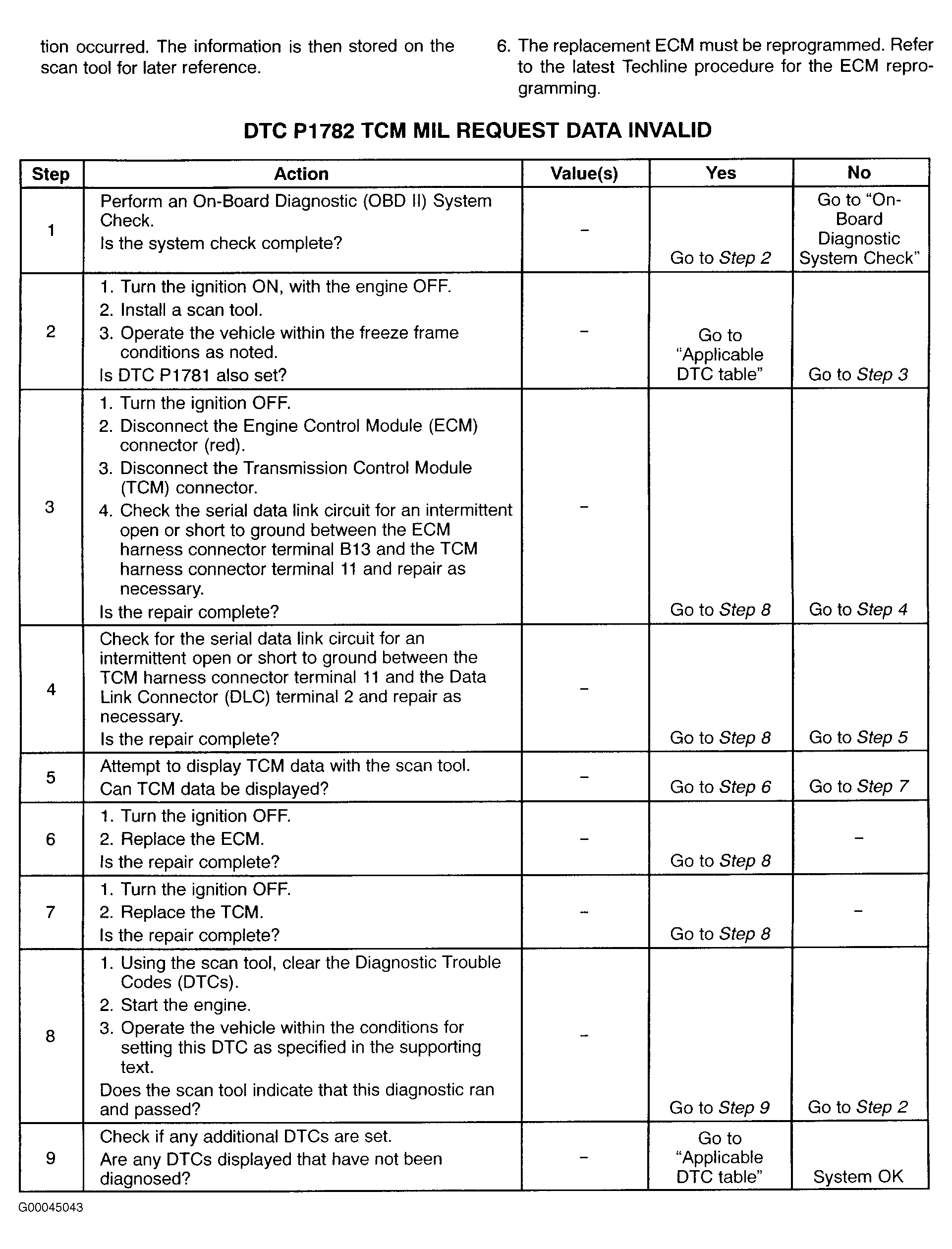

Fig 1: DTC P1782: TCM MIL Request Data Invalid (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

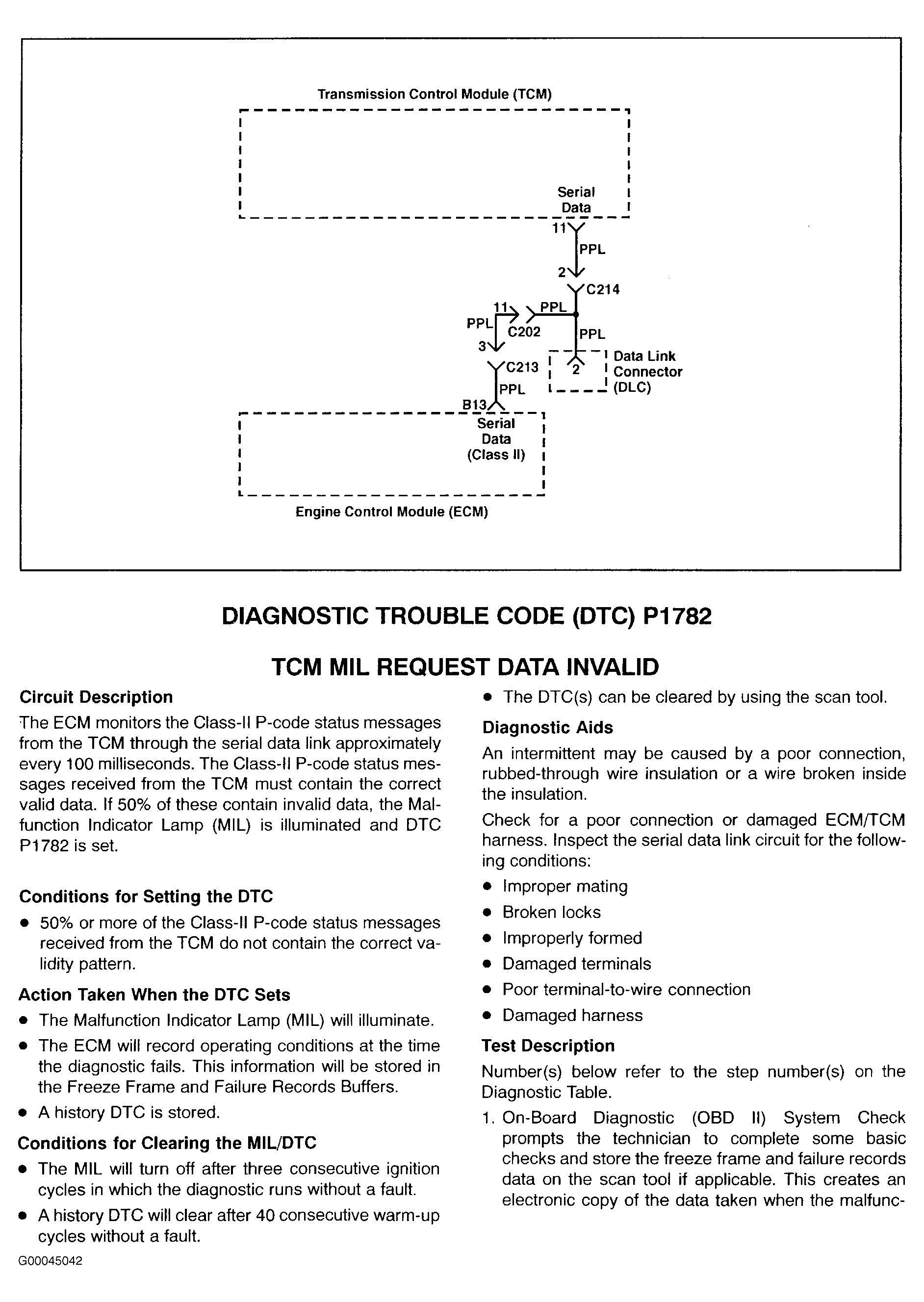

Fig 2: DTC P1782: TCM MIL Request Data Invalid (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
