Ignition System Check

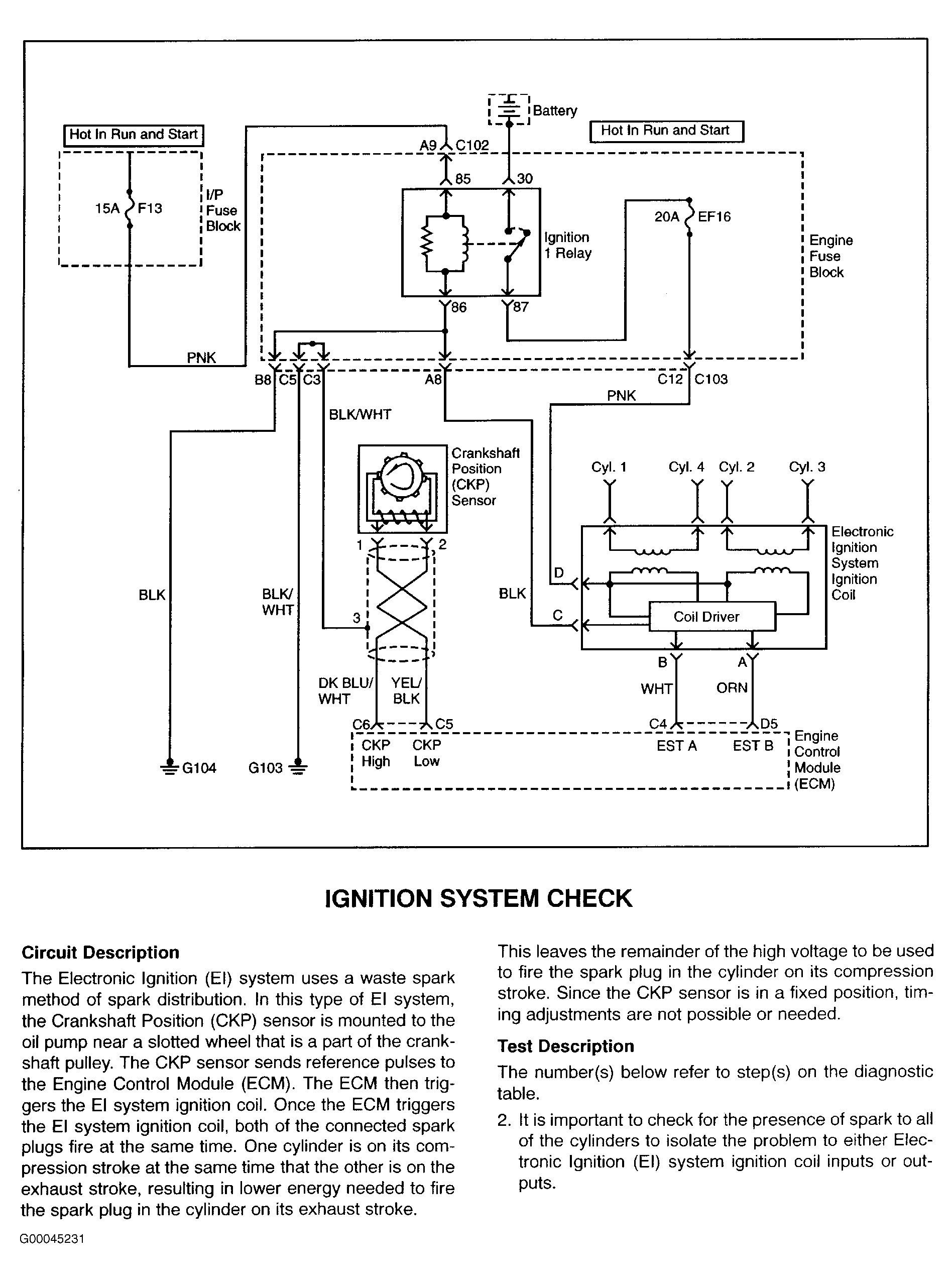

Fig 1: Ignition System Check (1 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

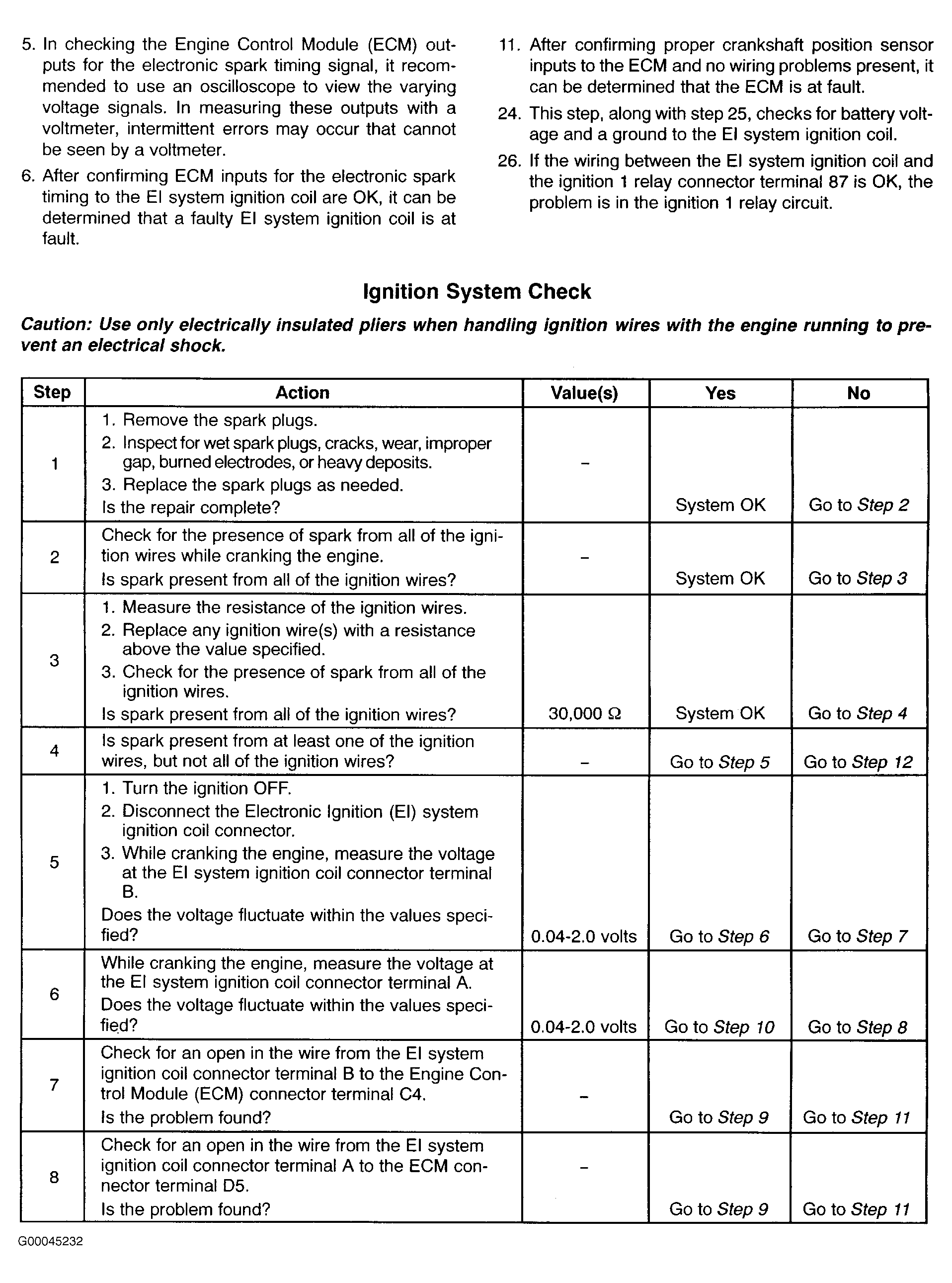

Fig 2: Ignition System Check (2 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

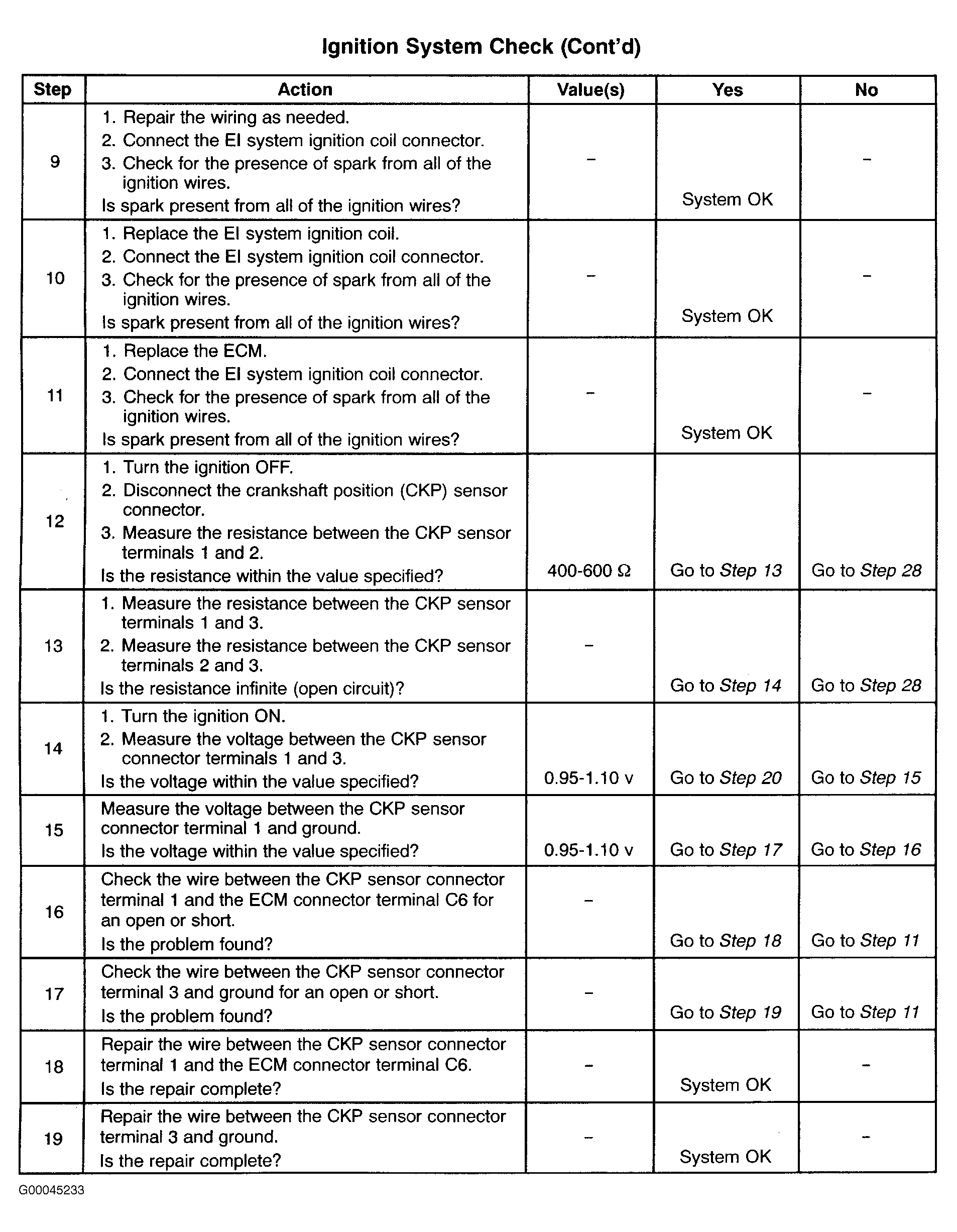

Fig 3: Ignition System Check (3 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

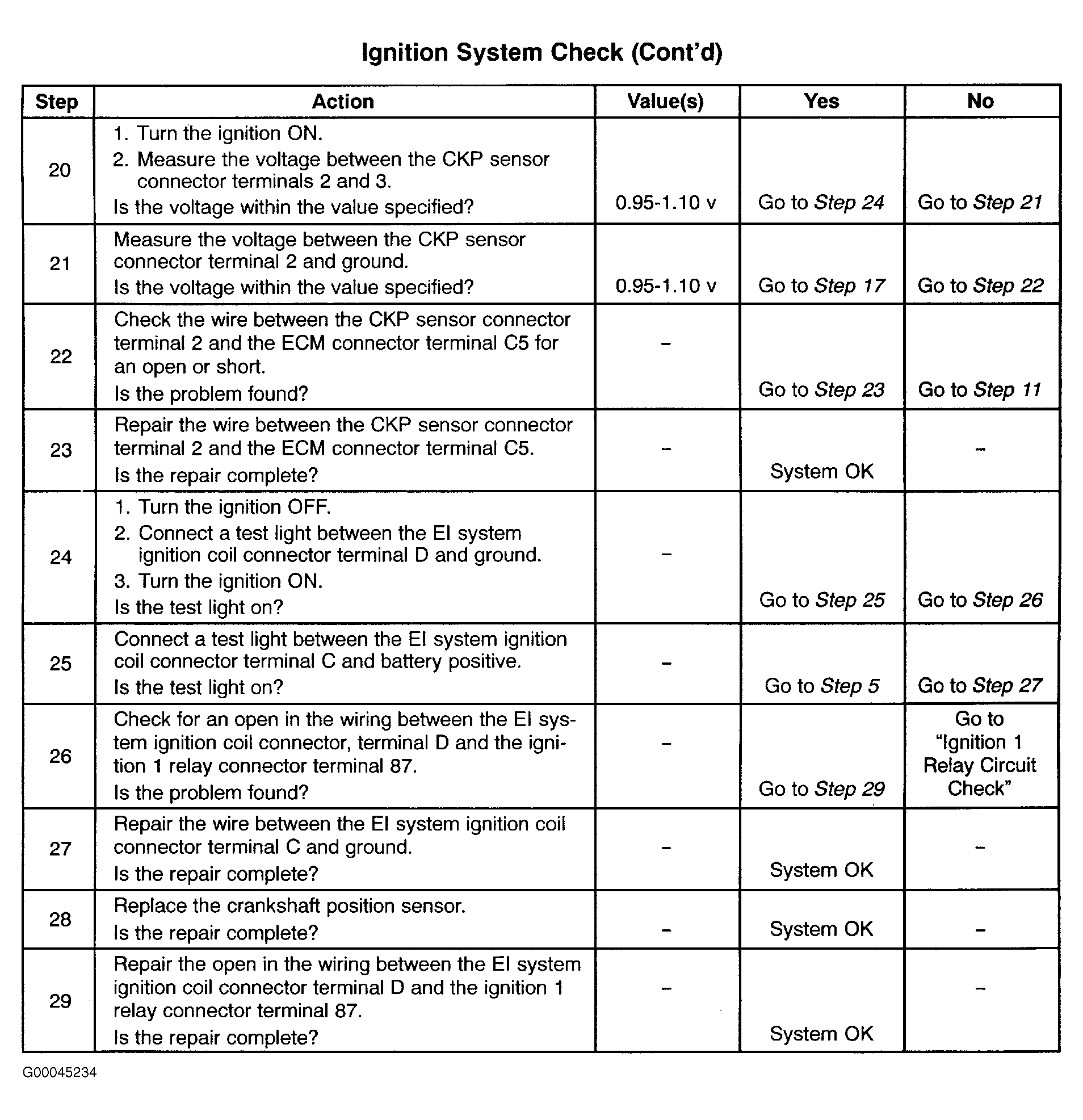

Fig 4: Ignition System Check (4 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
