Connector Identification

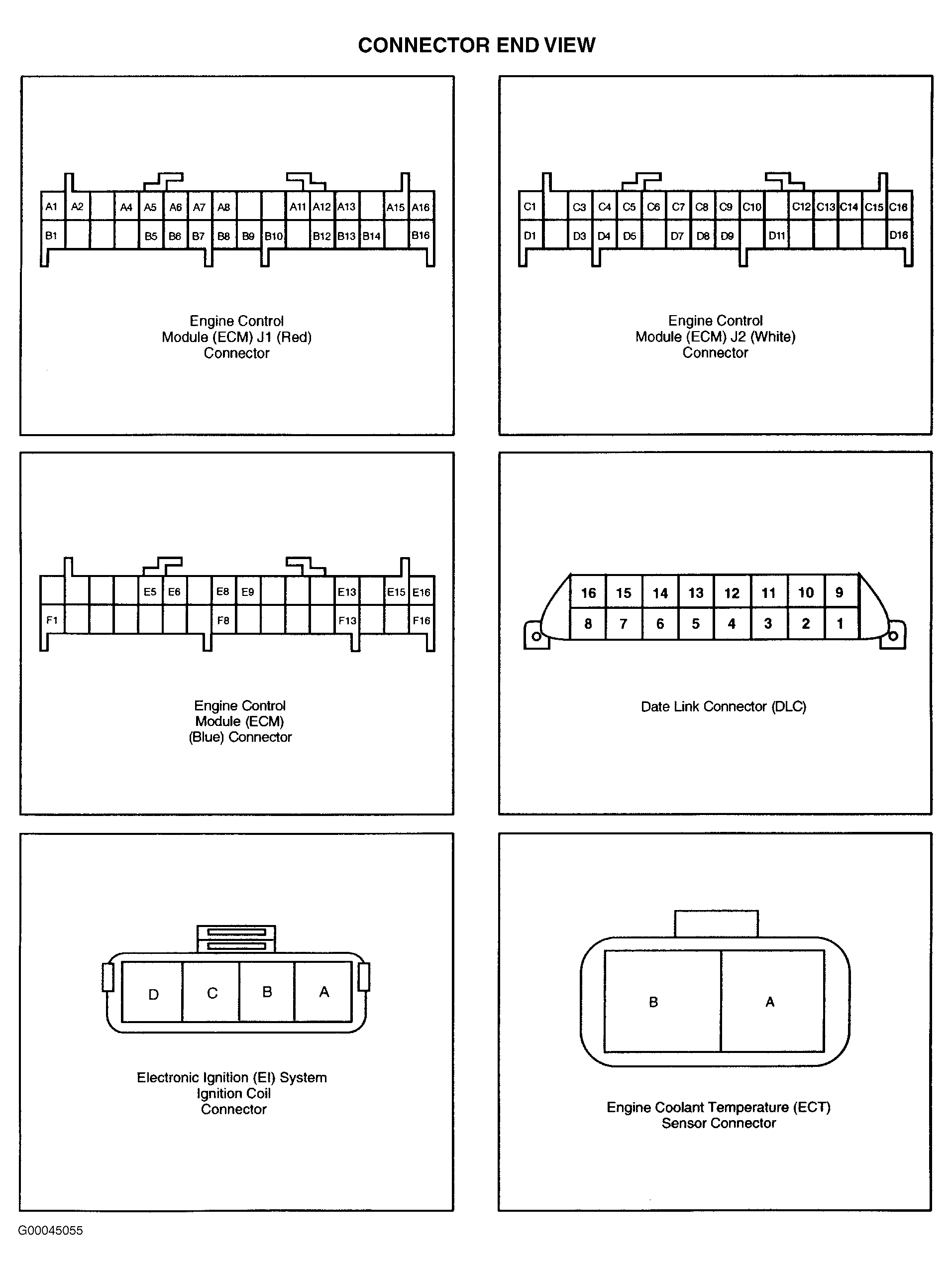

Fig 1: Connector End View (1 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

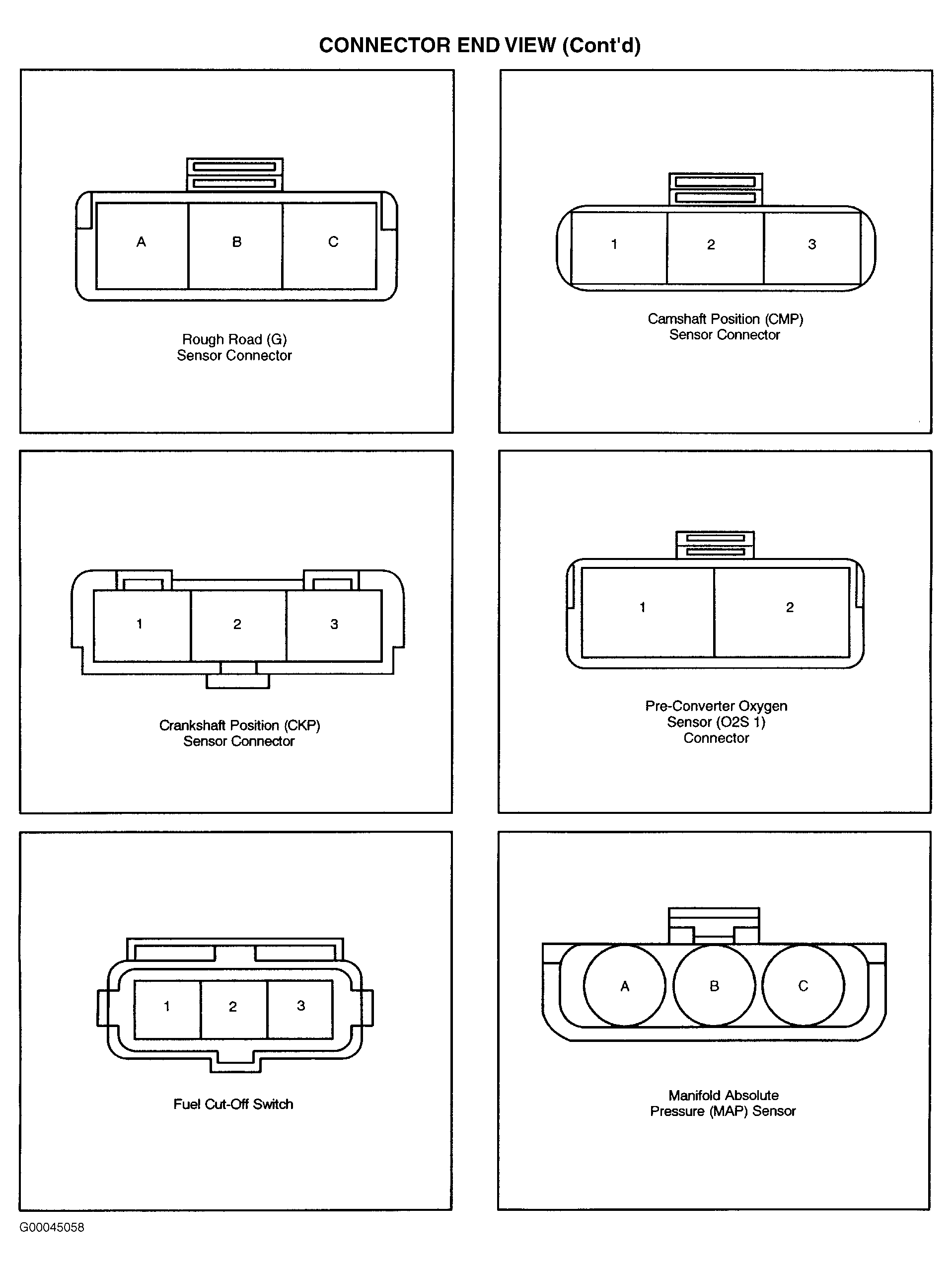

Fig 2: Connector End View (2 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

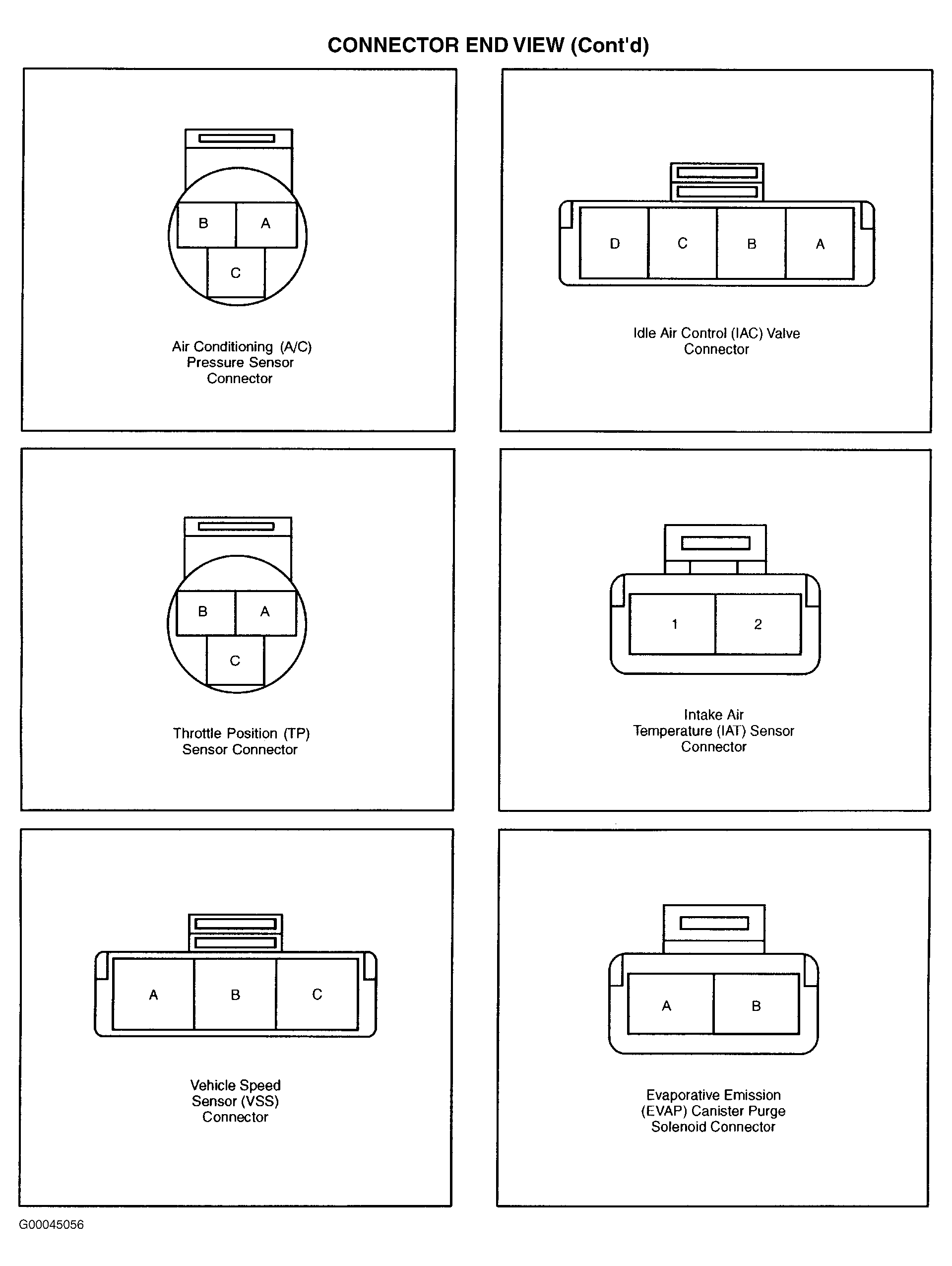

Fig 3: Connector End View (3 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

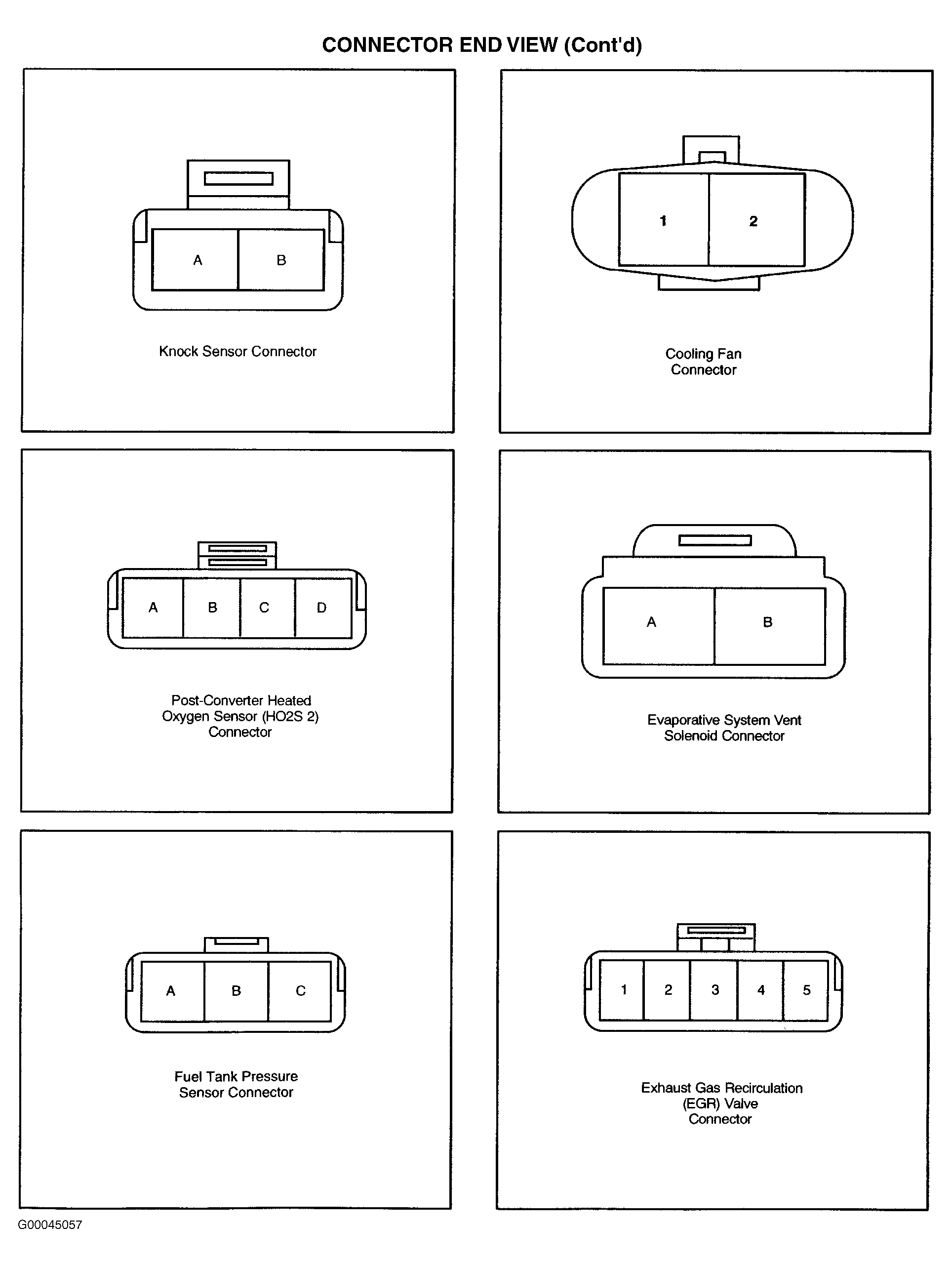

Fig 4: Connector End View (4 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

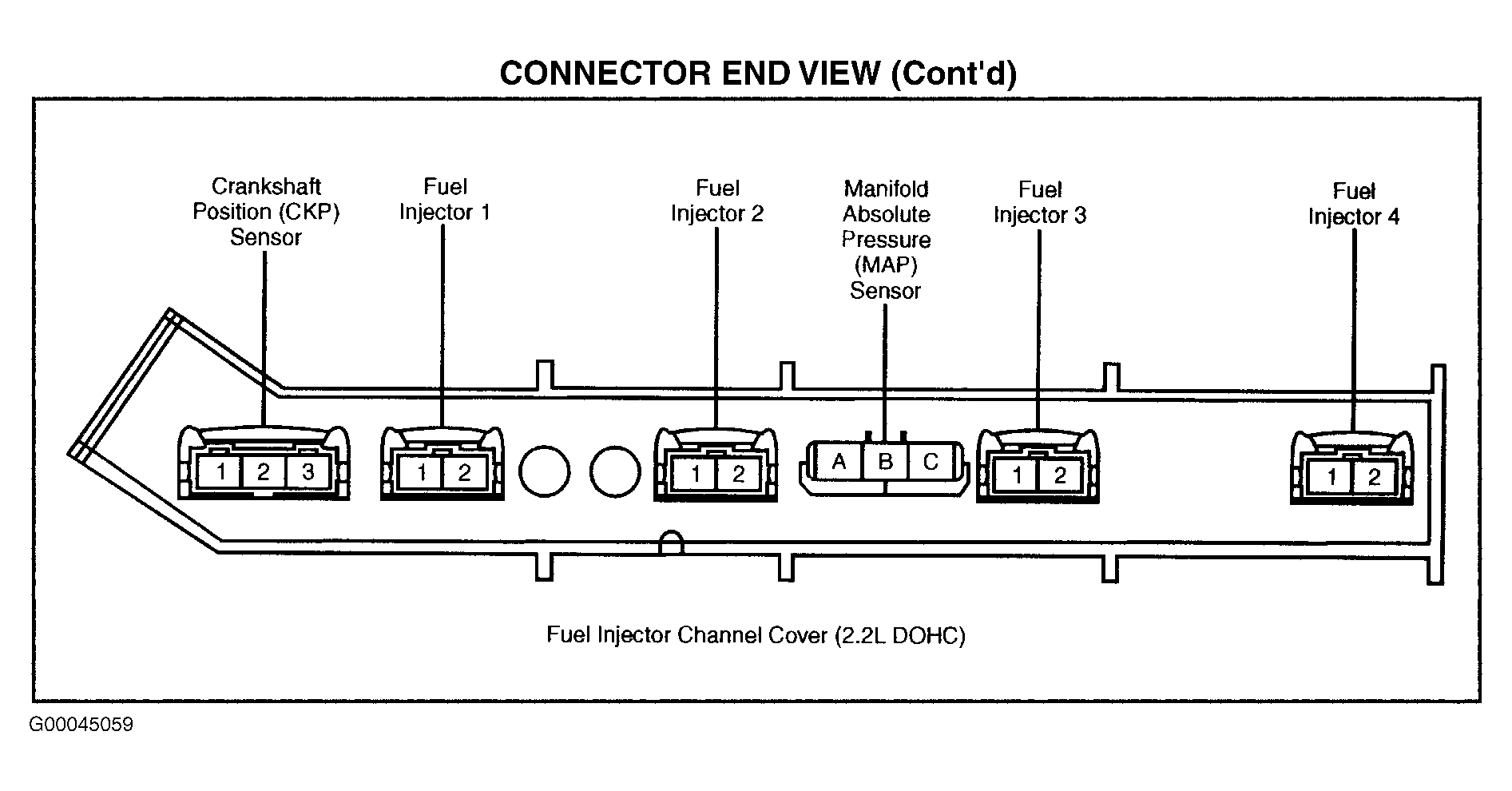

Fig 5: Connector End View (5 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.
