Removal & Installation

Disconnect negative battery cable. Remove floor console. Disconnect module/receiver electrical connector. Remove module/receiver by sliding it forward front of vehicle until it disengages from its mounting bracket. See Fig 1 .
Install module/receiver by sliding it onto its mounting bracket and pushing it toward rear of vehicle until it is secure. Connect module/receiver electrical connector. Install floor console. Connect negative battery cable.

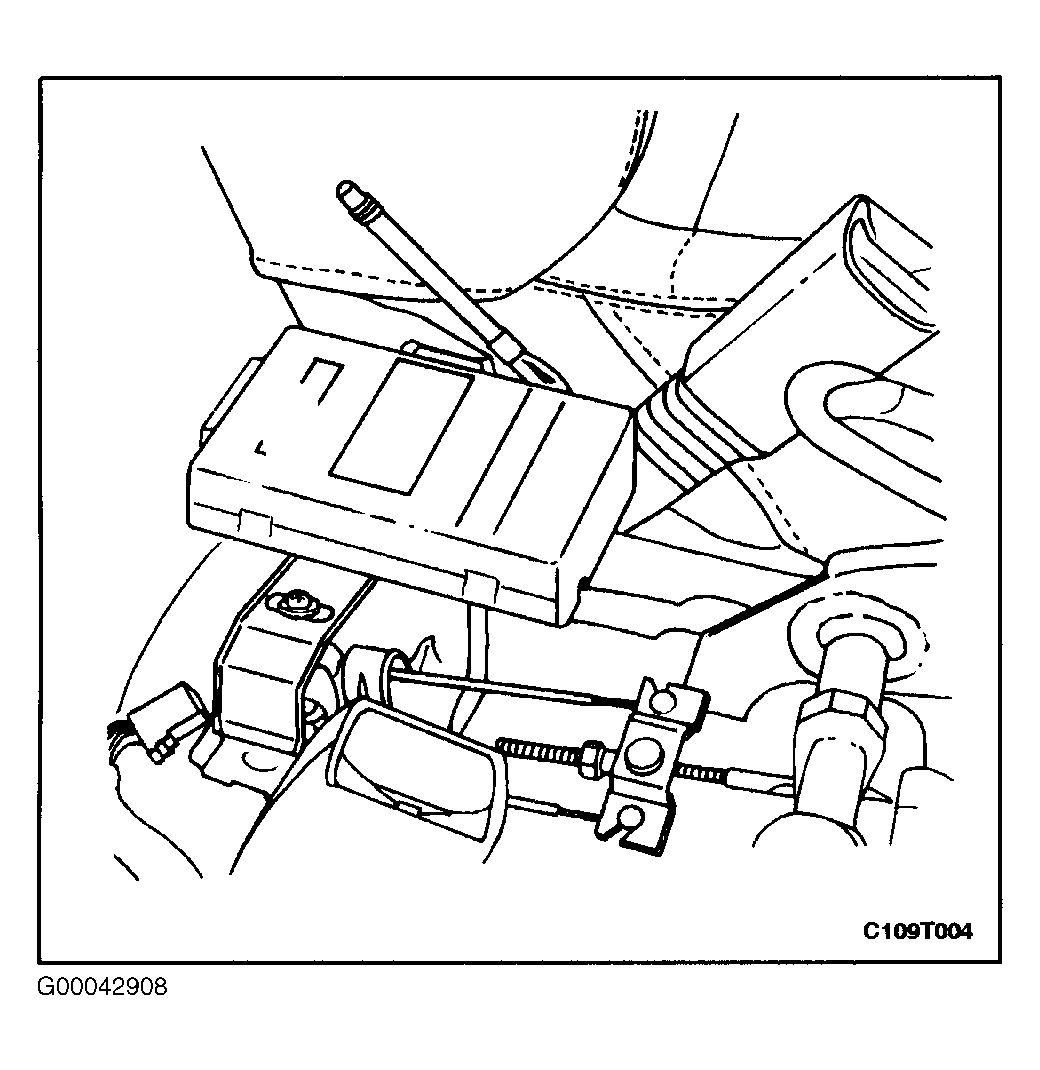

Fig 1: Removing Module/Receiver

Courtesy of DAEWOO MOTOR AMERICA, INC.
