Power Supply To Control Module Fault

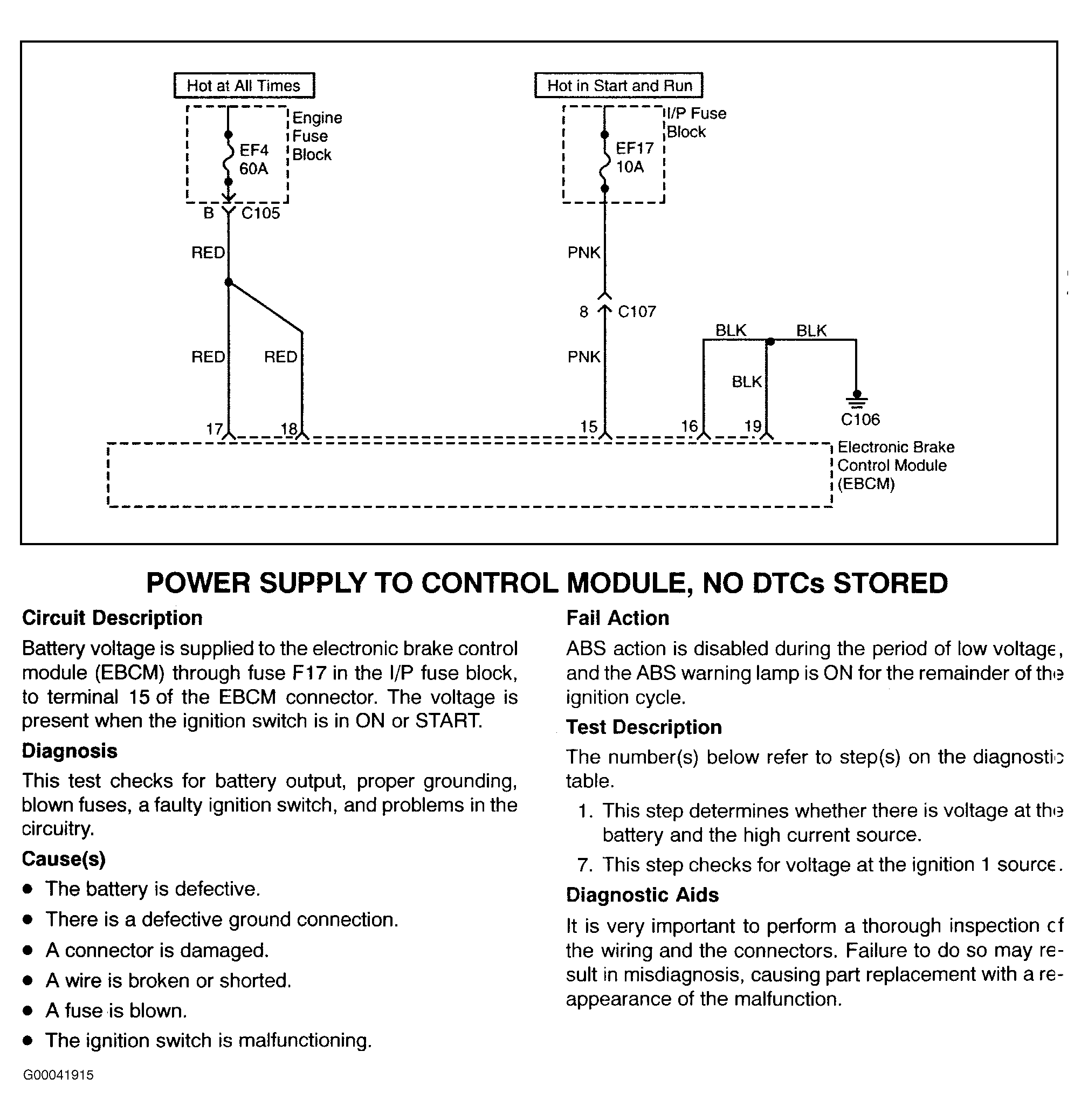

Fig 1: Power Supply To Control Module Fault (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

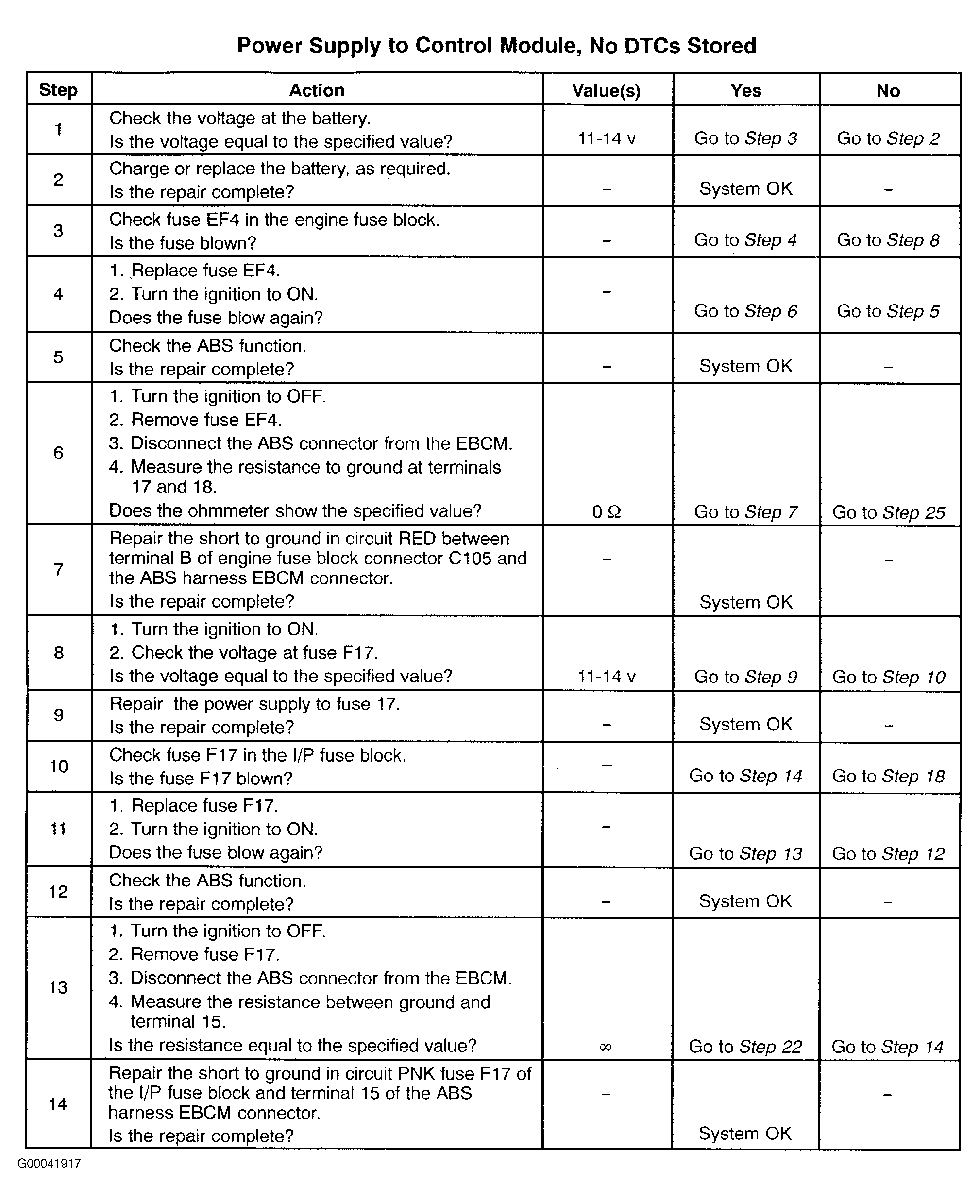

Fig 2: Power Supply To Control Module Fault - Steps 1-14 (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

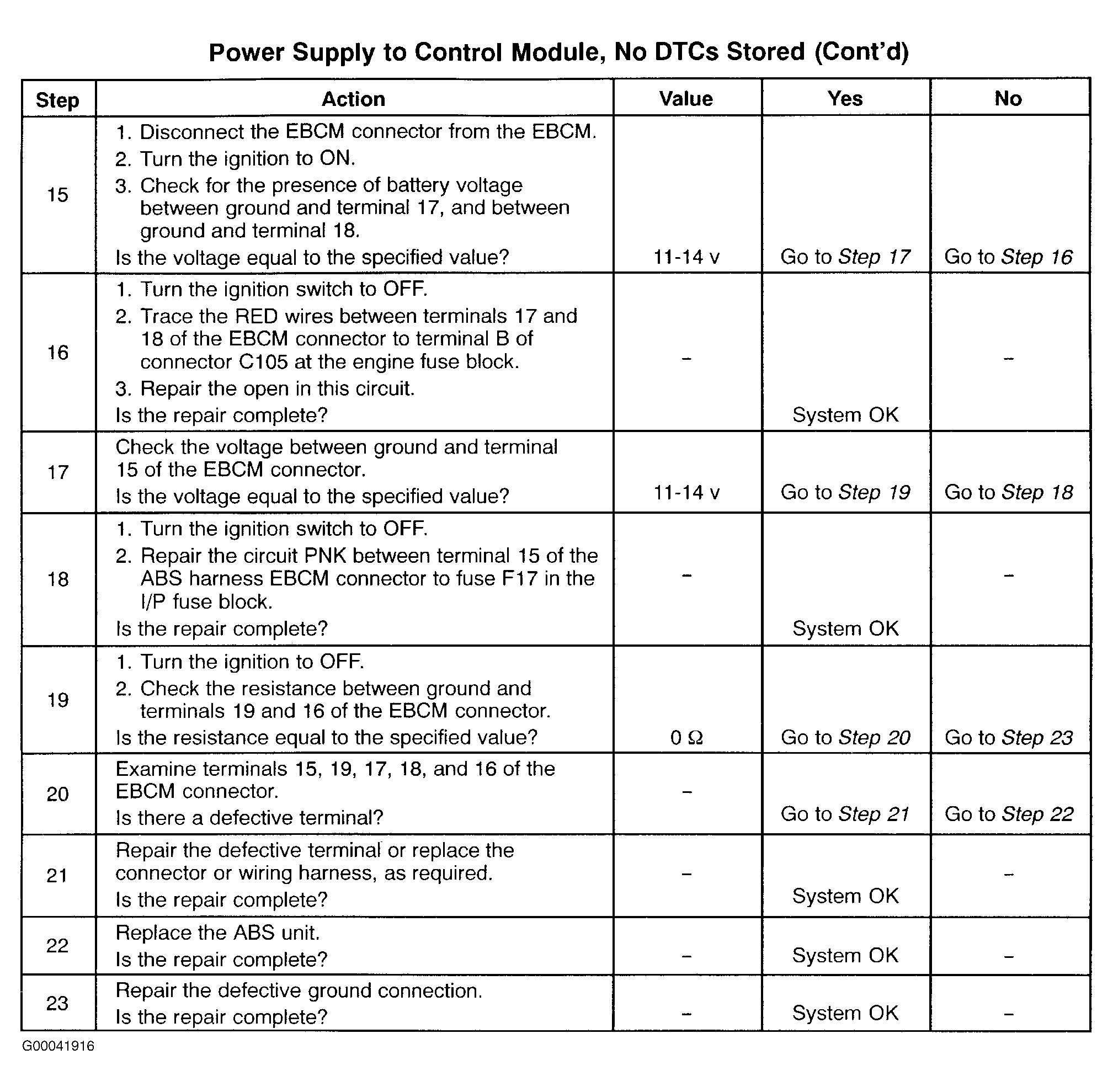

Fig 3: Power Supply To Control Module Fault - Steps 15-23 (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
