Ignition Relay No. 1 Circuit Check

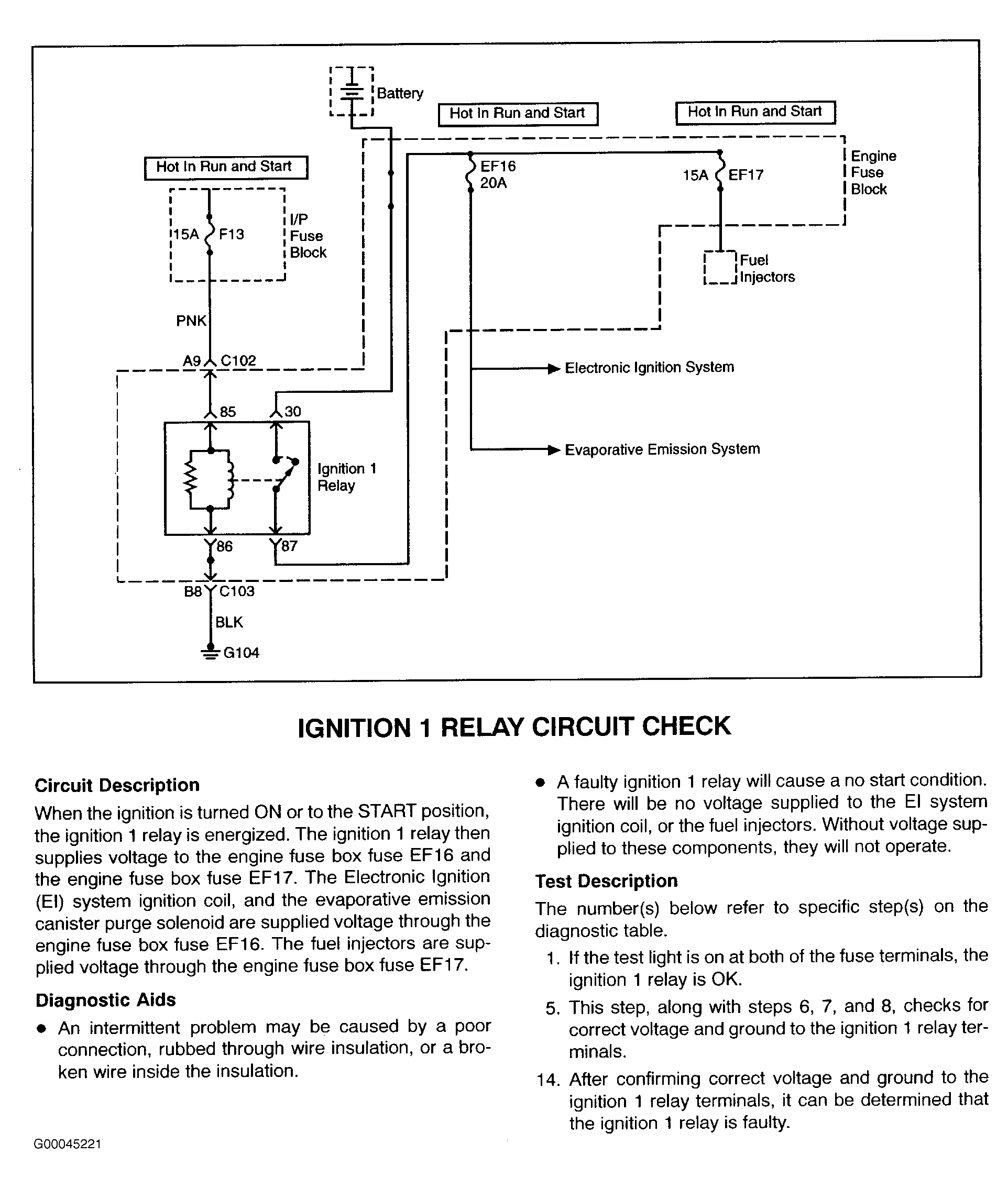

Fig 1: Ignition Relay No. 1 Circuit Check (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

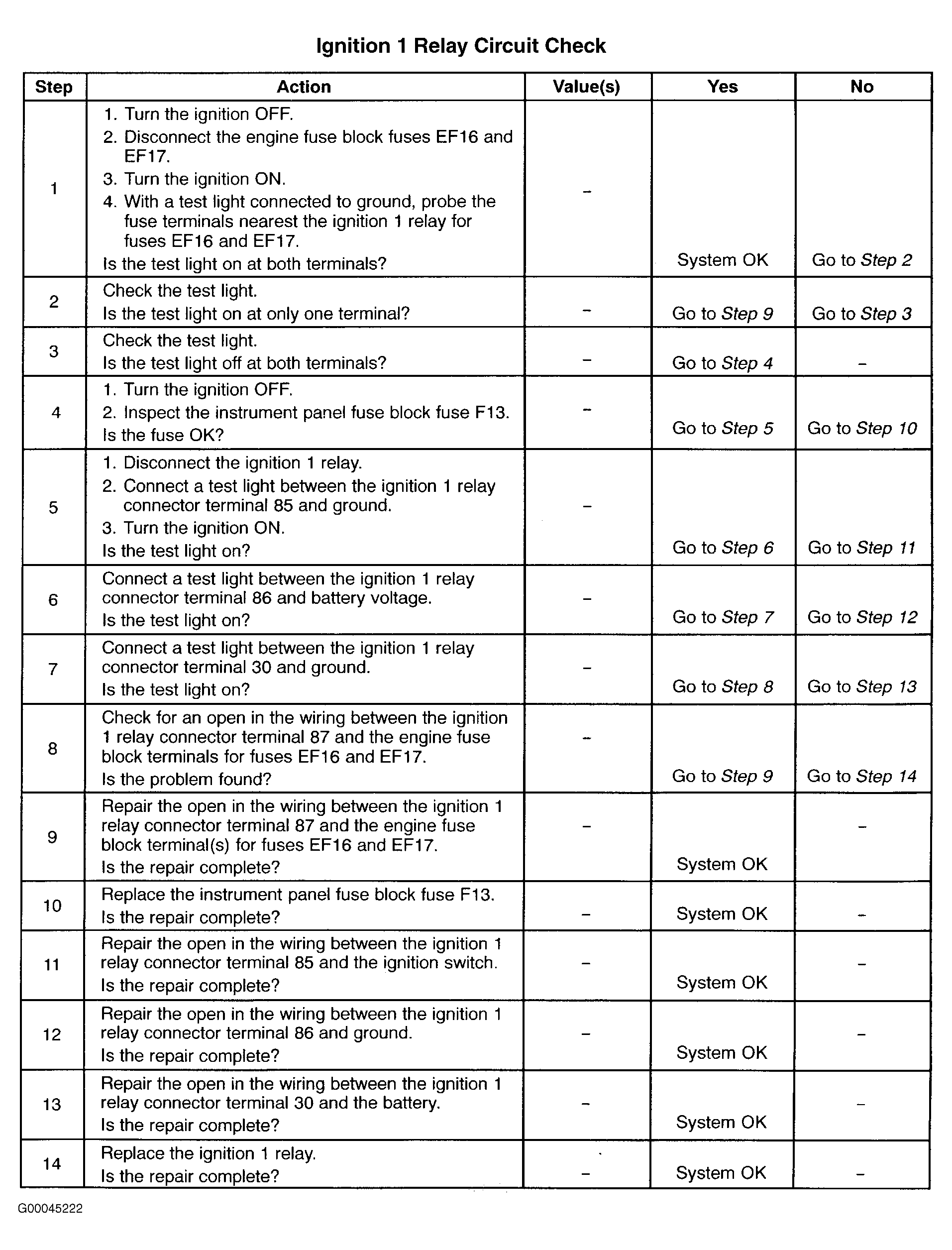

Fig 2: Ignition Relay No. 1 Circuit Check (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
