FixVault
Home
›
Daewoo
›
2000
›
Nubira SE, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Windows
›
Wiring Diagrams
Wiring Diagrams

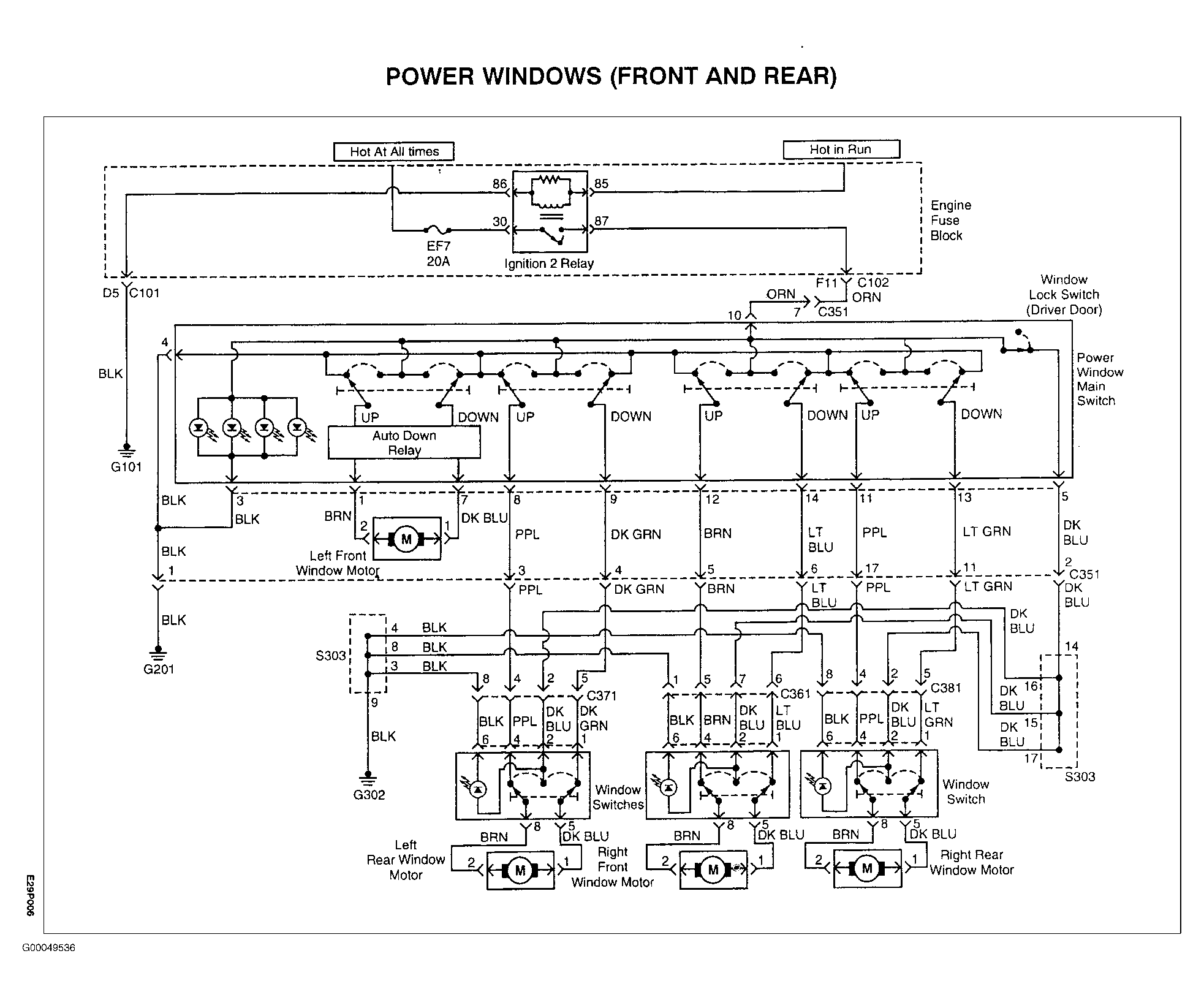

Fig 1: Power Window Wiring Diagram (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

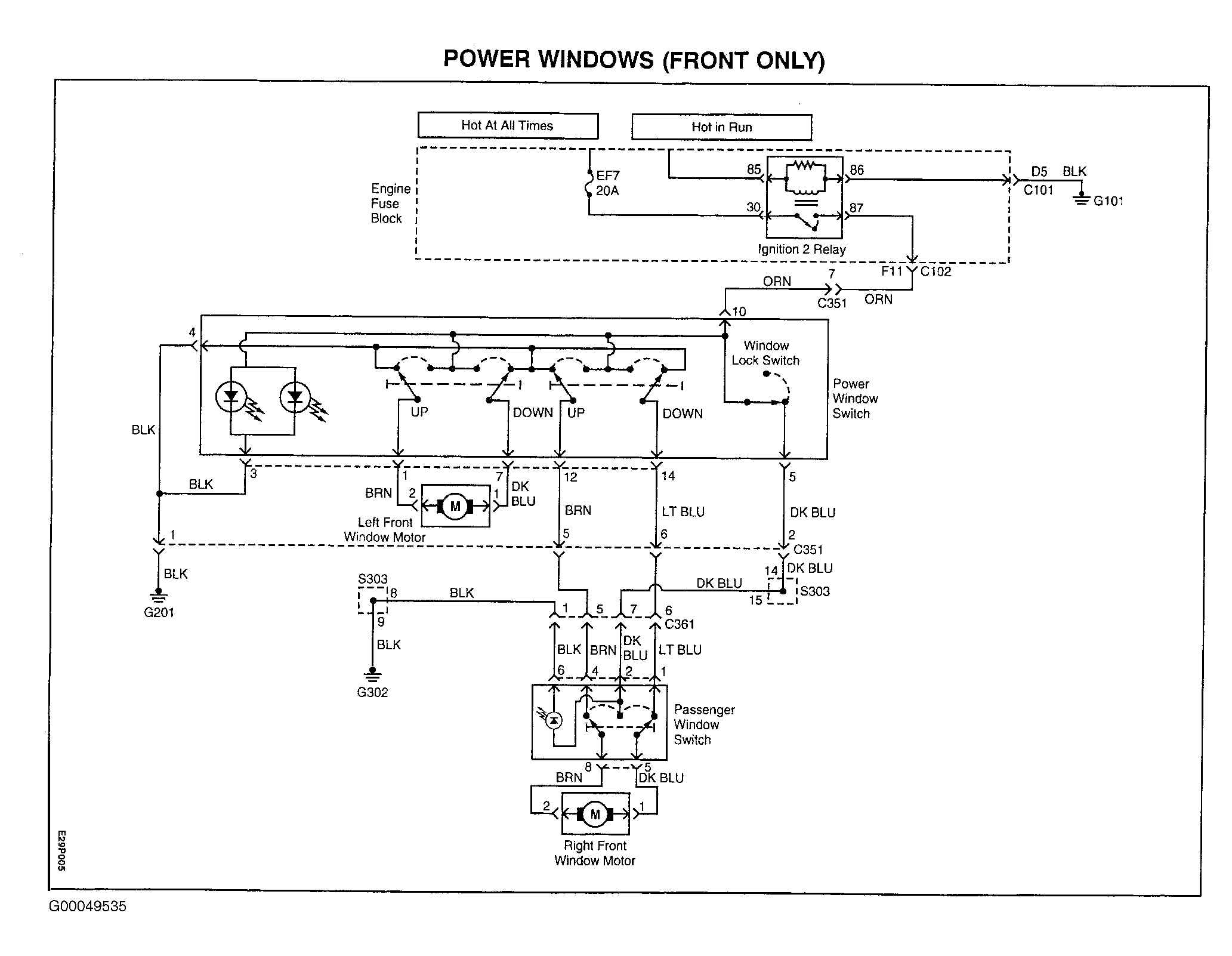

Fig 2: Power Window Wiring Diagram (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
