DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control

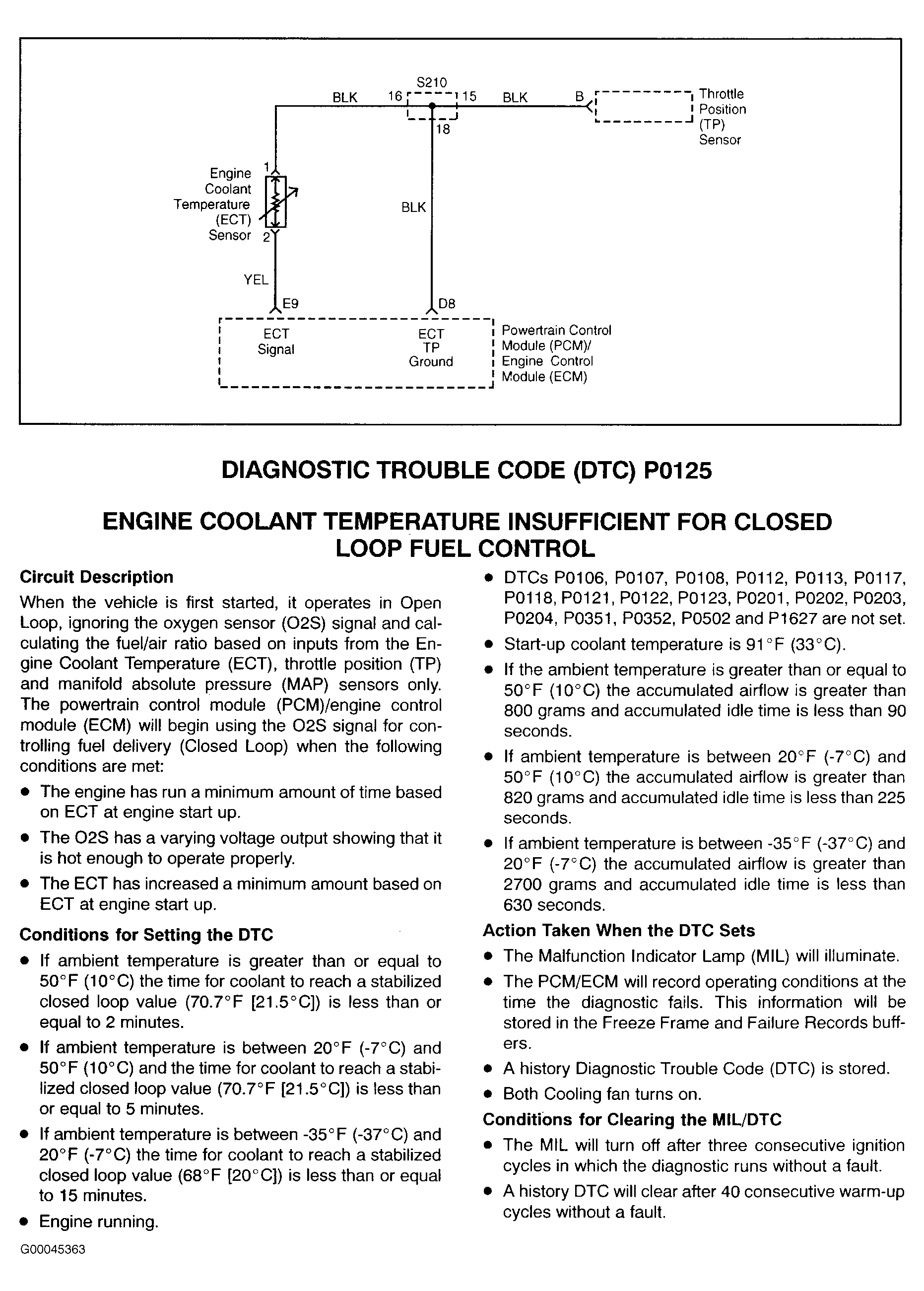

Fig 1: DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

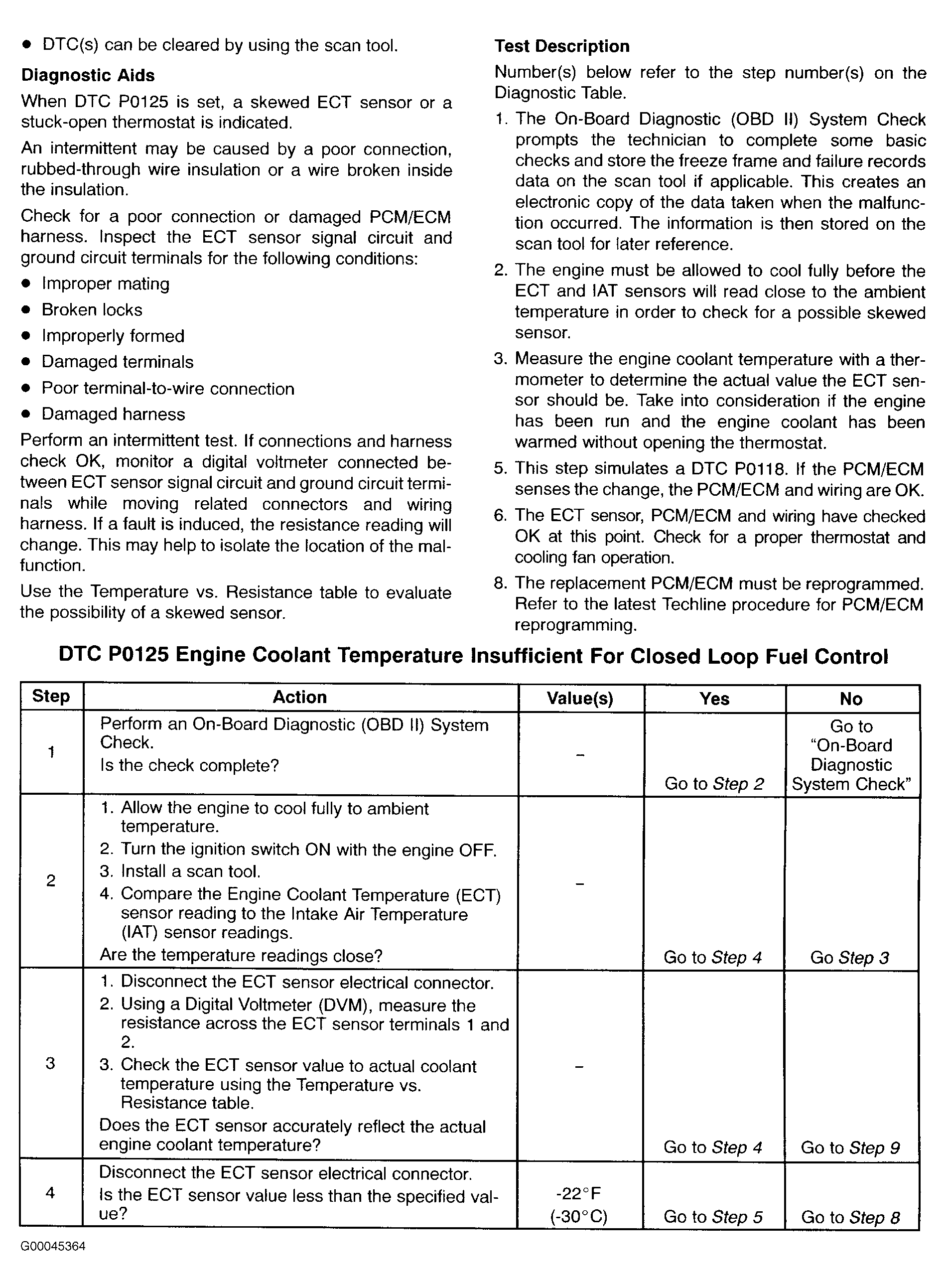

Fig 2: DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

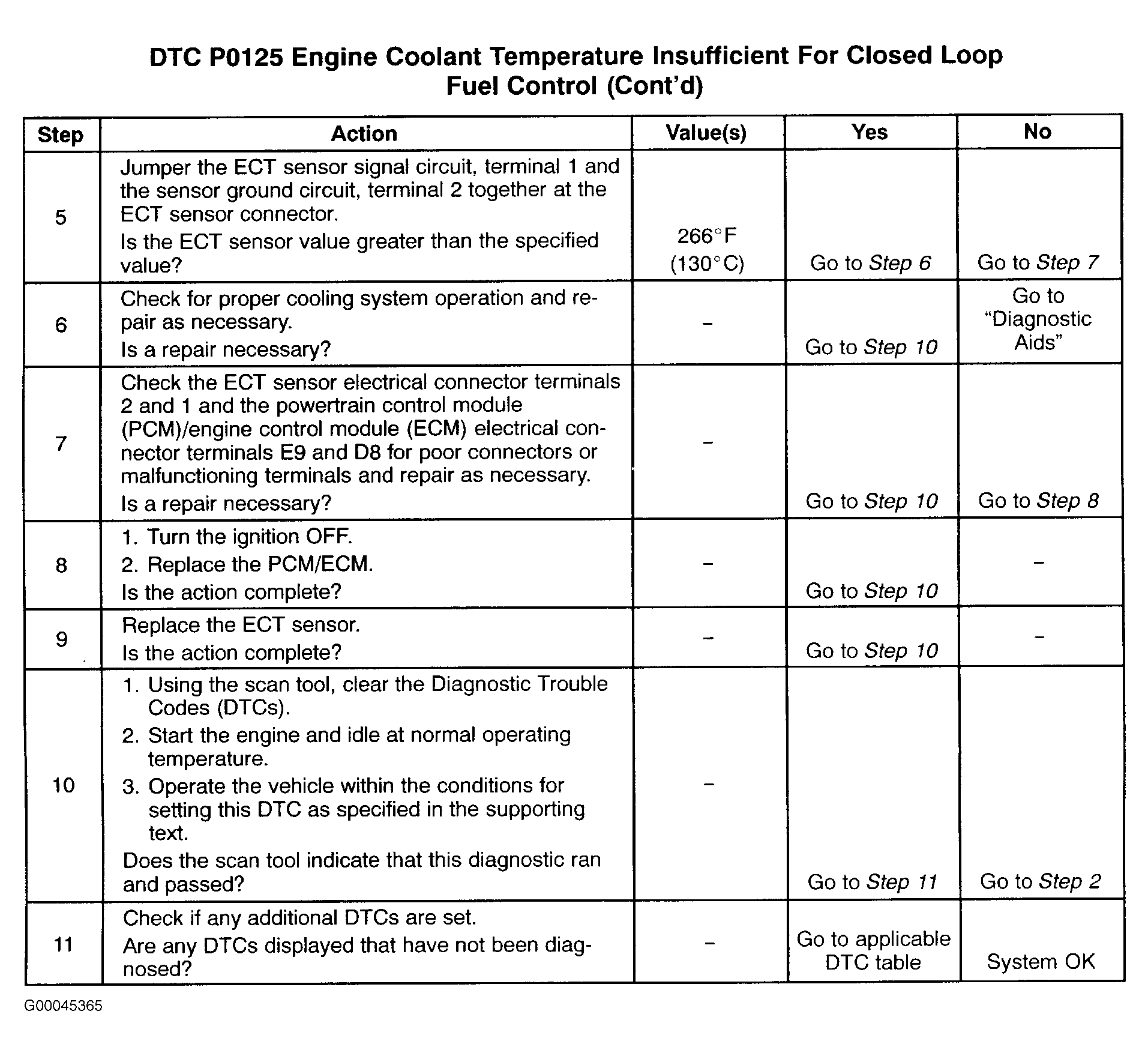

Fig 3: DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
