DTC P0133: O2 Bank 1 Sensor 1 Slow Response

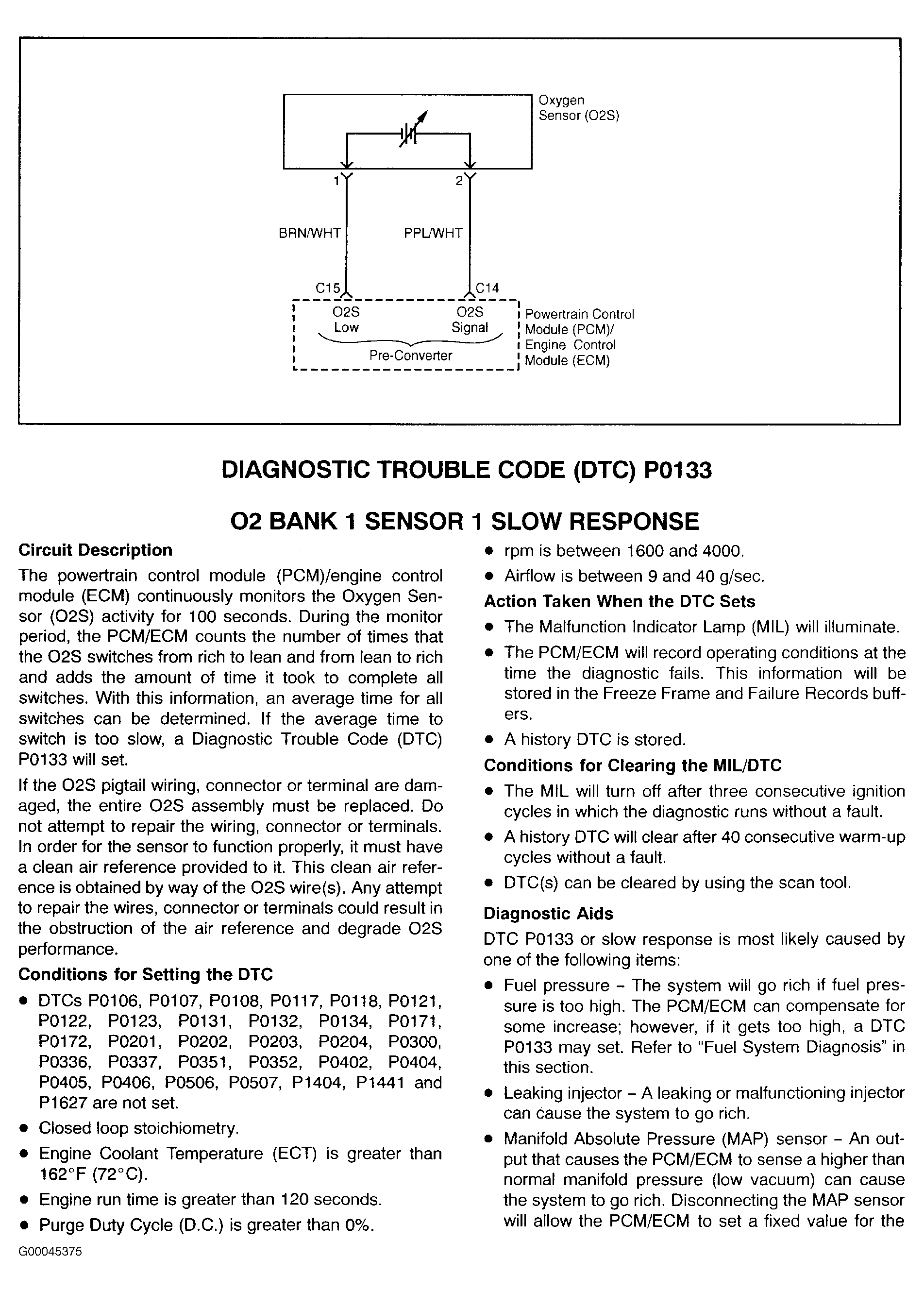

Fig 1: DTC P0133: O2 Bank 1 Sensor 1 Slow Response (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

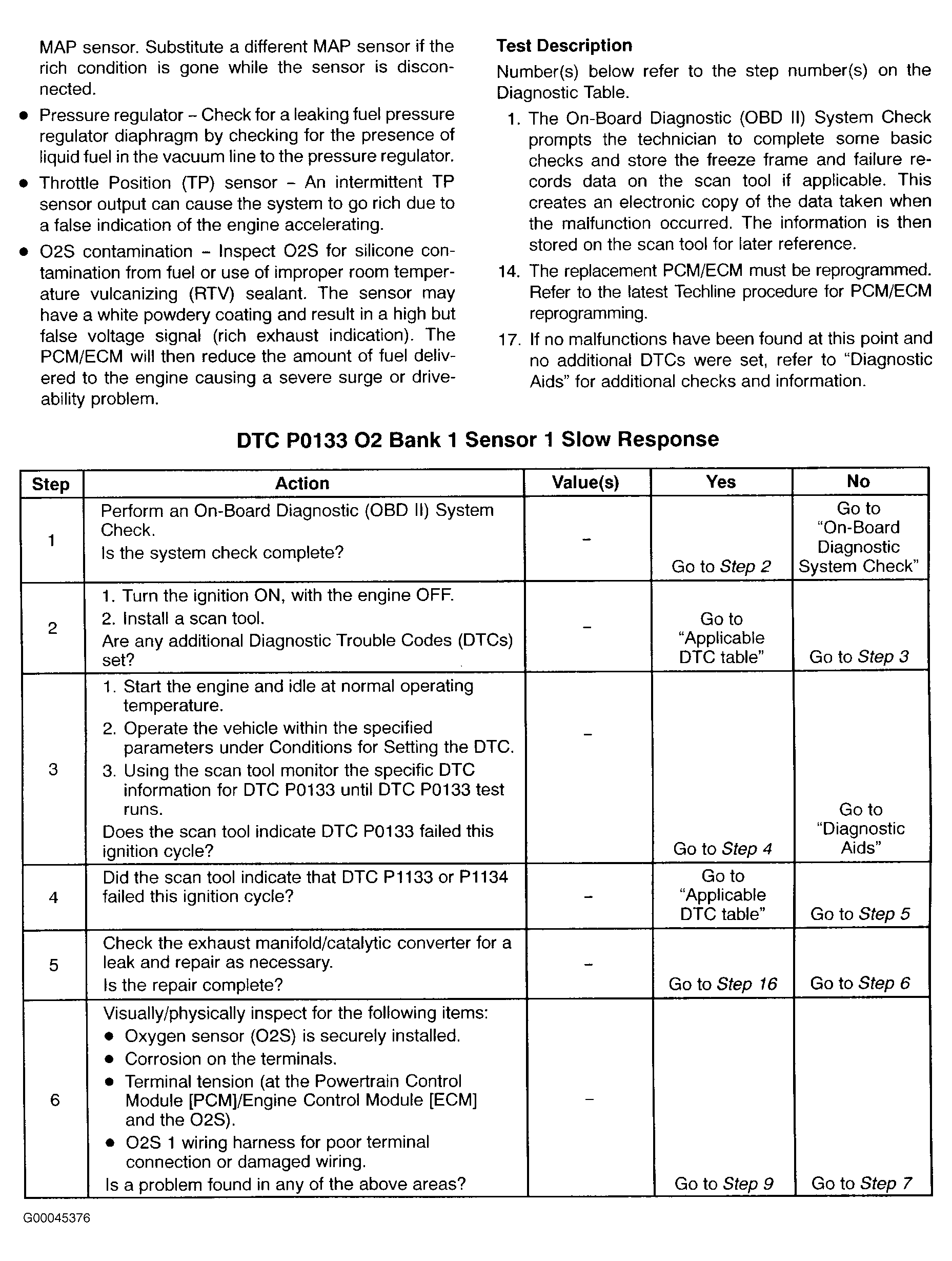

Fig 2: DTC P0133: O2 Bank 1 Sensor 1 Slow Response (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

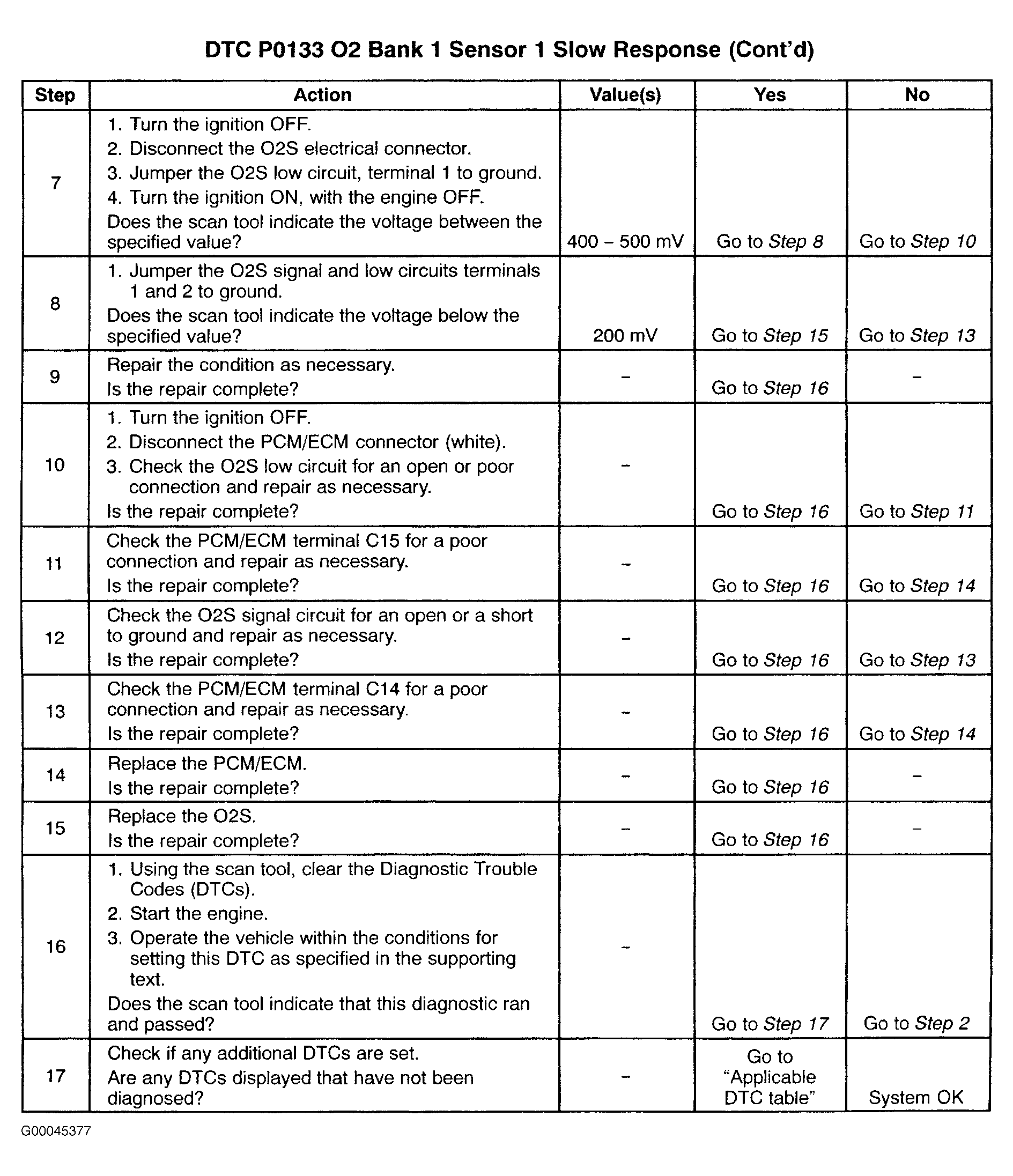

Fig 3: DTC P0133: O2 Bank 1 Sensor 1 Slow Response (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
