DTC P0352: Ignition Control B Circuit Fault

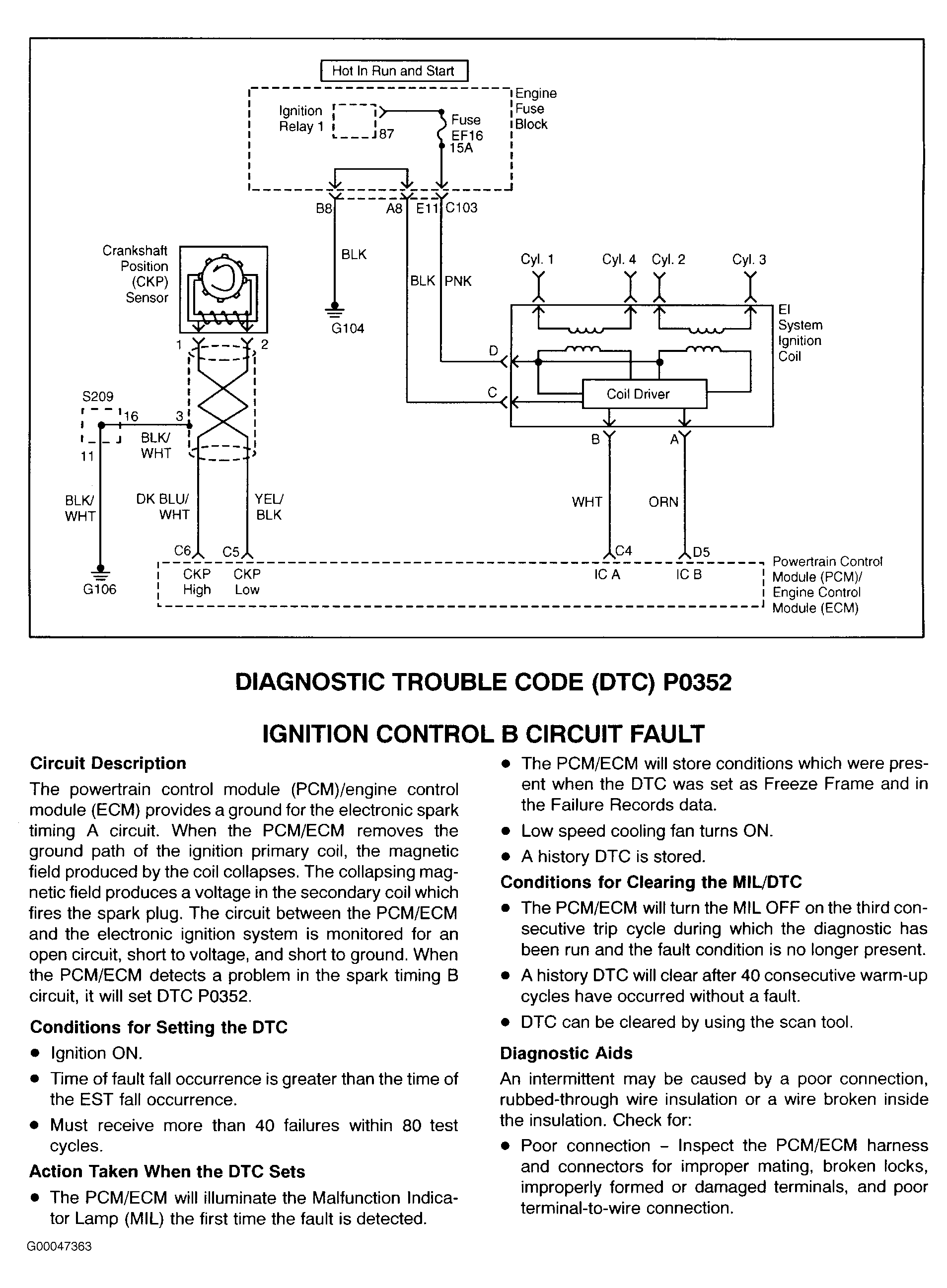

Fig 1: DTC P0352: Ignition Control B Circuit Fault (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

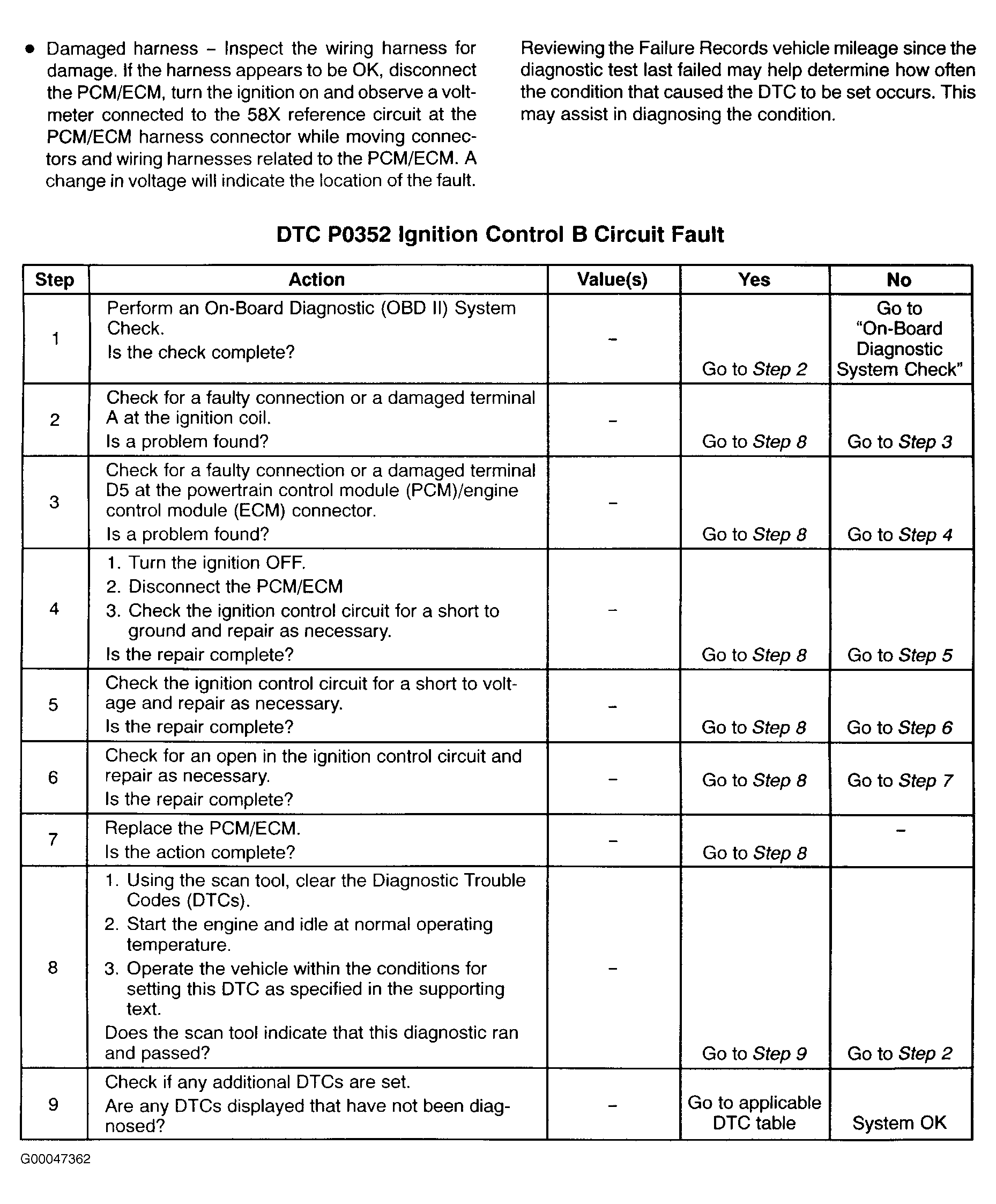

Fig 2: DTC P0352: Ignition Control B Circuit Fault (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
