Engine Controls - Self-Diagnostics
›
System Specifications
›
Data Display Tables
Data Display Tables

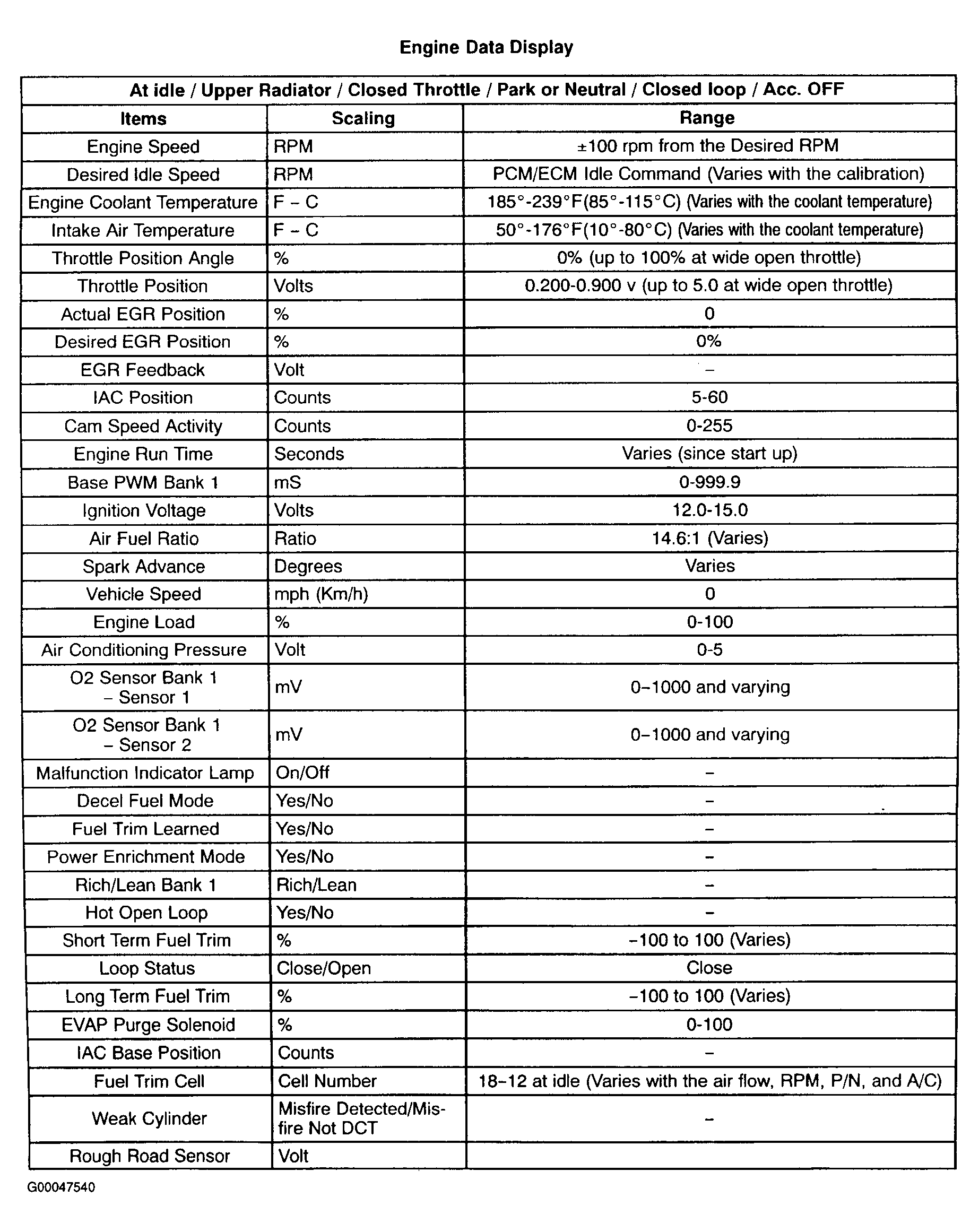

Fig 1: Engine Data Display (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

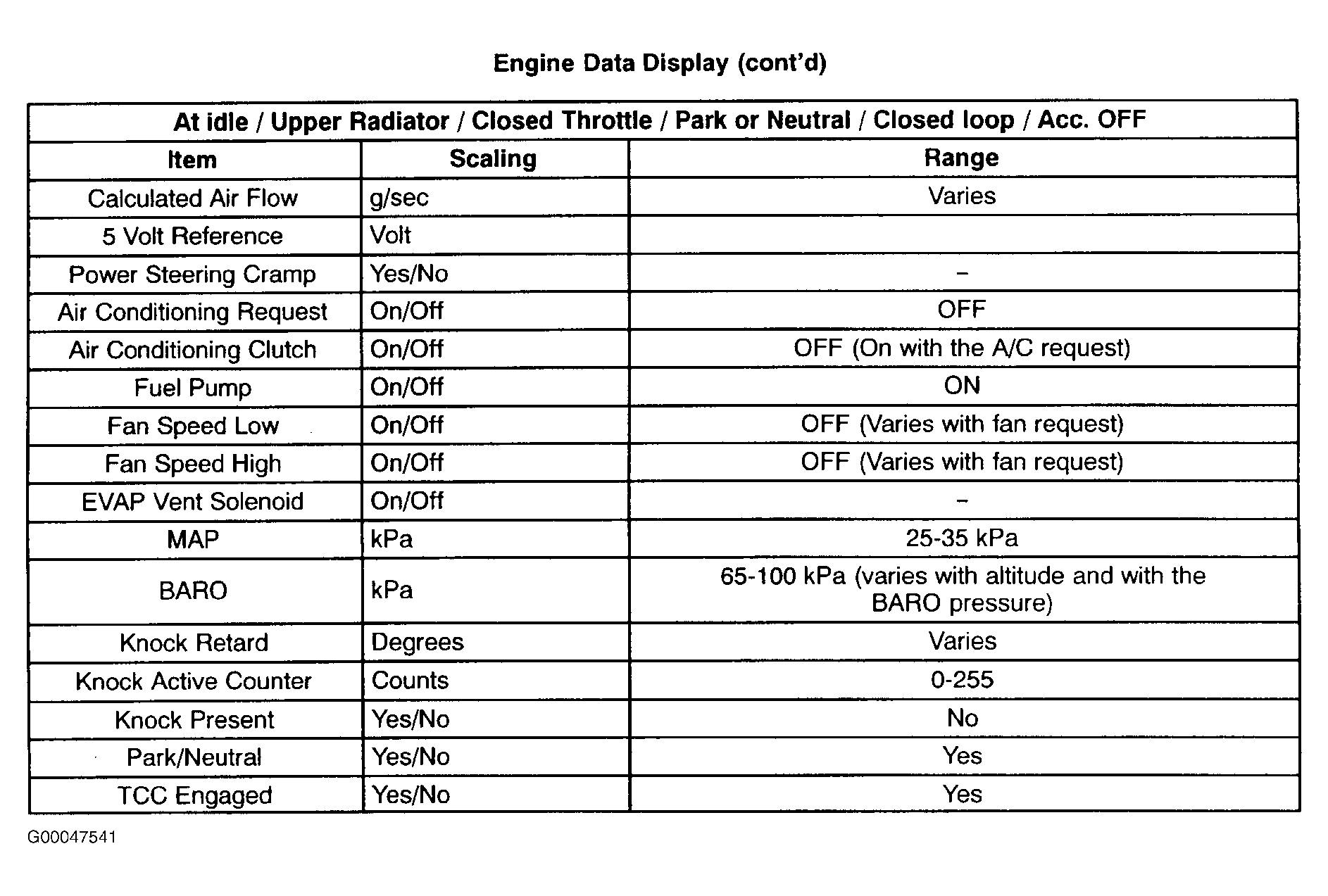

Fig 2: Engine Data Display (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
