Manifold Absolute Pressure Check

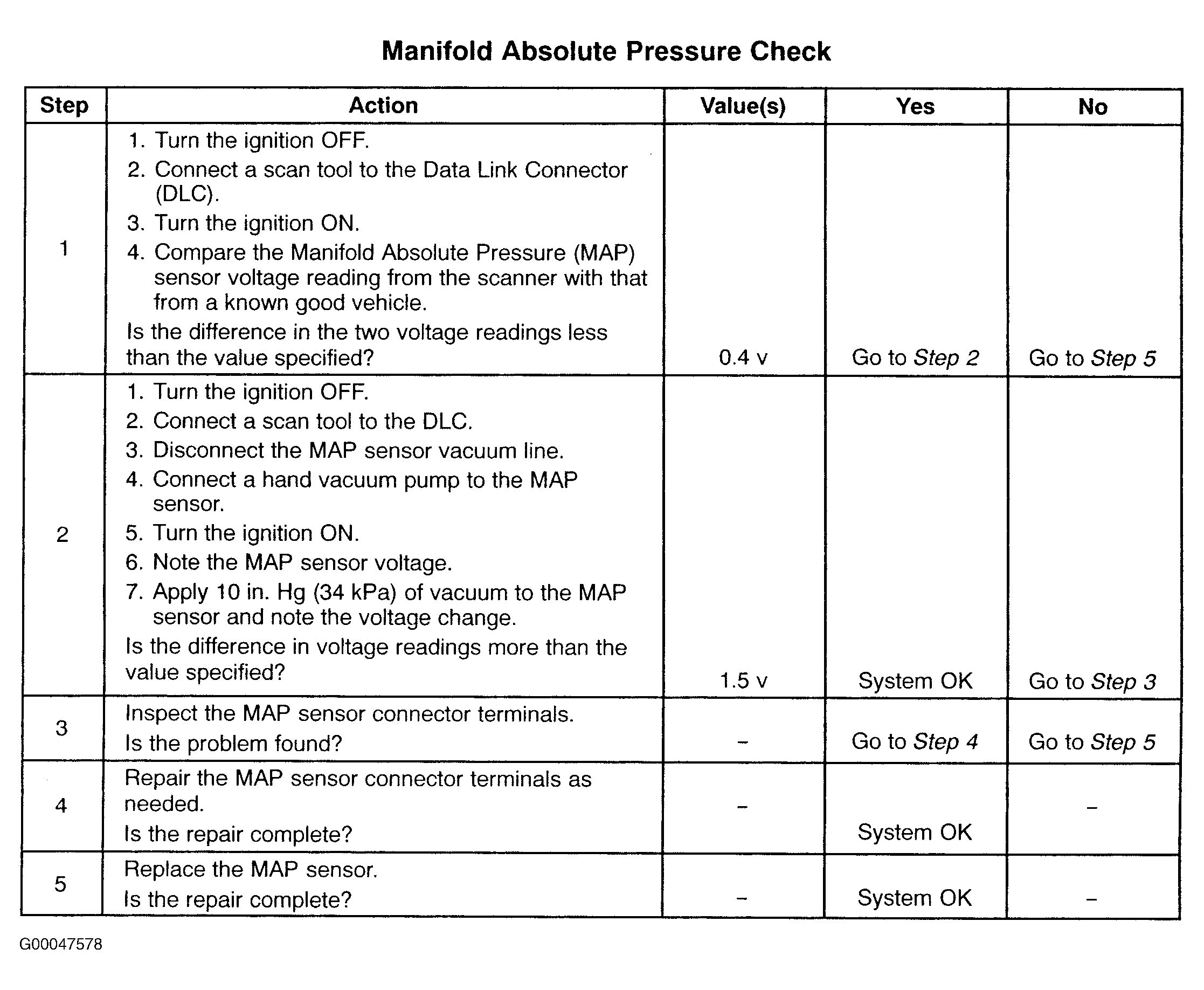

Fig 1: Manifold Absolute Pressure Check (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

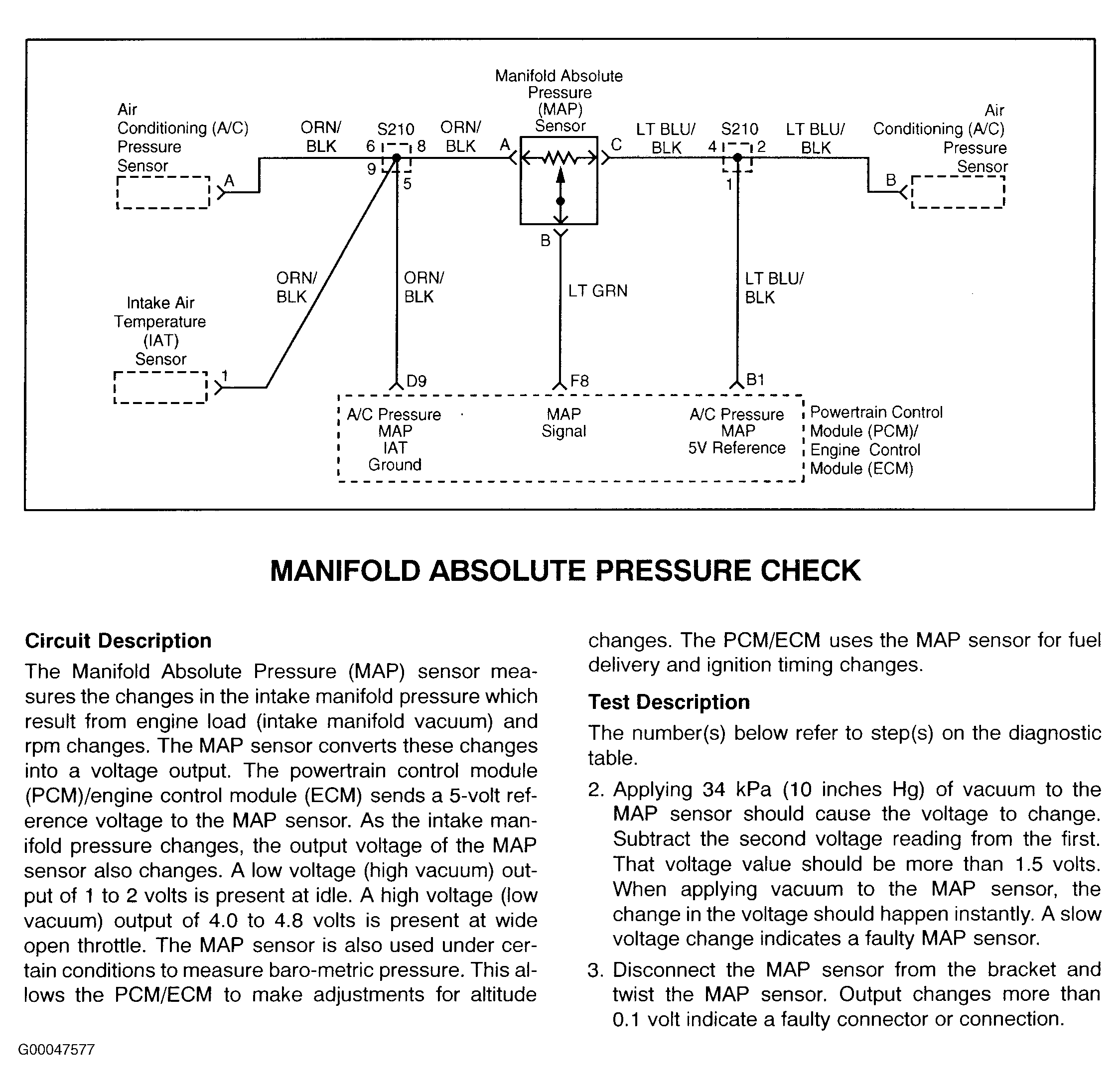

Fig 2: Manifold Absolute Pressure Check (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
