DTC P0125: Engine Coolant Temperature Insufficient For Closed Loop Fuel Control

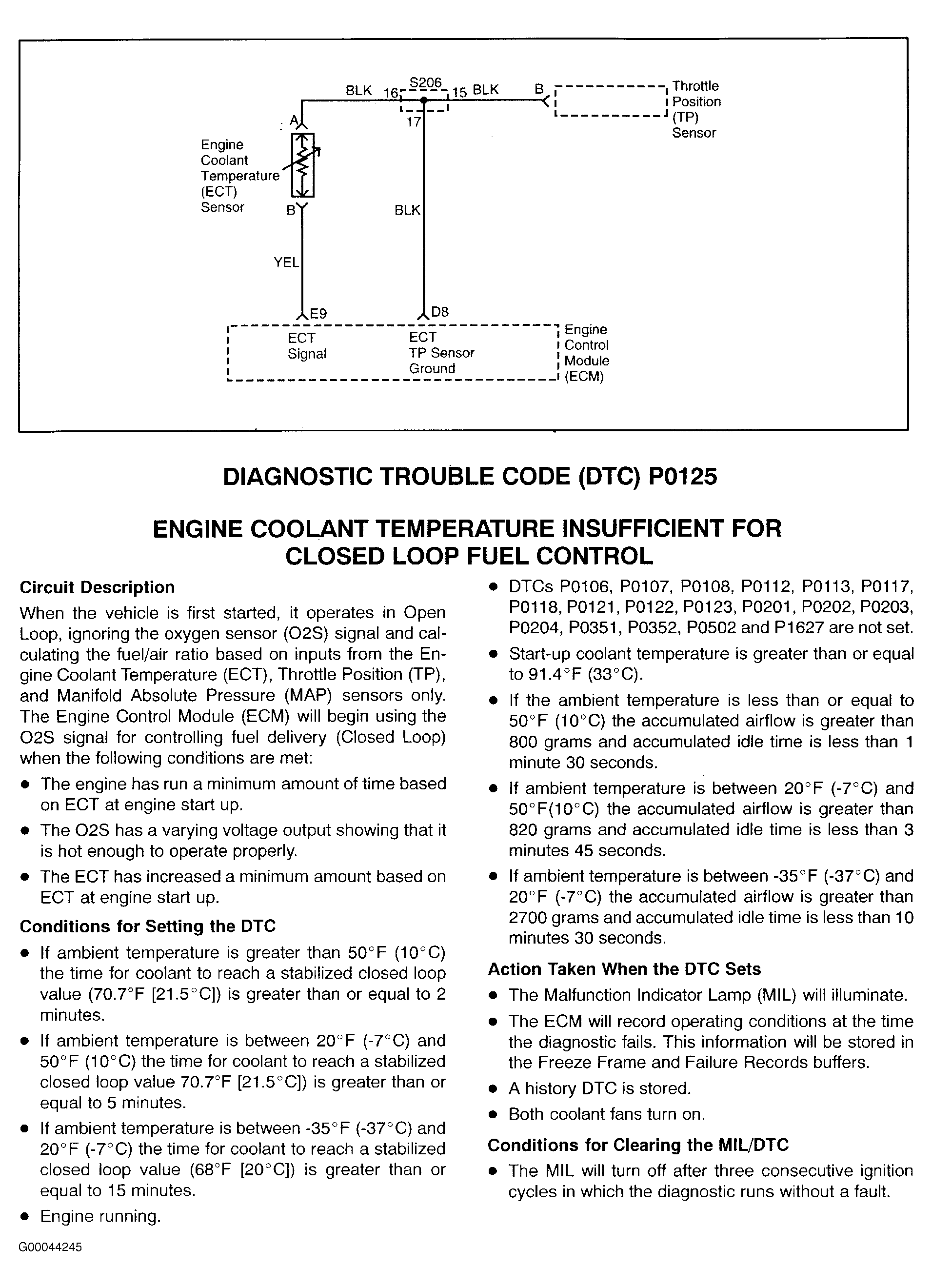

Fig 1: DTC P0125: Engine Coolant Temp Insufficient For Closed Loop Fuel Control (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

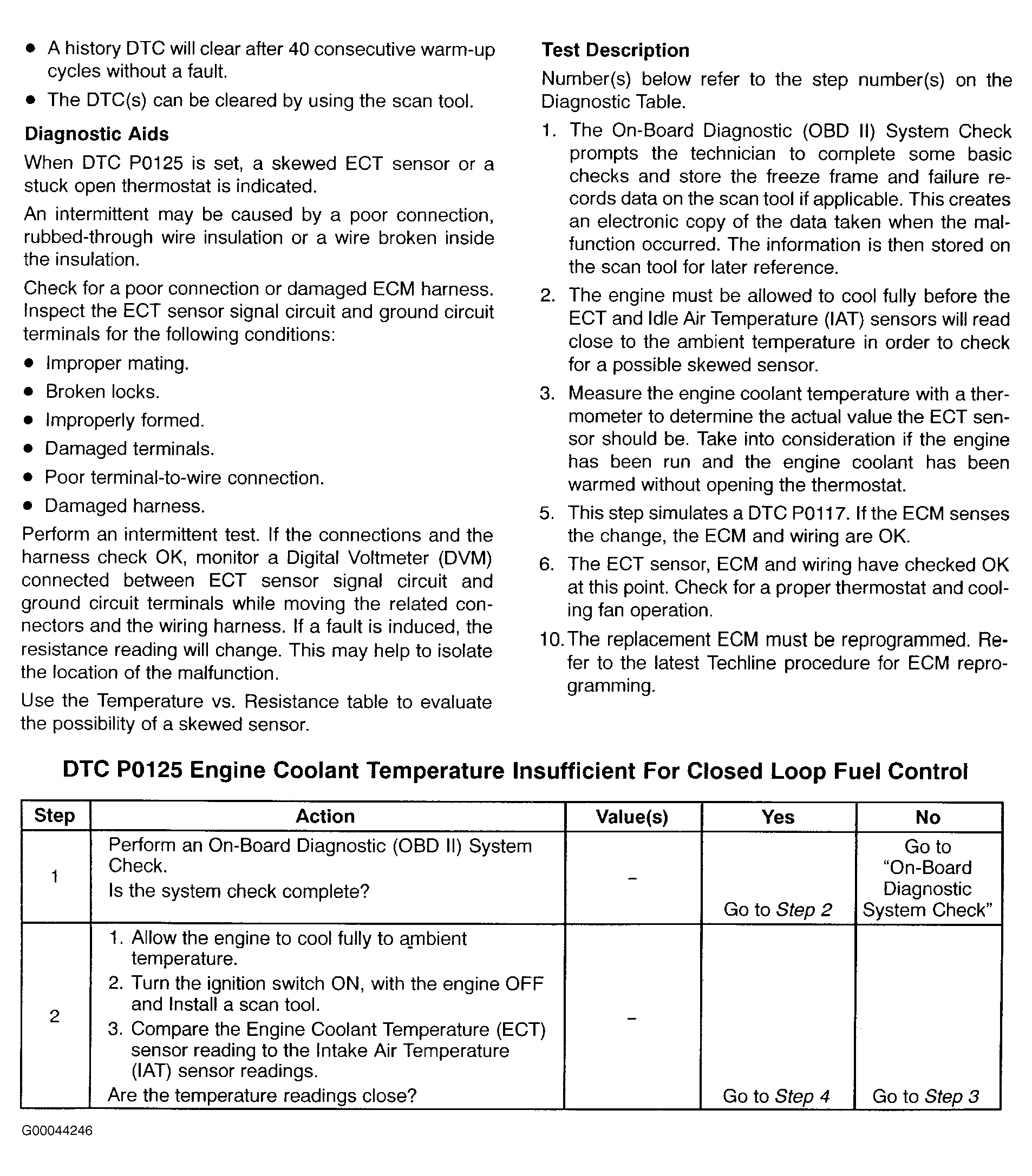

Fig 2: DTC P0125: Engine Coolant Temp Insufficient For Closed Loop Fuel Control (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

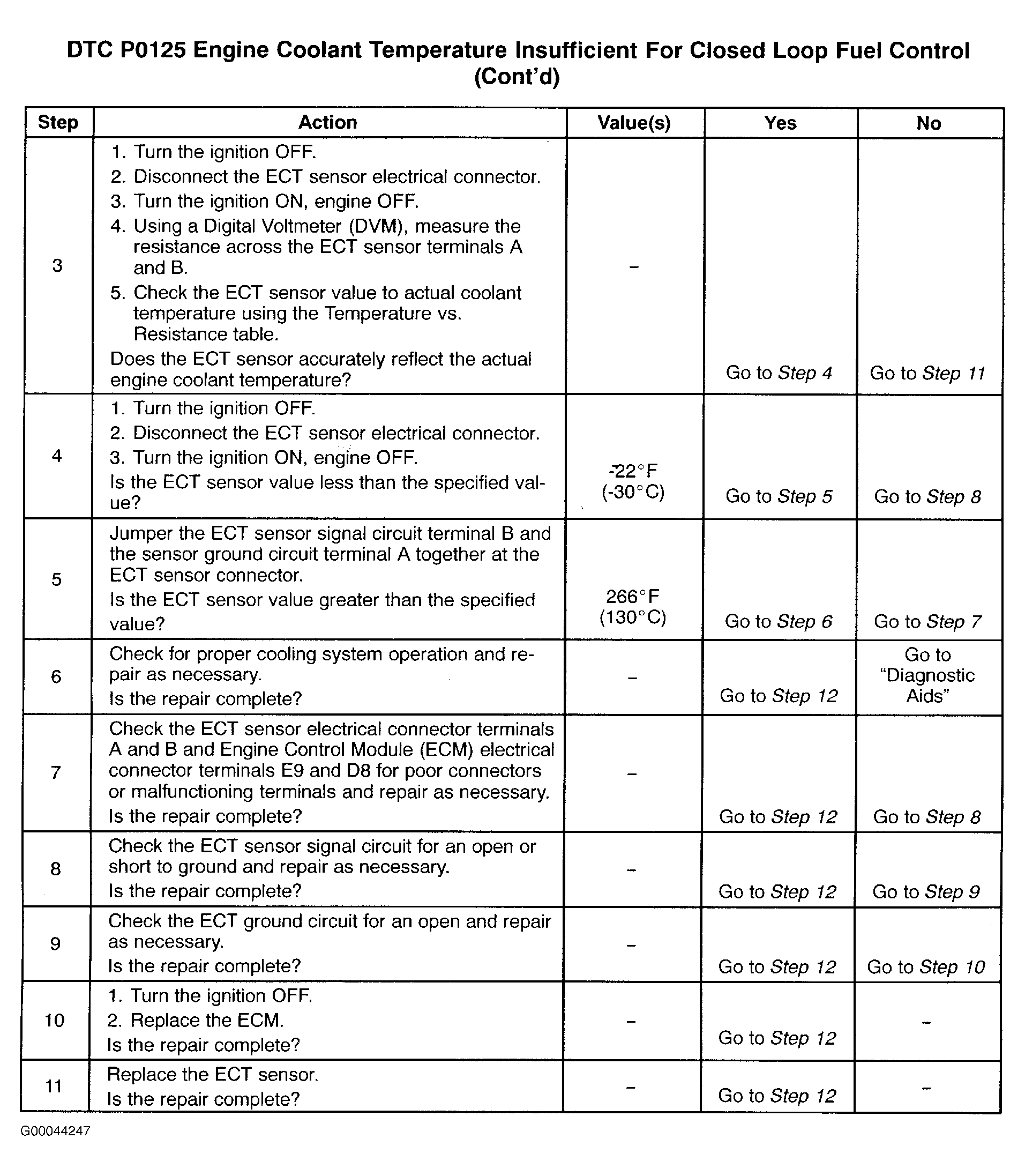

Fig 3: DTC P0125: Engine Coolant Temp Insufficient For Closed Loop Fuel Control (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

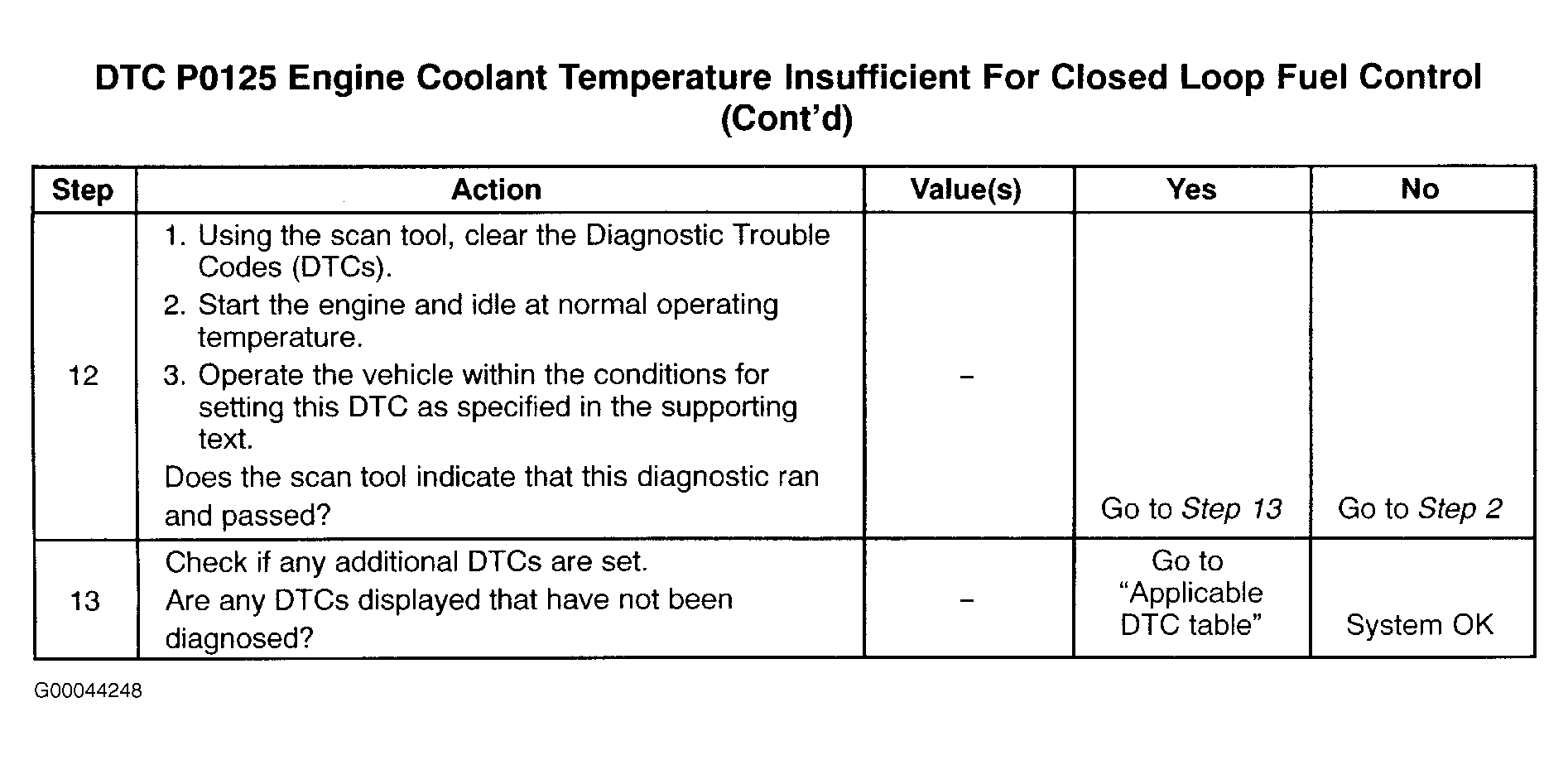

Fig 4: DTC P0125: Engine Coolant Temp Insufficient For Closed Loop Fuel Control (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
