DTC P0141: O2 Bank No. 1, Sensor No. 2, Heater

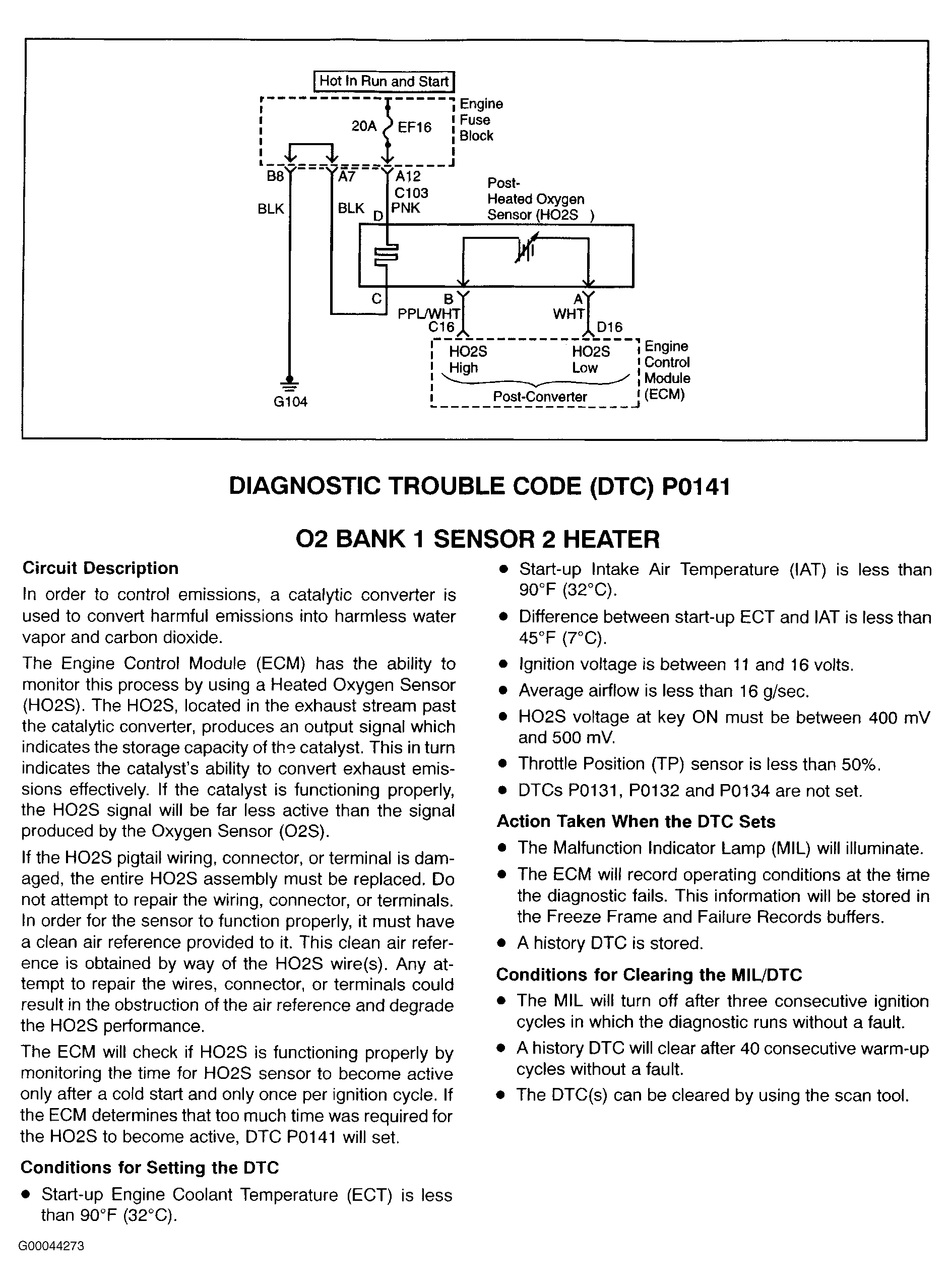

Fig 1: DTC P0141: O2 Bank No. 1, Sensor No. 2, Heater (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

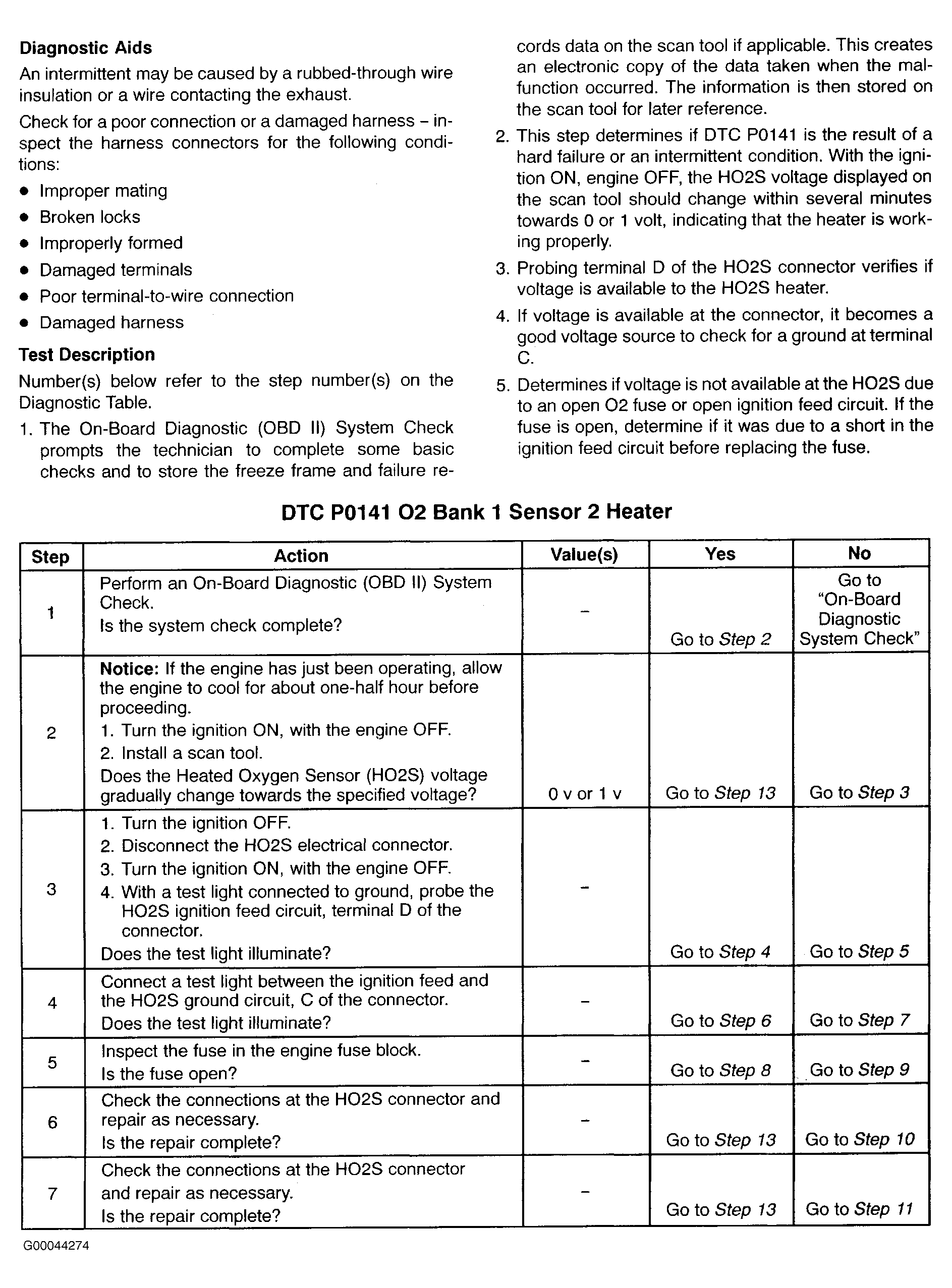

Fig 2: DTC P0141: O2 Bank No. 1, Sensor No. 2, Heater (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 3: DTC P0141: O2 Bank No. 1, Sensor No. 2, Heater (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
