DTC P1635: ECM 5-Volt Reference Line Low

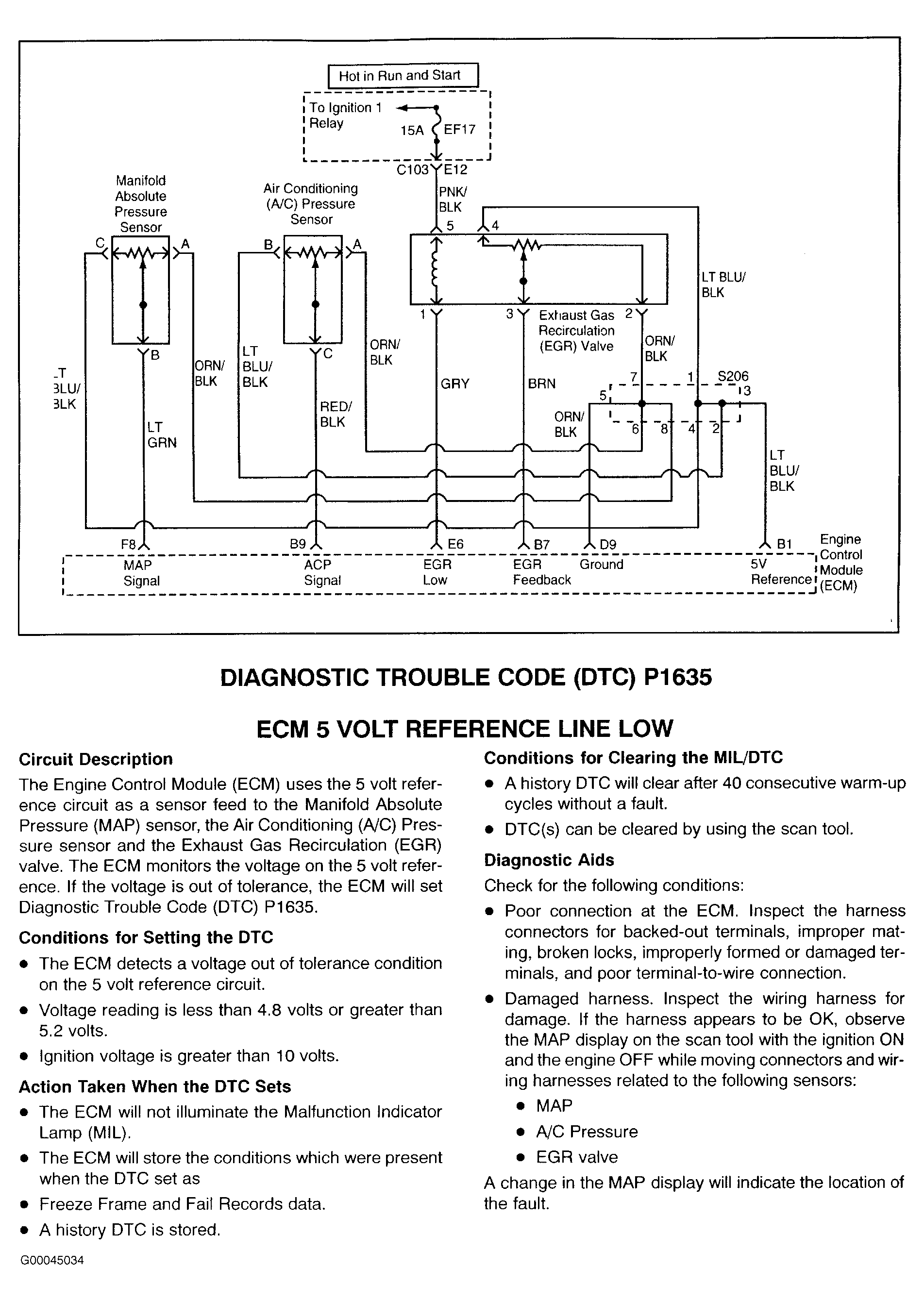

Fig 1: DTC P1635: ECM 5-Volt Reference Line Low (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

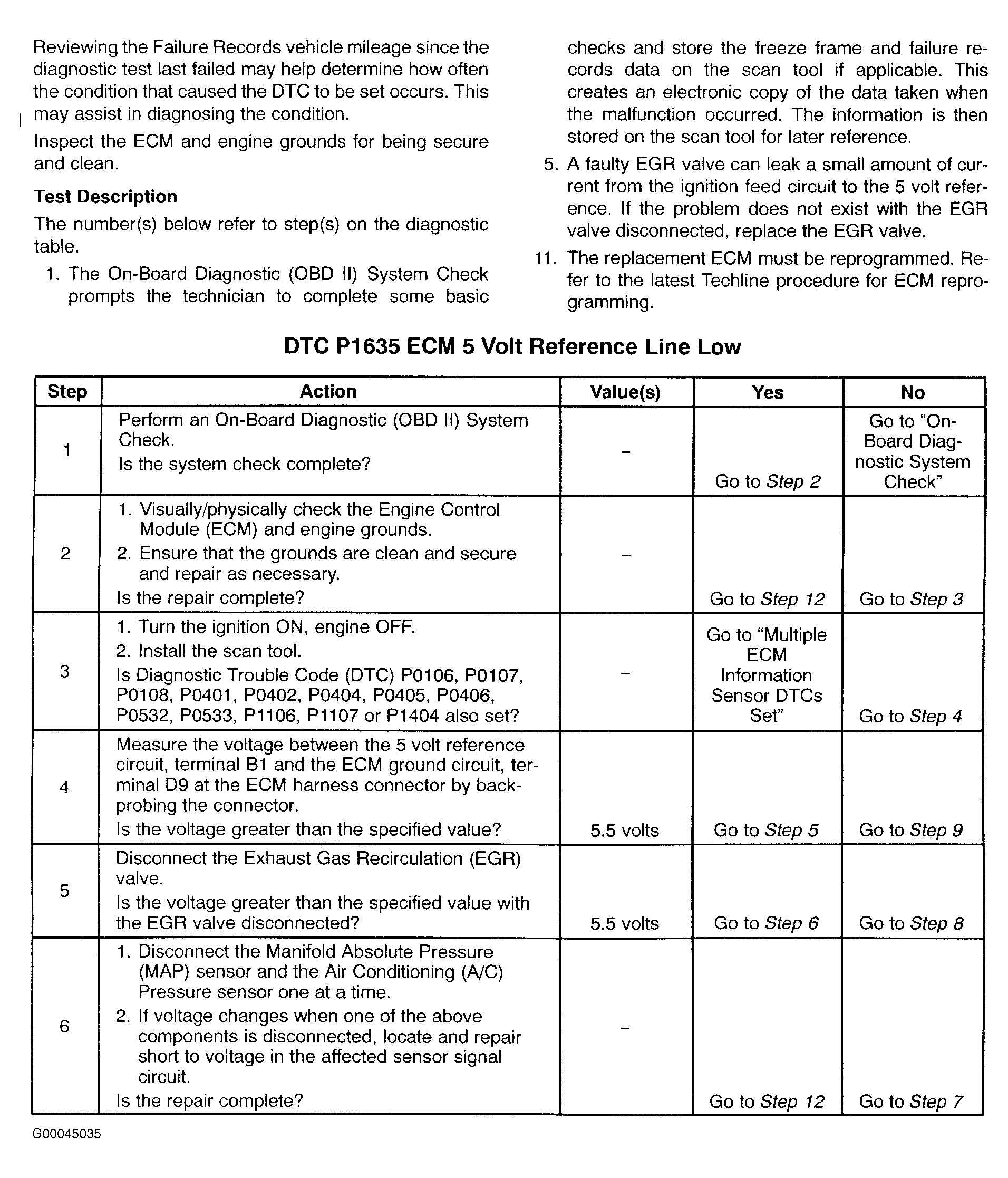

Fig 2: DTC P1635: ECM 5-Volt Reference Line Low (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

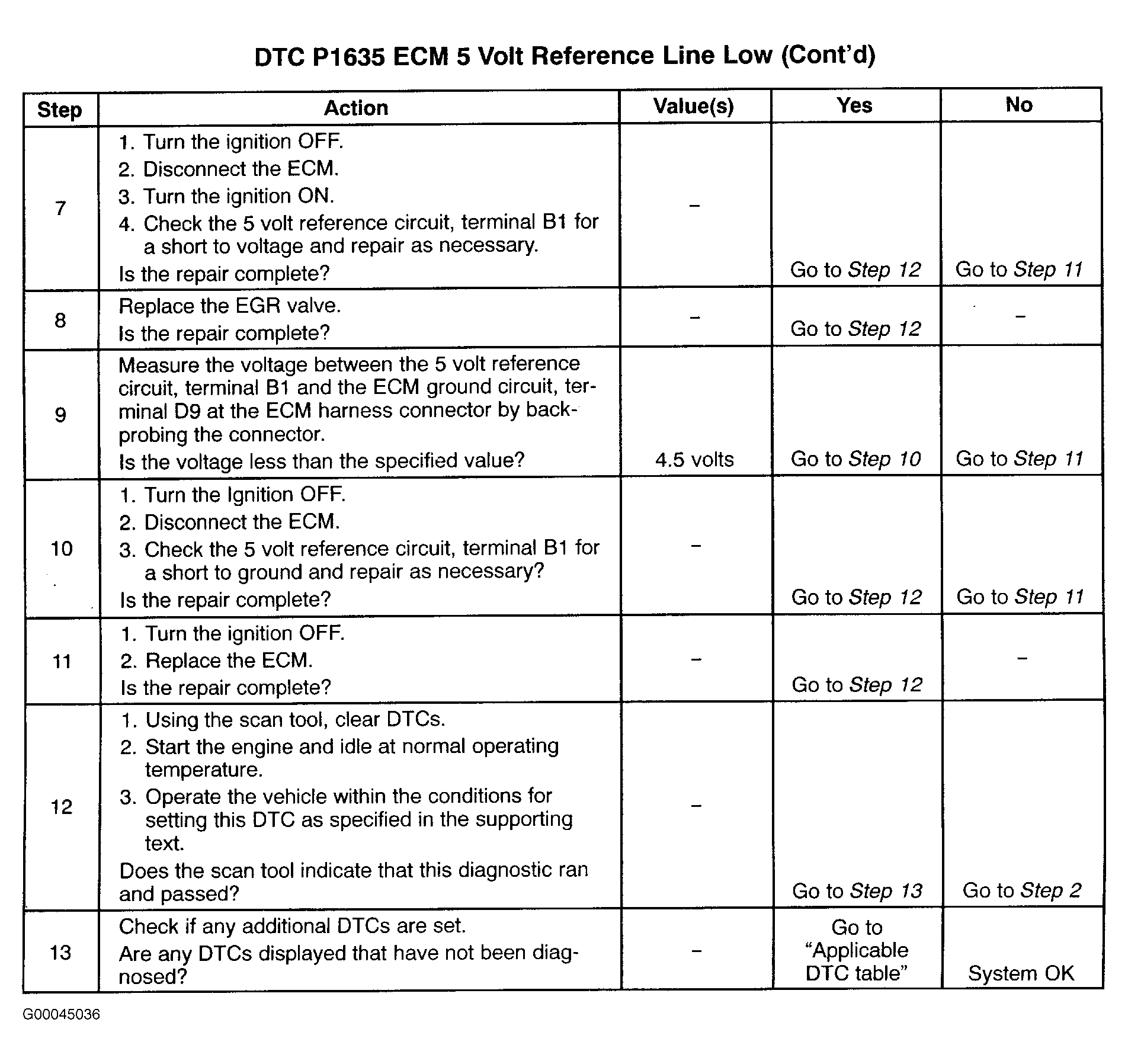

Fig 3: DTC P1635: ECM 5-Volt Reference Line Low (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
